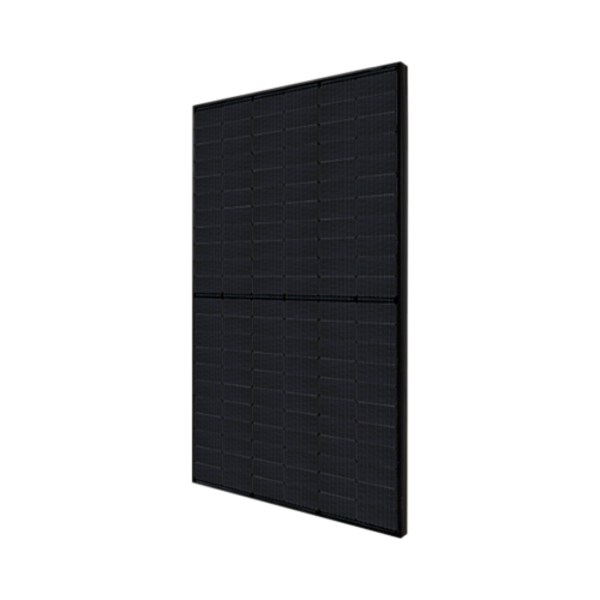

Canadian Solar Hikublack Cs3n-395ms,f23 395w Black On Black 132 Half-cell Mono Solar Panel

With Canadian Solar's industry leading Half Cell mono-PERC cell technology and the innovative LIC (Low Internal Current) module technology, all customers can now have high power mono modules up to 400W.

Feature Bullets

• Module power up to 410W
• Lower LCOE & BOS cost
• Comprehensive LID/LeTID mitigation technology, up to 50% lower degradation
• Better shading tolerance
• Minimizes micro-crack impacts
• Heavy-snow load up to 8100Pa, enhanced wind load up to 6000Pa

Specifications:

Type: High Efficiency
Series/Model: HiKuBlack
Length: 1940 mm
Width: 1048 mm
Height: 35 mm
Frame Depth: 35 mm
Cells Technology: Monocrystalline (Mono) PERC
Number of Half Cells: 132 (2 x (11 x 6)0)
Maximum Power (Pmax): 395 W STC/295 W NOCT/369.1 W PTC
Maximum Power Voltage (Vmp): 37 V STC/34.6 V NOCT
Maximum Power Current (Imp): 10.68 A STC/8.54 A NOCT
Open-Circuit Voltage (VOC): 44.3 V STC/41.8 V NOCT
Short-Circuit Current (Isc): 11.44 A STC/9.23 A NOCT
Maximum System Voltage: 1000 V (UL)
Maximum Series Fuse Rating: 20 A
Module Efficiency: 19.4%
Frame Material: Anodized Aluminum Alloy, Crossbar Enhanced
Frame Color: Black
Backsheet Color: Black
Irradiance: 1000 W/m2 STC/800 W/m2 NOCT
Output Cables: Portrait: 400 mm (15.7 in) (+)/280 mm (11.0 in) (-), (Supply Additional Cable Jumper), 2 Lines/Pallet), Landscape, 1250 mm (49.2 in), 12 AWG (UL)
Connector Type: T4 Series or MC4 Series
Pressure Rating: 8100 Pa (Heavy Snow) & 6000 Pa (Wind)
Cell Temperature: 25 deg C STC
Ambient Temperature: 20 deg C NOCT
Temperature Coefficients of Pmax: -0.34%/deg C
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.26%/deg C
Temperature Coefficients of Isc: -0.05%/deg C
Nominal Operating Cell Temperature: 42 +/-3 deg C
Air Mass (AM): 1.5 STC/1.5 NOCT
Junction Box: IP68 Rated, 3 Bypass Diodes
Front Cover: 3.2 mm Tempered Glass
Standards: ISO 9001:2015/Quality Management System, ISO 14001:2015/Standards for Environmental Management System, ISO 45001: 2018/International Standards for Occupational Health & Safety, IEC 61215/IEC 61730/CE, FSEC (US Florida)/UL 61730/IEC 61701/IEC 62716, DVE, CSA, Cus, CE
Warranty: 25 Years Limited Product, 25 Years Product on Materials & Workmanship
Weight: 51.6 lb
