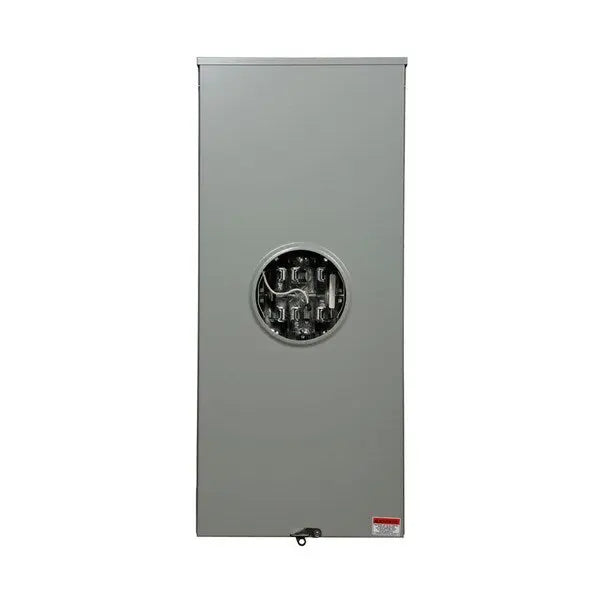

1008798CH - Meter Socket

The Meter Socket is built for heavy-duty commercial and industrial use, offering a high capacity of 320 A. It features a top/bottom feed design and supports 3-phase power systems with 4 wires, making it suitable for demanding applications. With 7 jaws and a lever bypass, it ensures reliable connectivity and easy service access. The socket operates at up to 600 V AC/DC and supports a 5 x 5 hub opening for secure conduit entry. Measuring 34.5 inches in height, 15 inches in width, and 5.69 inches in depth, this socket is engineered for performance and durability, weighing 42 lb for solid, stable installation.

Key Features:

• 320 A rating for high-capacity power systems
• Supports 3-phase, 4-wire configurations
• Lever bypass for maintenance convenience

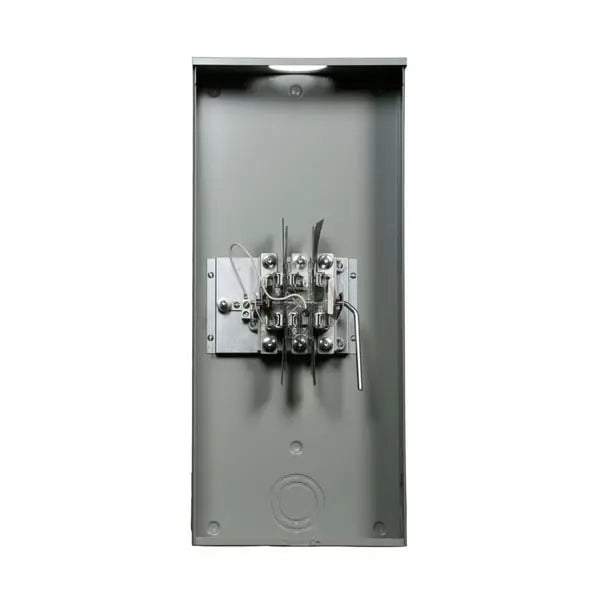

• 7 jaws with top and bottom feed options
• Rated for up to 600 V AC/DC with a 5 x 5 hub opening

This meter socket is ideal for high-demand electrical metering setups in commercial or industrial environments.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 1008798CH
