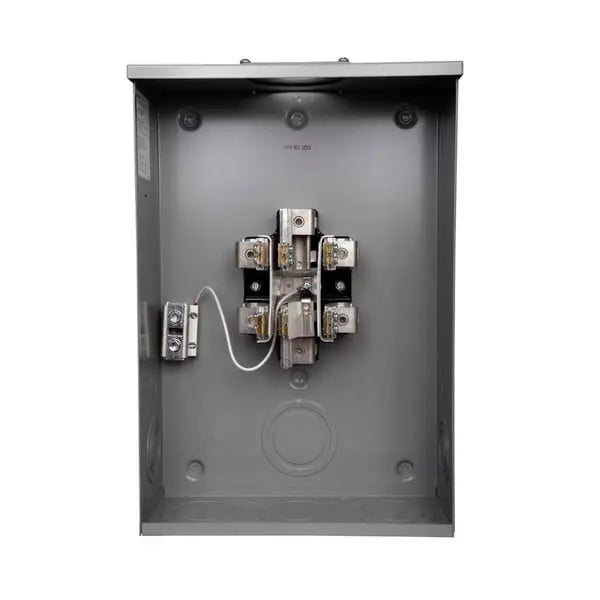

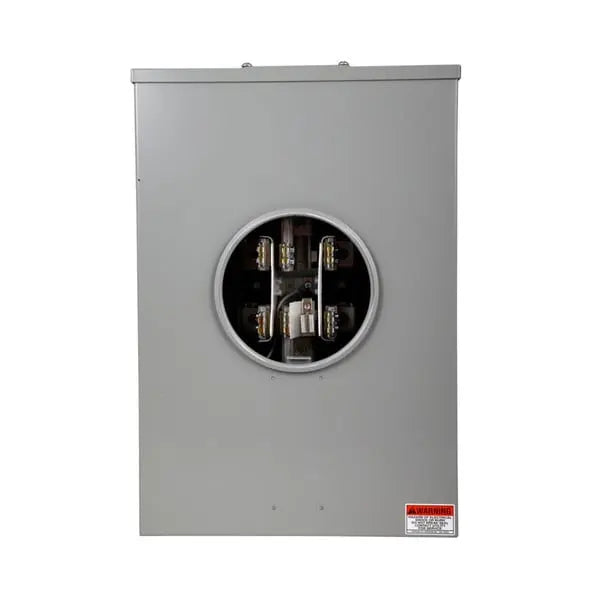

1009097CH - Meter Socket

The Meter Socket is a durable and dependable solution for residential and commercial metering applications. Designed to handle up to 200A, this meter socket supports single-phase systems with three wires and a voltage rating of 600 V AC/DC. It features seven jaws for secure and reliable connections. With a compact and sturdy design, including a 5" x 5" hub opening and a 3-5/16" adapter plate hub, it allows for both top and bottom feed options to suit various installation needs.

Key Features:

• Product Type: Meter Socket
• Amperage: 200 A
• Voltage Rating: 600 V AC/DC
• Phase: Single-phase
• Wires: 3 wires
• Jaws: 7 jaws for reliable connections
• Hub Opening: 5" x 5" with 3-5/16" adapter plate hub
• Feed Type: Top/Bottom feed
• Dimensions:
• Height: 19 in
• Length: 5.25 in
• Width: 13 in
• Weight: 21 LB

This Meter Socket provides a robust and versatile solution for securely housing and connecting electric meters, making it ideal for various utility and construction project

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 1009097CH
