1009260CH - Meter Socket

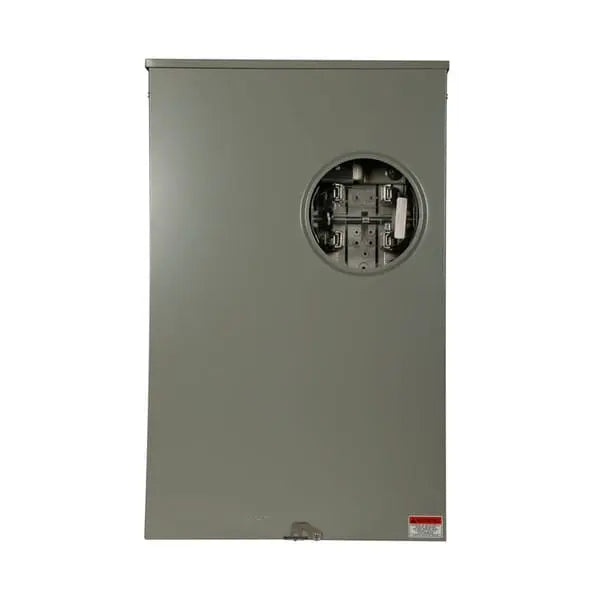

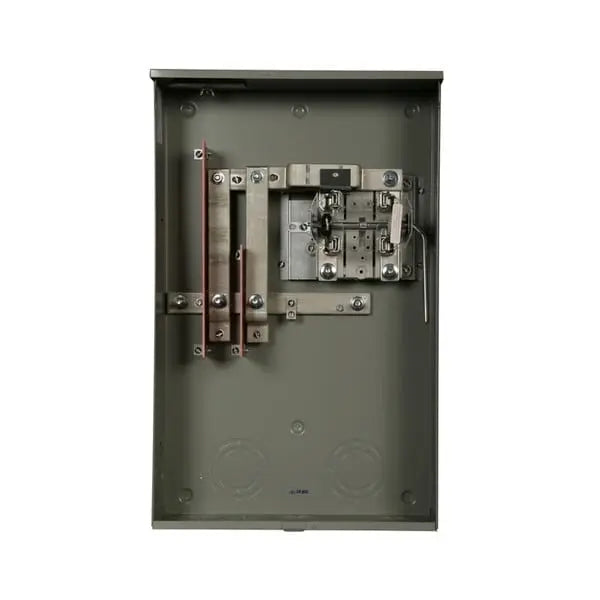

The Meter Socket is a high-capacity electrical device designed for safe and reliable metering in residential, commercial, and industrial applications. With a 320 A current rating, it provides ample capacity for high-power systems. The meter socket features an overall height of 36.63 inches, a width of 15 inches, and a length of 5.69 inches, offering ample space for easy wiring and installation. It includes a 5 x 5 hub cover plate hub, supporting both top and bottom feed configurations. The socket supports 4 jaws and 3 wires, and operates at 600 V AC/DC, ensuring versatile use in different electrical environments. Additionally, it includes a lever bypass for enhanced control and safety. Weighing 28 lbs, this meter socket is robust and designed for long-lasting performance.

Key Features:

• Type: Meter Socket
• Current Rating: 320 A
• Voltage Rating: 600 V AC/DC
• Dimensions: Height: 36.63 in, Width: 15 in, Length: 5.69 in
• Hub Configuration: 5 x 5 Hub Cover Plate Hub
• Jaws: 4 Jaws
• Wires: 3 Wires
• Feed Type: Top/Bottom Feed
• Bypass: Lever Bypass for enhanced control
• Weight: 28 lbs
• Phase: 1 Phase

This Meter Socket offers high reliability, ease of installation, and the necessary protection and control for a wide range of electrical metering needs.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 1009260CH
