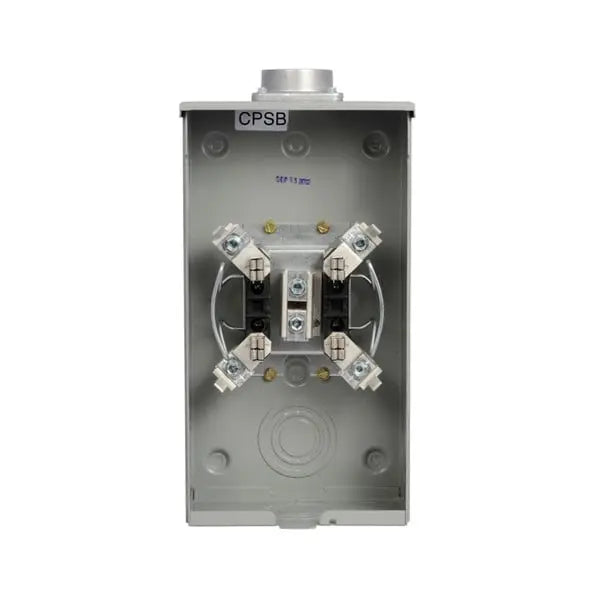

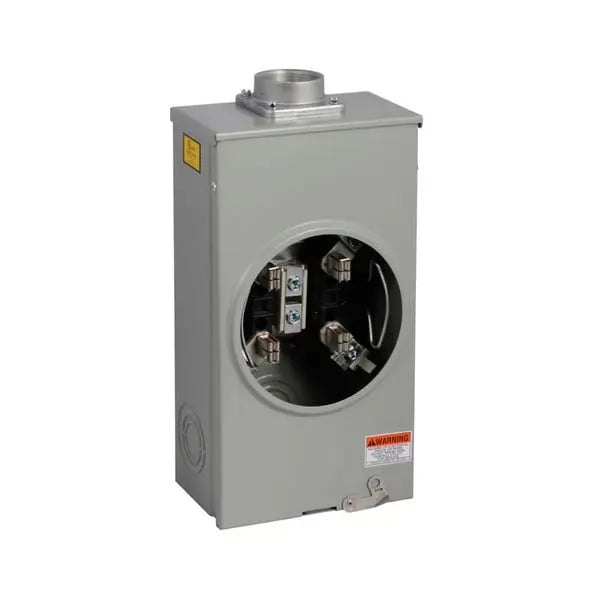

1004455BCH - Meter Socket

The Meter Socket is designed for safe and reliable metering of electrical systems in residential and commercial applications. Rated for 200 amps and 600V, this socket features a 1-1/4-inch bolt-on hub for secure connection and a 4-jaw design for meter installation. It supports wire sizes from 8 AWG to 250 KCMIL and accommodates top or bottom feed configurations. With overall dimensions of 15 inches in height, 8 inches in width, and 4.38 inches in length, this socket is ideal for installations where both top and bottom mounting options are required. Weighing just 5 pounds, it provides a durable and versatile solution for metering needs.

Key Features:

• Product Type: Meter Socket
• Amperage Rating: 200 Amps
• Voltage Rating: 600V
• Feed Type: Top/Bottom Feed
• Number of Jaws: 4 Jaws
• Wire Size: 8 AWG to 250 KCMIL
• Hub Size: 1-1/4-inch Bolt-On Hub
• Mounting: Top/Bottom Mount
• Configuration: 3 Wires, Single-Phase
• Dimensions:
• Overall Height: 15 inches
• Overall Width: 8 inches
• Overall Length: 4.38 inches
• Weight: 5 lbs
• Application: Residential and commercial metering

The Meter Socket ensures safe, secure, and efficient electrical metering, offering flexibility with top/bottom feed options and a wide range of compatible wire sizes.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 1004455BCH
