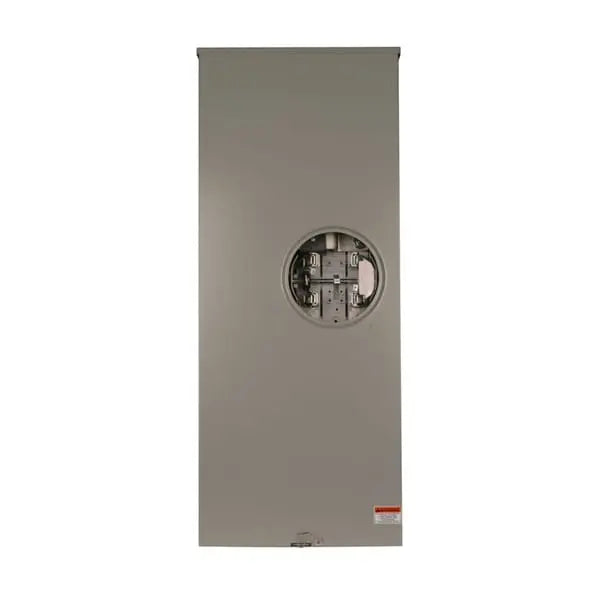

1009760ACH - Meter Socket

The Meter Socket, 320 A, is a robust and reliable electrical component designed for residential and commercial applications. With an overall height of 36.63 inches, a length of 5.68 inches, and a width of 15 inches, this meter socket is built to handle demanding electrical loads. It features a 1-phase, 3-wire configuration and can handle voltages up to 600 V. The socket is equipped with a lever bypass for added convenience and safety, allowing for easy disconnect and reconnect of power without removing the meter. It includes two 5 x 5 hub cover plates, providing versatility for both top and bottom feed installation. Weighing only 25 lbs, it’s lightweight yet durable, ensuring long-term performance in various weather conditions.

Key Features:

• Amperage: 320 A
• Dimensions: 36.63 in height, 5.68 in length, 15 in width
• Configuration: 1-phase, 3-wire
• Voltage Rating: 600 V

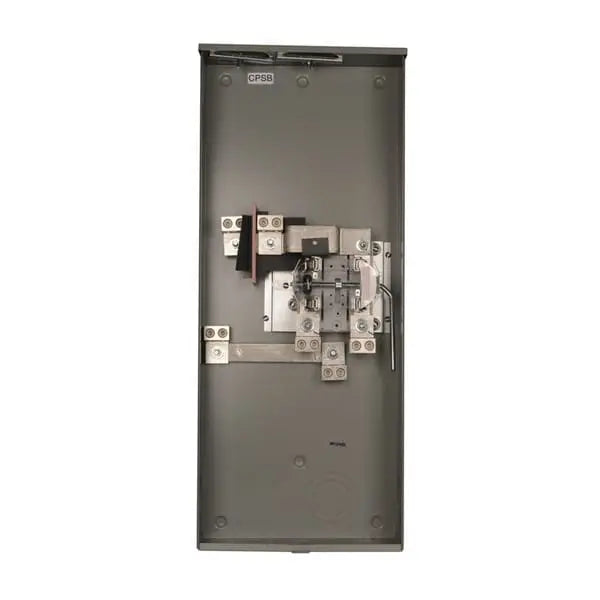

• Bypass Type: Lever bypass for easy disconnect
• Hub Plate: (2) 5 x 5 hub cover plates for top/bottom feed installation
• Weight: 25 lbs

This meter socket is designed to provide secure, efficient power metering and is ideal for applications where high electrical loads and safety are a priority. It’s a durable solution for ensuring reliable power distribution and safe meter access.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 1009760ACH
