Ironridge FlashFoot2 Series Black Roof Attachment
Details

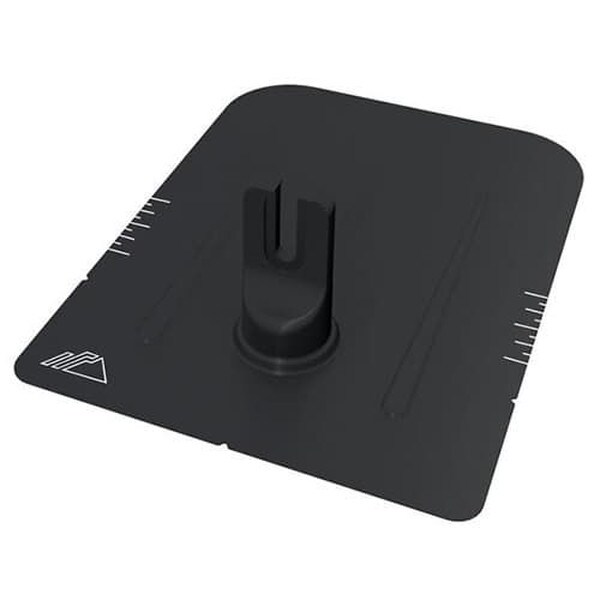

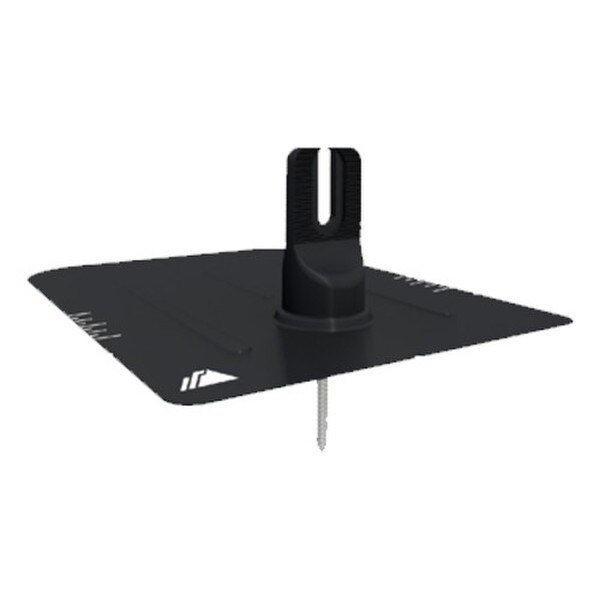

The IronRidge FlashFoot2 is a solar mounting system for composition shingle roofs that removes the need for separate standoffs, flashings, and L-feet. To securely connect IronRidge XR Rails to roof structures while also protecting against water penetration and weather damage, FlashFoot integrates a variety of structural and waterproofing features. The FlashFoot2 is the first solar attachment to pass the wind-driven rain test since it has three layers of water protection. The flashing has a 9 in x 12 in profile that eliminates roofing nail interference. Alignment markers in FlashFoot2 assist in easily aligning flashing with pilot holes.
Feature Bullets
- FlashFoot2® raises the bar in solar roof protection
- The unique water seal design is both elevated and encapsulated, delivering redundant layers of protection against water intrusion
- In addition, the twist-on Cap perfectly aligns the rail attachment with the lag bolt to maximize mechanical strength
- Comes with flashing, lag bolt, and Cap
Specifications:
Series: FlashFoot2
Finish: Black
Dimensions: 9 in x 12 in
Includes: 5/16 in x 4.75 in SS Lag Bolt & EPDM Washer
