Fronius 85-690 V Bidirectional Energy Meter

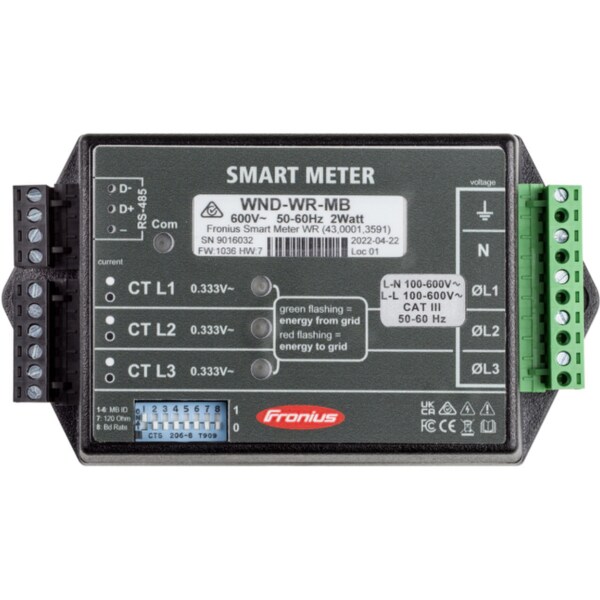

Introducing the Fronius Smart Meter WR, a bidirectional energy meter. Thanks to its high accuracy and fast communication speed via Modbus RTU, the meter is suitable for dynamic feed-in management and grid-tied zero export PV systems. Together with Fronius Solar.web monitoring, the Smart Meter offers a detailed overview of a home or business' energy consumption.

Feature Bullets

• Fronius Smart Meter WR 100-600V - 3, bidirectional energy meter using Modbus RTU (RS 485), feed-in management and energy consumption monitoring

Specifications:

Type: Bidirectional
Operating Voltage: 85-690 V
Temperature Rating: -40 to 80 deg C
Connector Type: Euroblock Style Pluggable Terminal Blocks (12 AWG/2.5 sq mm)
Dimensions: 6.02 in Length x 3.35 in Width x 1.50 in Height
Frequency Rating: 45-65 Hz
Maximum Rated Apparent Power: 3.75 W
Accuracy: +/-0.5%
Current Transformers (CTS): 1 - 6000 A/Secondary: Use Only CTs with Voltage Output 333 mV
Supported Grid Types: 4 Wire (Wye), 3 Phase 3 Wire without N (Delta), 3 Phase 4 Wire Delta (High-Leg Delta/Stinger Grid)
Power Supply: Self-supplied, No External Power Supply Required
Standards: UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1, EN 61326: 2002, EN61000-4-2, EN61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN, 61000-4-11, FCC Part 15 cETLus Listed B, EN 55022: 1994 cETLus Listed B
Weight: 8.2 oz
Warranty: Limited
