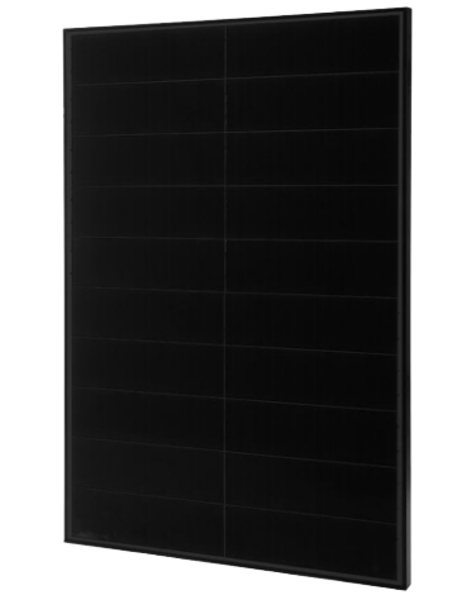

Solaria PowerXT-370R-PD 370w Mono Solar Panel

Achieving up to 19.4% efficiency, Solaria PowerXT solar modules are one of the highest power modules in the residential solar market. Compared to conventional modules, Solaria PowerXT modules have fewer gaps between the solar cells; this leads to higher power and superior aesthetics. Solaria PowerXT residential modules are manufactured with black backsheet and frames, giving them a striking appearance. Developed in America, TSC's patented cell cutting creates a highly reliable PowerXT cell where busbars and ribbon interconnections, common failure points, are eliminated. TSC's patented panel assembly then packages the cells into the PowerXT solar panel, reducing inactive space between the cells. This process leads to an exceptionally attractive and efficient solar panel.

Feature Bullets

• Higher Efficiency, Higher Power - TSC PowerXT panels achieve up to 20.5% efficiency; traditional panels achieve 15% - 17% efficiency. TSC PowerXT panels are one of the highest power panels available
• Lower System Costs - PowerXT panels produce more power per square meter area. This reduces installation costs due to fewer balance of system components such as racking and cables
• Improved Shading Tolerance - Solar cell sub-strings are interconnected in parallel, within each of the four module quadrants, which dramatically lowers the shading losses and boosts energy yield
• Improved Aesthetics - Compared to traditional panels, PowerXT panels have a more uniform appearance and superior aesthetics, with a pure black photovoltaic panel
• Durability and Reliability - Solder-less cell interconnections are highly reliable and designed to exceed the industry leading product and power warranty of 25 years
• PID Resistant - TSC PowerXT panels are PID resistant. This insures stable and predictable energy production over time

Specifications:

Type: DC Panel
Series/Model: PowerXT®
Length: 1621 mm
Width: 1116 mm
Height: 40 mm
Frame Depth: 40 mm
Cells Technology: Monocrystalline Silicon
Maximum Power (Pmax): 370 W STC/272 W NOCT
Maximum Power Voltage (Vmp): 40.2 V STC/37 V NOCT
Maximum Power Current (Imp): 9.2 A STC/7.35 A NOCT
Open-Circuit Voltage (VOC): 48.3 V STC/45.5 V NOCT
Short-Circuit Current (Isc): 9.6 A STC/7 A NOCT
Maximum System Voltage: 1000 V
Maximum Series Fuse Rating: 15 A
Module Efficiency: 20.5%
Frame Material: Anodized Aluminum
Front Glass: 3.2 mm (0.126 in) Anti-Reflection Coated, Tempered
Frame Color: Black
Backsheet Color: Black
Irradiance: 1000W/m2 STC/800W/m2 NOCT
Output Cables: PV Wire, 1000 mm
Connector Type: Amphenol H4 (MC4 Compatible)
Fire Type: Type 1 Class 1
Front Side Maximum Static Loading: 5400 Pa
Rear Side Maximum Static Loading: 3600 Pa
Operating Temperature: -40 to 185 deg F
Temperature Coefficients of Pmax: -0.39%/deg C
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29 %/deg C
Temperature Coefficients of Isc: 0.04%/deg C
Nominal Operating Cell Temperature: 45+/-2 deg C
Junction Box: IP67 Rated, 4 Diodes
Power Output Tolerance: 0-5 W
Standards: CE, UL, DVE, TUV, UL 1703, CAN/CSA-C22.2, IEC 61215, IEC 61730
Warranty: 25 Years Power and Product
Weight: 21 kg
