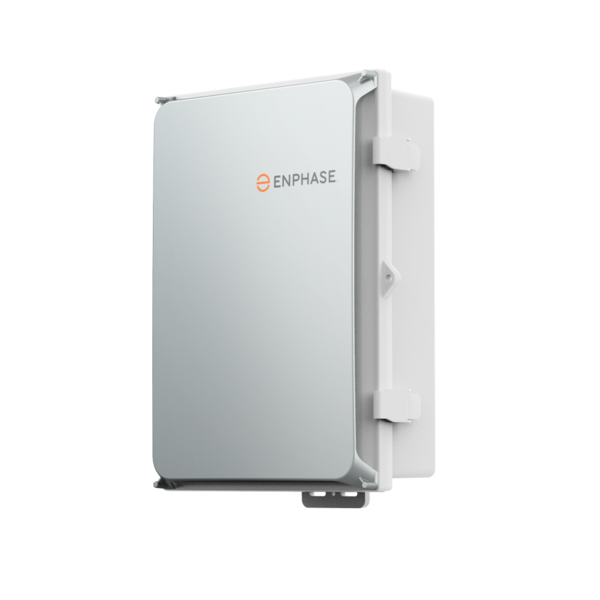

Enphase IQ Combiner 4 (IEEE certified) 1547:2018 Compliant IQ Gateway, Max 80A and 4 AC Branch Circuits

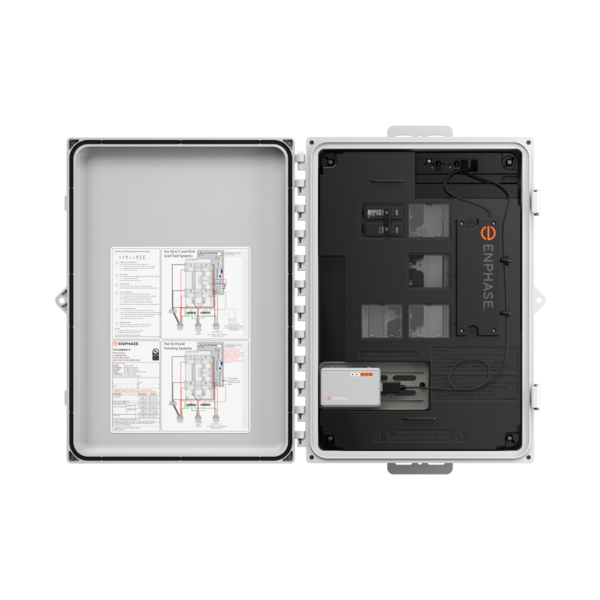

The IQ Combiner 4/4C with IQ Gateway and integrated LTE-M1 cell modem (included only with IQ Combiner 4C) consolidates interconnection equipment into a single enclosure. It streamlines IQ Microinverters and storage installations by providing a consistent, pre-wired solution for residential applications. It offers up to four 2-pole input circuits and Eaton BR series busbar assembly.

Feature Bullets

• Flexible networking supports Wi-Fi, Ethernet, or cellular
• Optional AC receptacle available for PLC bridge
• Provides production metering and consumption monitoring

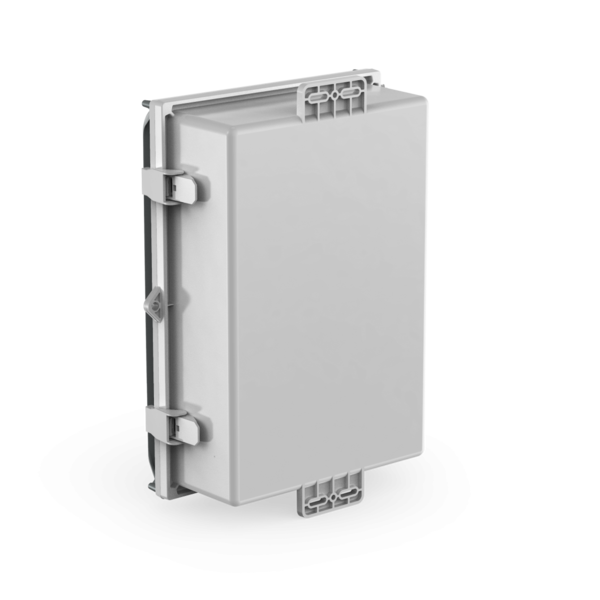

• Centered mounting brackets support single stud mounting
• Supports bottom, back, and side conduit entry
• Up to four 2-pole branch circuits for 240VAC plug-in breakers (not included) with hold down kit support
• Durable NRTL-certified NEMA type 3R enclosure
• Five-year limited warranty
• Two years labor reimbursement program coverage included
• Compatible with IQ8-Series and IQ7-Series Microinverters

Specifications:

Type: IQ
Enclosure Rating: 3R
System Voltage: 120/240 VAC, 60 HZ
Eaton BR Series Busbar Rating: 125 A
Maximum Continuous Current Rating: 65 A
Maximum Continuous Current Rating (Input from PV/Storage): 64 A
Maximum Fuse/Circuit Rating (Output): 90 A
Branch Circuits (Solar and/or Storage): Up to Four 2-Pole Eaton BR Series Distributed Generation (DG) Breakers Only
Maximum Total Branch Circuit Breaker Rating (Input): 80 A of Distributed Generation/90 A with IQ Envoy Breaker Included
Production Metering CT: 200 A Solid Core Pre-Installed & Wired to IQ Gateway
Wire Size: 20-50 A Breaker Inputs - 14-4 AWG Copper Conductors, 60 A Breaker Branch Input - 4 to 1/0 AWG Copper Conductors, Main Lug Combined Output - 10 to 2/0 AWG Copper Conductors, Neutral & Ground - 14 to 1/0 Copper Conductors - Always Follow Local Code Requirements for Conductor Sizing
Integrated Wi-Fi: 802.11 b/g/n
Ethernet: 802.3, Cat5E (or Cat 6) UTP Ethernet Cable
Cellular: CELLMODEM-M1-06-SP-05, CELLMODEM-M1-06-AT-05 (4G Based LTE-M1 Cellular Modem)
Cooling: Natural Convection, Plus Heat Shield
Ambient Temperature Rating: -40 to 46 deg C
Standards: UL Listed, cCSAus Certified
