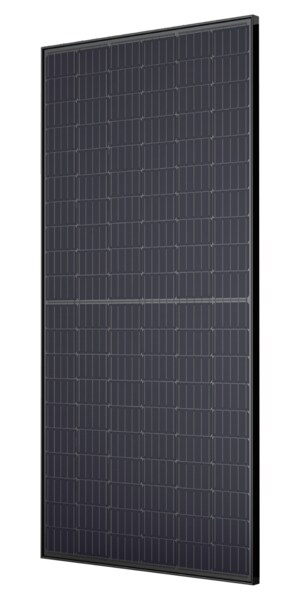

TrinaSolar TSM-315-DD05H.05(II) 315W Mono Solar Panel

Trina Solar ALLMAX panels offer home and business owners reliable solar power paired with great aesthetics and options to match your personal preferences. Available with black or silver frames set to black or white backsheets, ALLMAX panels pair their pleasing looks with the quality guarantee of Trina Solar and our industry leading 25-year Limited Manufacturer's Warranty.

Feature Bullets

• Increased Value - Reduce BOS cost with high power bin, Low thermal coefficients for greater energy production at higher temperature
• Half-cell design brings higher efficiency - New cell string layout and split J-box location to reduce the energy loss caused by inter-row shading, Integrated LRF(Light Redirecting Film) to enhance power, specially for ground-mount applications (optional), Lower cell connection power losses due to half-cell layout (120 monocrystalline)
• Highly reliable due to stringent quality control - Over 30 in-house tests (UV, TC, HF etc), PID resistant and free of snail trails, Increased module robustness to minimize micro-cracks, Internal test requirement of Trina more stringent than certification authority
• Certified to withstand the most challenging environmental conditions - 2400Pa negative load, 5400Pa positive load
• Aesthetics - Great aesthetics for dark roofs. Dark mono cells. Back frame and backsheet
• Maximize your savings potential - Available in both mono- and multicrystalline options, the ALLMAX series is perfect for small rooftop systems. ALLMAX panels can generate high amounts of energy even when space is limited. As one of the industry's most trusted panels, the ALLMAX module is a popular option for residential and commercial customers because of its reliability, pleasing aesthetics and compatibility with all major balance of system components and module electronics
• Highest standard of quality - As a vertically integrated company, Trina Solar ensures the highest standards of quality for our PV systems across the entire supply chain, to mitigate risk and increase your return on investment. Ranked as one of the world's most bankable solar manufacturers by Bloomberg New Energy Finance, Trina Solar has the staying power and dependability to stand behind our products for decades. As the first PV company to be awarded UL's Client Test Data Program Certification, we are setting industry standards for safety test and quality standards

Specifications:

Series/Model: AllMax M Plus+
Length: 1675 mm
Width: 992 mm
Height: 35 mm
Frame Depth: 35 mm
Cells Technology: Monocrystalline Framed Half Cell
Cell Dimensions: 6.17 in x 3.09 in
Number of Half Cells: 120 (6 x 20)
Maximum Power (Pmax): 315 W STC/235 W NOCT/288.2 W PTC
Maximum Power Voltage (Vmp): 33.3 V STC/30.9 V NOCT
Maximum Power Current (Imp): 9.51 A STC/7.58 A NOCT
Open-Circuit Voltage (VOC): 40.4 V STC/37.6 NOCT
Short-Circuit Current (Isc): 9.93 A STC/8.02 A NOCT
Maximum System Voltage: 1000 VDC (IEC/UL)
Maximum Series Fuse Rating: 20 A
Module Efficiency: 19%
Frame Material: 35 mm (1.38 in) Anodized Aluminum Alloy
Front Glass: 3.2 mm (0.13 in)
Frame Color: Black
Backsheet Color: Black
Irradiance: 1000W/m2 STC/800W/m2 NOCT
Output Cables: Photovoltaic Technology Cable 4.0mm2 (0.006 sq-in), Landscape: N 1200 mm/P 1200 mm(47.24/47.24 in), Portrait: N 140mm/P 285 mm (5.51/11.22 in)
Connector Type: MC4
Front Side Maximum Static Loading: 5400 Pa
Rear Side Maximum Static Loading: 2400 Pa
Operating Temperature: -40 to 185 deg F
Cell Temperature: 25 deg C STC
Ambient Temperature: 20 deg C NOCT
Temperature Coefficients of Pmax: -0.37%/deg C
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/deg C
Temperature Coefficients of Isc: -0.05%/deg C
Nominal Operating Cell Temperature: 44+/-2 deg C
Air Mass (AM): 1.5 STC/1.5 NOCT
Junction Box: IP68 Rated
Power Output Tolerance: 0-5 W
Encapsulant: Ethylene Vinyl Acetate (EVA)
Standards: CE, UL, TUV, PV Cycle, cULus, IEC61215/IEC61730/UL1703/IEC61701/IEC62716, ISO 9001: Quality Management System, ISO 14001: Environmental Management System, ISO14064: Greenhouse gases Emissions Verification, OHSAS 18001: Occupation Health and Safety Management System
Warranty: 10 Years Product, 25 Years Power
Weight: 18.8 kg
