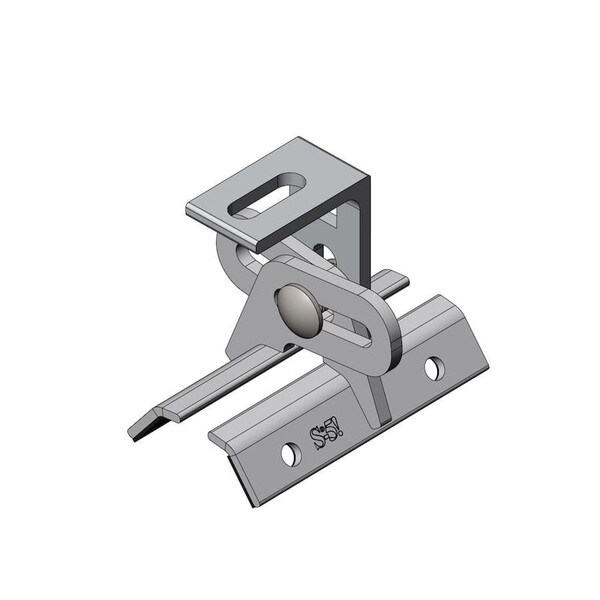

S-5! Metal Roof Attachment Aluminum Mounting Solar PV to Trapezoidal Roof Profiles ProteaBracket
ProteaBracket™ is the perfect solar attachment solution for most trapezoidal exposed-fastened metal roof profiles. No messy sealants to apply: the factory-applied adhesive rubber sealant weather-proofs and makes installation easy.
Feature Bullets
- Adjustable attachment base to accommodate varying rib widths, heights, and angles with multiple module mounting options
- Attached to the sheeting only, no messy sealants and comes with a factory-applied, EPDM pad to ensure quick installation and a weather-proof fit
- ProteaBracket is mounted directly onto the crown of the trapezoidal sheet using stainless-capped screws (provided) or Bulb-Tite rivets (sold separately). It has been rigorously tested for load-to-failure results in sheeting only
- Pair with the PVKIT® for a rail-less solution - also ideal for both side-bolted and bottom-bolted rail mounting
- 34% lighter than similar stainless steel alternatives - saves on shipping
- L-Foot allows for side-mount rails in its vertical orientation OR bottom-mount rails or PVKIT in its horizontal orientation
- Corrosion-resistant materials
- Adjustable fits rib profiles up to 3 in
- Peel-and-Stick prevents accidental shifting during installation
- Fully pre-assembled
- ProteaBracket* can be used for rail mounting or "direct-attach" with S-5! PVKIT™
Specifications:
Material: Aluminum
Suitable For Use With: Mounting Solar PV to Trapezoidal Roof Profiles
Warranty: 25 Years
