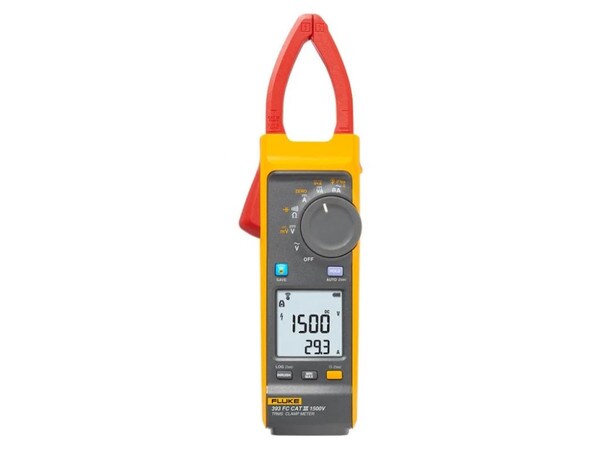

Fluke 281 mm 84 mm True-RMS Solar Clamp Meter

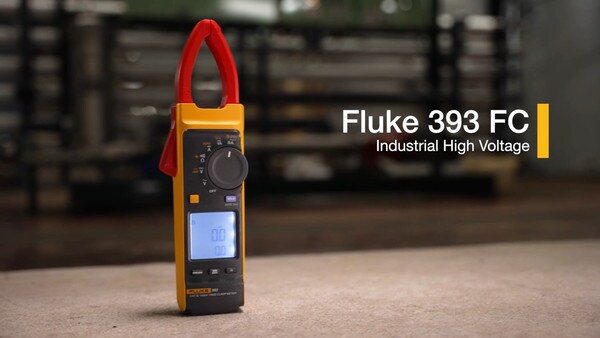

The Fluke 393 FC CAT III 1500 V True-rms solar clamp meter with iFlex is designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage DC environments: PV arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp meter will measure up to 1500 V DC and 1000 V AC with test leads, and up to 999.9 A DC or AC through the clamp jaw. The included iFlex flexible current probe extends AC current measurements up to 2500 A. The 393 has a thin jaw, giving you access to cables in crowded combiner boxes. Plus, the test leads are designed with your work in mind, and are also rated to CAT III 1500 V DC.
Feature Bullets
- Measure safely with CAT III 1500 V rated clamp meter

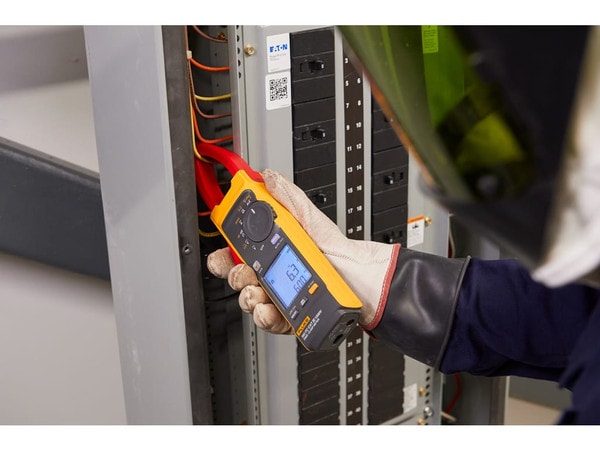

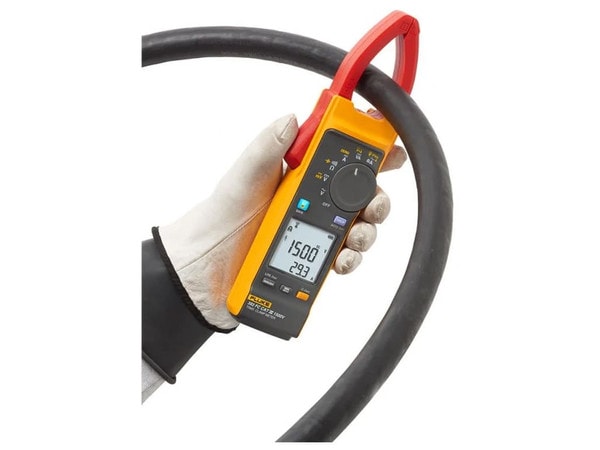

- Thin jaw for access to cables in crowded combiner boxes
- Sturdy IP54 rated for outdoor use and solar installation
- Work efficiently with dc power measurement, audio polarity and visual continuity

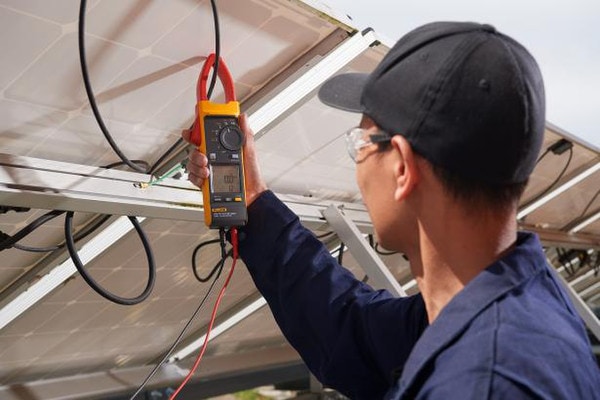

- IP54 rated, ideal for work outdoors including PV panel testing
- DC power measurement, showing readings in kVA
- Audio polarity indicator helps prevent accidental miswires
- Visual continuity provides a bright green light in the display, ideal when working in dark and noisy environments

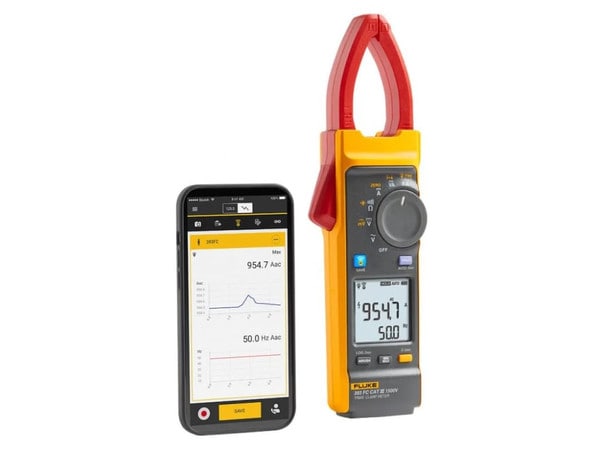

- Logging and reporting of test results via Fluke Connect software
- When measuring ac current the included iFlex flexible current probe gives you unparalleled access to cable is tight spaces, the iFlex probe can be twisted through extremely small spaces and provide accurate current measurements
Specifications:
Type: True-RMS
Length: 281 mm
Width: 84 mm
Height: 49 mm
Power Source: 2 AA IEC LR6 Alkaline
Display Type: Dual with Backlit
Voltage Detection Range: 600-1000 Vac, 600-1500 Vdc
Amperage Detection Range: 999.9 A Vdc
Operating Temperature: -10 to 50 deg C
Altitude: 2000 m
Standards: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A, IEC 61010-2-032: CAT III 1500 V/CAT IV 600 V

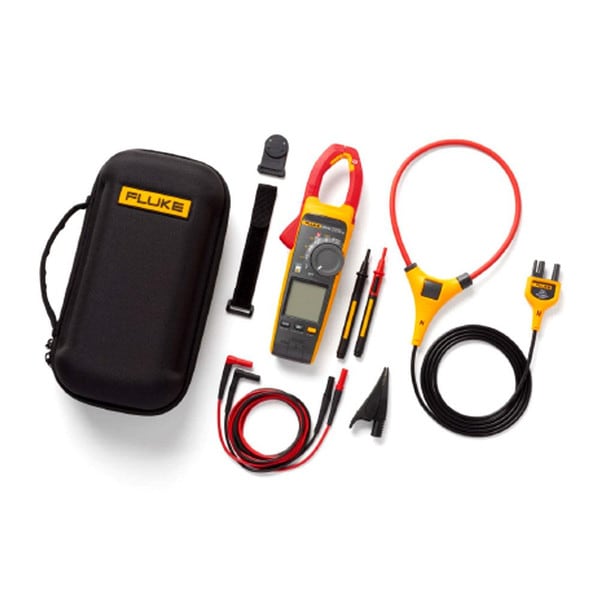

Includes: Fluke 393 FC Cat Iii 1500 V Trms Clamp Meter, Test Leads, CAT Iii 1500 V Rated, Right Angle Plugs, With Safety Caps iFlex 18 in Flexible Current Probe, TPAK Magnetic Hanging Strap, Premium Carrying Case
