WELD‑2/0 – AWG Red
Details

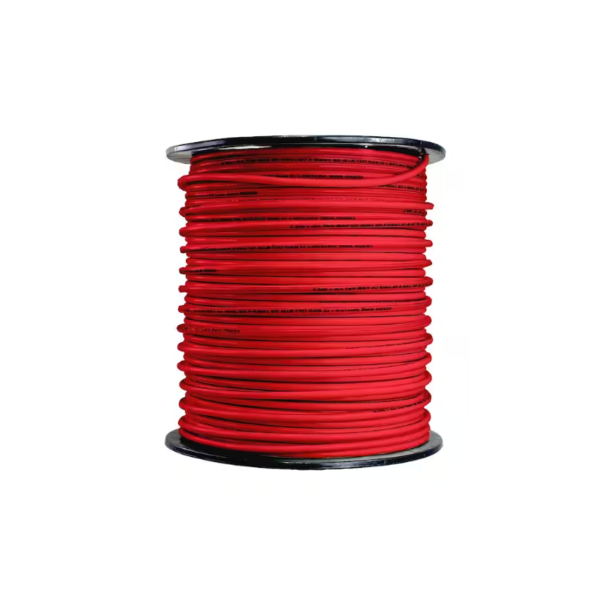

The WELD-2/0-RED is a heavy-duty, highly flexible 2/0 AWG welding cable designed for high-current applications including welding, battery connections, and power distribution. Its red insulation makes it ideal for positive polarity marking in DC systems.
Key Features & Benefits
- Heavy-Duty 2/0 AWG Copper Conductor – Provides excellent conductivity and power handling for welding and battery systems.
- Ultra-Flexible Jacket – Built with finely stranded bare copper and a flexible insulation for easy routing, even in tight spaces.
- Color-Coded for Polarity – Red jacket makes it perfect for identifying positive leads in welding, battery, and inverter systems.
- Rugged Insulation – Oil-, chemical-, abrasion-, and UV-resistant; suitable for harsh environments.
- High Temperature & Voltage Ratings – Rated for up to 600 V and temperatures from –50 °C to +105 °C (up to 125 °C depending on insulation type).
- Meets Industry Standards – Complies with SAE J1127 and other applicable standards for welding and battery cable applications.
Technical Specifications
- Cable Type: Welding/Battery Cable
- Conductor Size: 2/0 AWG
- Conductor Material: Stranded bare copper
- Insulation Material: EPDM or flexible PVC
- Voltage Rating: 600 V
- Temperature Range: –50 °C to +105 °C (up to 125 °C)
- Color: Red (positive polarity marking)
- Flexibility: High (ideal for portable or mobile use)
Applications
- Welding machine leads (MIG, TIG, Stick)
- Positive battery connections for solar, marine, automotive, or backup systems
- Power inverters and DC distribution panels
- Generator hookup and industrial machinery wiring
Why Choose WELD‑2/0‑RED?
With high conductivity, excellent durability, and extreme flexibility, this 2/0 AWG red welding cable is ideal for professionals needing reliable, color-coded cabling for high-amperage DC systems. It’s built to perform in rugged environments where safety and performance matter
