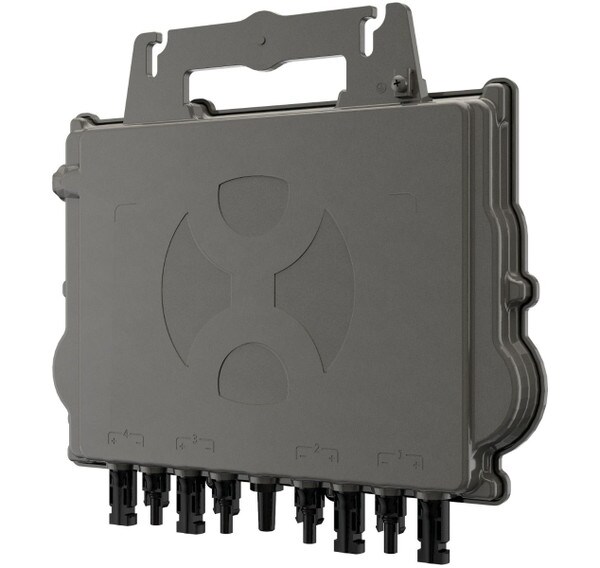

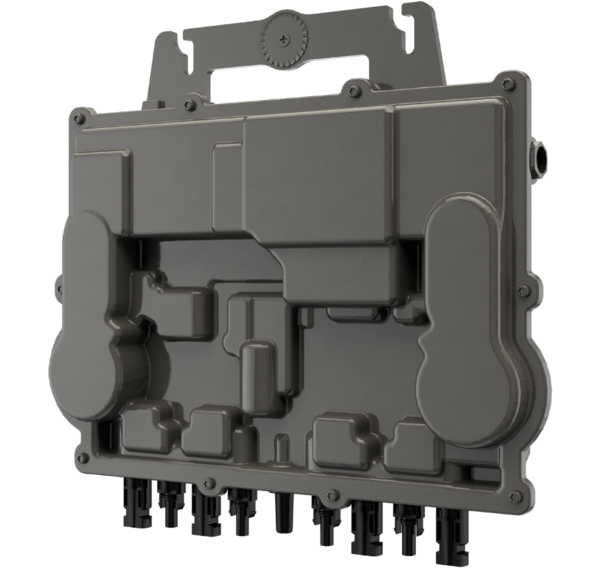

APSystems QT2 Microinverter, 208V (SKU Part Number QT2 - 208V)

APsystems introduces its 2nd generation of native 3-phase quad microinverters, reaching unprecedented power outputs of 1728VA (for 208V) to harness the power of today's high-output PV modules. The QT2 microinverter gives commercial installers a powerful plug-and-play MLPE inverter that installs faster than competing solutions and is inherently compliant to rapid shutdown requirements. With balancing 3-phase output, 4 DC inputs and encrypted ZigBee wireless, installers and system owners alike benefit from new QT2 architecture platform. The innovative design facilitates thermal dissipation while maximizing power production. The components are encapsulated with silicone to reduce stress on the electronics, dissipate heat, enhance waterproof properties, and ensure maximum reliability of the system. 24/7 access to performance data through apps or APsystems EMA web-based portal facilitate remote diagnosis and troubleshooting. The new QT2 is grid interactive through its Reactive Power Control (RPC) feature, designed to better manage photovoltaic power spikes in the grid. At 96.5% peak efficiency and improved reliability, the QT2 is a game changer for commercial solar.

Feature Bullets

• The most powerful 3-phase Quad microinverter
• Designed for 3-phase grid connection - 208V
• Single unit connects to 4 modules, 2 MPPTs, module-level DC voltage
• Maximum continuous AC output power 1728VA @ 208V
• Engineered to harness today's high-capacity PV modules (Maximum input current 20A)
• Integrated safety protection relay
• Adjustable power factor
• Balancing 3-phase output
• Compatible with both △ and Y 3-phase grid

Specifications:

Series/Model: QT2
Recommended PV Module Power (STC) Range: 315 Wp - 670 Wp+ - (Input Data (DC))
Peak Power Tracking Voltage: 30-45 V - (Input Data (DC))
Operating Voltage: 26-60 - (Input Data (DC))
Maximum Input Voltage: 60 V - (Input Data (DC))
Maximum Input Current: 20 A x 2 - (Input Data (DC))
Maximum Input Short-Circuit Current: 25 A Per Input - (Input Data (DC))
Maximum Continuous Output Power: 1728 VA - (Output Data (DC))
Nominal Output Voltage: 208 V/183 V - 229 V - (Output Data (DC))
Adjustable Output Voltage Range: 166-240 V - (Output Data (DC))
Nominal Output Current: 4.8 A x 3 - (Output Data (DC))
Maximum Output Fault Current (AC) & Duration: L-L:85.4 Apk, 13.6 ms of Duration, 4.967 Arms - (Output Data (DC))
Nominal Output Frequency: 60/58.8 Hz - 61.2 Hz (HECO: 57 Hz - 63 Hz) - (Output Data (DC))
Adjustable Output Frequency Range: 55-65 Hz - (Output Data (DC))
Power Factor (Default/Adjustable): 0.99/0.8 Leading to 0.8 Lagging - (Output Data (DC))
Maximum Units Per 30A Branch: 5 - (Output Data (DC))
AC Bus Cable: 10 AWG - (Output Data (DC))
Peak Efficiency: 96.5%
CEC Efficiency: 96%
Nominal MPPT Efficiency: 99.5%
Night Power Consumption: 80 mW
Operating Ambient Temperature: -40 to 149 deg F
Storage Temperature: -40 to 185 deg F
DC Connector Type: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
Cooling: Natural Convection - No Fans
Enclosure Rating: Type 6
Communication (Inverter To ECU): Encrypted ZigBee
Isolation Design: High Frequency Transformers, Galvanically Isolated
Energy Management: Energy Management Analysis (EMA) System
Standards: Safety & EMC Compliance: UL1741; CSA C22.2 No. 107.1-16; UL1741SA; UL1741SB; IEEE1547; Rule 21; SRD-V2.0; FCC Part15; ICES-003; NEC2014&NEC2017&NEC2020 Section 690.11 DC Arc-Fault circuit Protection; NEC2014&NEC2017&NEC2020 Section 690.12 Rapid Shutdown of PV systems on Buildings
Warranty: 10 Years Standard ; 25 Years Optional
Weight: 13 lb
