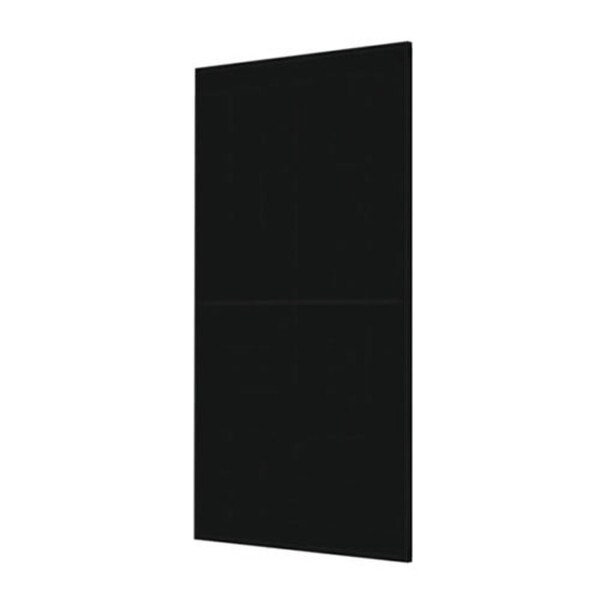

REC Solar Holdings AS Pure Alpha® Rec Solar Alpha Pure Black Series 405 Watt Mono Solar Panel
The Rec alpha pure series unites leading cell technologies to create a revolutionary, powerful and reliable solar panel to help you make more savings from your rooftop.
Feature Bullets
- Combines the best of modern cell technology
- Highly efficient cells for high performance
- No initial power loss (no LID)
- Eliminates soldering for better build quality
- Reduces cell stress for long-term durability
- Increases power and keeps panel compact
- Special anti-reflective glass increases light transmission for higher power
- Gapless cells for great aesthetics
- Full black appearance for an elegant look
- Generates more clean energy from the available space, e.g. rooftop
Specifications:
Series: Alpha® Pure
Length: 71.6 in
Width: 40 in
Depth: 1.2 in
Wire Size: 12 AWG
Material: Anodized Aluminum Frame, Highly Resistant Polymer Backsheet
Color: Black Frame
Power Voltage: 41.8 V
Power Current: 9.69 A
Power Rating: 405 W
Short Circuit Current: 10.41 A
Cell Type: Half-Cut Bifacial REC Heterojunction, With Lead-Free Technology
Number of Cells: 132
Operating Temperature: -40 to 85 deg C
Efficiency: 0.219%
Fuse Rating: 25 A
