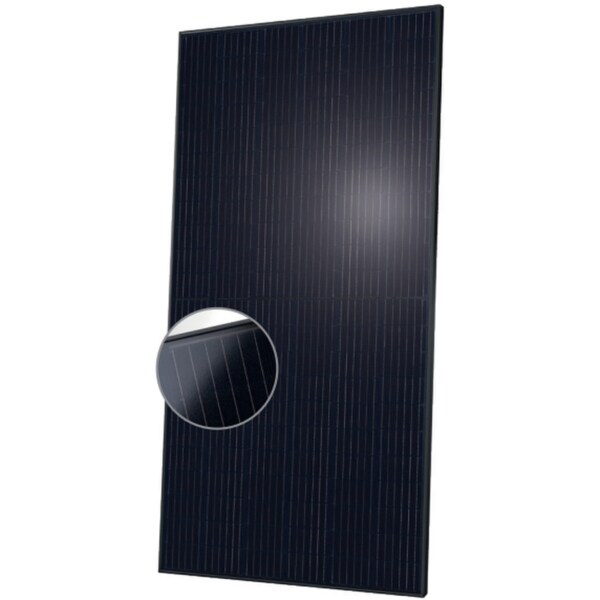

Q-Cells Q.Peak ML G10+ 410W, Black Frame Black Backsheet with MC4 Connectors. 6 Busbar Format

Feature Bullets

• Breaking the 20 % efficiency barrier - Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 20.9 %
• A reliable investment - Inclusive 25-year product warranty and 25-year linear performance warranty
• Enduring high performance - Long-term yield security with Anti LeTID Technology, Anti PID Technology2 and Hot-Spot Protect
• Extreme weather rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa)
• Innovative all-weather technology - Optimal yields, whatever the weather with excellent low-light and temperature behavior
• The most thorough testing programme in the industry - Qcells is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new "Quality Controlled PV" of the independent certification institute TUV Rheinland
• 6 busbar cell technology

Specifications:

Format: 74 in L x 41.1 in W x 1.26 in H
Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
Back Cover: Composite Trim
Frame: Aluminum
Frame Color: Black Anodized
Cell: 6 x 22 Monocrystalline Quantum Solar Half Cells
Junction Box: 2.09-3.98 in x 1.26-2.36 in x 0.59-0.71 in
Cable: 4 sq-mm Solar Cable (+) >/=49.2 in (1250 mm), (−) >/=49.2 in (1250 mm)
Connector Type: Staubli MC4, IP68
Power Rating: 410 W
Short-Circuit Current (ISC): 11.2 A
Open-Circuit Voltage (VOC): 45.37 V
Current at MPP: 10.89 A
Voltage at MPP: 37.64 V
Efficiency: >/=20.9%
Number of Cells: 132
Standards: cCSAus, CE
Weight: 48.5 lb
Warranty: Limited
