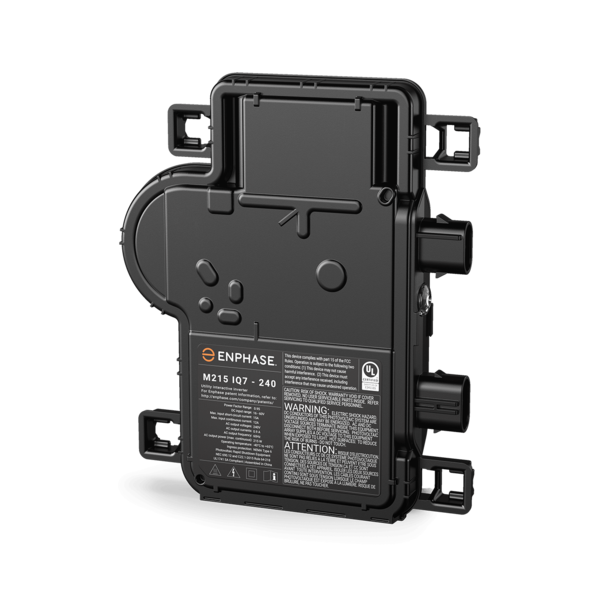

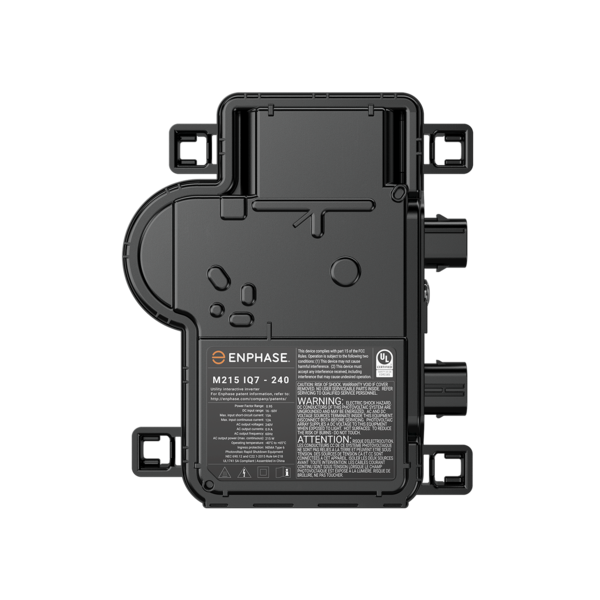

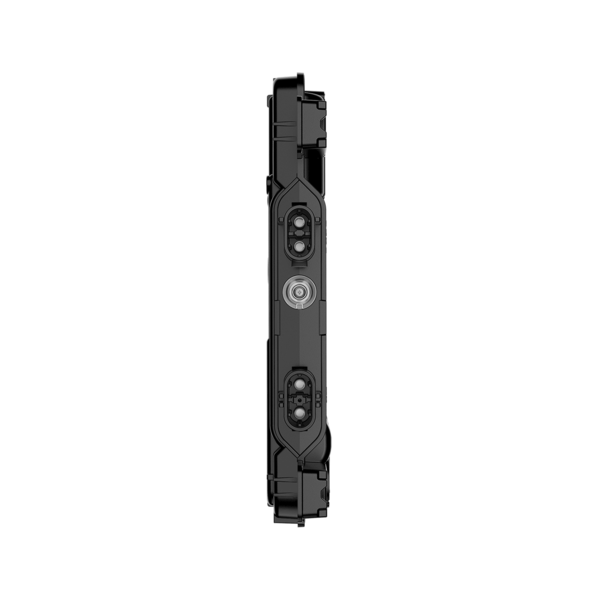

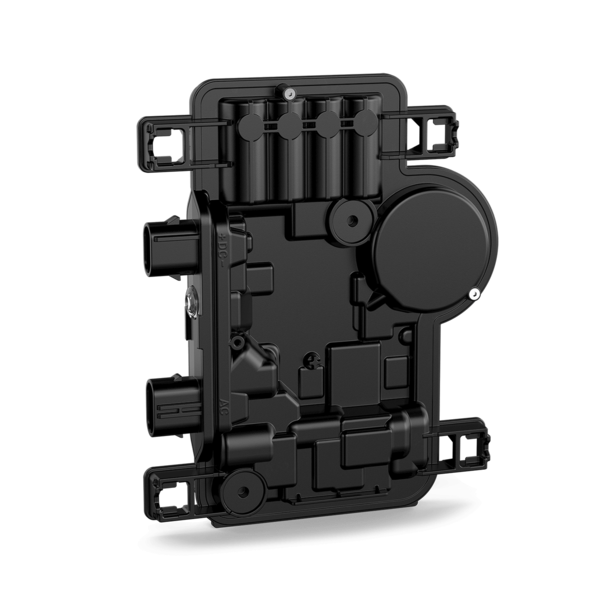

Enphase M215 Microinverter

Enphase M215 Microinverters are built on the IQ7 Series platform, allowing for easy replacement and site expansion of 240 VAC solar installations. The DC circuit is isolated and insulated from the ground, so no ground electrode conductor (GEC) is required, simplifying installation, enhancing safety, and saving on costs. The M215 Microinverter integrates perfectly with the Engage Cable, Envoy S, and Enphase Cloud for remote monitoring and control. The IQ Microinverter platform extends the reliability standards set forth by previous generations by completing over a million hours of power-on testing, enabling Enphase to provide an industry-leading limited warranty of up to 25 years. The new Enphase M215™ and M250™ Microinverters on IQ 7™ platform allow easy replacement and site expansion* of 240 VAC M-Series PV installations. The DC circuit is isolated and insulated from ground, so no Ground Electrode Conductor (GEC) is required for the microinverter. This simplifies installation, enhances safety, and saves on labor and materials costs. The Enphase M215 and M250 integrate perfectly with the Engage Cable™, the Envoy™ Communications Gateway, and Enphase Enlighten™ monitoring and analysis software. The IQ platform microinverters extend reliability standards set forth by previous generations and undergo over a million hours of testing, enabling Enphase to provide an industry-leading warranty of up to 25 years.

Feature Bullets

• Productive - Maximizes energy production. Minimizes impact of shading, dust, and debris. No single point of system failure
• Simple - Lighter weight than earlier M-Series Microinverters. No GEC needed for microinverter. No DC design or string calculation required. Easy installation with Engage Cable
• Reliable - Envoy and Internet connection required. Configurable for varying grid profiles. Built-in rapid shutdown compliant (NEC 2014 & 2017). UL listed
• Lighter weight than earlier M Series Microinverters
• No GEC needed
• No DC design or string calculation required
• Easy installation with engage cables
• IQ Gateway and internet connection required
• Configurable for varying grid profiles
• Built-in rapid shutdown compliant (NEC 2014 and 2017)
• More than a million hours of testing
• UL Listed
• 25-year limited warranty
• Disconnecting means - The AC and DC connectors have been evaluated and approved by UL for use as the load-break disconnect required by NEC 690 and C22.1-2018 Rule 64-220
• Integrated ground - Equipment ground is provided in the Engage Cable. No additional GEC or ground is required. Ground fault protection (GFP) is integrated into the microinverter

Specifications:

Dimensions: 212 mm Height x 175 mm Width x 30.2 mm Depth
Commonly Used Module Pairings: 190-270 W +/- (Input (DC))
Module Compatibility: 60-Cell PV Modules - (Input (DC))
Maximum Input DC Voltage: 48 V - (Input (DC))
Peak Power Tracking Voltage: 27-45 V - (Input (DC))
Operating Range: 16 V - 60 V - (Input (DC))
Minimum/Maximum Start Voltage: 22/48 V - (Input (DC))
Maximum DC Short-Circuit Current (Module ISC): 15 A - (Input (DC))
Over Voltage Class DC Port: II - (Input (DC))
DC Port Backfeed Current: 0 A - (Input (DC))
Peak Output Power: 255 VA - (Output (AC))
Maximum Continuous Output Power: 215 VA - (Output (AC))
Nominal (L-L) Voltage/Range: 240/211-264 V at 240 VAC, 208/183-229 V at 208 VAC - (Output (AC))
Nominal Frequency Rating: 60/57-61 Hz - (Output (AC))
Extended Frequency Range: 57-63 Hz - (Output (AC))
AC Short-Circuit Fault Current Over 3 Cycles: 5.8 A rms - (Output (AC))
Maximum Units Per 20 A (L-L) Branch Circuit: 17 - (Output (AC))
Over Voltage Class AC Port: III - (Output (AC))
AC Port Backfeed Current: 18 mA - (Output (AC))
Power Factor: 1.0 - (Output (AC))
Power Factor (Adjustable): 0.85 Leading to 0.85 Lagging - (Output (AC))
Peak Efficiency: 96.5%
CEC Weighted Efficiency: 96.5%
Static MPPT Efficiency (Weighted, Reference EN50530): 99.4%
Ambient Temperature Rating: -40 to 65 deg C
Cooling: Natural Convection - No Fans
Approved For Wet Location: Yes
Degree of Pollution: PD3
Enclosure Rating: Class II Double-Insulated, Corrosion Resistant Polymeric Enclosure
Environmental Category/UV Exposure Rating: NEMA Type 6/Outdoor
Communication: Power Line Communication (PLC)
Monitoring: Enlighten Manager & MyEnlighten Monitoring Options Compatible with Enphase IQ Envoy
AC Connector Type: Q-ET-2LL (Engage Cable to Microinverter Adapter)
DC Connector Type: M215XXX-IQ7-S22-US & M250XXX-IQ7-S22-US: MC4 Locking Type (Dongle Included), M215XXX-IQ7-S25-US & M250XXX-IQ7-S25-US: UTX (Dongle Included)
Standards: CA Rule 21 (UL 1741-SA) UL 62109-1, UL1741/IEEE1547, FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01 This product is UL Listed as PV Rapid Shut Down Equipment & Conforms with NEC-2014 & NEC-2017 section 690.12 & C22.1-2015 Rule 64-218 Rapid Shutdown of PV Systems, for AC & DC Conductors, When Installed According Manufacturer's Instructions
Warranty: 25 Years
Weight: 2.38 lb
