Enphase Energy IQ Gateway

The Enphase IQ Gateway delivers solar production and energy consumption data to Enphase Installer Platform for comprehensive, remote maintenance and management of the Enphase IQ System. With revenue grade production metering, optional consumption monitoring, and seamless integration with the Enphase IQ Battery, the IQ Gateway is the platform for total energy management. The Enphase IQ Gateway comes with integrated revenue grade PV production metering (ANSI C12.20 +/- 0.5%) and optional consumption monitoring (+/- 2.5%). It also includes one 200A continuous rated production CT.

Feature Bullets

• Enables web-based monitoring and control
• Provides bidirectional communications for remote upgrades
• Supports power export limiting and zero-export applications
• Easy system configuration using Enphase Installer App
• Flexible networking with Wi-Fi, Ethernet or cellular
• Designed for installation indoors or outdoors in a NEMA 3R rated enclosure
• IQ Series Microinverters - The high-powered smart grid-ready IQ Series Microinverters (IQ6, IQ7, and IQ8 Series) dramatically simplify the installation process
• IQ System Controller - Provides microgrid interconnect device (MID) functionality by automatically detecting grid failures and seamlessly transitioning the home energy system from grid power to backup power
• IQ Battery - All-in-one AC coupled storage system that is reliable, smart, simple, and safe. It provides backup capability and installers can quickly design the right system size to meet the needs of both new and retrofit solar customers
• IQ Load Controller - Helps prioritize essential appliances during a grid outage to optimize energy consumption and prolong battery life
• IQ Gateway integrates revenue grade PV production metering (ANSI C12.20 ±0.5%), consumption metering (±2.5%), and battery metering (±2.5%) with IQ Battery 5P
• Includes one 200 A continuous rated Production Current Transformer (CT)
• USB 2.0 - For mobile connect and communications kit
• Access point (AP) mode - For a connection between the IQ Gateway and a mobile device running the Enphase Installer App
• Metering ports - Up to two Consumption CTs, one Production CT, and one battery CT (for IQ Battery 5P)

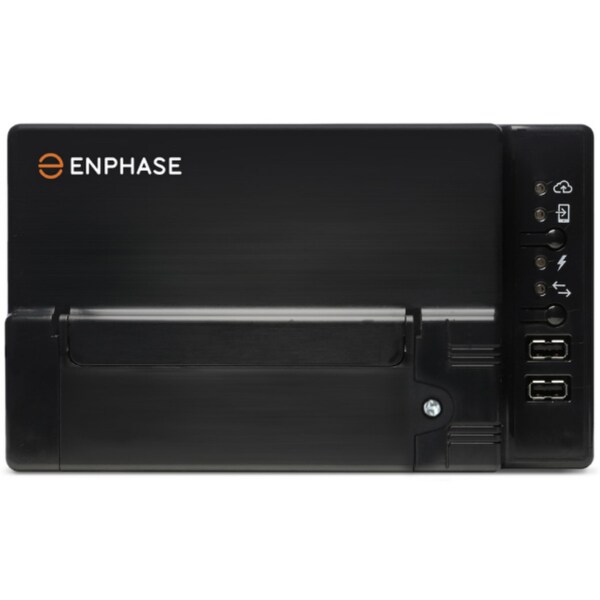

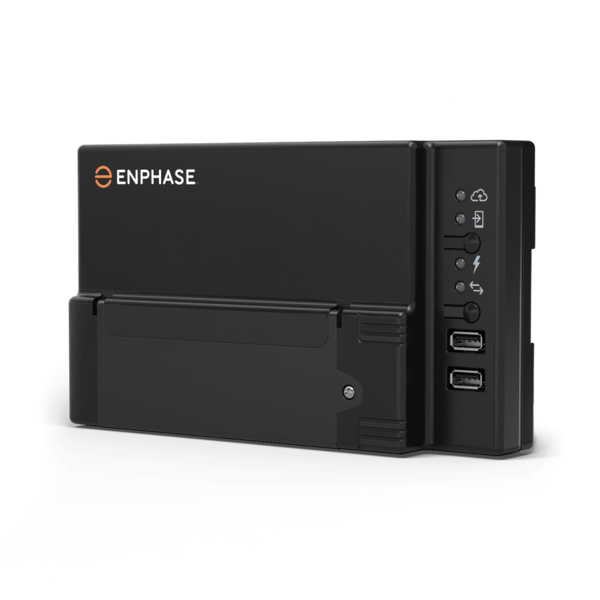

• LED Indicators - From top to bottom: Cloud connectivity, Wi-Fi access point mode, PV production state, PLC communications state
• Configured via - Enphase Installer App and Enphase Installer Platform
• Capabilities Supported - Power production limiting (Production CT/s required), power export limiting (Production CT/s required and Consumption CT/s - Load with Solar configuration)

Specifications:

AC Power Requirements: 120/240 V, 120/208Y V or 127/220Y V. 3 Wire, 60 Hz
Breaker: 2-Pole and Maximum 20 A Overcurrent Protection Required
Typical Power Consumption: 5 W
Number of Microinverters Polled: Up to 300
Integrated Wi-Fi: 802.11b/g/n (2.4 GHz, 5 GHz), For Connecting the Enphase Cloud via the Internet
Wi-Fi Range: 10 m
Ethernet: Optional, 802.3, Cat5E (or Cat 6) UTP Ethernet Cable (Not Included), for Connecting to the Enphase Cloud via the Internet
Mobile Connect: CELLMODEM-M1-06-SP-05, CELLMODEM-M1-06-AT-05 (To Be Purchased Separately, Mandatory for Sites with IQ Battery)
Digital I/O: Digital Input/Output for Grid Operator Control
Power Line Communication (PLC): 90-110 kHz (Class B) to Microinverters
Maximum Relays Read: 4
Minimum IQ Gateway Version: v7.3.120
Cable Configurations: 18 AWG, UL-Std. 62, 600 V, 105 deg C and Minimum 0.03 in Average thickness
Signal Voltage Range: 2.5 - 5 V (Digital High), 0 - 1.9 V (Digital Low)
Terminal Block: Five Terminals, up to 0.002 sq-in
IQ System Controller Compatibility: SC200D111C240US01, SC200G111C240US01, EP200G101-M240US01, EP200G101-M240US00
IQ Battery Compatibility: IQBATTERY-5P-1P-NA, ENCHARGE-3T-1P-NA, ENCHARGE-10T-1P-NA
Altitude: Up to 2600 m
Environmental Rating: IP30, NEMA 3R
Operating Temperature: -40 to 65 deg C (-40 to 149 deg F) (ENV-IQ-AM1-240), -40 to 50 deg C (-40 to 122 deg F) (ENV2-IQ-AM1-240), -40 to 46 deg C (-40 to 115 deg F) if Installed in an Enclosure

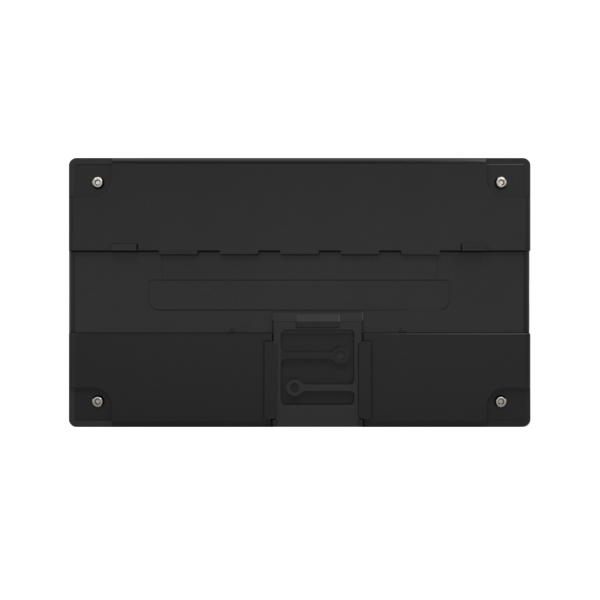

Aluminum DIN Rail: 4.9 in
Current Transformers (CTS): (1) CT-200-SOLID
Standards: UL Listed, CA Rule 21 (UL 1741-SA), IEEE® 1547:2018 - UL 1741-SB, 3rd Ed. (ENV2-IQ-AM1-240), UL 61010-1, CAN/CSA C22.2 No. 61010-1, Title 47 CFR, Part 15, cETLus Listed B, ICES 003, IEC/EN 61010-1:2010, EN50065-1, EN61000-4-5, EN61000-6-1, EN61000-6-2, Metering: ANSI C12.20 accuracy cETLus Listed 0.5 (PV production only)
Warranty: 5 Years Limited
Weight: 1.09 lb
Dimensions: 8.4 in x 5 in x 1.8 in
