ZNShine Solar ZXM8-TPLDD132 Series 660W 132-Cell Bifacial Double Glass Monocrystalline PERC PV Module

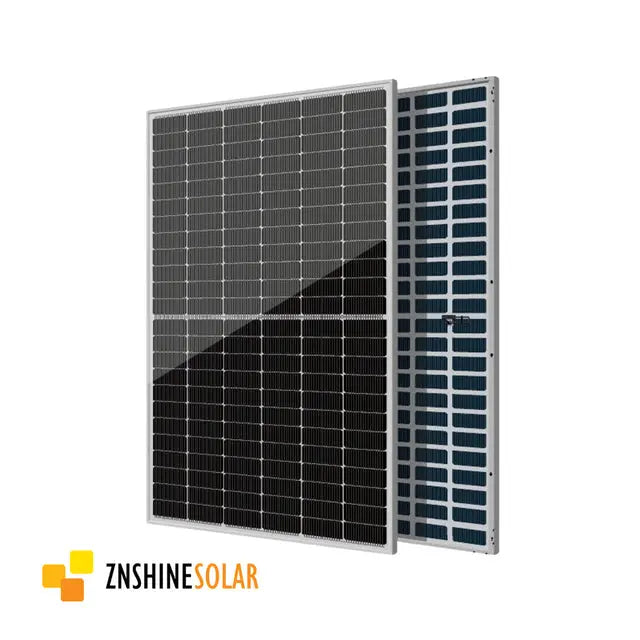

ZNShine Solar ZXM8-TPLDD132 Series 660W Bifacial Solar Panel
The ZNShine ZXM8-TPLDD132-660 is a high-performance 12BB Half-Cell Bifacial Double Glass Monocrystalline PERC PV Module. Featuring 132 half-cut cells and 210mm large-size silicon wafers, this panel delivers exceptional efficiency and reliability for residential, commercial, and utility-scale solar installations.
Key Features
- 660W Power Output – High-capacity module for maximum energy generation
- 21.25% Module Efficiency – Well above market average
- Bifacial Technology – Up to 30% additional power gain from the rear side depending on albedo
- 12BB Half-Cut PERC Cells – Reduced resistive losses and better shade tolerance
- Double Glass Construction – Enhanced durability and weather resistance
- Anti-PID – Ensured PID resistance through quality control of cell manufacturing
- Better Weak Illumination Response – More power output in haze, cloudy, and early morning conditions
- Tier 1 Bankable Brand – Bloomberg-listed global Tier 1 PV module manufacturer
- 1500V DC Maximum System Voltage
- MC4-Compatible Connectors
Electrical Specifications (STC)
| Parameter | Value (660W) |
|---|---|
| Maximum Power (Pmax) | 660 Wp |
| Panel Efficiency | 21.25% |
| Voltage at Maximum Power (Vmpp) | 38.1 V |
| Current at Maximum Power (Impp) | 17.33 A |
| Open Circuit Voltage (Voc) | 45.6 V |
| Short Circuit Current (Isc) | 18.37 A |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 35 A |
Electrical Specifications (NOCT)
| Parameter | Value (660W) |
|---|---|
| Maximum Power (Pmax) | 496.1 Wp |
| Voltage at Maximum Power (Vmpp) | 35.6 V |
| Current at Maximum Power (Impp) | 13.95 A |
| Open Circuit Voltage (Voc) | 42.8 V |
| Short Circuit Current (Isc) | 14.83 A |
Temperature Ratings
| NOCT | 43 ± 2°C |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Temperature Coefficient of Pmax | -0.34%/°C |
| Temperature Coefficient of Voc | -0.29%/°C |
| Temperature Coefficient of Isc | +0.05%/°C |
Mechanical Specifications
| Dimensions (L × W × H) | 2384 × 1303 × 35 mm (93.9 × 51.3 × 1.38 in) |
| Weight | 38.5 kg (84.9 lbs) |
| Cell Type | Monocrystalline PERC Half-Cut |
| Number of Cells | 132 |
| Glass Type | Anti-Reflection Coating, Double Glass |
| Glass Thickness | 2 mm |
| Frame Color | Silver Anodized Aluminum |
| Junction Box Protection | IP68 |
| Junction Box Diodes | 3 |
| Connector Type | MC4-Compatible |
| Cable Cross-Section | 4 mm² |
| Cable Length | 350 mm |
| Front Load Capacity | Up to 5400 Pa |
| Rear Load Capacity | Up to 2400 Pa |
Warranty
- 12-Year Product Warranty – Covers defects in materials and manufacturing
- 30-Year Linear Power Warranty – 98% output guaranteed after Year 1; 84.95% output guaranteed after 30 years
- Annual Degradation Rate – Max 0.5% per year (Years 2–30)
- First Year Degradation – Not to exceed 2%
Applications
Suitable for Residential, Commercial, Grid-Tie, and Off-Grid solar installations.
About ZNShine Solar
Founded in 1988, ZNShine Solar (Znshine PV-Tech Co., Ltd.) is a world-leading high-tech PV module manufacturer with a module capacity of 10GW. Bloomberg has listed ZNShine as a global Tier 1 PV module maker, with distribution in more than 60 countries worldwide.
