ZNShine Solar 580W 144 N-Type TOPCon Bifacial Solar Panel (Sealed Pallet of 36)
-
Estimated Delivery:Jun 15 - Jun 19
-
Free Shipping & Returns: On all orders under $50
ZNShine Solar 580W 144 N-Type TOPCon Bifacial Solar Panel (Sealed Pallet of 36)
ZNShine Solar 580W N-Type TOPCon Bifacial Solar Panel — Sealed Pallet of 36
The ZNShine Solar 580W TOPCon Bifacial Solar Panel (Model: ZXM7-UHLDD144-580) is a premium 16BB half-cell N-Type TOPCon double-glass bifacial monocrystalline PV module engineered for maximum energy yield and long-term reliability. This listing is for a sealed pallet of 36 panels, ideal for commercial, utility-scale, and ground-mount solar installations.
Key Features
- 580W Rated Power Output — High-performance N-type TOPCon cell technology
- Bifacial Double-Glass Design — Up to 25% additional rear-side power gain depending on albedo
- 16BB Half-Cell Technology — Reduces resistive losses and improves efficiency
- 22.45% Maximum Module Efficiency
- Anti-PID Protection — Ensured PID resistance through quality-controlled manufacturing
- Better Weak Illumination Response — More power output in haze, cloudy, and early morning conditions
- Tier 1 Manufacturer — ISO 9001, ISO 14001, ISO 45001 certified
- IP68 Junction Box with 3 bypass diodes
- MC4-Compatible Connectors
Technical Specifications (STC)
| Specification | Value |
|---|---|
| Model | ZXM7-UHLDD144-580 |
| Rated Power (Pmax) | 580 W |
| Cell Type | N-Type Monocrystalline TOPCon |
| Number of Cells | 144 (6×24) |
| Module Efficiency | Up to 22.45% |
| Voltage at Max Power (Vmp) | 42.90 V |
| Current at Max Power (Imp) | 13.52 A |
| Open-Circuit Voltage (Voc) | 51.60 V |
| Short-Circuit Current (Isc) | 14.30 A |
| Max System Voltage | 1500 VDC |
| Maximum Series Fuse | 30 A |
| Temperature Coefficient (Pmax) | -0.30%/°C |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Temperature Coefficient (Isc) | +0.046%/°C |
| NMOT | 44°C ± 2°C |
| Operating Temperature | -40°C to +85°C |
| Annual Degradation | 0.40% |
Mechanical Data
| Specification | Value |
|---|---|
| Module Dimensions | 2278 × 1134 × 30 mm (89.68 × 44.64 × 1.18 in) |
| Weight | 31.5 kg (69.44 lbs) |
| Glass | 2.0mm + 2.0mm High-Transmission AR Coated Heat-Strengthened Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 Diodes |
| Cables | 4mm², 350mm (with connectors) |
| Connectors | MC4-Compatible |
| Front Side Max Static Load | Up to 5400 Pa |
| Rear Side Max Static Load | Up to 2400 Pa |

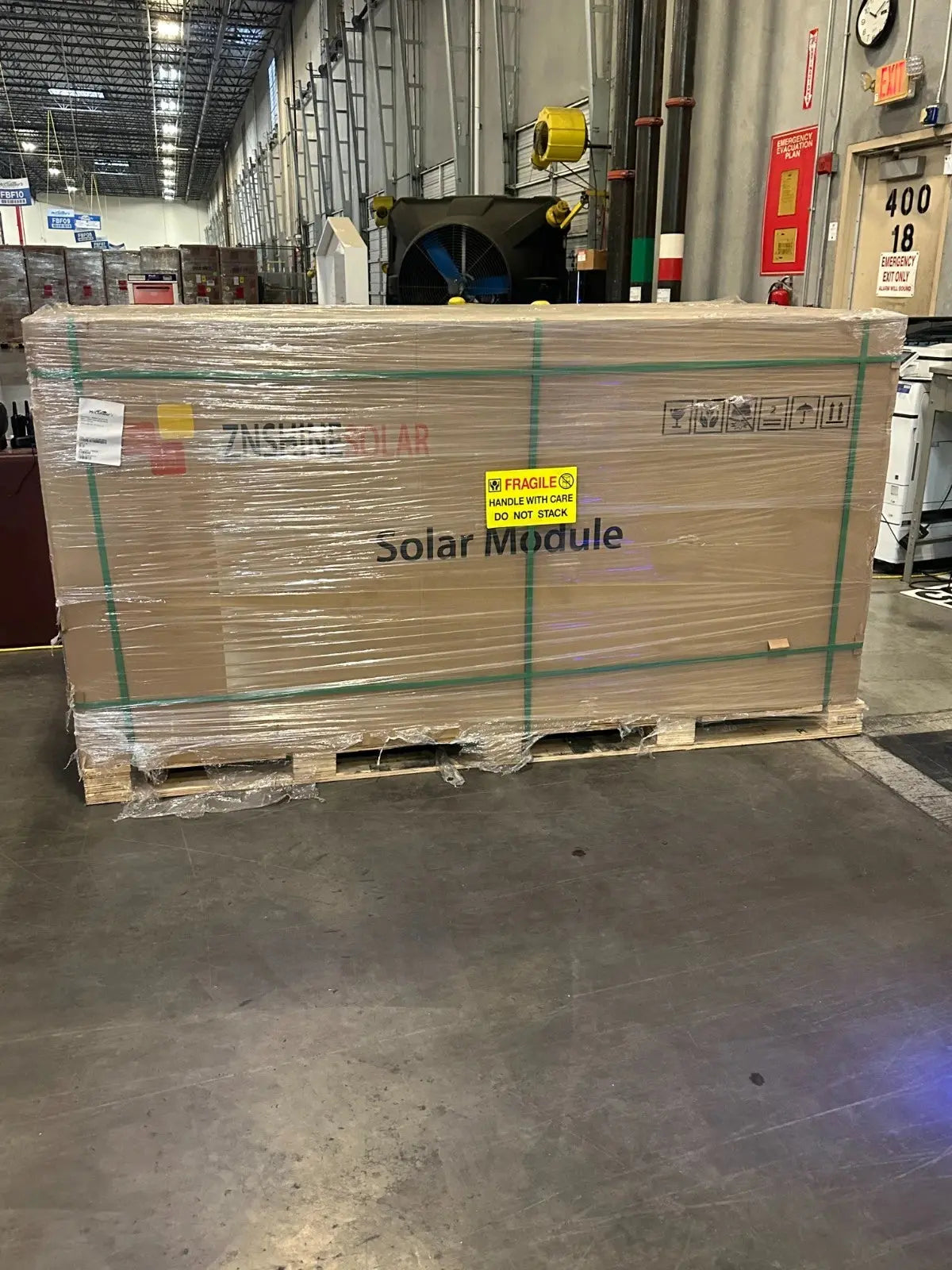

Pallet Information
- Panels per Pallet: 36
- Condition: New (Sealed Pallet)
- Total Pallet Wattage: 20,880 W (20.88 kW)
Certifications
IEC 61215 / IEC 61730 / IEC 61701 / IEC 62716 / UL 61730 / ISO 9001 / ISO 14001 / ISO 45001
Warranty
- 12 Years Product Warranty
- 30 Years Linear Power Output Warranty
- Annual degradation rate: 0.40% (industry-leading low degradation)
Ideal Applications
✔ Utility-scale solar farms ✔ Commercial & industrial rooftop systems ✔ Ground-mount solar installations ✔ Large grid-tied systems
Documents
📄 Datasheet — ZXM7-UHLDD144 Series (580W)
Questions? Contact Solar Cellz USA at info@solarcellzusa.com or visit solarcellzusa.com.
