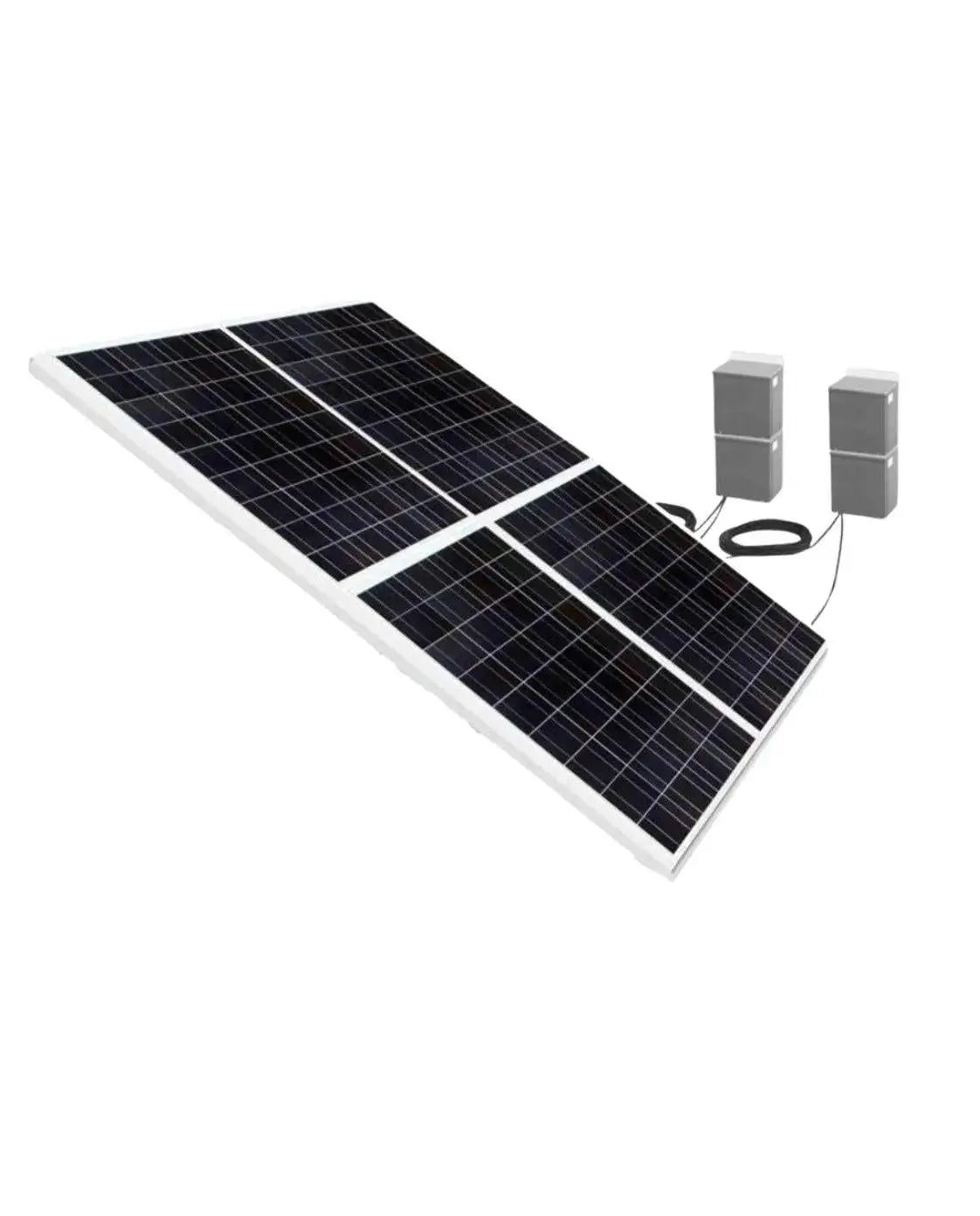

WSE-87646078 (3) Solar Panels With 3 Batteries

Why Choose WSE-87646078 Solar Panels?

The WSE‑87646078 is a rugged, purpose‑built solar energy system engineered for hazardous and off‑grid industrial environments. It combines high‑power solar generation with robust battery storage for reliable energy supply where grid power isn’t practical.

Complete System Overview

• Type: Integrated Solar Energy System

• Panels: (3) × 650 Wp monocrystalline solar panels (Total 1,950 Wp)

• Battery Bank: (3) × 24 V‑1000 Ah Valve Regulated Lead Acid (VRLA) 8D batteries

• Peak Power: 1,950 W total from solar array

• Module Efficiency: 21.5 % (high conversion efficiency for better performance per m²)

• Cells: 54×2 cells per panel

• Safety Classification: Class 2 (suitable for industrial/hazardous areas)

Electrical & Performance Specs

• Max Power Voltage (Vmpp): 31.02 V

• Max Power Current (Impp): 13.06 A

• Open Circuit Voltage (Voc): 37.05 V

• Short Circuit Current (Isc): 13.62 A

• Temperature Coefficients:

  • Power: ‑0.35 % / °C

  • Voltage: ‑0.28 % / °C

  • Current: +0.05 % / °C

• NOCT (Nominal Operating Cell Temperature): 45 °C

• Max System Voltage: 1000 VDC

• Max Fuse Rating: 25 A

Mechanical & Installation Details

• Panel Dimensions: 1,134 mm × 1,722 mm × 70 mm

• Weight (per panel): ~25 kg

• Aperture Area: 1.885 m²

• Mounting Options:

  • Skid‑mounted frame for flat surfaces

  • Battery enclosure ground or pole mount (rear‑access U‑bolts)

• Structural Characteristics:

  • Static Roof Loading: 12.8 kg/m²

  • Wind Resistance: 4.65 kPa

  • Fire Rating: BROOF (T1‑T4) per EN 13501‑5

Designed For Industrial & Remote Applications

This system is ideal for powering electrical equipment in locations where grid electricity is unavailable or unreliable. Typical uses include:
✔ Remote monitoring stations
✔ Oil & gas sites, refineries, pipelines
✔ Chemical & petrochemical facilities
✔ Water/wastewater treatment plants
✔ Mining & agricultural operations
✔ Transportation infrastructure & utility substations

Additional Notes

• Integrated design with clean, low‑profile installation options.

• Fast installation achievable with typical solar mounting practices.

• Built to maintain performance and durability in extreme environments.

Document: Specification Sheet

High Efficiency Solar Panels

When it comes to harnessing solar energy, the WSE-87646078 solar panels set the standard for efficiency. These state-of-the-art panels are designed to capture maximum sunlight and convert it into usable electricity, ensuring that you get the most out of your investment. With their superior photovoltage systems, these panels deliver a higher energy yield compared to conventional models. Whether you’re powering a home, office, or an off-grid location, these solar panels provide a reliable source of energy that can significantly reduce your electricity bills and carbon footprint, making them an excellent choice for green energy enthusiasts.

Integrated Battery System

The WSE-87646078 model comes equipped with three high-capacity batteries, providing a comprehensive energy solution. This integrated battery system allows you to store excess energy generated during sunny days for use during cloudy days or nighttime. With a robust energy storage capability, you won’t have to worry about energy shortages or fluctuating electricity prices. The advanced battery management system ensures optimal performance and longevity, making it a perfect choice for homeowners looking to enhance energy independence and reliability.

Durable and Weather-Resistant Design

Durability is a key feature of the WSE-87646078 solar panels. Constructed with high-quality materials, these panels are built to withstand harsh weather conditions, including heavy rain, snow, and high winds. Their weather-resistant design ensures that they maintain peak performance regardless of environmental challenges. Additionally, these panels require minimal maintenance, which means you can enjoy hassle-free energy generation for years to come. Investing in solar panels that can endure the rigors of nature ensures that your clean energy solution remains efficient and reliable throughout its lifespan.
