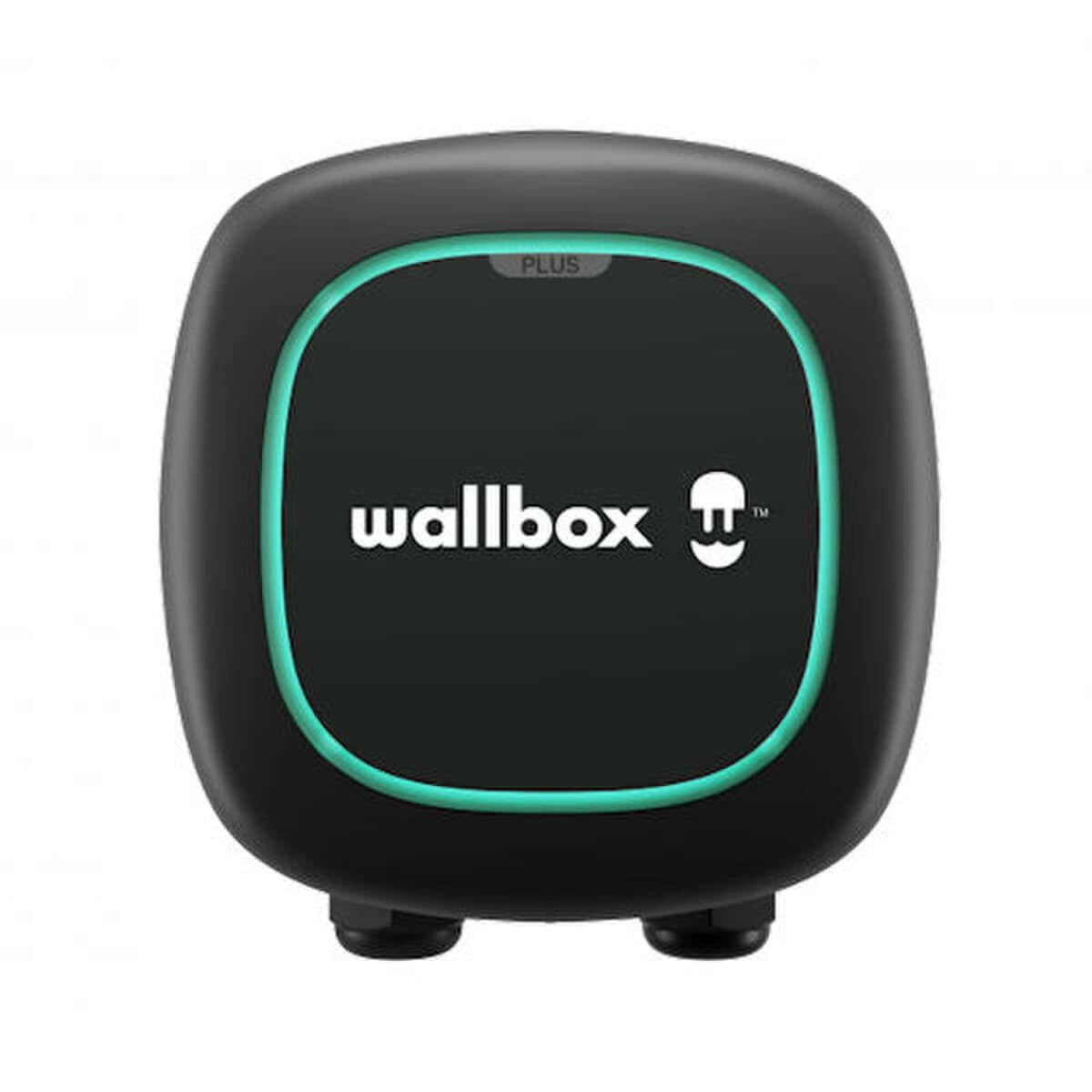

Wallbox PUP1-U-1-6-C-002 Pulsar Plus 48A, 240V (Level 2), 11.5kW, 25

Why Choose the Wallbox Pulsar Plus 48A Charger for Your EV

Pulsar Plus offers the best of both small size and powerful performance for faster electric vehicle charging at home. Designed for easy installation, Pulsar Plus can charge any electric car* on the market today. Home charging is simple and efficient with the integrated myWallbox app, which lets you control your charger from your smart devices via WiFi or Bluetooth. Onboard intelligence means your smart functions (including scheduled charging and locking/unlocking) are managed in the charger, not the cloud, letting you access and control your charger even when you can't connect to the Internet. Pulsar Plus also works with Alexa and Google Home voice commands, making charging a seamless addition to your smart home system. NEMA Type 4 rated for watertightness and dust resistance, Pulsar Plus is suitable for indoor and outdoor installation.

Features

• Adjustable power up to 48A (9.6kW)
• Wi-Fi and Bluetooth connectivity
• Works with all Evs
• Power sharing-enabled
• Voice control-enabled

Specifications

• Type: Level 2
• Color: Matte Black

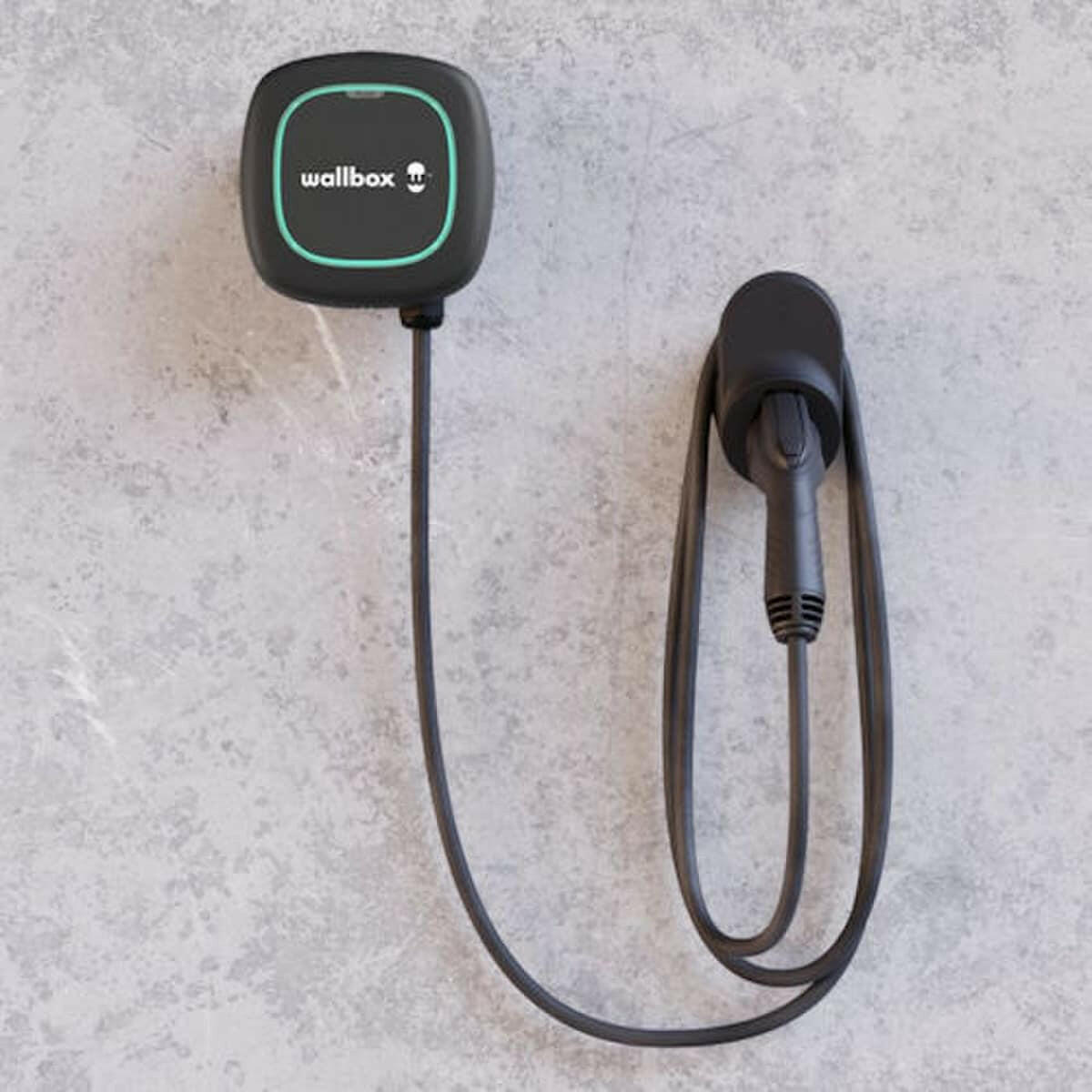

• Cable Length: 25 ft

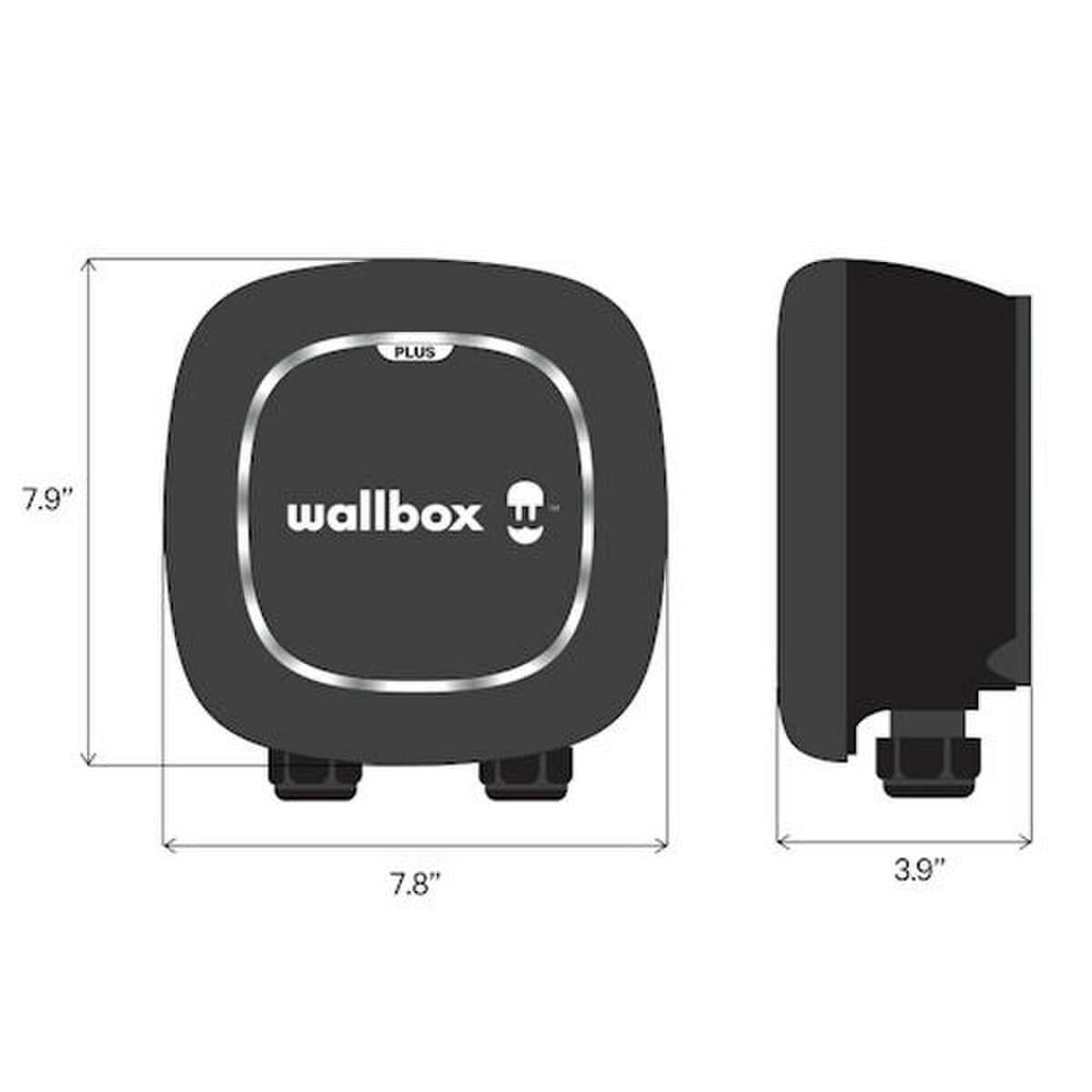

• Dimensions: 7.8 in x 7.9 in x 3.9 in
• Operating Temperature: -22 to 104°F
• Charging Power: 11.5 kW
• Amperage Rating: 48 A
• Voltage Rating: 240/208 V (Level 2)
• Connection Type: SAE J1772 Type 1
• Connectivity: Wi-Fi, Bluetooth
• Voice Control: Amazon Alexa & Google Assistant
• Enclosure Rating/IP Rating: NEMA 4 Per UL 50E
• Standards & Certifications:
  • UL 2594
  • UL 2231
  • FCC Part 15 Class B
  • CAN ICES-003B/NMB-003B
  • Energy Star Certified


Documents

• Specification Sheet

Powerful and Efficient Charging Performance

The Wallbox Pulsar Plus 48A charger delivers a powerful 11.5kW output at 240V, making it an ideal Level 2 EV charging solution. Designed to provide fast and efficient charging, it significantly reduces your electric vehicle’s downtime. This charger accommodates a wide range of EVs and supports up to 48 amps, ensuring optimal power delivery. Its compact size and intelligent power sharing make it perfect for residential or commercial installations, providing reliable, high-speed charging that matches modern EV demands effortlessly.

Smart Connectivity and User-Friendly Features

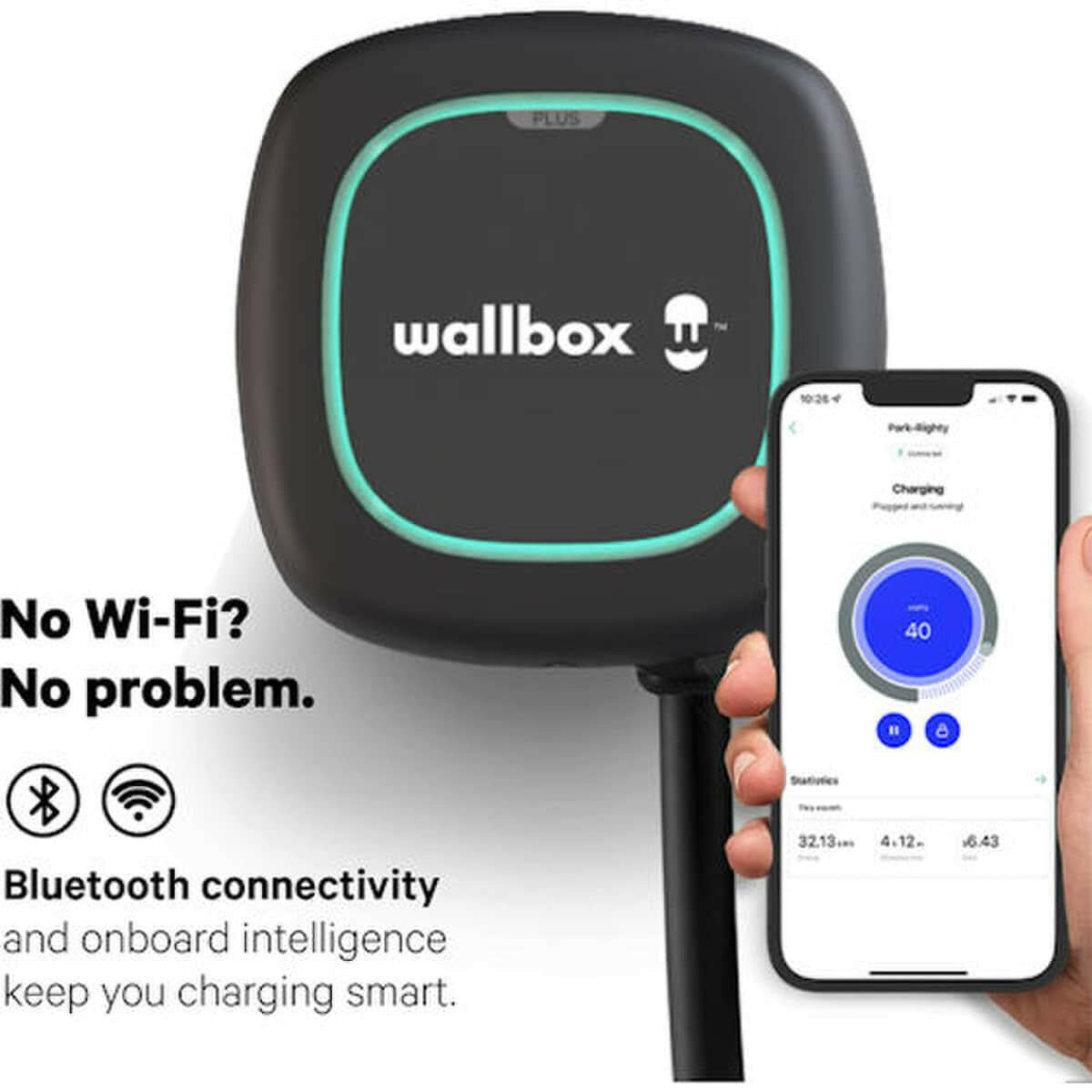

The Wallbox Pulsar Plus 48A charger is equipped with smart connectivity options, including Wi-Fi and Bluetooth, allowing users to control and monitor charging through an intuitive app. This digital integration enables scheduling charging sessions, tracking energy consumption, and receiving status updates remotely. The charger features a user-friendly LED ring that clearly indicates the charging status, making it easy for all users to operate. Its smart features optimize charging times and energy use, which can reduce electricity costs and maximize convenience.

Durable Design and Safety Certifications

Built to last, the Wallbox Pulsar Plus 48A charger combines modern aesthetics with robust construction. It comes with industry-leading safety certifications to ensure secure operation in different environments. With excellent weather resistance, it is suitable for indoor and outdoor use, protecting your investment against dust, rain, and extreme temperatures. The charger’s comprehensive safety features include overcurrent protection, ground fault detection, and thermal monitoring, delivering peace of mind during every charge cycle.

Powerful and Efficient Charging Performance

The Wallbox Pulsar Plus 48A charger delivers a powerful 11.5kW output at 240V, making it an ideal Level 2 EV charging solution. Designed to provide fast and efficient charging, it significantly reduces your electric vehicle’s downtime. This charger accommodates a wide range of EVs and supports up to 48 amps, ensuring optimal power delivery. Its compact size and intelligent power sharing make it perfect for residential or commercial installations, providing reliable, high-speed charging that matches modern EV demands effortlessly.

Smart Connectivity and User-Friendly Features

The Wallbox Pulsar Plus 48A charger is equipped with smart connectivity options, including Wi-Fi and Bluetooth, allowing users to control and monitor charging through an intuitive app. This digital integration enables scheduling charging sessions, tracking energy consumption, and receiving status updates remotely. The charger features a user-friendly LED ring that clearly indicates the charging status, making it easy for all users to operate. Its smart features optimize charging times and energy use, which can reduce electricity costs and maximize convenience.

Durable Design and Safety Certifications

Built to last, the Wallbox Pulsar Plus 48A charger combines modern aesthetics with robust construction. It comes with industry-leading safety certifications to ensure secure operation in different environments. With excellent weather resistance, it is suitable for indoor and outdoor use, protecting your investment against dust, rain, and extreme temperatures. The charger’s comprehensive safety features include overcurrent protection, ground fault detection, and thermal monitoring, delivering peace of mind during every charge cycle.
