VSUN 440W N-Type TOPCon Bifacial All Black Solar Panel VSUN440N-108BMH-DGBB

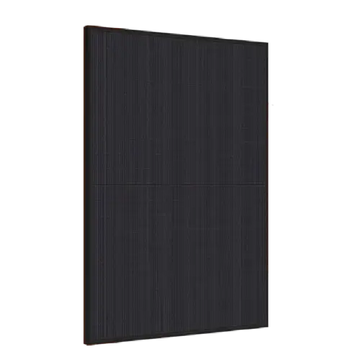

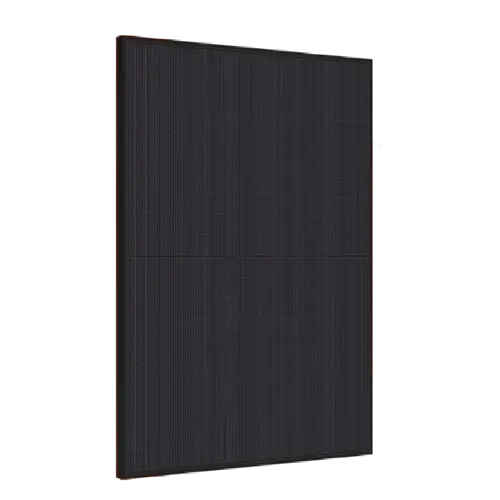

VSUN 440W N-Type TOPCon Bifacial All Black Solar Panel
Model: VSUN440N-108BMH-DGBB | Brand: VSUN Solar | Color: All Black (Dual Glass)
The VSUN440N-108BMH-DGBB is a high-efficiency N-Type TOPCon bifacial dual-glass solar panel with a sleek all-black design. VSUN Solar, invested by Fuji Solar and headquartered in Tokyo, Japan, is a BNEF Tier 1 PV module manufacturer and PVEL Lab 'Best Performer'. The DGBB variant features dual glass construction for enhanced durability and bifacial energy capture.
Key Features
- N-Type TOPCon bifacial technology
- Dual glass (DG) all-black (BB) design
- Module efficiency up to 22.53%
- MBB technology with Circular Ribbon
- Excellent PID resistance
- Better temperature coefficient
- Bifacial cells for additional rear-side energy generation
- Load capacity: +5400/-2400 Pa
- 25-year quality assurance
- 30-year power output guarantee
Electrical Specifications (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 440W |
| Open Circuit Voltage (Voc) | 39.38V |
| Short Circuit Current (Isc) | 13.85A |
| Max Power Voltage (Vmpp) | 33.37V |
| Max Power Current (Impp) | 13.18A |
| Module Efficiency | 22.53% |
| Power Tolerance | 0~+5W |
| Max System Voltage | 1500V |
| Max Series Fuse Rating | 30A |
| Bifaciality | 80%±10% |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1722×1134×30mm (67.80×44.65×1.18 in) |
| Weight | 21.4 kg (47.18 lbs) |
| Frame | Black anodized aluminum profile |
| Front Glass | AR-Coating toughened glass, 3.2mm |
| Back Glass | Dual glass construction |
| Cells | 108 N-Type mono solar cells (12×9) |
| Junction Box | IP68, 3 diodes |
| Connector | Staubli MC4 |
| Operating Temperature | -40°C ~ +85°C |
| Per Pallet | 36 pieces |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Power Temperature Coefficient | -0.30%/°C |
| Voltage Temperature Coefficient | -0.26%/°C |
| Current Temperature Coefficient | +0.046%/°C |
| NOCT | 45°C (±2°C) |
Warranty
- Product Warranty: 25 years quality assurance
- Power Warranty: 30-year power output guarantee
- 1st year degradation ≤1.0%, subsequent years ≤0.40%/year
Certifications
UL 61730 | CSA 61730 | IEC 61215 | IEC 61730 | CE
