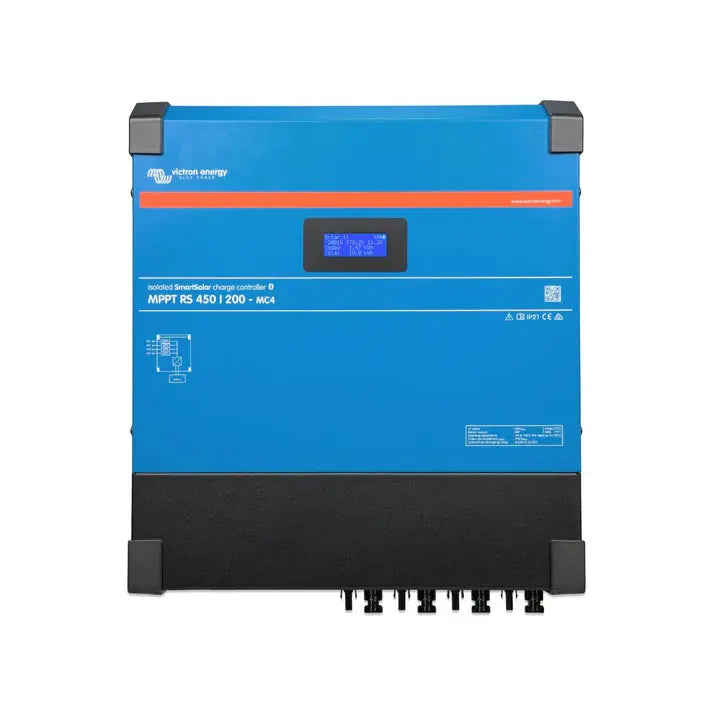

Victron SmartSolar MPPT RS 450/200 Solar Charge Controller
Explore the Features and Benefits of Victron SmartSolar MPPT RS 450/200
The Victron SmartSolar MPPT RS 450/200 is a high-performance, isolated 48V solar charge controller with up to 450V DC PV input and 200A output current. Designed for large on-grid and off-grid solar applications requiring maximum battery charging power. Features 4 independent MPPT trackers for optimized solar panel performance.
Key Features
- 4 independent MPPT trackers for maximum solar harvest
- Full galvanic isolation between PV and battery for enhanced safety
- Wide MPPT voltage range: 65–450V DC (startup at 120V)
- Built-in Bluetooth Smart for monitoring and configuration via VictronConnect app
- Built-in display showing battery and controller parameters
- VE.Can port: up to 25 units in parallel with synchronized charging
- VE.Direct port for GX device connection
- PV isolation resistance monitoring
- Programmable relay, temperature sensor, auxiliary and digital inputs
- Ultra-quiet fan-assisted cooling
- Compatible with Victron SmallBMS and other BMS systems
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | SCC145120512 |
| Battery Voltage | 48V |
| Rated Charge Current | 200A |
| Maximum Charge Power | 11.5 kW at 57.6V |
| Maximum DC PV Voltage | 450V |
| MPPT Operating Voltage Range | 65–450V DC |
| Start-up Voltage | 120V |
| Number of MPPT Trackers | 4 |
| Max PV Input Current per Tracker | 16A |
| Max PV Short Circuit Current per Tracker | 20A |
| Max DC Output Charging Power | 4,000W per tracker / 11,520W total |
| Maximum PV Array Size per Tracker | 7,200 Wp (450V × 20A) |
| Maximum Efficiency | 96% |
| Charge Voltage Absorption | 57.6V (adjustable) |
| Charge Voltage Float | 55.2V (adjustable) |
| Programmable Voltage Range | 36–60V |
| Parallel Operation | Yes, up to 25 units via VE.Can |
| Data Communication | VE.Direct, VE.Can, Bluetooth |
| PV Isolation Fail Level | 100 kΩ |
| Operating Temperature | -40 to +60°C (fan-assisted) |
| Humidity | Max 95% non-condensing |
| Protection Category | IP21 |
| Material & Color | Steel, Blue RAL 5012 |
| Battery Connection | 4x M8 bolts (2 positive, 2 negative) |
| PV Input Terminals | 1 pair MC4 connectors per tracker |
| Weight | 13.7 kg (30.2 lbs) |
| Dimensions (H×W×D) | 487 × 434 × 146 mm |
| Country of Origin | Designed in Netherlands, made in India |
Standards & Certifications
- Safety: EN-IEC 62109-1
Warranty
Victron Energy provides a 5-year limited warranty on this product.
Documentation
High-Efficiency Solar Charging Technology
The Victron SmartSolar MPPT RS 450/200 uses advanced Maximum Power Point Tracking (MPPT) technology to maximize the energy harvested from solar panels. This solar charge controller delivers exceptional efficiency by continuously adjusting to the optimal voltage for capturing the highest solar power. Designed for large solar arrays, the controller supports a high PV input voltage and current, making it ideal for heavy-duty solar installations. This enhanced tracking capability ensures that your battery system is charged quickly and safely, reducing energy losses and improving overall system reliability and performance.
Robust Build and Intelligent Features
Built for durability and intelligent solar power management, the Victron SmartSolar MPPT RS 450/200 features an industrial-grade enclosure designed to operate in various environmental conditions. It offers comprehensive battery charging algorithms compatible with multiple battery types, ensuring maximum battery lifespan. Equipped with Bluetooth connectivity, it allows seamless monitoring via mobile app, providing real-time data on charging status and system performance. This smart controller automatically adapts to changing weather conditions and load demands to optimize energy use efficiently.
Wide Compatibility and Easy System Integration
The Victron SmartSolar MPPT RS 450/200 is compatible with a broad range of battery systems, including lead-acid and lithium-ion types, making it a versatile choice for diverse solar setups. Its user-friendly interface and versatile communication options, such as VE.Direct and VE.Can, facilitate simple integration with other Victron energy products and external monitoring systems. This compatibility allows users to build scalable, customized solar energy solutions without hassle, ensuring maximum control and flexibility for both residential and commercial solar energy applications.
