Victron SmartSolar Charge Controller MPPT 100/30 & 100/50
-
Estimated Delivery:Jun 09 - Jun 13
-
Free Shipping & Returns: On all orders under $50
Victron SmartSolar Charge Controller MPPT 100/30 & 100/50
Victron SmartSolar MPPT Charge Controller: Advanced Solar Energy Management
Victron's SmartSolar Charge Controller MPPT is designed to maximize energy capture from solar panels. With the latest technology, it can rapidly charge batteries with minimum time, protecting battery health and extending its life. This SmartSolar controller is even able to charge severely depleted batteries with voltages as low as 0V.
Use the Victron MPPT Sizing Tool to find the right model for your system.
Key Features
- Lightning-fast Maximum Power Point Tracking (MPPT) — efficiency exceeds 98%
- Intelligent adaptive charge algorithm (Bulk, Absorption, Float stages)
- Compatible with Lithium, AGM, Gel, and Flooded batteries
- Automatic 12V/24V battery voltage detection
- Can revive fully discharged batteries (down to 0V)
- Built-in Bluetooth via VictronConnect App for easy setup and monitoring
- VE.Direct port for integration with GX devices and VRM remote monitoring portal
- Wireless charging synchronisation with multiple MPPTs
- SafetyShield+: temperature-compensated charging, over-temperature protection, PV short-circuit, reverse polarity & reverse current protection
- No cooling fan — natural convection cooling
- Full output current up to 40°C (104°F)
- Compact and robust design
Technical Specifications
| Specification | MPPT 100/30 | MPPT 100/50 |
|---|---|---|
| Battery Voltage (auto select) | 12V or 24V | |
| Rated Charge Current | 30A | 50A |
| Nominal PV Power (12V) | 440W | 700W |
| Nominal PV Power (24V) | 880W | 1400W |
| Max PV Open Circuit Voltage | 100V | |
| Max Efficiency | >98% | |
| Self-Consumption | <10mA | |
| Charge Algorithm | Multi-stage adaptive | |
| Temperature Compensation | -16mV/°C (12V) / -32mV/°C (24V) | |
| VE.Direct Port | Yes | |
| Bluetooth | Built-in (VictronConnect) | |
| Operating Temperature | -30°C to +60°C | |
| Weight | 1.3 kg | |
| Dimensions (H x W x D) | 130 x 186 x 70 mm | |
| Protection Rating | IP43 | |
| Safety Standards | EN/IEC 62109-1, UL 1741, CSA C22.2 | |
| SKU (100/30) | SCC110030210 | |
| SKU (100/50) | SCC110050210 | |
Applications
- Marine & Boating
- Off-Grid Solar Systems
- Recreational Vehicles (RV/Van)
- Hybrid Generator Systems
Warranty
5-Year Limited Warranty — Victron Energy offers a 5-year limited warranty on this product. This is upgradable to 10 years by an additional 10% of the initial investment. For warranty claims or more information, contact info@solarcellzusa.com.
Documents & Downloads
- SmartSolar MPPT 100/30 & 100/50 Datasheet (PDF)
- SmartSolar MPPT 100/30 & 100/50 Manual (PDF)
- BlueSolar & SmartSolar MPPT Overview Datasheet (PDF)
Product Images
Official high-resolution product images available from Victron Energy:

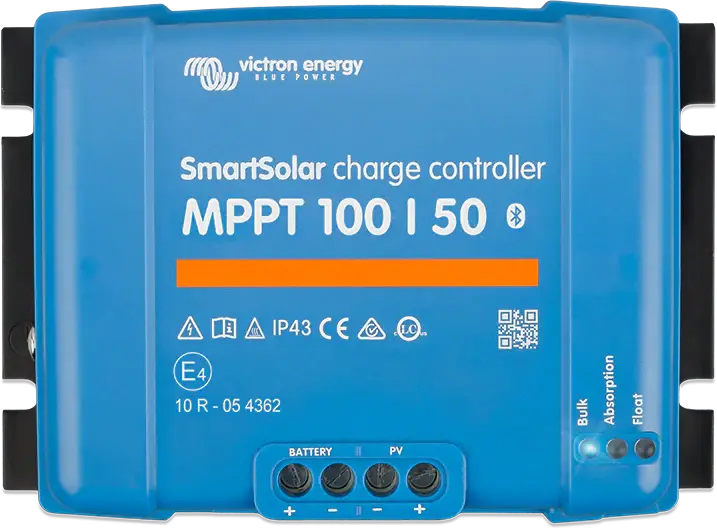

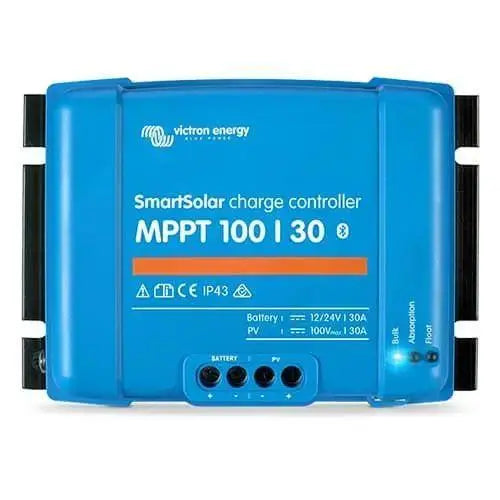

SmartSolar MPPT 100/30 (Front) | SmartSolar MPPT 100/50 (Front)
Efficient Maximum Power Point Tracking Technology
The Victron SmartSolar MPPT charge controller uses advanced Maximum Power Point Tracking (MPPT) technology to maximize the energy harvested from solar panels. It continuously adjusts the electrical operating point of the modules for optimum power output, significantly improving charging efficiency compared to traditional controllers. This innovative approach ensures that your solar system performs at its best even under varying sunlight conditions, delivering reliable and consistent power to your batteries. With the Victron SmartSolar MPPT charge controller, you get peak energy harvesting tailored for residential, commercial, or mobile solar setups.
Robust Design for Long-Term Durability
Designed with durability in mind, the Victron SmartSolar MPPT charge controller features rugged components and a compact, waterproof enclosure that withstands harsh outdoor environments. This makes it an ideal choice for off-grid solar systems exposed to weather extremes. Its intelligent thermal management ensures safe operation by preventing overheating, while its corrosion-resistant casing guarantees longevity. Whether installed on rooftops, boats, or remote cabins, this controller maintains reliable performance and minimal maintenance, providing solar energy users with long-lasting protection and peace of mind.
Smart Connectivity and User-Friendly Monitoring
The Victron SmartSolar MPPT charge controller supports Bluetooth connectivity, allowing easy wireless monitoring and configuration through the VictronConnect app. Users can access real-time data on solar input, battery status, and system performance right from their smartphones or tablets. The intuitive interface simplifies system management, enabling quick troubleshooting, firmware updates, and parameter adjustments without needing additional equipment. This smart feature enhances the user experience by offering transparency and control, ultimately optimizing energy output and ensuring your solar installation runs smoothly.
