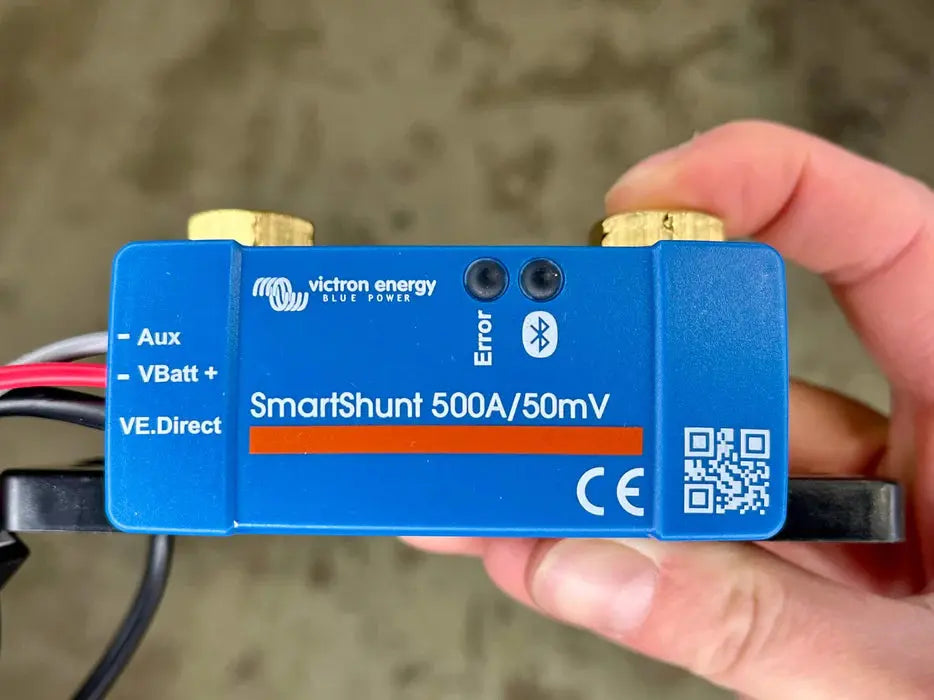

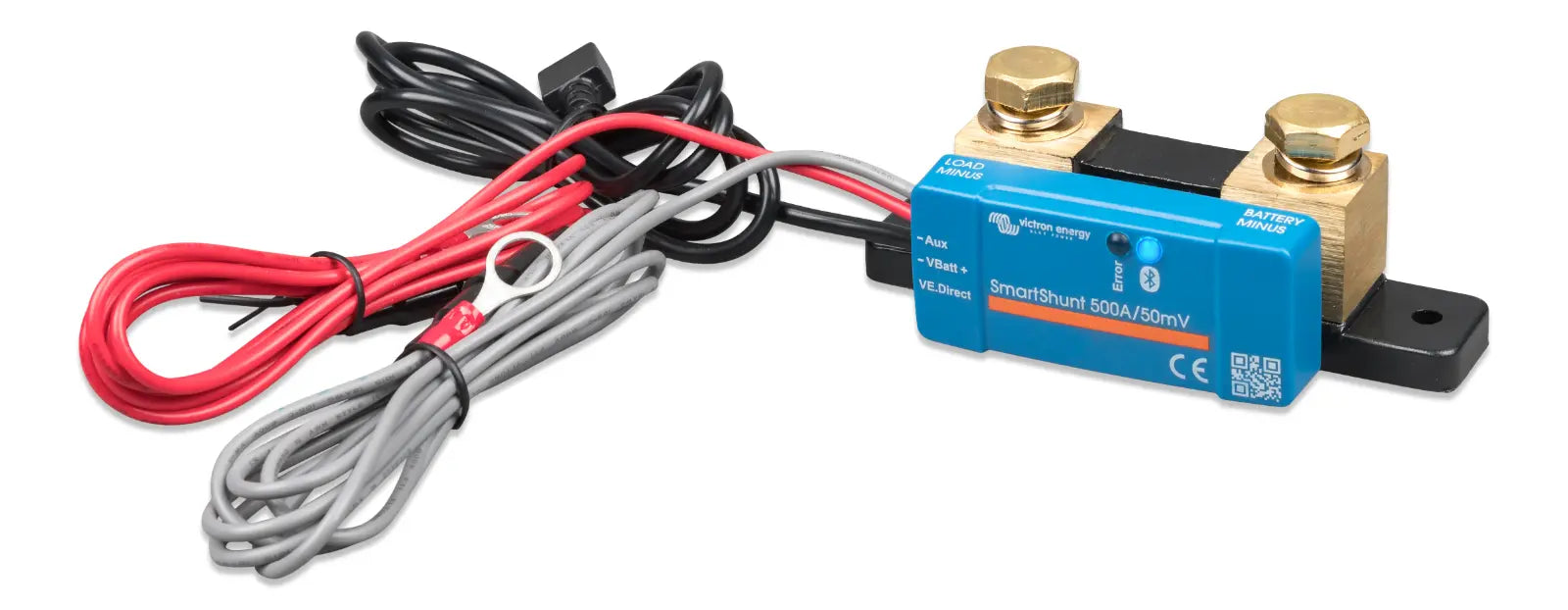

Victron Energy SmartShunt IP65 500A/50mV Smart Battery Shunt

Explore the Features and Benefits of the Victron SmartShunt IP65

The SmartShunt IP65 is an all-in-one battery monitor — only without a display. Your phone acts as the display. The SmartShunt IP65 is water resistant (IP65 rated) and connects via Bluetooth to the VictronConnect App on your phone or tablet, allowing you to conveniently read out all monitored battery parameters including state of charge, time to go, historical information, and much more.

Alternatively, the SmartShunt IP65 can be connected to and read by a GX device via a VE.Direct cable. The SmartShunt is a great alternative to a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is preferred.

Key Features

• IP65 water and dust resistant — built for tough environments
• Bluetooth connectivity via VictronConnect App
• VE.Direct port for GX device integration
• Auxiliary connection for second battery monitoring, midpoint monitoring, or temperature sensor
• Compatible with all battery types: Lithium, AGM, Flooded, and more
• 99.6% measurement accuracy
• Stores 46 days of trend data
• Easy installation with minimal wiring
• SafetyShield+ features for extended battery life
• Configurable alarm notifications via VictronConnect app

Technical Specifications

Resolution & Accuracy

Compliance & Certifications

• Safety: EN 60335-1
• Emission/Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
• Automotive: EN 50498

Warranty

5-Year Manufacturer Warranty by Victron Energy. World-wide support available. For warranty claims, contact your original dealer or visit victronenergy.com/support/warranty-and-repairs.

Documents & Resources

• 📄 Official Datasheet – SmartShunt IP65 (PDF)
• 📘 User Manual – SmartShunt IP65 (PDF)
• ⚡ Quick Installation Guide (PDF)

Precision Battery Monitoring with Victron SmartShunt IP65

The Victron SmartShunt IP65 is designed to provide highly accurate battery monitoring for a variety of systems. With its 500A/50mV capacity, this smart battery shunt measures current flow and battery voltage with precision. It tracks state-of-charge (SoC), remaining capacity, and energy consumption, delivering reliable data to help optimize battery use. Featuring Bluetooth connectivity, the SmartShunt enables wireless monitoring via compatible mobile apps, making battery management easy and efficient. Its precision ensures users can trust the data to maintain battery health and prolong lifespan.

Durable IP65 Rated Design for Harsh Environments

One of the key advantages of the Victron SmartShunt IP65 is its rugged build quality certified by the IP65 rating. This means it is dust-tight and resistant to water jets, making it ideal for demanding environments such as marine, caravans, and off-grid solar systems. The robust enclosure protects internal components from moisture and debris, which significantly enhances reliability and longevity. Users can install the SmartShunt IP65 confidently in places where exposure to weather or splash hazards is common, ensuring continuous and dependable performance.

Seamless Integration and User-Friendly Control

The Victron SmartShunt IP65 offers straightforward integration with a range of Victron Energy systems and accessories. Thanks to its versatile design and Bluetooth interface, users can monitor battery status remotely without complex wiring. The free VictronConnect app provides real-time data and historical trends, allowing users to analyze battery usage and make informed decisions about power consumption. Installation is simple, and configuration is intuitive, which reduces setup time and enhances user experience. This smart battery shunt is a valuable tool for anyone seeking efficient energy management.
