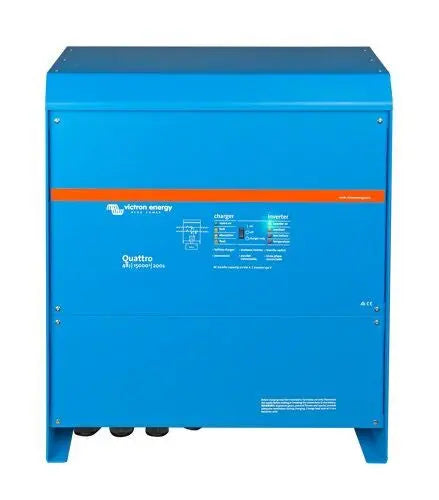

Victron Energy Quattro 48/15000/210-100/100 Inverter Charger
Victron Energy Quattro 48/15000/210-100/100 Inverter Charger
Model: QUA483150000 | Brand: Victron Energy | GTIN: 08719076037347
The Victron Energy Quattro 48/15000/210-100/100 is a premium 15kVA pure sine wave inverter-charger for 48-volt battery systems, delivering outstanding power capacity for large off-grid, backup, and grid-interactive installations.
Key Features
- Two AC Inputs with Integrated Transfer Switch: Connect to two independent AC sources (e.g., shore power and a generator, or two generators). The Quattro automatically connects to the active source.
- Two AC Outputs: The main output has no-break functionality — in the event of a grid failure or disconnection, the Quattro takes over in less than 20 milliseconds, ensuring computers and electronics continue without disruption. The second output is live only when AC is available on one of the inputs.
- Unique PowerAssist Feature: Prevents overload of a limited AC source. Battery charging is automatically reduced when an overload would otherwise occur, and the Quattro can boost generator/shore power output using battery power during peak demand.
- Virtually Unlimited Power via Parallel Operation: Up to 6 Quattros can operate in parallel for higher power output. Three-phase and split-phase operation are also supported.
- PowerControl: Monitors AC loads and uses available spare capacity for battery charging, preventing generator or mains overload.
- Solar & Renewable Energy Compatible: Suitable for off-grid and grid-connected PV systems. Loss of mains detection software available.
- Remote Monitoring & Control: Compatible with Cerbo GX or other GX devices for local and remote monitoring via the free VRM portal and app.
- Lithium Ion Battery Compatible
- Adaptive Charging Technology
- VE.Bus Communication Port for parallel and three-phase operation, remote monitoring, and system integration
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Battery Voltage | 48V DC |
| Continuous Output Power (25C) | 15,000 VA / 12,000 W |
| Continuous Output Power (65C) | 10,000 W |
| Peak Power | 25,000 W |
| Output Voltage | 230 VAC +/- 2% |
| Output Frequency | 50 Hz +/- 0.1% |
| Input Voltage Range (DC) | 38 - 66 VDC |
| AC Input Voltage Range | 187 - 250 VAC |
| AC Input Frequency | 50/60 Hz |
| Max Feed-Through Current | 2 x 100A |
| Max Battery Charge Current | 210A |
| Charge Voltage Absorption | 57.6 VDC |
| Charge Voltage Float | 55.2 VDC |
| Storage Mode Voltage | 52.8 VDC |
| Maximum Efficiency | 96% |
| Zero Load Power | 110 W |
| Zero Load Power (AES Mode) | 75 W |
| Zero Load Power (Search Mode) | 20 W |
| Max Output Fault Current | 150A (1 sec) |
| Max Continuous Output Current | 53/50A |
| Programmable Relays | 3x |
| Auxiliary Output | 50A |
| General Purpose Com. Ports | 2x |
| Operating Temperature | -20C to +60C |
| Max Humidity | 95% (non-condensing) |
| Maximum Altitude | 2,000 m |
| Protection Category | IP20, Pollution Degree 2, OVC III |
| Enclosure Material | Aluminium (Blue RAL 5012) |
| Battery Connection | Four M8 bolts (2 positive, 2 negative) |
| AC Connection | Bolts M6 |
| Weight | 72 kg (158.7 lbs) |
| Dimensions (H x W x D) | 572 x 488 x 344 mm (22.5 x 19.2 x 13.5 in) |
| Safety Standards | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 |
Warranty
5-Year Manufacturer Warranty by Victron Energy. Victron Energy offers an industry-leading 5-year standard warranty with global repair service. For warranty claims, contact your original dealer or visit victronenergy.com/support/warranty-and-repairs.
