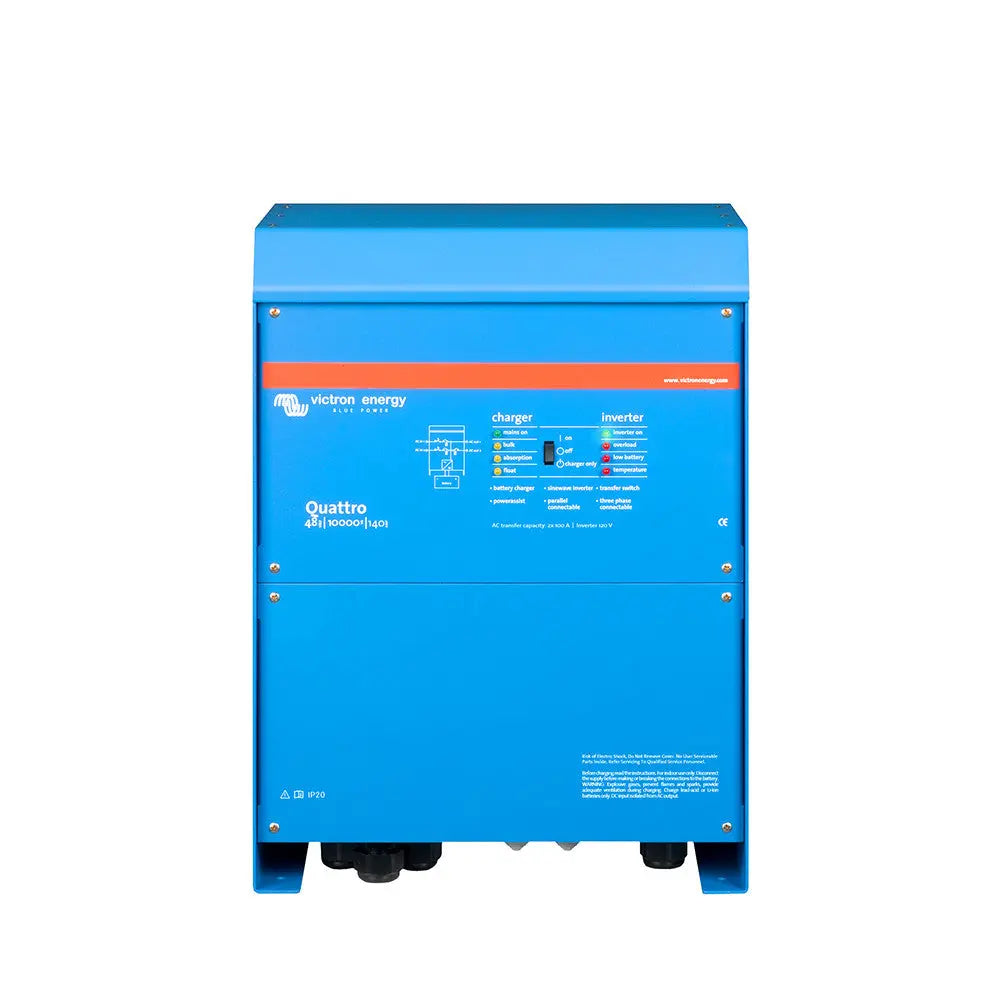

Victron Quattro 48/10000/140-100/100 120V Inverter Charger

Comprehensive Overview of the Victron Quattro 48V Inverter Charger

The Victron Quattro 48/10000 is a powerful, transformer-based, UL 1741-certified inverter-charger and transfer switch with grid-interactive capability. Ideal for off-grid cabins, grid-tied homes, RVs, and portable power stations requiring heavy-duty power.

Key Features

• Two AC inputs with integrated automatic transfer switch
• Two AC outputs – main output with no-break functionality (<20ms switchover)
• Split-phase and three-phase capability (up to 4 sets of 3 units in parallel)
• PowerControl – prevents generator/grid overload by limiting charge current
• PowerAssist – supplements shore/generator power with battery power during peak demand
• Pure sine wave output
• UL 1741 certified (48V model)
• Lithium Ion battery compatible
• VE.Bus communication port for system integration and remote monitoring
• 3x programmable relays (NO/NC)
• Dynamic neutral-ground bonding relay

Technical Specifications

Standards & Certifications

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, UL 1741
• EMC: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3

Warranty

Victron Energy provides a 5-year limited warranty on this product. Extended warranty options available.

Documentation

• Datasheet (PDF)
• Installation Manual (PDF)

Advanced Dual AC Input and Output Design

The Victron Quattro 48V inverter charger stands out with its advanced dual AC input and output design, enabling simultaneous connection to two AC sources. This feature allows automatic and seamless transfer between mains and generator power without interruption. By prioritizing available power sources, it ensures uninterrupted energy supply for critical loads. This versatility enhances power reliability especially in remote or off-grid locations. Its dual output protects sensitive equipment by dividing loads between inverter and bypass, optimizing energy distribution efficiently and reducing downtime risk.

High Power Capacity with Flexible Battery Charging

Equipped with a powerful 10,000 VA inverter and robust 140 A charger, the Victron Quattro 48V inverter charger effortlessly handles heavy power demands and extensive battery charging needs. The high charger current allows for faster and more efficient battery replenishment while adapting to diverse battery types. This flexibility supports various off-grid and backup applications. The device’s ability to combine inverter and charger power ensures continuous operation even when power loads exceed inverter capacity, securing steady energy management in dynamic environments.

Smart Energy Management and Integration Features

The Victron Quattro 48V inverter charger incorporates smart energy management capabilities with integrated system configuration options. It allows tailored settings via VEConfigure software, optimizing system performance based on specific installation needs. The unit’s advanced communication protocols enable remote monitoring, diagnostics, and control, making maintenance easier. Furthermore, its compatibility with Victron’s range of monitoring accessories supports seamless integration into broader power systems. This makes the Victron Quattro an ideal solution for residential, commercial, and industrial energy applications seeking reliable, smart inverter charger technology.
