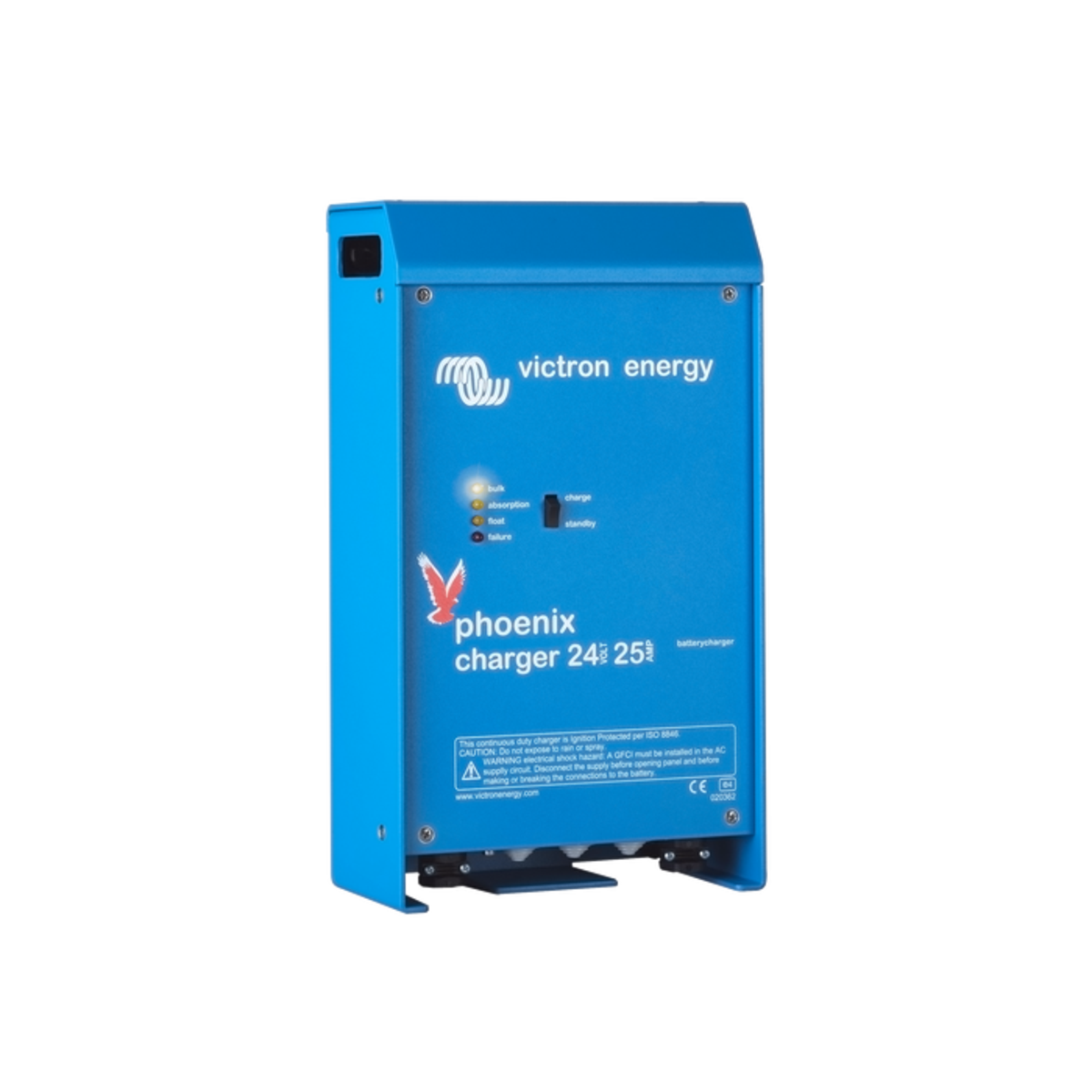

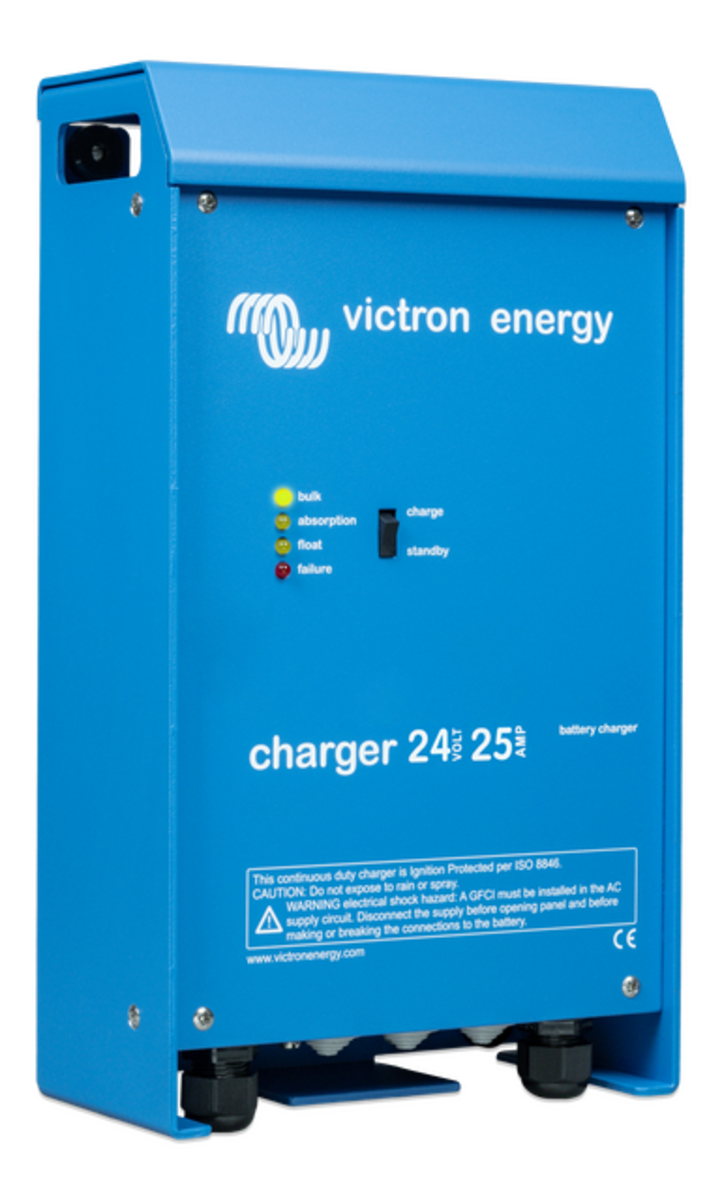

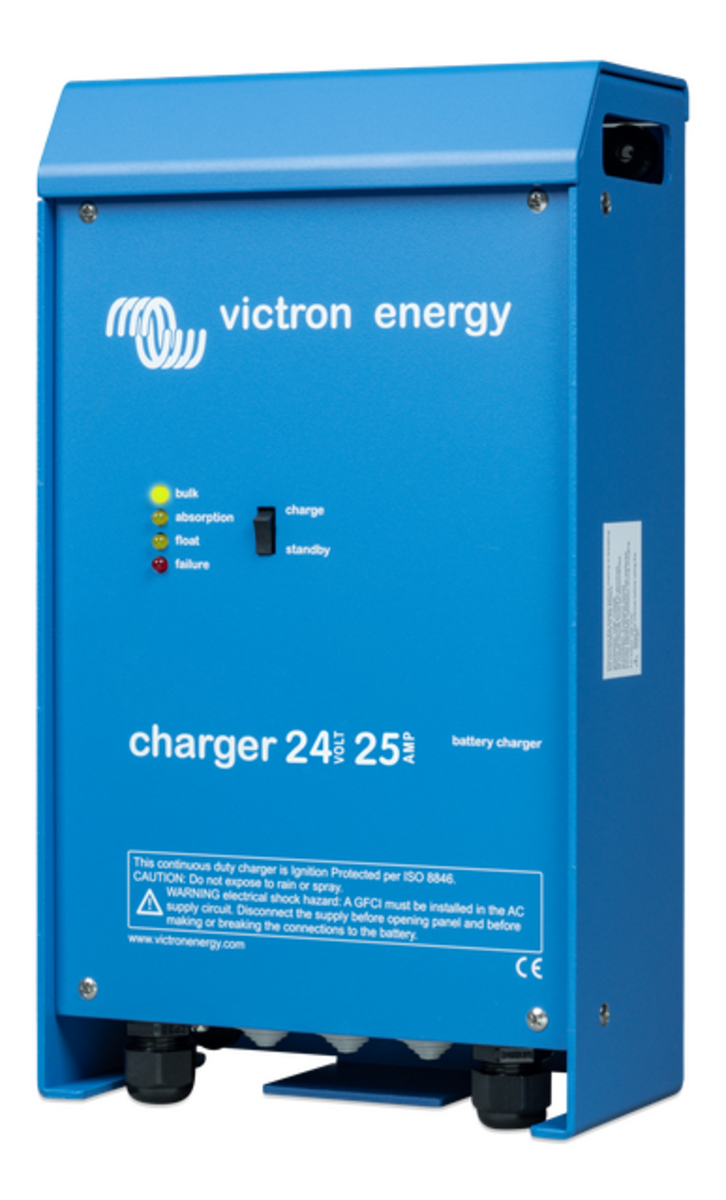

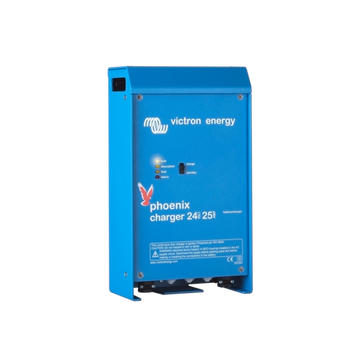

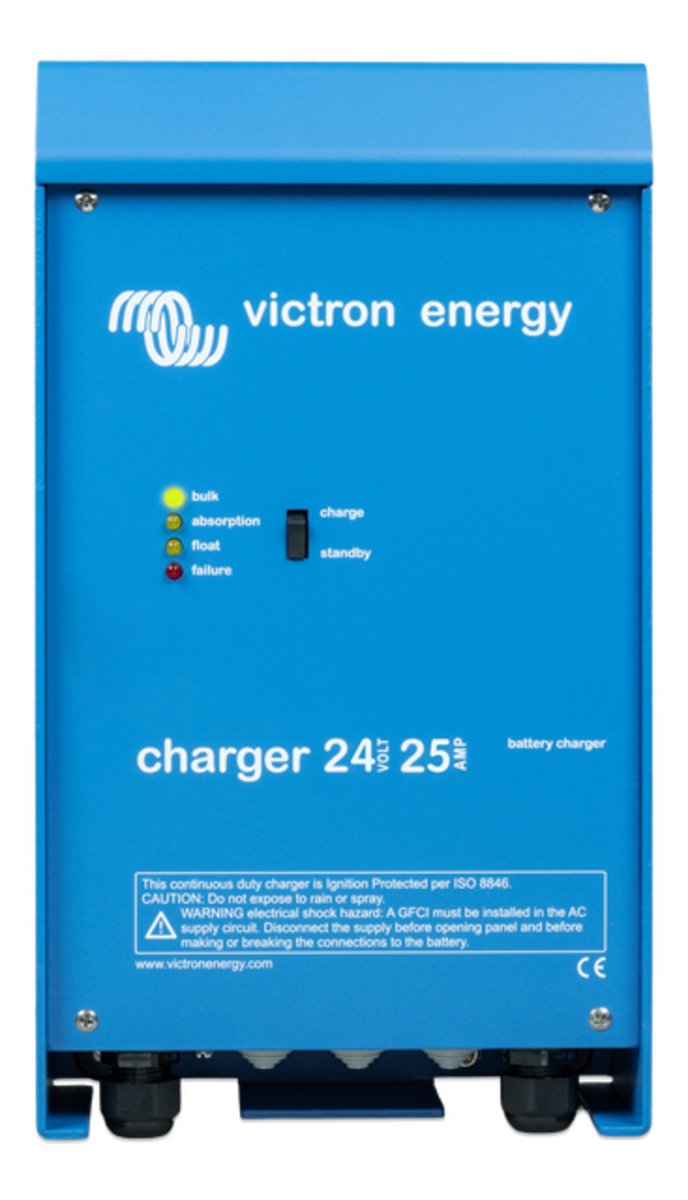

Victron Phoenix Charger 24V-25A (SKU Part Number PCH024025001)

Comprehensive Overview of the Victron Phoenix Charger

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimize the charge process relative to the way the battery is being used.

Features

• Adaptive 4-stage charge characteristic: bulk - absorption - float - storage - The Phoenix Charger features a microprocessor controlled 'adaptive' battery management system that can be preset to suit different types of batteries
• The 'adaptive' feature will automatically optimize the process relative to the way the battery is being used
• The right amount of charge: variable absorption time - When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery
• After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged
• Preventing damage due to excessive gassing: the BatterySafe mode (see fig. 2 below) - If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached
• Less maintenance and aging when the battery is not in use
• To increase battery life - temperature compensation
• Battery voltage sense

Specifications

• Input Voltage Range (VAC): 90-265 VAC
• Input Voltage Range (VDC): 90-400 VDC
• Frequency Rating: 45-65 Hz
• Power Factor: 1
• Charge Voltage Absorption: 28.8 VDC
• Charge Voltage Float: 27.6 VDC
• Charge Voltage Storage: 26.4 VDC
• Charge Current Rating: 25 A
• Charge Current Starter Battery: 4 A
• Charge Characteristic: 4-Stage Adaptive
• Battery Capacity: 100-400 Ah
• Temperature Sensor: Yes
• Can be Used as Power Supply: Yes
• Forced Cooling: Yes
• Protection: a, b, c, d
• Operating Temperature: -20 to 60°C
• Humidity: Maximum 95% (Non-Condensing)
• Material: Aluminum
• Color: Blue
• Battery Connection: M6 Bolts
• AC Connection: Screw-Clamp 4 mm²
• Enclosure Rating: IP21
• Standards: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-3-2, EN 55014-2, EN 61000-3-3, IEC68-2-6:10-150Hz/1.0G
• Dimensions: 13.8 in x 7.9 in x 4.3 in
• Weight: 8 lb

Documents

• Specification Sheet
• Instruction/Installation Manual

Advanced Features of the Victron Phoenix Charger

The Victron Phoenix Charger 24V-25A is engineered for high performance and reliability, making it a perfect choice for demanding environments. It features adaptive charging capabilities that ensure optimal battery maintenance and longevity. Designed to handle 24-volt battery systems efficiently, this charger supports a wide range of applications including marine, industrial, and automotive use. Its robust construction and advanced thermal management system provide consistent power delivery while protecting against overheating and electrical faults. By incorporating the Victron Phoenix Charger into your system, you ensure dependable energy management tailored for long-term performance.

Benefits of Using the Victron Phoenix Charger

Utilizing the Victron Phoenix Charger guarantees enhanced battery life and reliable charge cycles, thanks to its multi-stage charging technology. The charger automatically adjusts voltage and current to suit the battery’s current state, preventing overcharging and undercharging scenarios. This feature is crucial for maintaining battery health and reducing maintenance costs. Additionally, its compact design allows easy integration into tight spaces without sacrificing power output. Users will appreciate the intuitive setup process and silent operation, making it suitable for both professional and personal use where dependable power is essential.

Installation and Compatibility Details

The Victron Phoenix Charger 24V-25A offers flexible installation options to accommodate various setups. Its universal input voltage makes it compatible with global electrical systems, while the clearly labeled connections simplify wiring. The charger supports multiple battery chemistries, including lead-acid and AGM, broadening its usability across different devices and vehicles. Safety features such as short circuit protection and temperature compensation ensure peace of mind during operation. Overall, this product is designed for easy installation and straightforward integration into existing power setups, providing a seamless upgrade to your energy management system.
