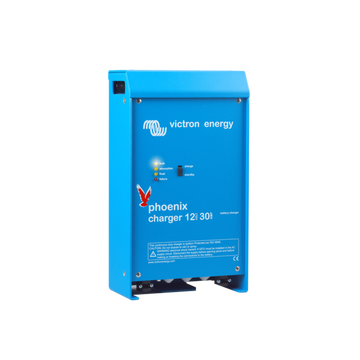

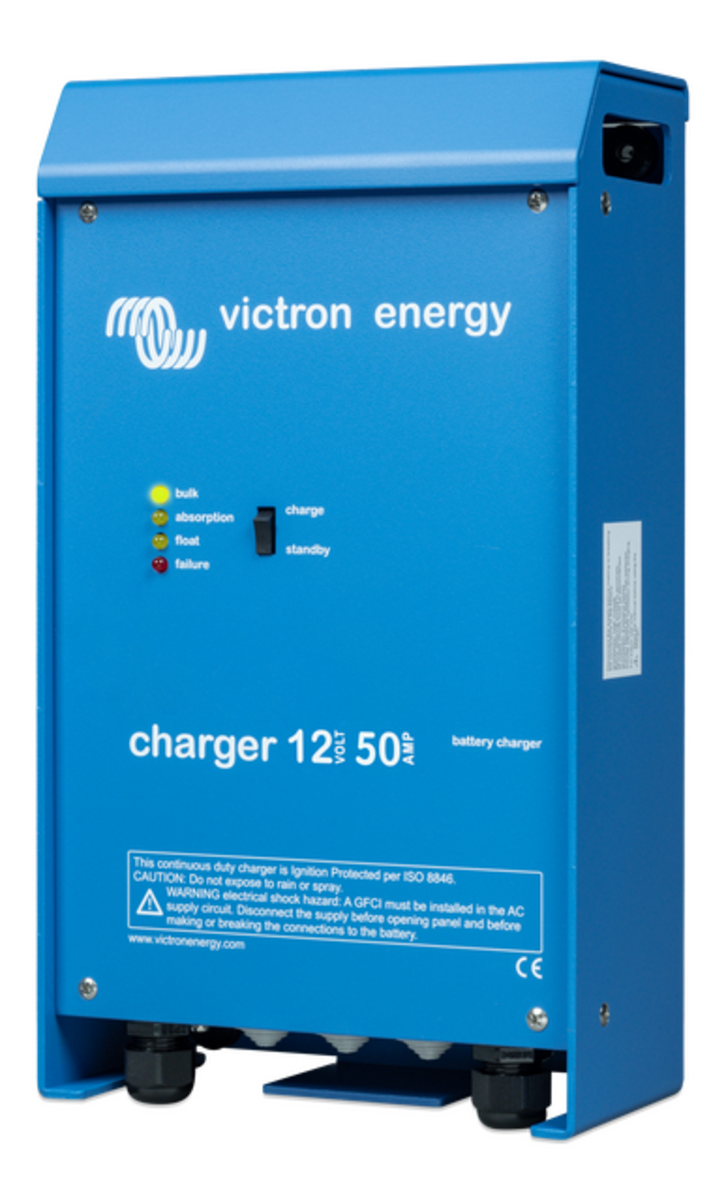

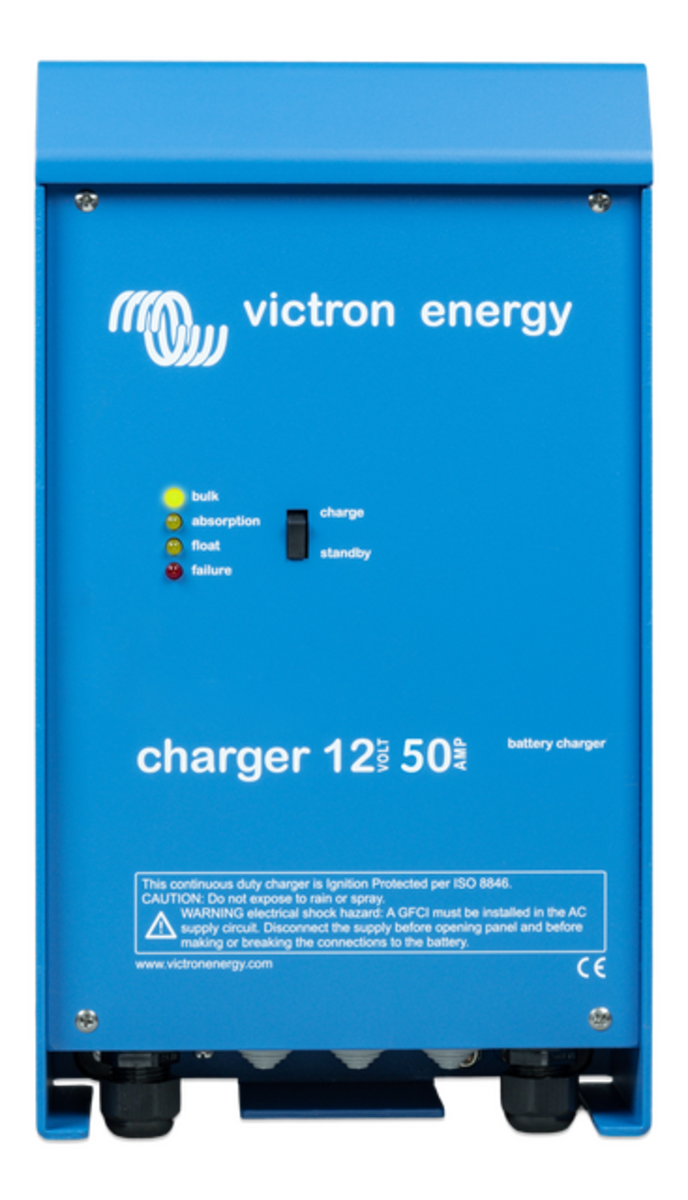

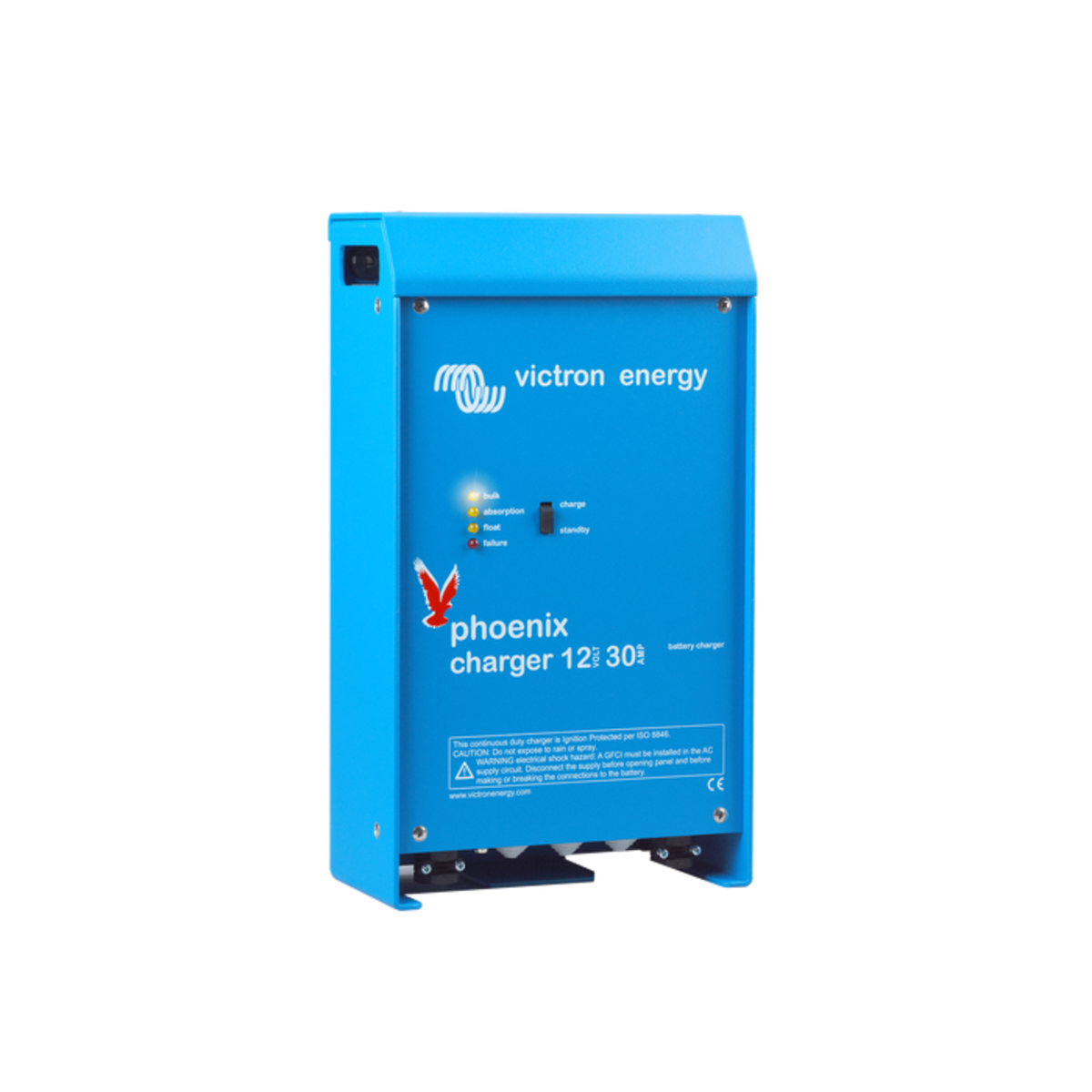

Victron Phoenix Battery Charger: Reliable Power Management for Your Batteries

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimize the charge process relative to the way the battery is being used.

Features

• Adaptive 4-stage charge characteristic: bulk - absorption - float - storage - The Phoenix Charger features a microprocessor controlled 'adaptive' battery management system that can be preset to suit different types of batteries
• The 'adaptive' feature will automatically optimize the process relative to the way the battery is being used
• The right amount of charge: variable absorption time - When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery
• After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged
• Preventing damage due to excessive gassing: the BatterySafe mode (see fig. 2 below) - If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached
• Less maintenance and aging when the battery is not in use
• To increase battery life - temperature compensation
• Battery voltage sense

Specifications

• Input Voltage Range (VAC): 90-265 VAC
• Input Voltage Range (VDC): 90-400 VDC
• Frequency Rating: 45-65 Hz
• Power Factor: 1
• Charge Voltage Absorption: 14.4 VDC
• Charge Voltage Float: 13.8 VDC
• Charge Voltage Storage: 13.2 VDC
• Charge Current Rating: 50 A
• Charge Current Starter Battery: 4 A
• Charge Characteristic: 4-Stage Adaptive
• Battery Capacity: 200-800 Ah
• Temperature Sensor: Yes
• Can be Used as Power Supply: Yes
• Forced Cooling: Yes
• Protection: a, b, c, d
• Operating Temperature: -20 to 60°C
• Humidity: Maximum 95% (Non-Condensing)
• Material: Aluminum
• Color: Blue
• Battery Connection: M6 Bolts
• AC Connection: Screw-Clamp 4 mm²
• Enclosure Rating: IP21
• Standards: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-3-2, EN 55014-2, EN 61000-3-3, IEC68-2-6:10-150Hz/1.0G
• Dimensions: 13.8 in x 7.9 in x 4.3 in
• Weight: 8 lb

Documents

• Specification Sheet

• Instruction/Installation Manual

High Performance and Efficient Charging

The Victron Phoenix Battery Charger delivers powerful and efficient charging for 12V battery systems. Featuring a 50A charging output, it ensures your batteries are fully charged quickly while maintaining optimum health and longevity. This charger is designed with advanced technology to provide a stable and intelligent charging process. Whether you're charging marine, automotive, or solar batteries, the Victron Phoenix Battery Charger adapts to various battery types, including lead-acid and lithium, ensuring safe and efficient energy delivery every time.

Durability and Safety Features

Built to last, the Victron Phoenix Battery Charger is engineered with high-quality components that provide excellent durability and long-term reliability. It includes multiple advanced safety features such as over-temperature protection, short-circuit recovery, and automatic voltage compensation. These safeguards prevent damage to both the charger and your batteries, offering peace of mind in all operating conditions. Its robust construction makes it ideal for demanding environments, including harsh marine or off-grid solar applications.

Compact Design with User-Friendly Operation

Designed with user convenience in mind, the Victron Phoenix Battery Charger combines a compact form factor with straightforward operation. Its easy-to-read LED indicators keep you informed of the charging status at a glance. The charger supports a wide input voltage range, making it compatible with different power sources. Installation is simple and hassle-free, thanks to well-placed connection points and clear instructions. This charger is the perfect choice for anyone looking to maintain their 12V battery systems efficiently and reliably.
