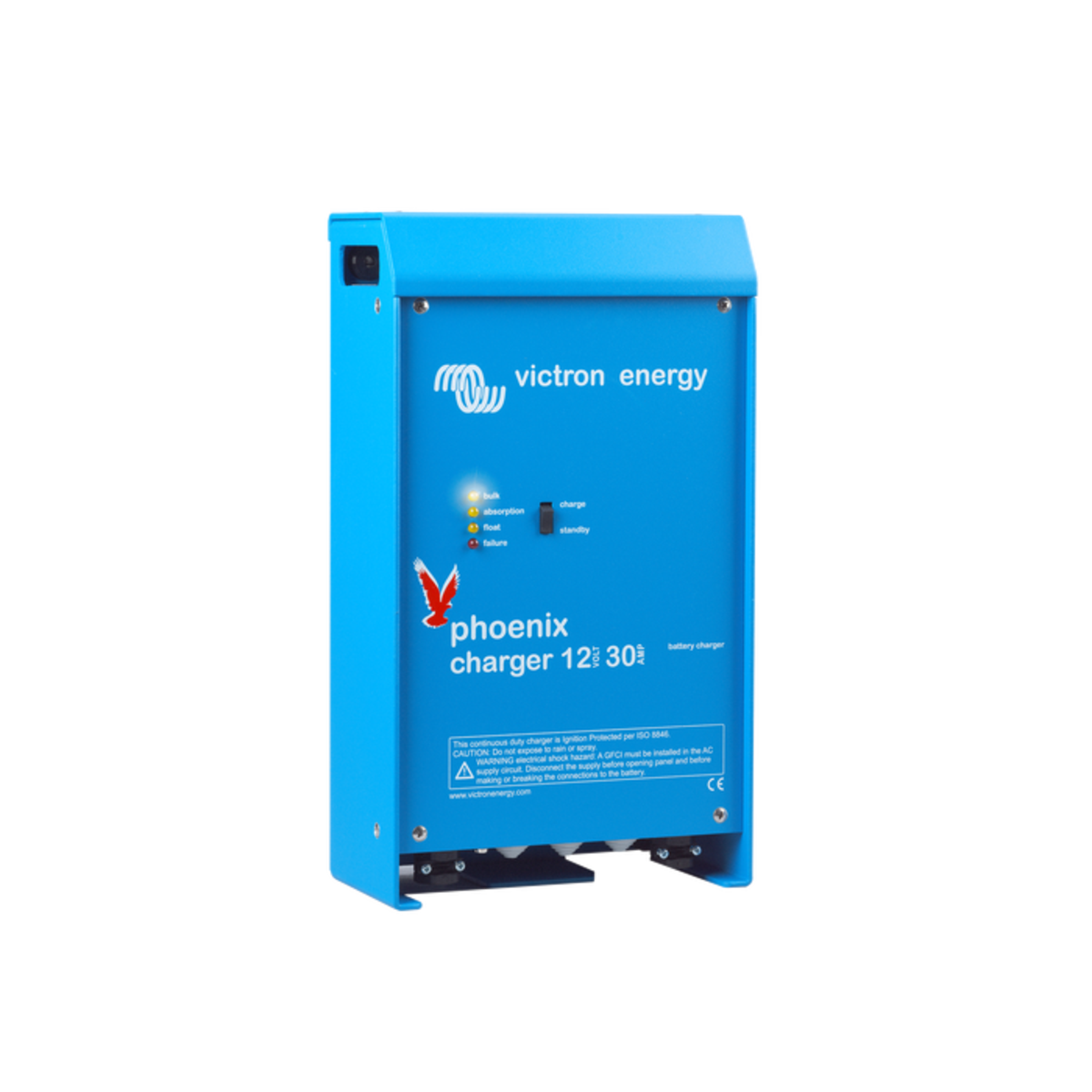

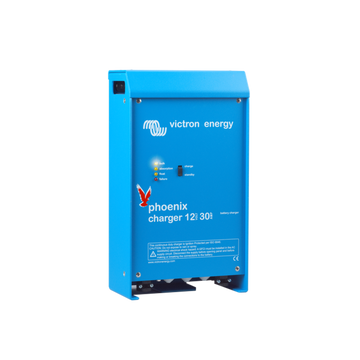

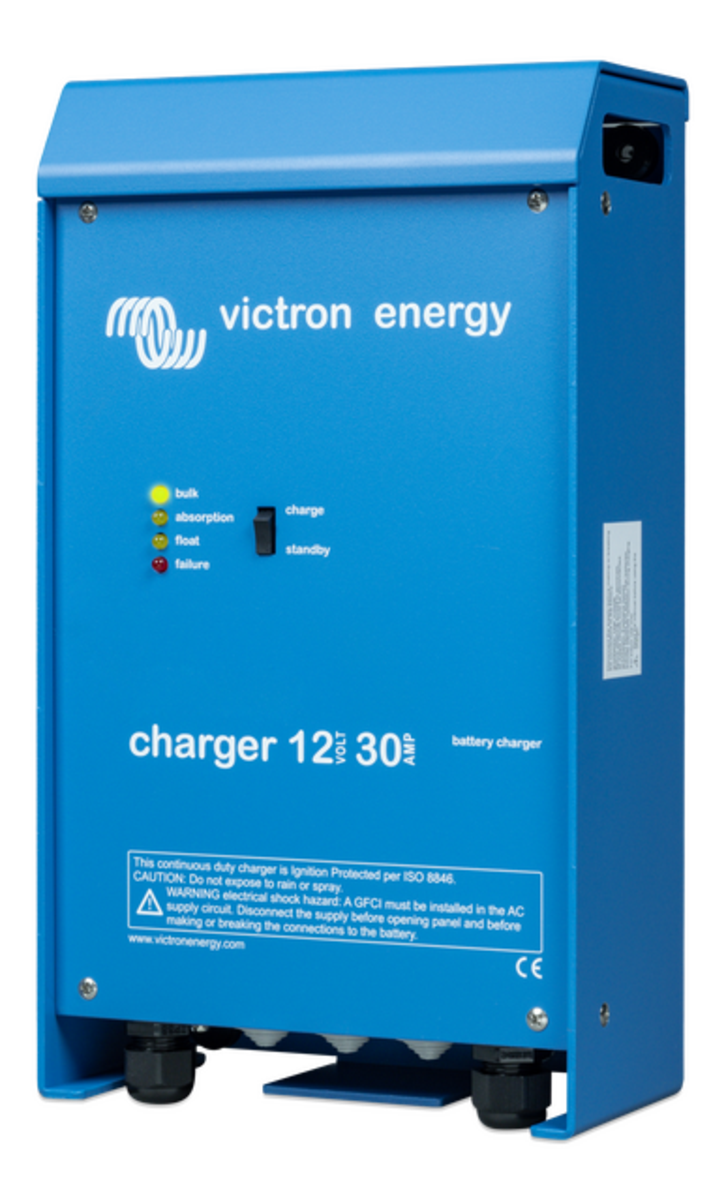

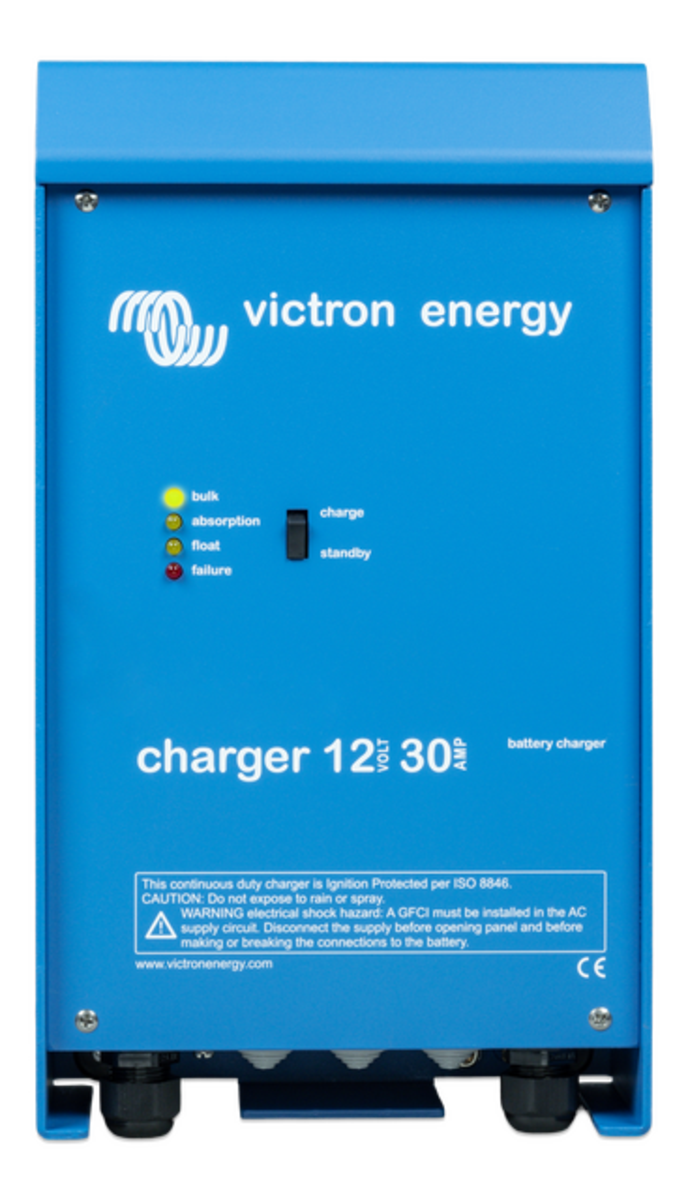

Victron Phoenix Battery Charger 12V -30A (SKU Part Number PCH012030001)

Victron Phoenix Battery Charger: Efficient and Reliable Power Solution

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimize the charge process relative to the way the battery is being used.

Features

• Adaptive 4-stage charge characteristic: bulk - absorption - float - storage - The Phoenix Charger features a microprocessor controlled 'adaptive' battery management system that can be preset to suit different types of batteries
• The 'adaptive' feature will automatically optimize the process relative to the way the battery is being used
• The right amount of charge: variable absorption time - When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery
• After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged
• Preventing damage due to excessive gassing: the BatterySafe mode (see fig. 2 below) - If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached
• Less maintenance and aging when the battery is not in use
• To increase battery life - temperature compensation
• Battery voltage sense

Specifications

• Input Voltage Range (VAC): 90-265 VAC
• Input Voltage Range (VDC): 90-400 VDC
• Frequency Rating: 45-65 Hz
• Power Factor: 1
• Charge Voltage Absorption: 14.4 VDC
• Charge Voltage Float: 13.8 VDC
• Charge Voltage Storage: 13.2 VDC
• Charge Current Rating: 30 A
• Charge Current Starter Battery: 4 A
• Charge Characteristic: 4-Stage Adaptive
• Battery Capacity: 100-400 Ah
• Temperature Sensor: Yes
• Can be Used as Power Supply: Yes
• Forced Cooling: Yes
• Protection: a, b, c, d
• Operating Temperature: -20 to 60°C
• Humidity: Maximum 95% (Non-Condensing)
• Material: Aluminum
• Color: Blue

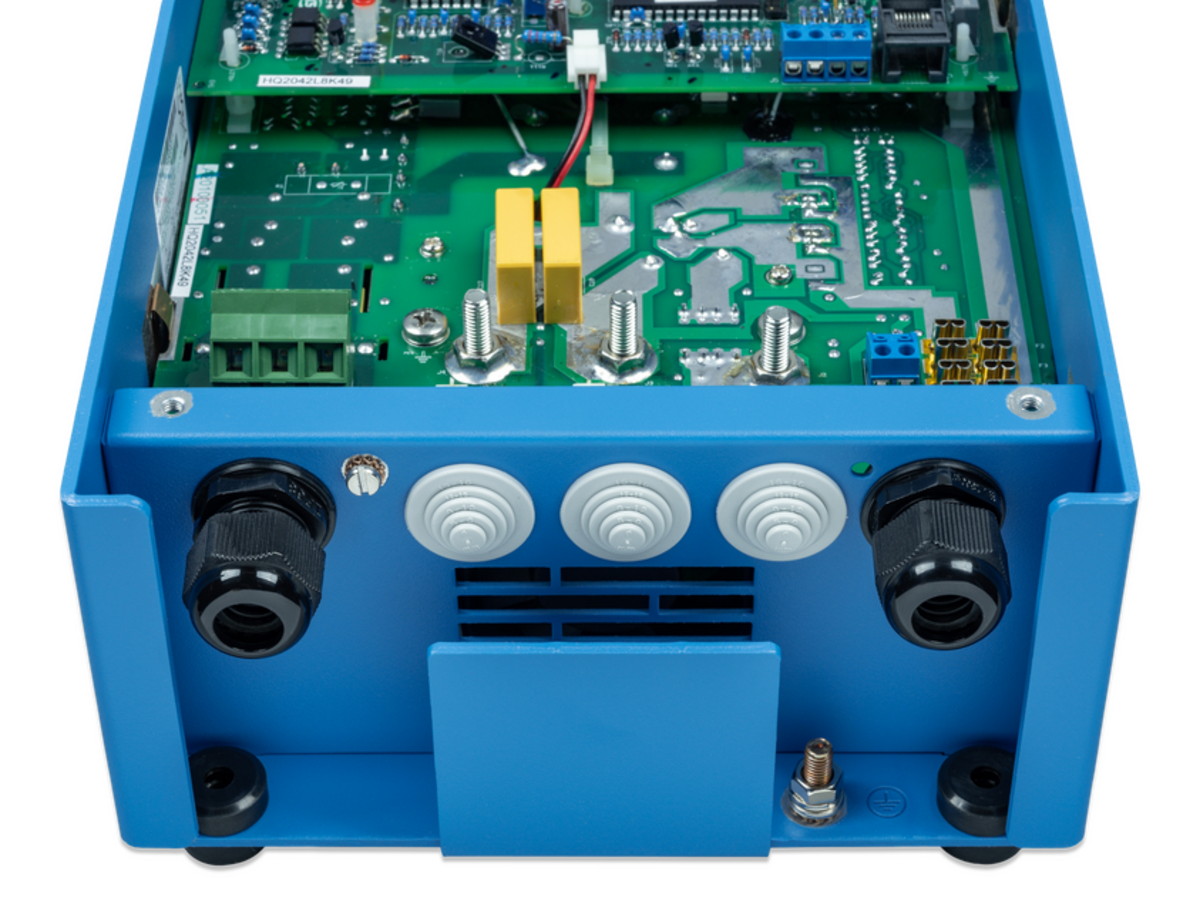

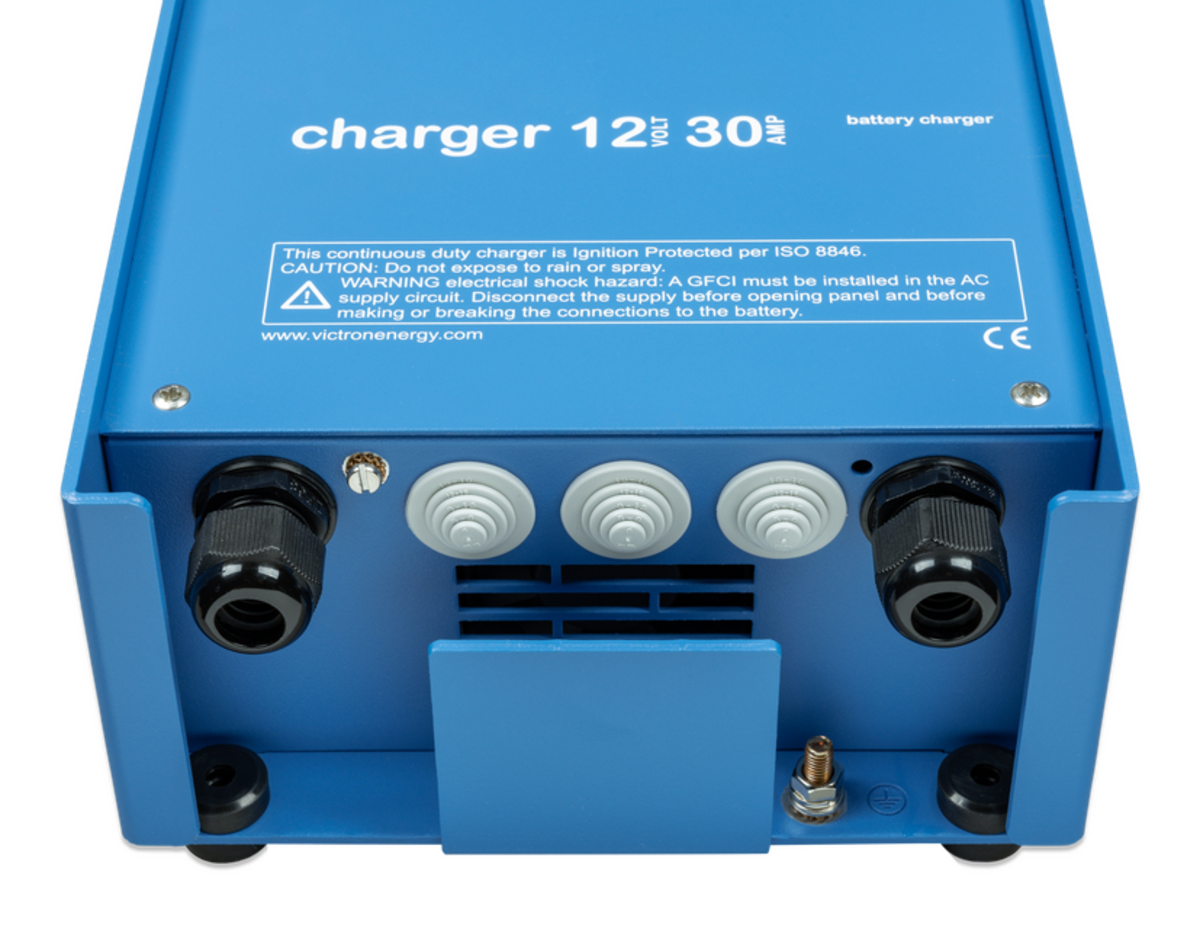

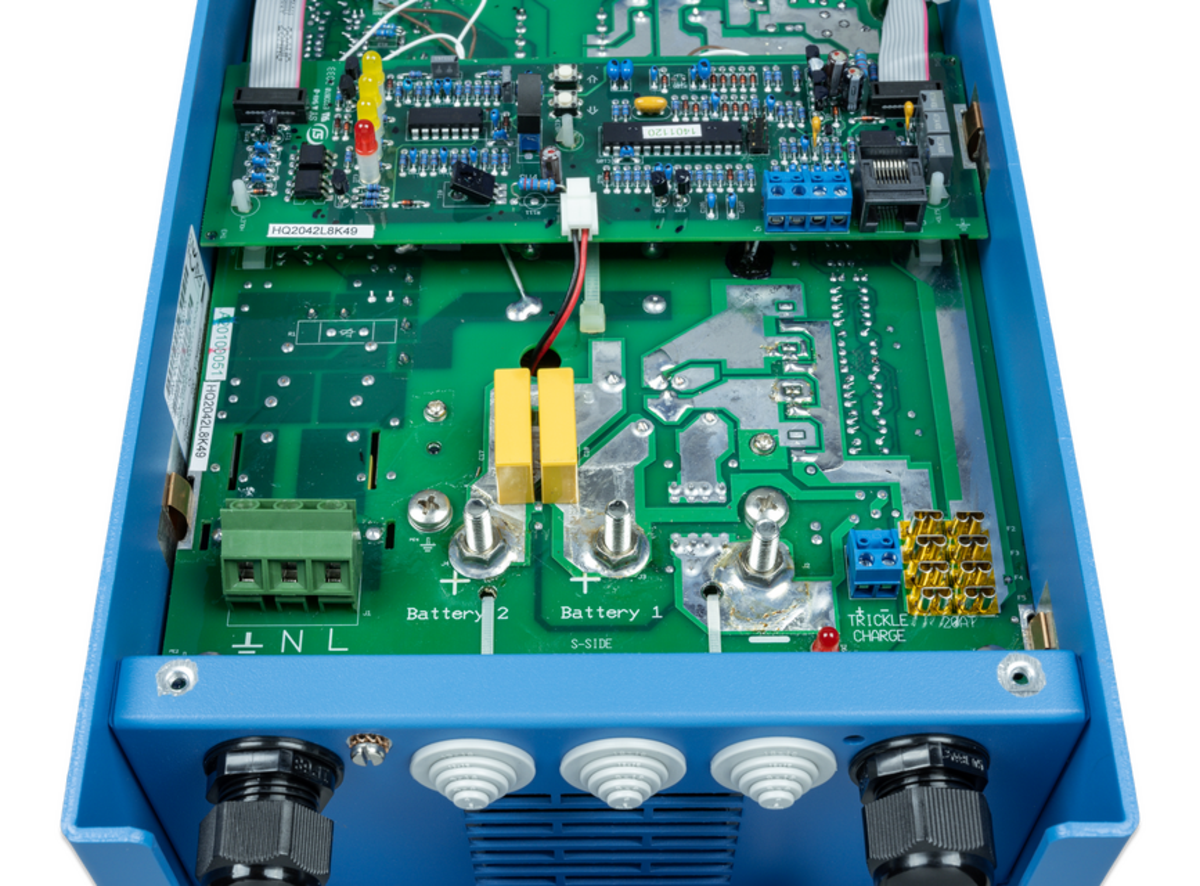

• Battery Connection: M6 Bolts
• AC Connection: Screw-Clamp 4 mm²
• Enclosure Rating: IP21
• Standards: EN 60335-1, EN 60335-2-29, EN 55014-1, EN 61000-3-2, EN 55014-2, EN 61000-3-3, IEC68-2-6:10-150Hz/1.0G
• Dimensions: 13.8 in x 7.9 in x 4.3 in
• Weight: 8 lb

Documents

• Specification Sheet

• Instruction/Installation Manual

Advanced Charging Technology

The Victron Phoenix Battery Charger is designed to deliver a reliable and efficient charging experience for 12V battery systems. With a 30A output, it ensures your batteries are charged quickly yet safely, preserving battery life. Utilizing state-of-the-art multi-stage charging technology, it optimizes the charging process by adjusting voltage and current to the battery’s specific needs. This prevents overcharging and minimizes heat generation, making it ideal for use in various environments including marine, automotive, and off-grid solar setups.

Robust and Versatile Design

This charger features a compact and rugged design that stands up to demanding conditions. Its built-in protections against overvoltage, overheating, and short circuits give users additional safety and peace of mind. The Victron Phoenix Battery Charger is compatible with a wide range of battery types such as lead-acid, AGM, and gel batteries. Its versatile input voltage range supports global use, making it a suitable choice for professionals and hobbyists alike.

User-Friendly Operation and Maintenance

Ease of use is a priority in the Victron Phoenix Battery Charger’s design. With simple plug-and-play installation and clear LED indicators, users can quickly understand the charger’s status. The charger requires minimal maintenance while providing consistent performance. Additionally, its efficient cooling system helps maintain optimal temperature, extending the charger’s lifespan. Whether for marine vessels, RVs, or backup power systems, this charger offers dependable and hassle-free battery management.
