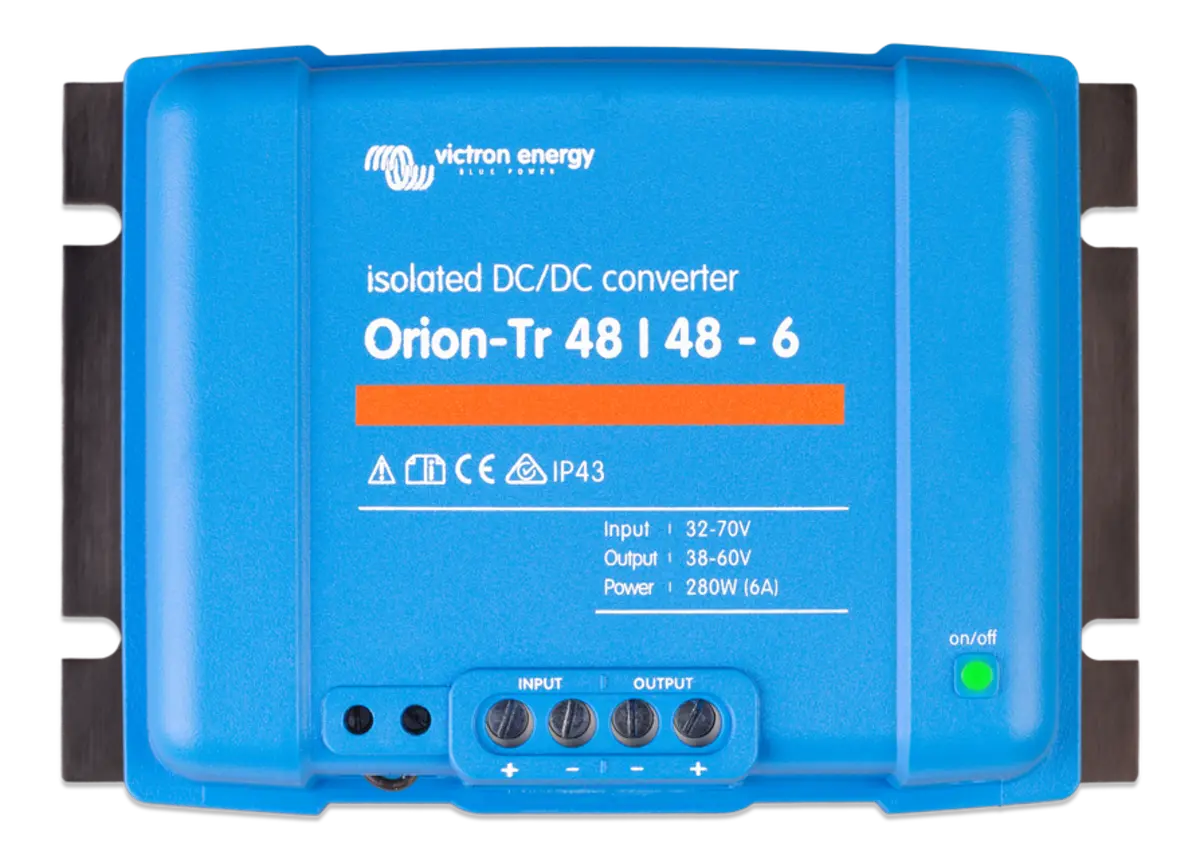

Victron Orion-Tr 48V to 48V - 280W 6A Isolated DC-DC Converter (SKU Part Number ORI484828110)

Explore the Features of the Victron Orion-Tr DC-DC Converter

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 32-70 V
• Under Voltage Shutdown: 28 V
• Under Voltage Restart: 30 V
• Output Voltage Adjust Range: 40-60 V
• Nominal Output Voltage: 48.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 40°C: 6 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 8 A
• Short-Circuit Output Current: 25 A
• Continuous Output Power at 25°C: 320 W
• Continuous Output Power at 40°C: 280 W
• Efficiency: 89%
• No Load Input Current: <80 mA
• Current Consumption: <200 µA when disabled via remote port
• Galvanic Isolation: 200 VDC between input, output & case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% non-condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 16 mm² (6 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 5.1 in x 7.3 in x 2.8 in
• Weight: 3 lb


Documents

• Specification Sheet

• Instruction/Installation Manual

Reliable Power Conversion with Victron Orion-Tr DC-DC Converter

The Victron Orion-Tr DC-DC Converter is designed to efficiently convert 48V input voltage to a stable 48V output with a power rating of 280W and a current of 6A. This isolated converter ensures clean and reliable power transfer, making it ideal for applications requiring noise-free and interference-free electrical isolation. The product is suitable for harsh environments, offering both robust construction and reliable performance, enabling seamless integration into your power systems.

Advanced Isolation and Safety Features

One of the key features of the Victron Orion-Tr DC-DC Converter is its galvanic isolation, which protects sensitive electronics by preventing electrical noise and voltage spikes from passing between input and output. This isolation enhances safety and system reliability, especially in complex battery configurations or when integrating with solar power systems. The converter’s built-in protections against overvoltage, overcurrent, and thermal overload ensure that your equipment stays safe under demanding conditions.

Compact Design and Easy Installation

The compact and lightweight form factor of the Victron Orion-Tr DC-DC Converter makes it easy to install in tight spaces without compromising cooling efficiency. Its plug-and-play design is user-friendly, enabling fast setup with minimal technical expertise required. The converter also supports parallel operation, allowing scalability and easy customization to meet varying power requirements in industrial, automotive, or renewable energy applications, providing flexibility and convenience for system integrators and users alike.
