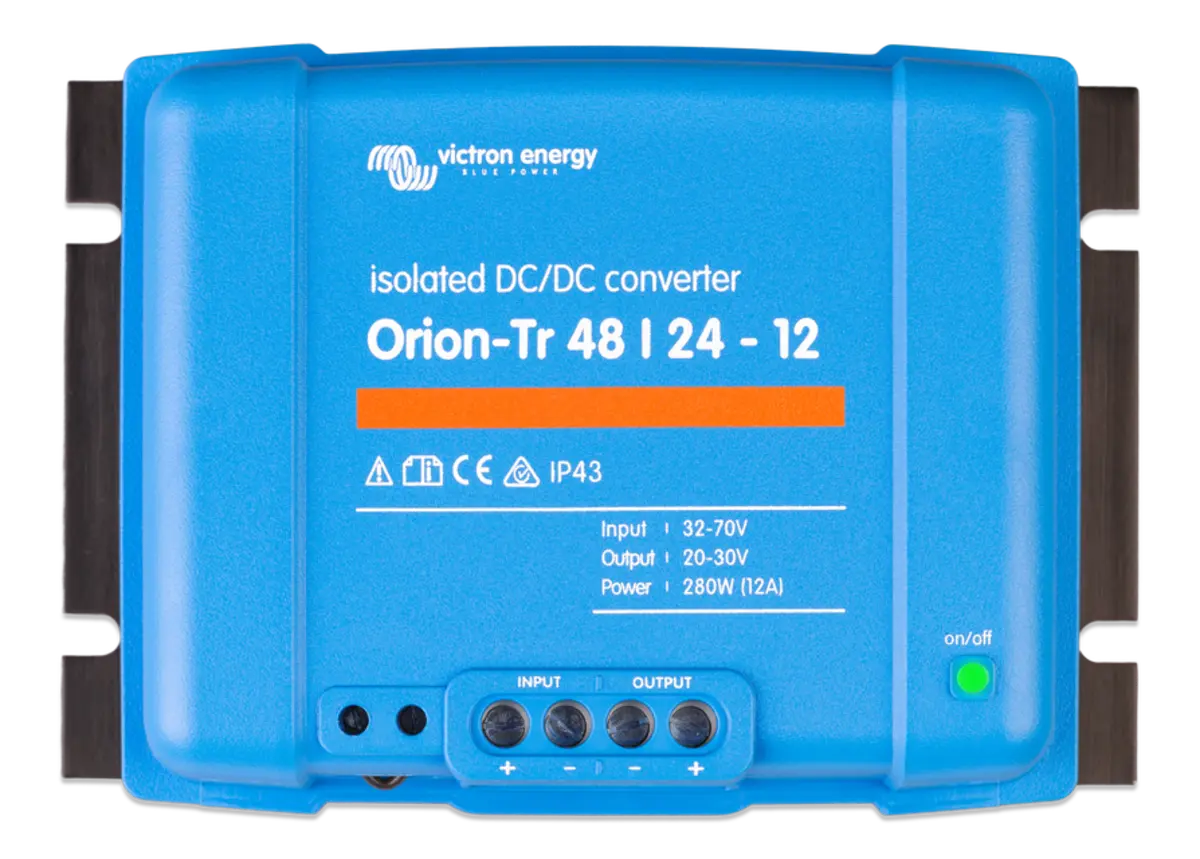

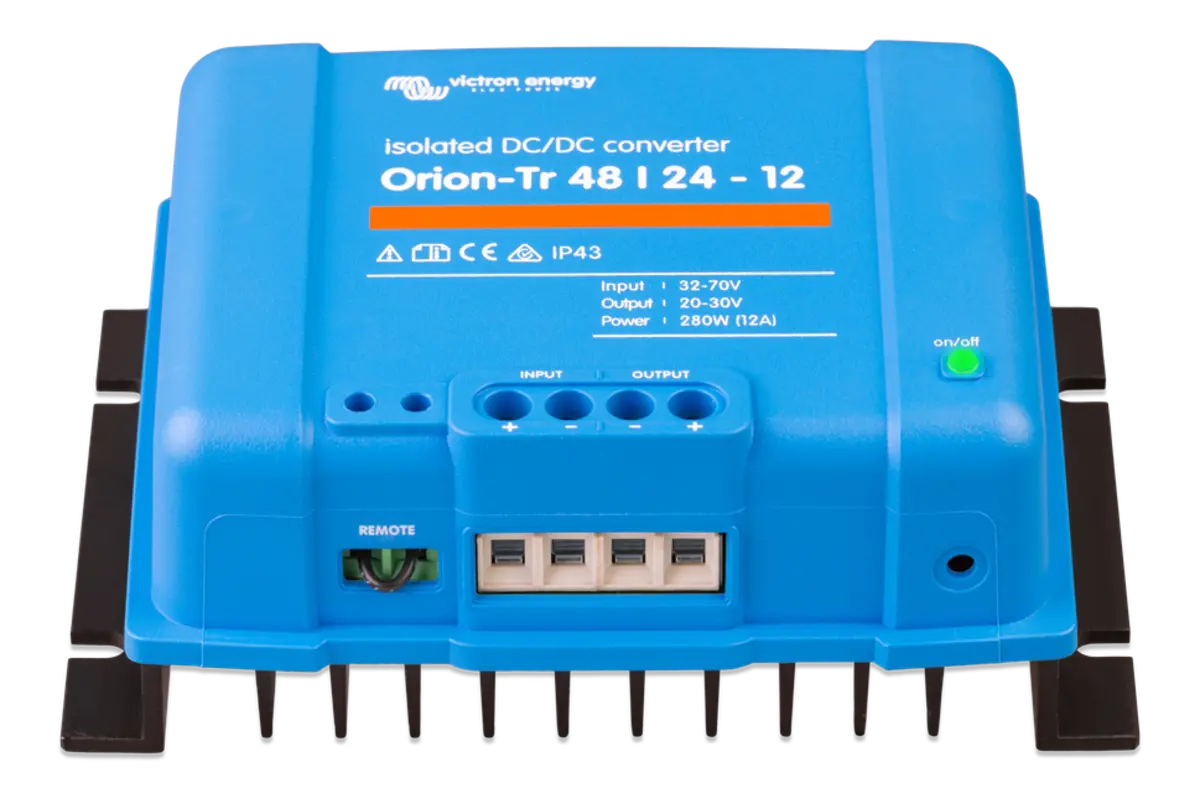

Victron Orion-Tr 48V to 24V - 280W 12A Isolated DC-DC Converter (SKU Part Number ORI482428110)

Overview of the Victron Orion-Tr DC-DC Converter

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 32-70 V
• Under Voltage Shutdown: 28 V
• Under Voltage Restart: 30 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 40°C: 12 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 15 A
• Short-Circuit Output Current: 30 A
• Continuous Output Power at 25°C: 320 W
• Continuous Output Power at 40°C: 280 W
• Efficiency: 89%
• No Load Input Current: <80 mA
• Current Consumption: <200 µA when disabled via remote port
• Galvanic Isolation: 200 VDC between input, output & case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% non-condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 16 mm² (6 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 5.1 in x 7.3 in x 2.8 in
• Weight: 3 lb


Documents

• Specification Sheet
• Instruction/Installation Manual

Reliable Power Conversion with Victron Orion-Tr

The Victron Orion-Tr is a premium 48V to 24V isolated DC-DC converter delivering a robust 280W output at 12A continuous current. This converter efficiently transforms higher voltage systems down to a stable 24V supply, making it ideal for industrial, automotive, and marine applications. Designed with electrical isolation, it enhances system safety and reduces electrical noise, ensuring consistent and reliable performance even under demanding conditions. Its compact design and rugged build make the Victron Orion-Tr an essential component for efficient voltage management in complex power setups.

Key Features of the Victron Orion-Tr Converter

This model offers a 280W power rating and 12A output, providing ample current capacity for a variety of DC-powered devices. The isolation between input and output terminals safeguards sensitive electronics and prevents ground loops, which can cause interference. The Victron Orion-Tr also incorporates protective features such as over-temperature shutdown, short circuit protection, and over-voltage protection. These enhanced safety mechanisms help extend device longevity and maintain reliable operation in harsh environments, a crucial aspect for professional and industrial use.

Applications and Benefits of Using the Victron Orion-Tr

Ideal for applications requiring stable voltage conversion, the Victron Orion-Tr supports off-grid battery systems, renewable energy setups, and mobile power installations. It seamlessly integrates with 48V battery banks, supplying regulated 24V power for auxiliary devices or subsystems. The isolated design reduces the risk of electrical interference, improving overall system efficiency. Users benefit from low noise emissions and superior thermal management, making this converter well-suited for sensitive electronics in automotive, marine, and industrial control systems.
