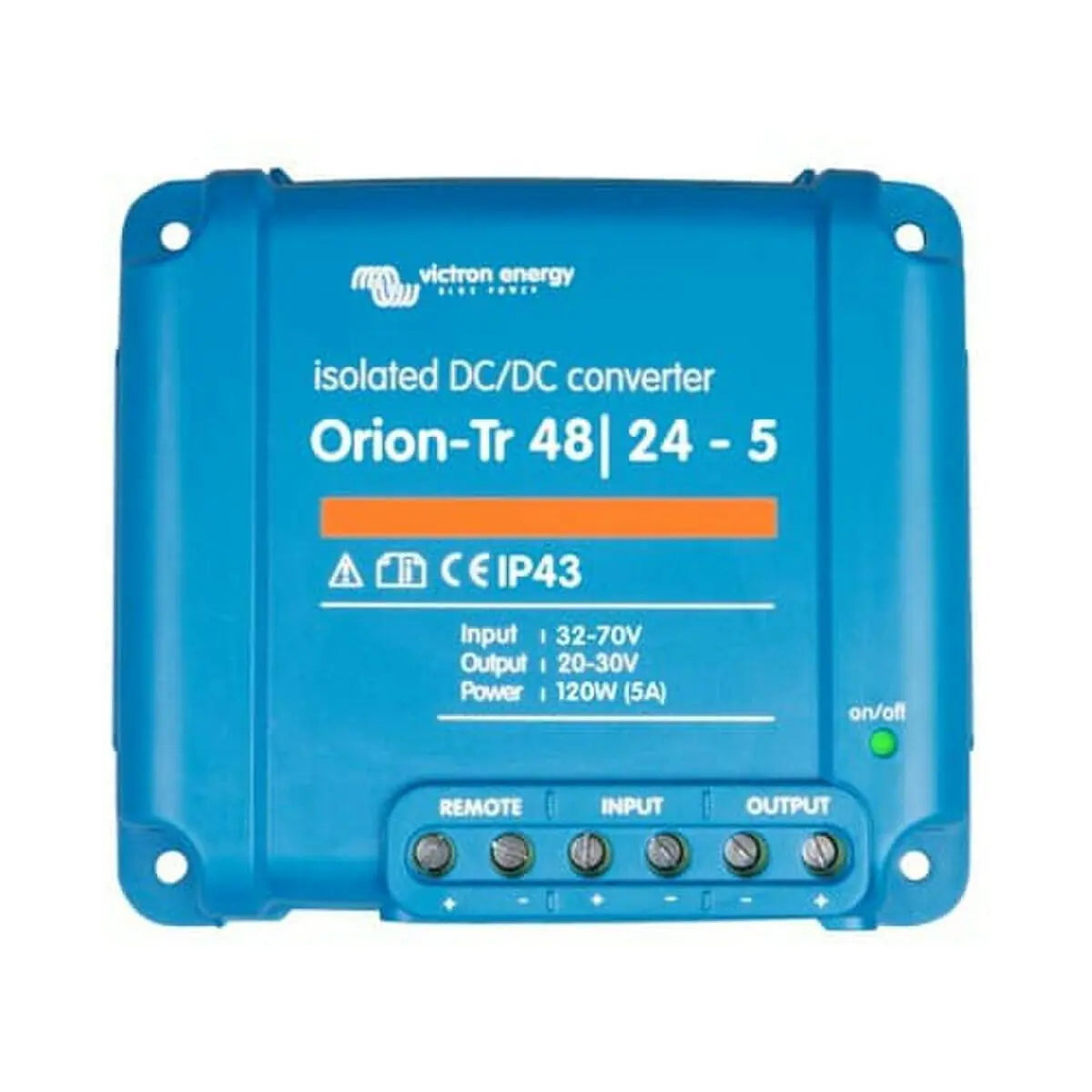

Victron Orion-Tr 48V to 24V - 120W 5A Isolated DC/DC Converter (SKU Part Number ORI482410110)

Victron Orion-Tr: Reliable 48V to 24V DC/DC Conversion

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 32-70 V
• Under Voltage Shutdown: 28 V
• Under Voltage Restart: 30 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 25°C: 5 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 6.3 A
• Short-Circuit Output Current: 25 A
• Continuous Output Power at 25°C: 120 W
• Continuous Output Power at 40°C: 100 W
• Efficiency: 86%
• No Load Input Current: <60 mA
• Current Consumption: <200 µA when disabled via remote port
• Galvanic Isolation: 200 VDC between input, output & case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% non-condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 6 mm² (10 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 4 in x 4.5 in x 1.9 in
• Weight: 1 lb


Documents

• Specification Sheet
• Instruction/Installation Manual

Efficient Power Conversion for Your System

The Victron Orion-Tr is a high-quality isolated DC/DC converter designed to convert 48V input voltage to a stable 24V output. With a power output of 120W and a current rating of 5A, it ensures consistent and reliable voltage transformation ideal for various applications. This converter safeguards sensitive equipment by providing electrical isolation between input and output, preventing potential damage and enhancing system safety.

Durability and Safety Features

Engineered with robust components, the Victron Orion-Tr supports continuous operation under demanding conditions. Its isolated design minimizes electrical noise and protects connected loads from voltage spikes. The converter includes multiple protective features such as short-circuit, over-temperature, and reverse polarity protection, making it a trustworthy choice for renewable energy systems, electric vehicles, and industrial equipment.

Compact Design and Easy Installation

The compact size and straightforward installation process of the Victron Orion-Tr allow seamless integration into existing electrical setups. Its standardized footprint and mounting options offer flexibility, while the clear labeling of terminals facilitates quick connections. Users benefit from its durable casing and lightweight design, which contribute to simplified maintenance and reliable long-term performance in complex power systems.
