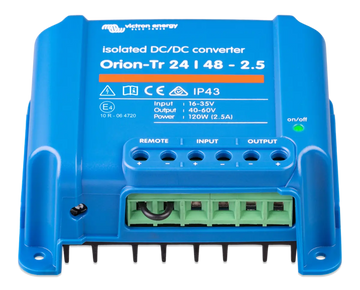

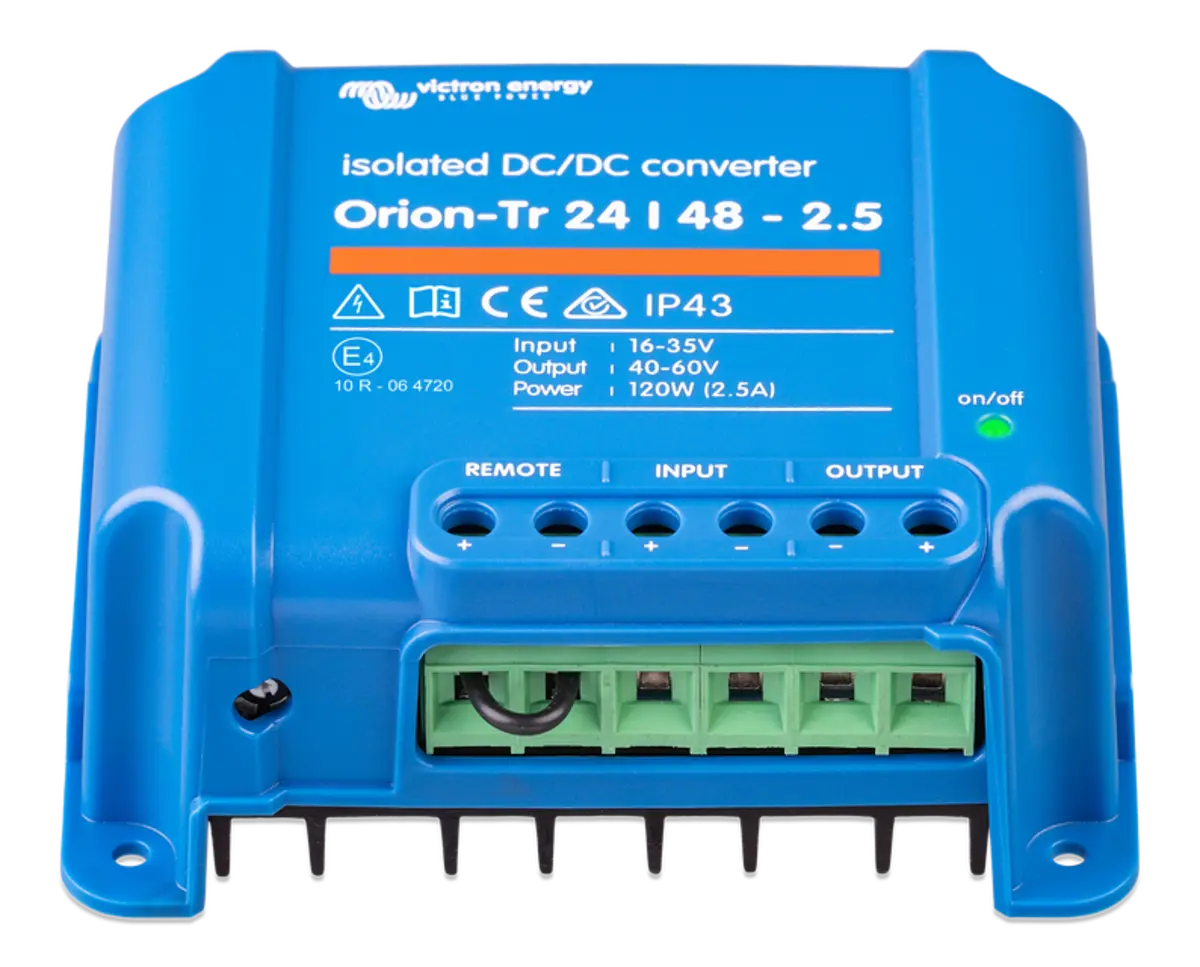

Victron Orion-Tr 24V to 48V - 120W 2.5A Isolated DC/DC Converter (SKU Part Number ORI244810110)

Explore the Features and Benefits of the Victron Orion-Tr DC/DC Converter

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 16-35 V
• Under Voltage Shutdown: 14 V
• Under Voltage Restart: 15 V
• Output Voltage Adjust Range: 40-60 V
• Nominal Output Voltage: 48.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 25°C: 2.5 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 3 A
• Short-Circuit Output Current: 19 A
• Continuous Output Power at 25°C: 120 W
• Continuous Output Power at 40°C: 115 W
• Efficiency: 88%
• No Load Input Current: <120 mA
• Current Consumption: <200 µA when disabled via remote port
• Galvanic Isolation: 200 VDC between input, output & case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% non-condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 6 mm² (10 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 4 in x 4.5 in x 1.9 in
• Weight: 1 lb


Documents

• Specification Sheet
• Instruction/Installation Manual

Powerful and Reliable Voltage Conversion

The Victron Orion-Tr is engineered for efficient voltage conversion, stepping up 24V input to 48V output with a robust 120W power rating and 2.5A current capacity. This isolated DC/DC converter ensures clean, stable power transfer, making it an ideal choice for sensitive electronic systems requiring reliable voltage regulation. Its high efficiency minimizes energy loss, while built-in electrical isolation enhances safety by preventing ground loops and voltage spikes. Whether for industrial applications or mobile energy systems, the Victron Orion-Tr is designed to deliver consistent performance under various load conditions.

Compact and Durable Design

This Victron Orion-Tr model features a compact and rugged design that fits easily into tight installation spaces, making it suitable for use in vehicles, marine applications, and off-grid systems. Constructed with high-quality components, the converter resists environmental stress factors like vibration and temperature fluctuations. Its durability ensures long-term operation with minimal maintenance. Additionally, the product’s protective housing safeguards internal electronics, allowing the Victron Orion-Tr to perform reliably in demanding environments, supporting continuous operation without failure.

Easy Integration and Versatile Applications

Designed with user convenience in mind, the Victron Orion-Tr integrates seamlessly into existing power systems thanks to standard connection interfaces and straightforward wiring. Its isolated output enables integration into complex electrical networks without interference, making it versatile for many setups, including renewable energy, telecommunications, and automotive power solutions. The converter’s stable output voltage ensures compatibility with a wide range of devices and equipment. With the Victron Orion-Tr, users gain a dependable power supply solution that supports efficient system design and enhanced overall reliability.
