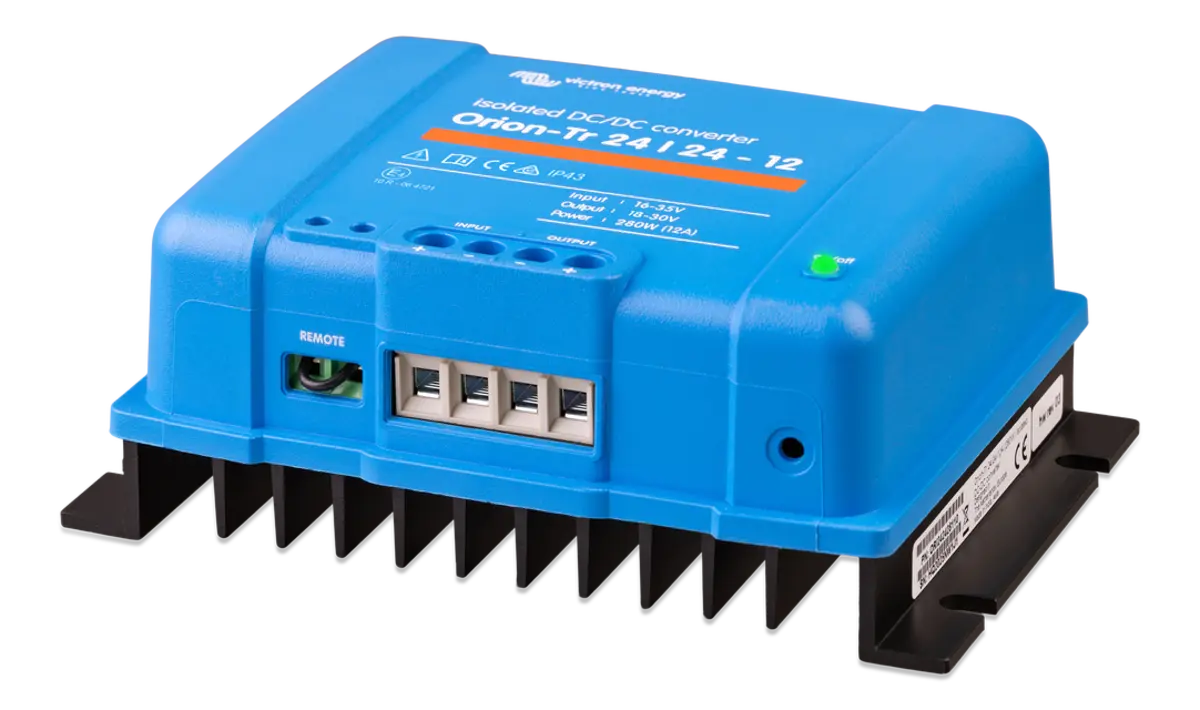

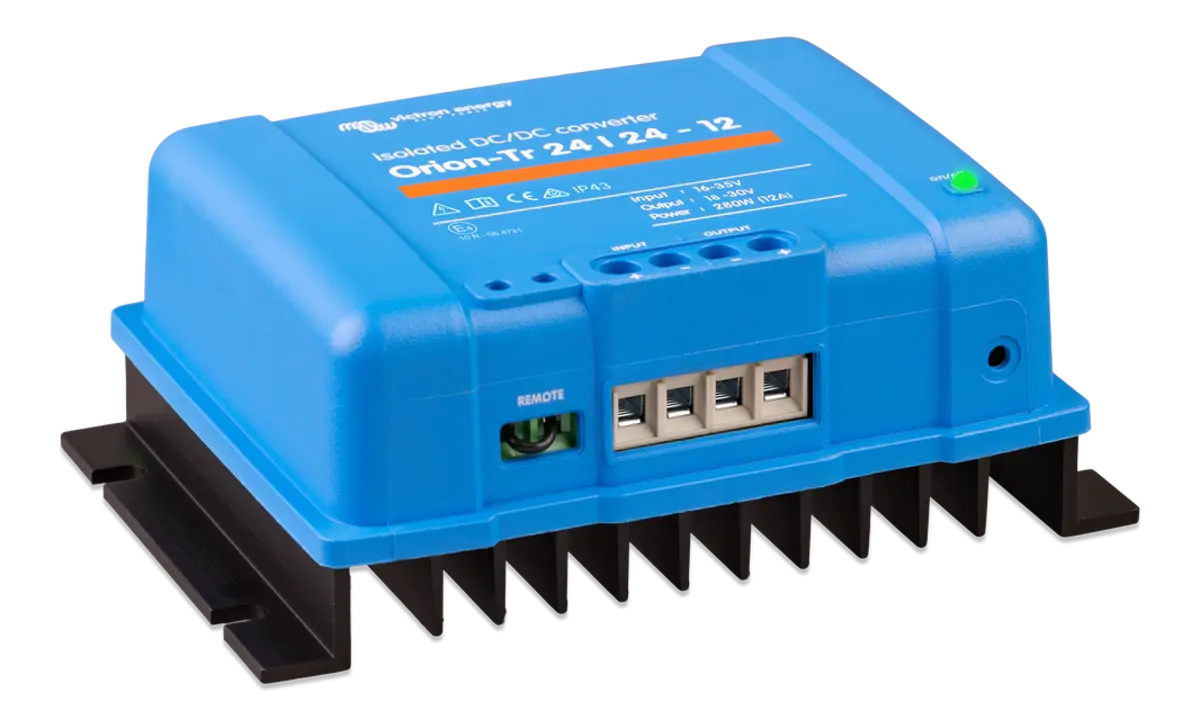

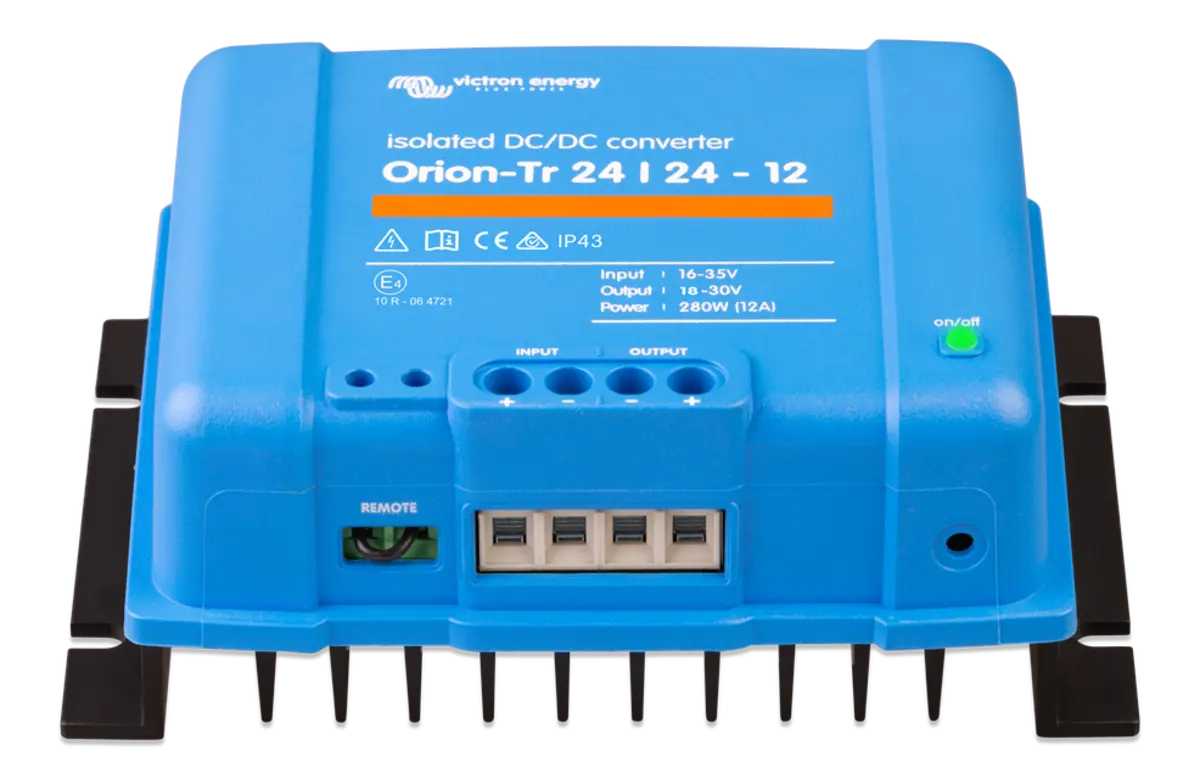

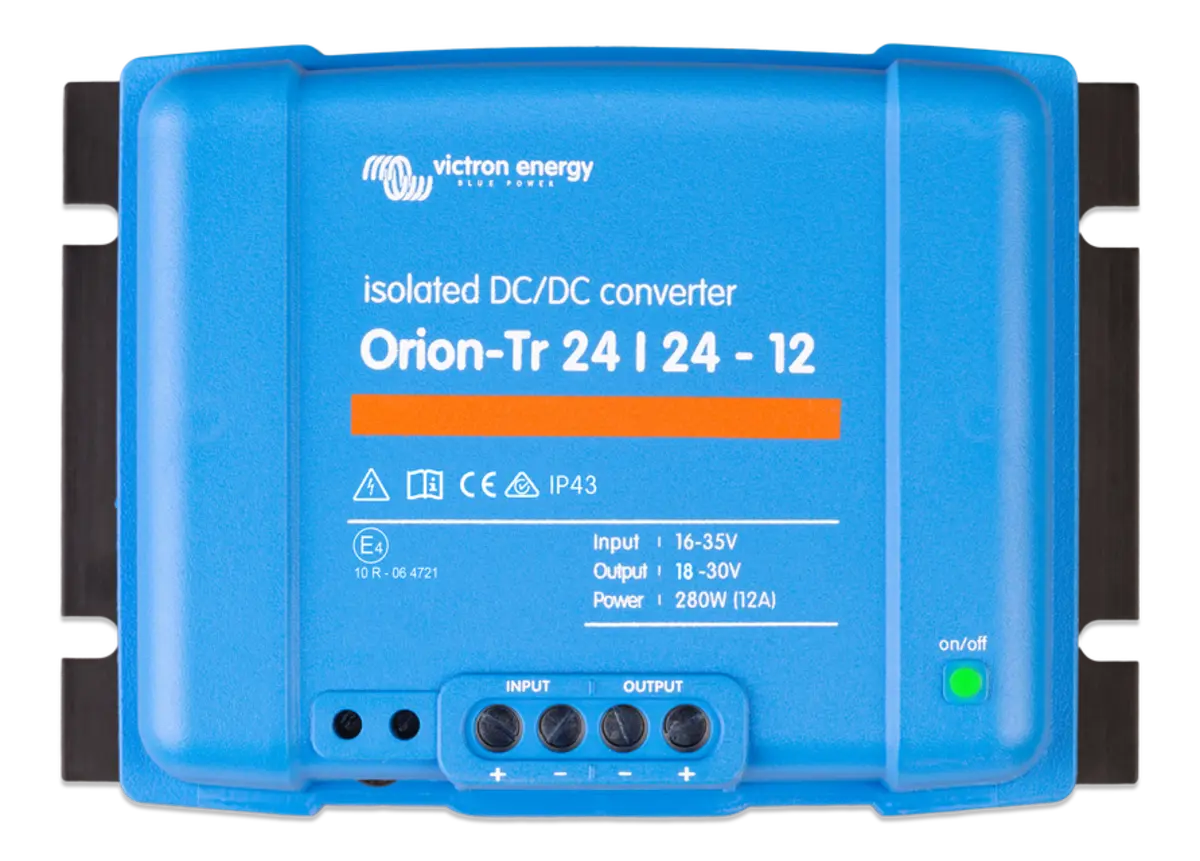

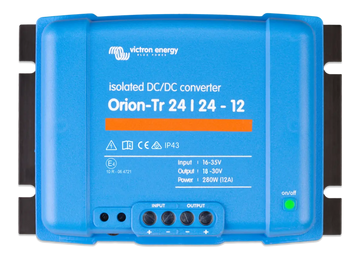

Victron Orion-Tr 24V to 24V - 280W 12A Isolated DC-DC Converter (SKU Part Number ORI242428110)

Victron Orion-Tr DC-DC Converter: Efficient 24V to 24V Power Solution

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 16-35 V
• Under Voltage Shutdown: 14 V
• Under Voltage Restart: 15 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 40°C: 12 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 15 A
• Short-Circuit Output Current: 30 A
• Continuous Output Power at 25°C: 320 W
• Continuous Output Power at 40°C: 280 W
• Efficiency: 89%
• No Load Input Current: <80 mA
• Current Consumption: <200 µA when disabled via remote port
• Galvanic Isolation: 200 VDC between input, output & case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% non-condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 16 mm² (6 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 5.1 in x 7.3 in x 2.8 in
• Weight: 3 lb


Documents

• Specification Sheet
• Instruction/Installation Manual

Overview of the Victron Orion-Tr DC-DC Converter

The Victron Orion-Tr DC-DC Converter is engineered to provide a stable and isolated 24V to 24V power conversion, delivering up to 280W and 12A of continuous output. This robust converter is ideal for applications requiring reliable and efficient power isolation, such as in automotive, marine, and industrial settings. Its compact design and advanced technology ensure minimal energy loss and consistent performance, making it a trusted choice for professionals who depend on seamless DC power conversion solutions.

Key Features and Benefits

This Victron Orion-Tr DC-DC Converter features galvanic isolation, protecting sensitive equipment from electrical noise and interference. It supports a wide input voltage range and offers guarantee stable output under varying load conditions. The unit’s rugged construction ensures durability in harsh environments, while built-in thermal and overload protection enhances safety. With a 280W power rating and 12A current capability, it meets the demands of various 24V systems efficiently, allowing users to maintain clean and reliable power for critical devices.

Applications and Installation Insights

Designed for versatile use, the Victron Orion-Tr DC-DC Converter suits numerous applications including battery isolating in vehicles, renewable energy systems, and telecommunication setups. Installation is straightforward with clearly marked terminals and compact dimensions, facilitating easy integration into existing DC power circuits. Its isolated output allows for safe, interference-free operation across multiple setups, improving system stability and longevity. Ideal for users who require dependable power conversion with robust protection features, this converter simplifies power management in complex electrical environments.
