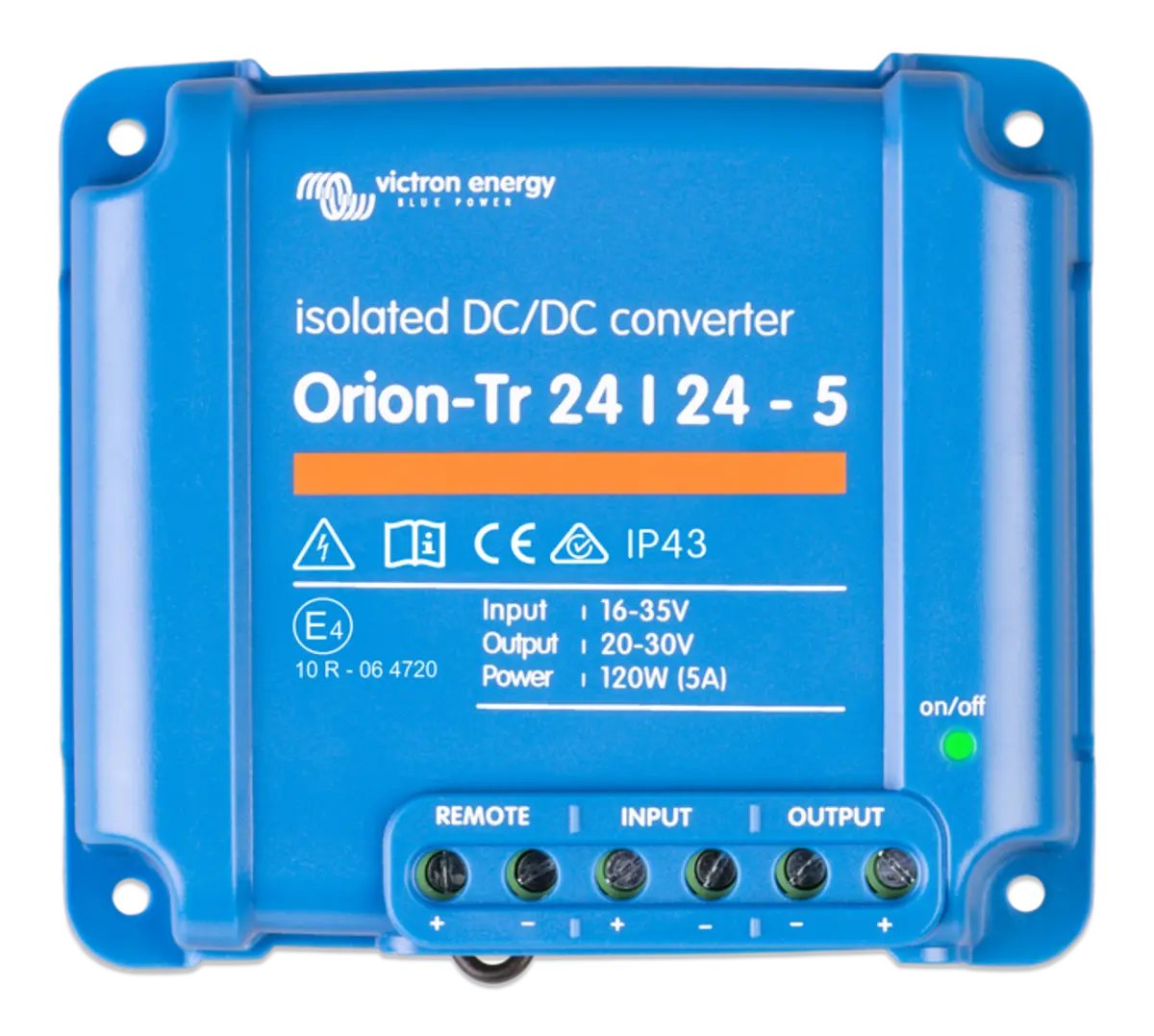

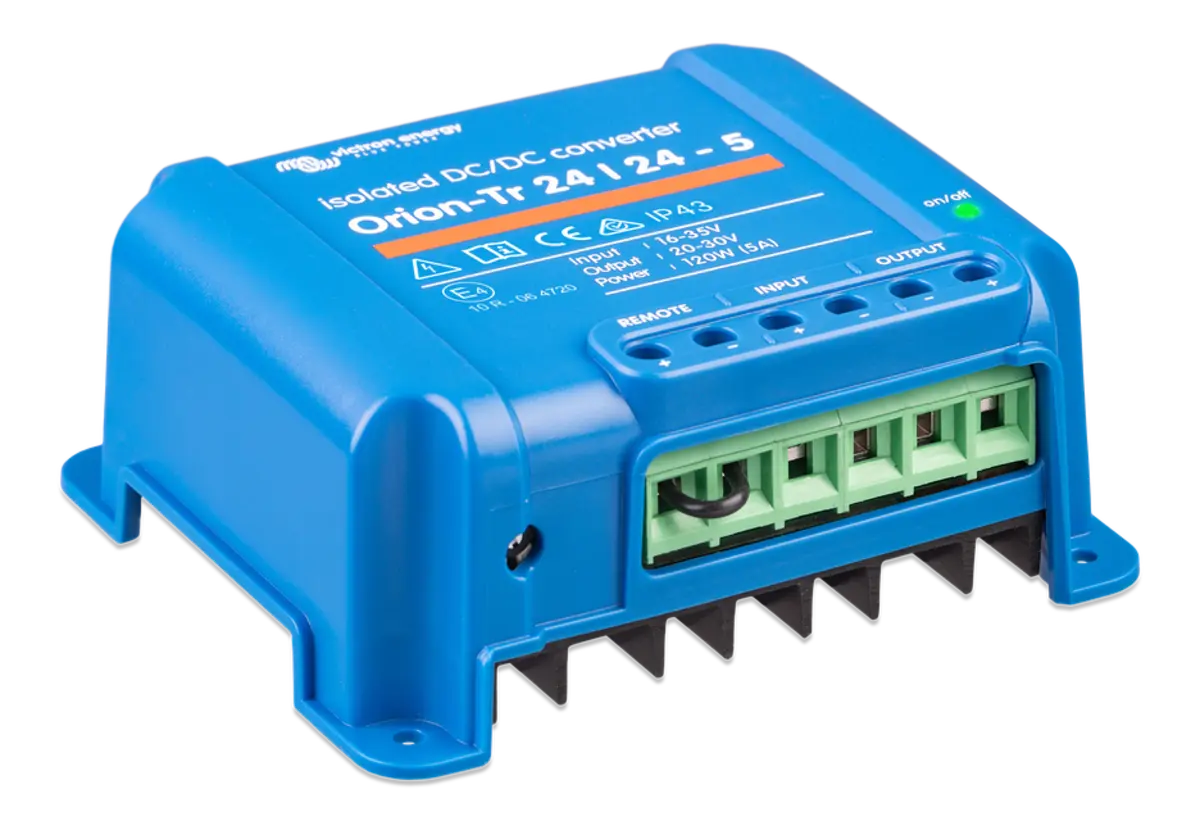

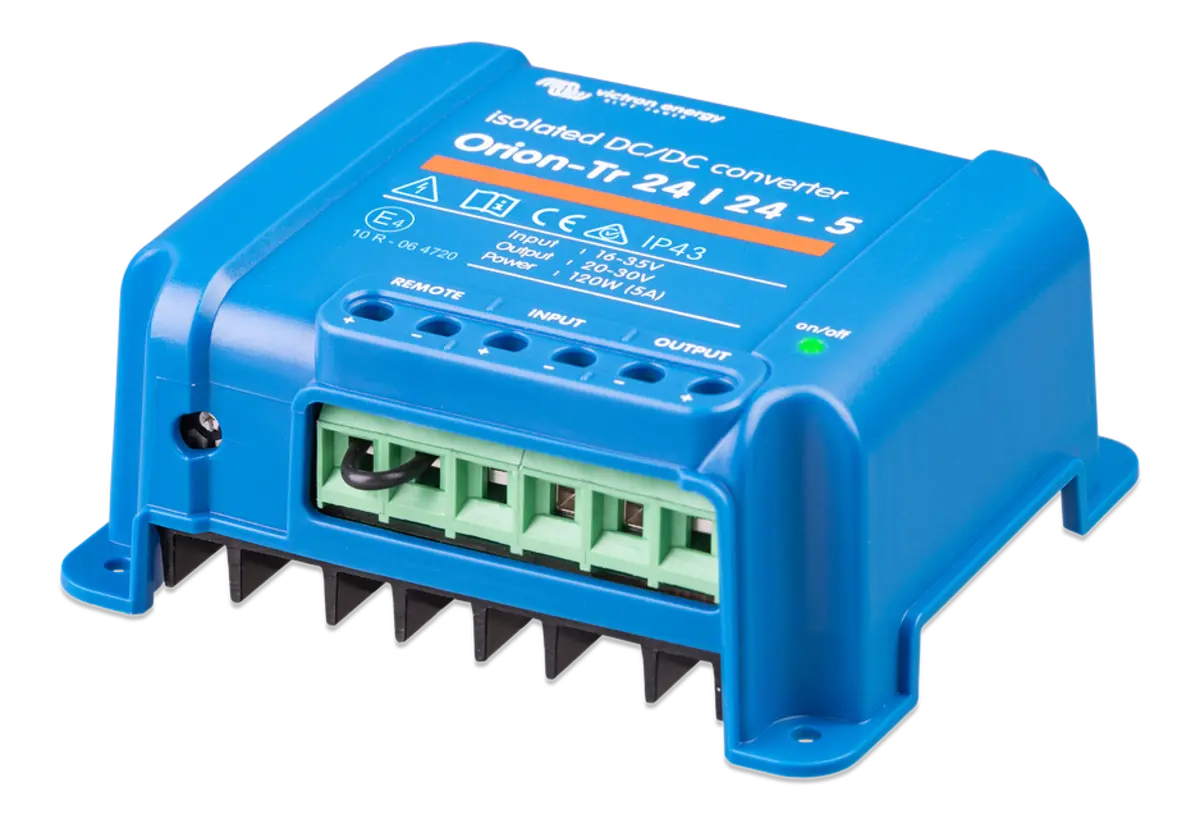

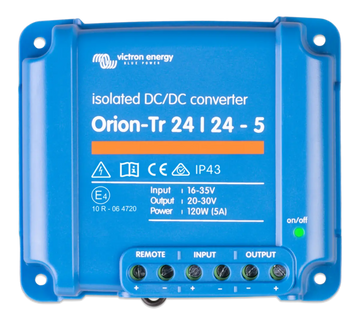

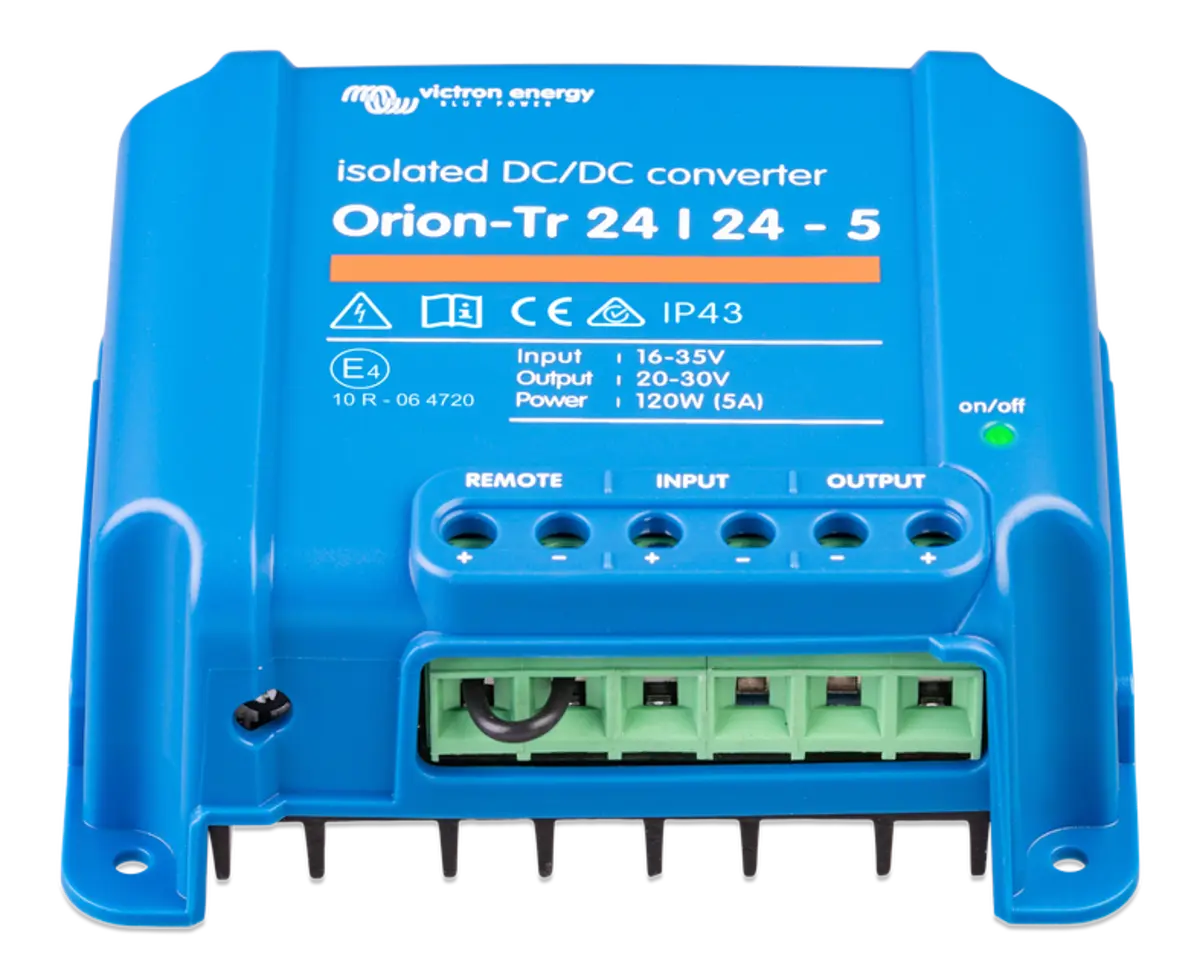

Victron Orion-Tr 24V to 24V - 120W 5A Isolated DC/DC Converter (SKU Part Number ORI242410110R)

Overview of the Victron Orion-Tr 24V to 24V DC/DC Converter

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 16-35 V
• Under Voltage Shutdown: 14 V
• Under Voltage Restart: 15 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 25°C: 5 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 6.3 A
• Short-Circuit Output Current: 30 A
• Continuous Output Power at 25°C: 120 W
• Continuous Output Power at 40°C: 115 W
• Efficiency: 87%
• No Load Input Current: <60 mA
• Current Consumption: <200 µA when disabled via remote port
• Galvanic Isolation: 200 VDC between input, output & case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% non-condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 6 mm² (10 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 4 in x 4.5 in x 1.9 in
• Weight: 1 lb


Documents

• Specification Sheet
• Instruction/Installation Manual

Powerful and Efficient DC/DC Conversion

The Victron Orion-Tr 24V to 24V DC/DC converter offers a robust 120W output at 5A, designed to deliver clean and reliable power in demanding applications. This isolated converter ensures minimal interference, making it ideal for sensitive electronics and industrial systems requiring stable, uninterrupted voltage conversion. Its efficient design guarantees low heat output and reduced energy loss, supporting extended operational life and consistent performance, essential for professionals relying on dependable DC power sources.

Isolation Enhances Safety and Performance

Featuring galvanic isolation, the Victron Orion-Tr 24V to 24V DC/DC converter separates input and output grounds, preventing electrical noise and ground loops. This isolation enhances system safety by reducing the risk of short circuits and interference in complex electrical networks. Its ability to protect connected devices while maintaining stable voltage output makes it perfect for use in vehicles, renewable energy systems, and telecommunications equipment where electrical isolation is critical.

Compact Design and Reliable Build Quality

Designed with practicality and durability in mind, the Victron Orion-Tr 24V to 24V DC/DC converter boasts a compact footprint that fits easily within confined spaces. Built with high-quality components, it withstands harsh environments and temperature variations. Its rugged construction ensures long-term reliability for continuous operation, making it suitable for mobile and stationary installations alike. The converter's user-friendly installation and maintenance features further enhance its appeal for professional users and integrators.
