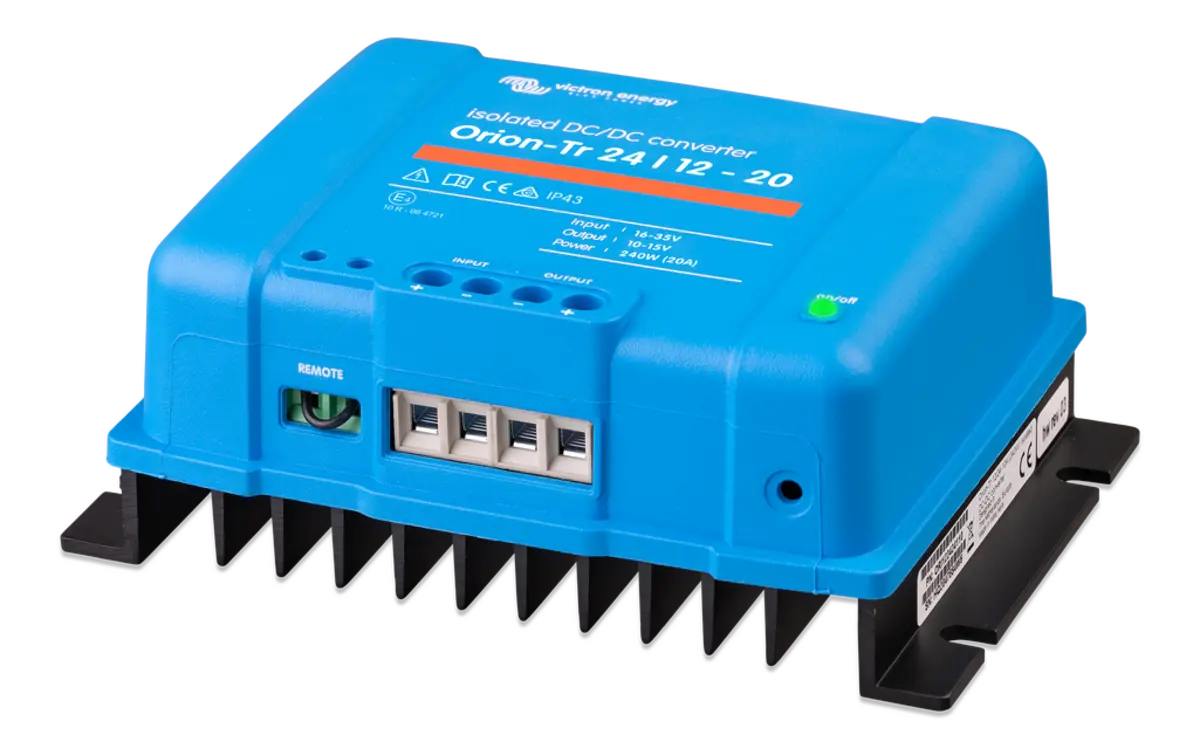

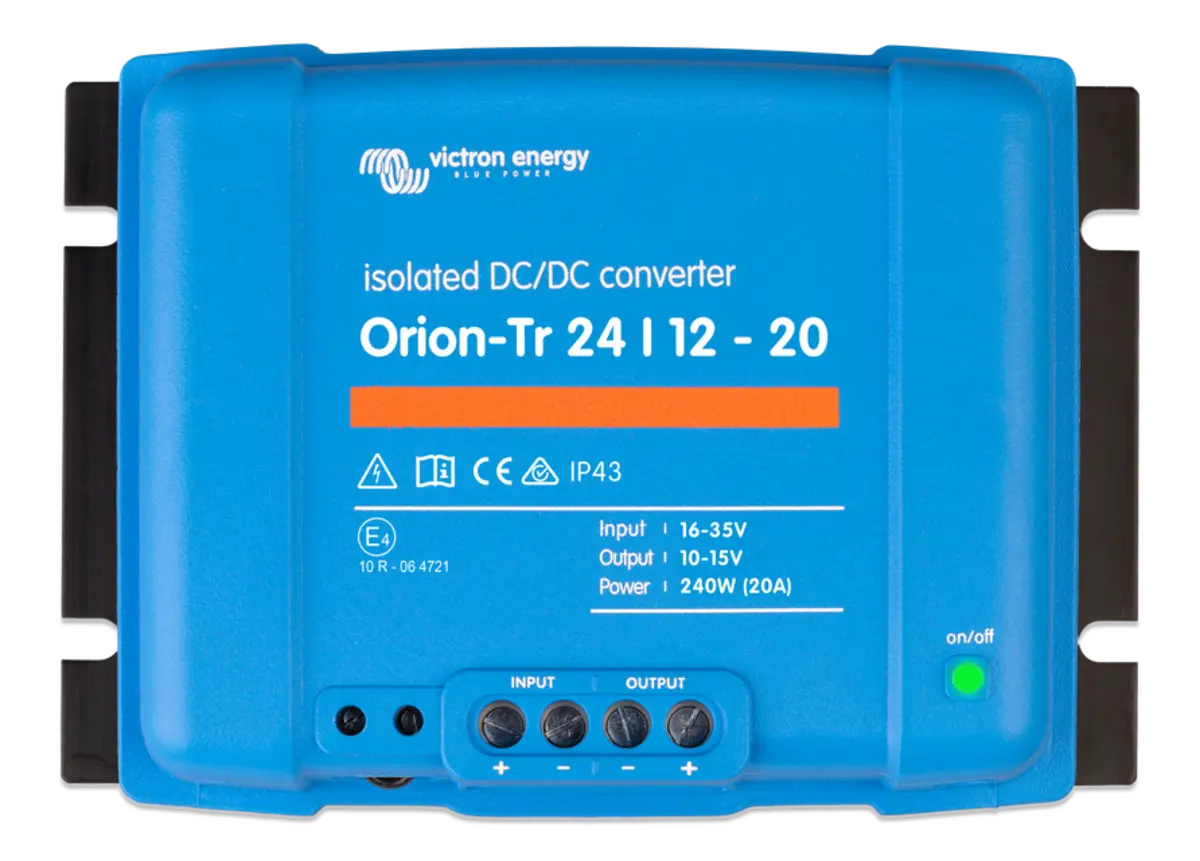

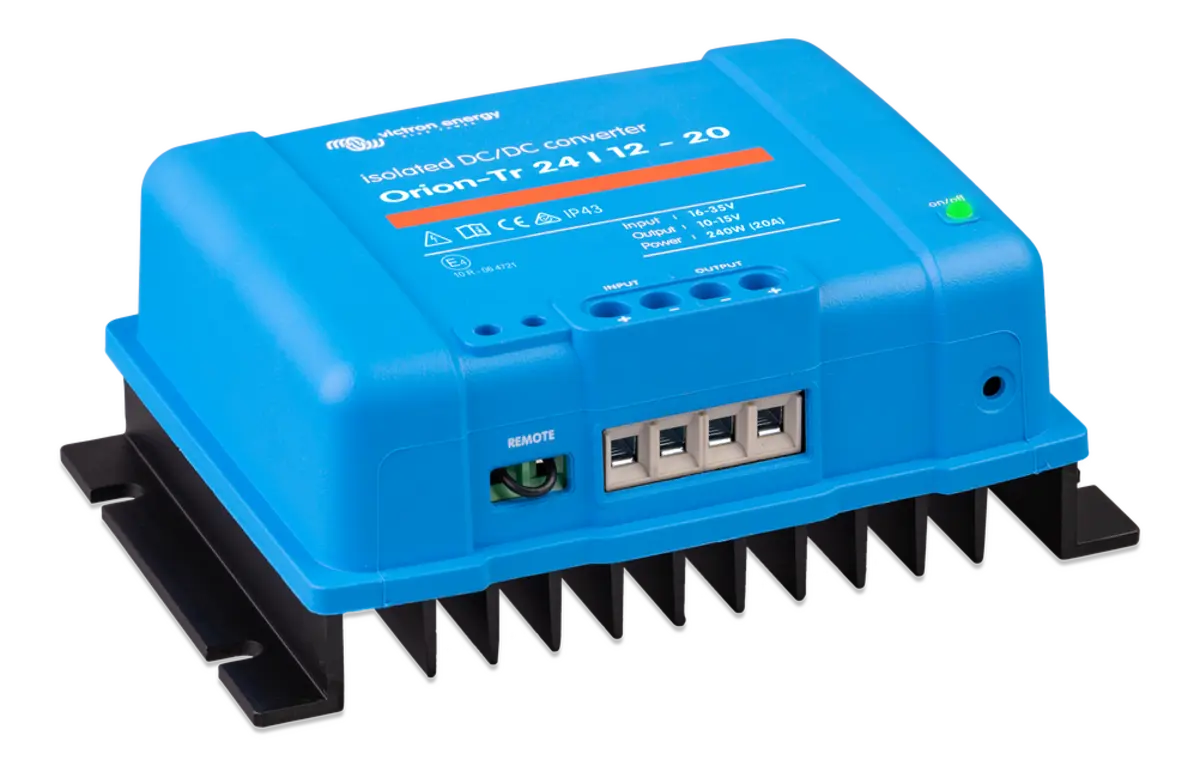

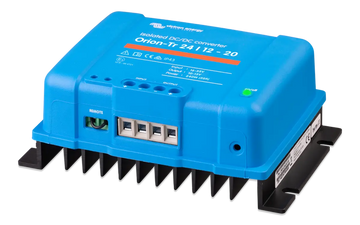

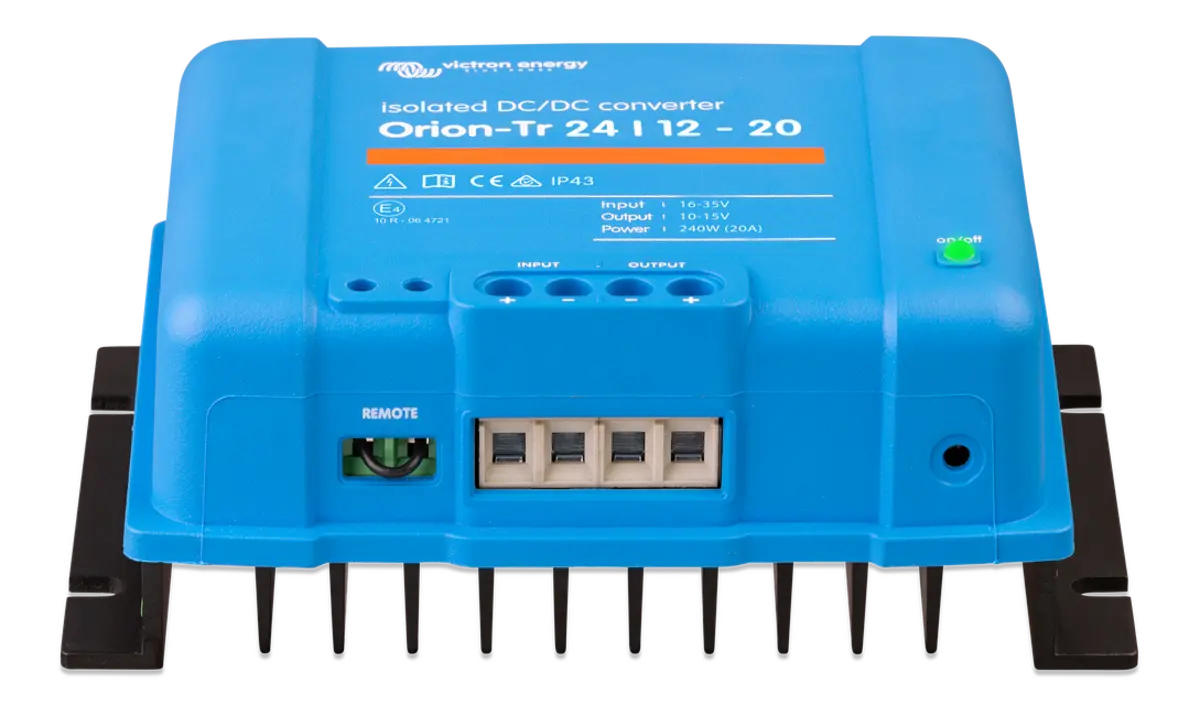

Victron Orion-Tr 24V to 12V - 240W 20A Isolated DC-DC Converter (SKU Part Number ORI241224110)

Reliable Power Conversion with Victron Orion-Tr

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 16-35 V
• Under Voltage Shutdown: 14 V
• Under Voltage Restart: 15 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 40°C: 12 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 15 A
• Short-Circuit Output Current: 30 A
• Continuous Output Power at 25°C: 320 W
• Continuous Output Power at 40°C: 280 W
• Efficiency: 89%
• No Load Input Current: <80 mA
• Current Consumption: <200 µA When Disabled Via Remote Port
• Galvanic Isolation: 200 VDC Between Input, Output & Case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% Non-Condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 16 mm² (6 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5

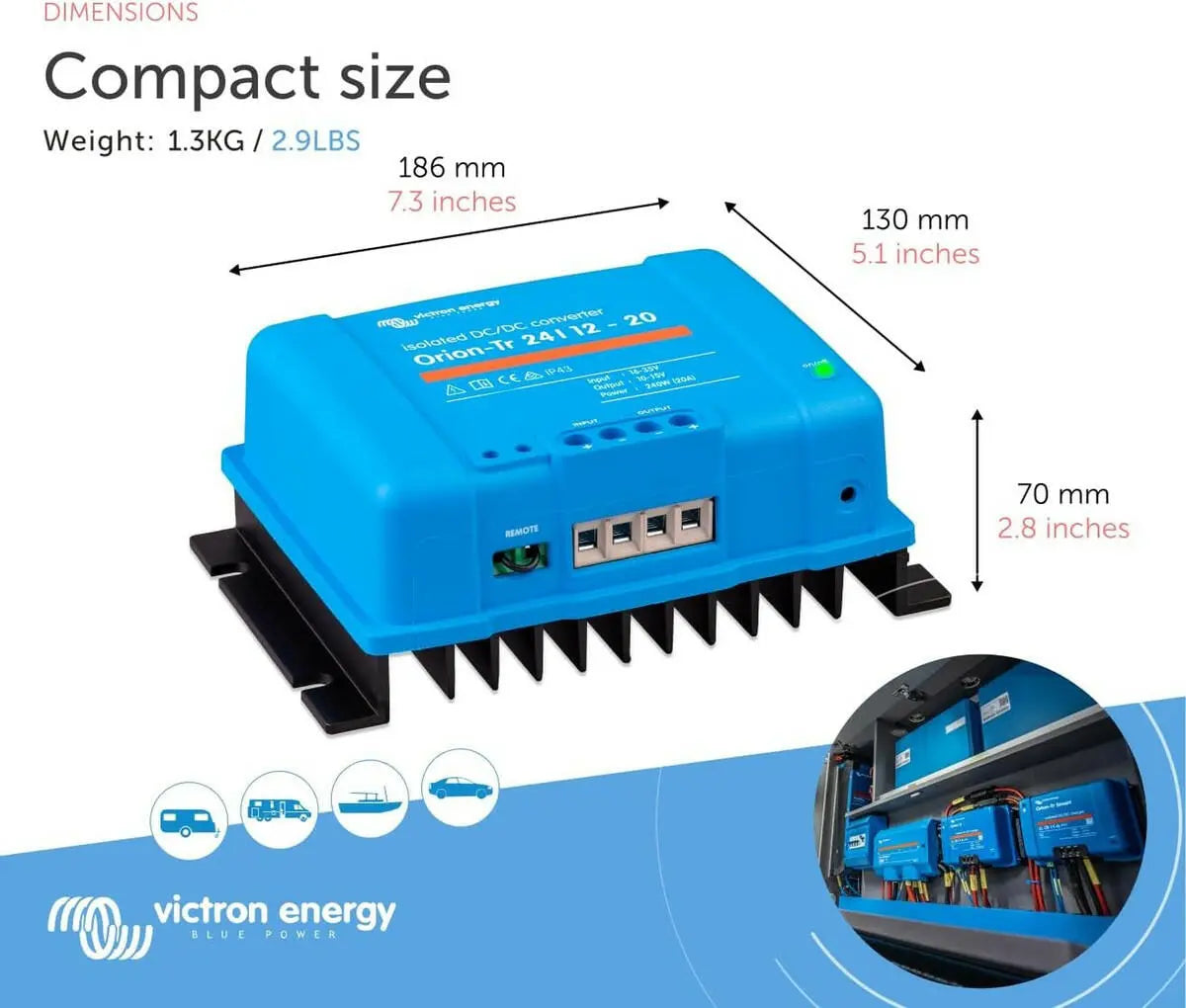

• Dimensions: 5.1 in x 7.3 in x 2.8 in
• Weight: 3 lb


Documents

• Specification Sheet

• Instruction/Installation Manual

Efficient and Isolated DC-DC Conversion

The Victron Orion-Tr 24V to 12V isolated DC-DC converter delivers a robust 240W power output, making it an ideal choice for applications demanding stable and efficient power conversion. The isolation feature ensures electrical separation between input and output, controlling interference and protecting sensitive components. This converter reliably steps down voltage from 24V to 12V at 20A current, allowing seamless integration into various automotive, marine, and industrial power systems. Designed with high-quality components, the Victron Orion-Tr enhances system safety and performance, ensuring consistent operation in demanding environments.

Compact Design and Easy Installation

The Victron Orion-Tr converter boasts a compact and lightweight design that fits easily into constrained spaces, making installation straightforward in diverse setups. Despite its small size, it features rugged construction to withstand harsh operating conditions, including temperature fluctuations and vibrations typical in vehicle and marine applications. Installation is made simpler by clear connection points and user-friendly documentation, allowing technicians or DIY enthusiasts to integrate the unit quickly and efficiently. Its reliable build and thoughtful design make the Orion-Tr a trusted solution for durable power conversion needs.

Advanced Protection and Versatility

Safety and versatility are fundamental to the Victron Orion-Tr 24V to 12V DC-DC converter’s design. It incorporates multiple protection features, including overcurrent, overvoltage, short circuit, and thermal shutdown safeguards, preventing damage and extending device longevity. The converter also supports a wide input voltage range, increasing its adaptability across different battery systems and power networks. Whether used in solar energy setups, automotive electrical systems, or backup power supplies, the Victron Orion-Tr offers consistent, protected, and efficient voltage conversion tailored to professional and personal energy solutions.
