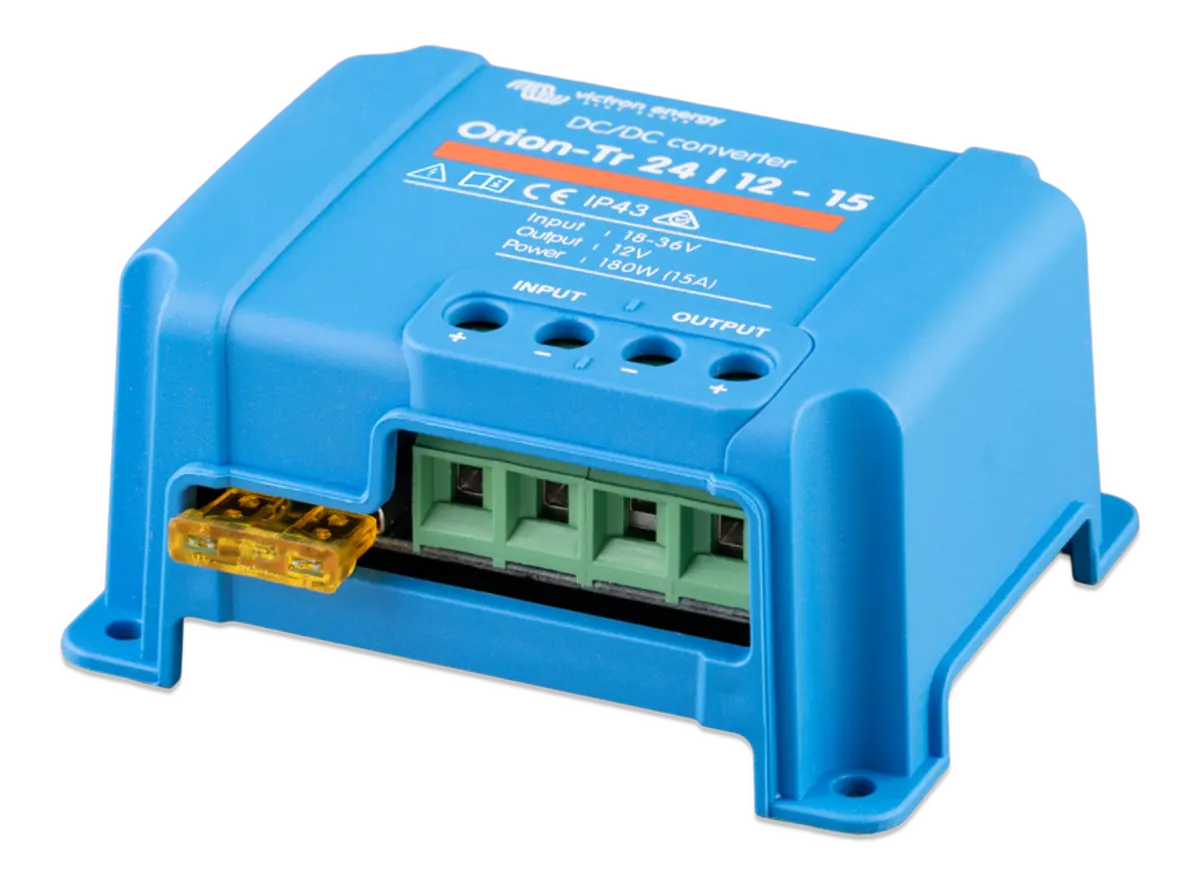

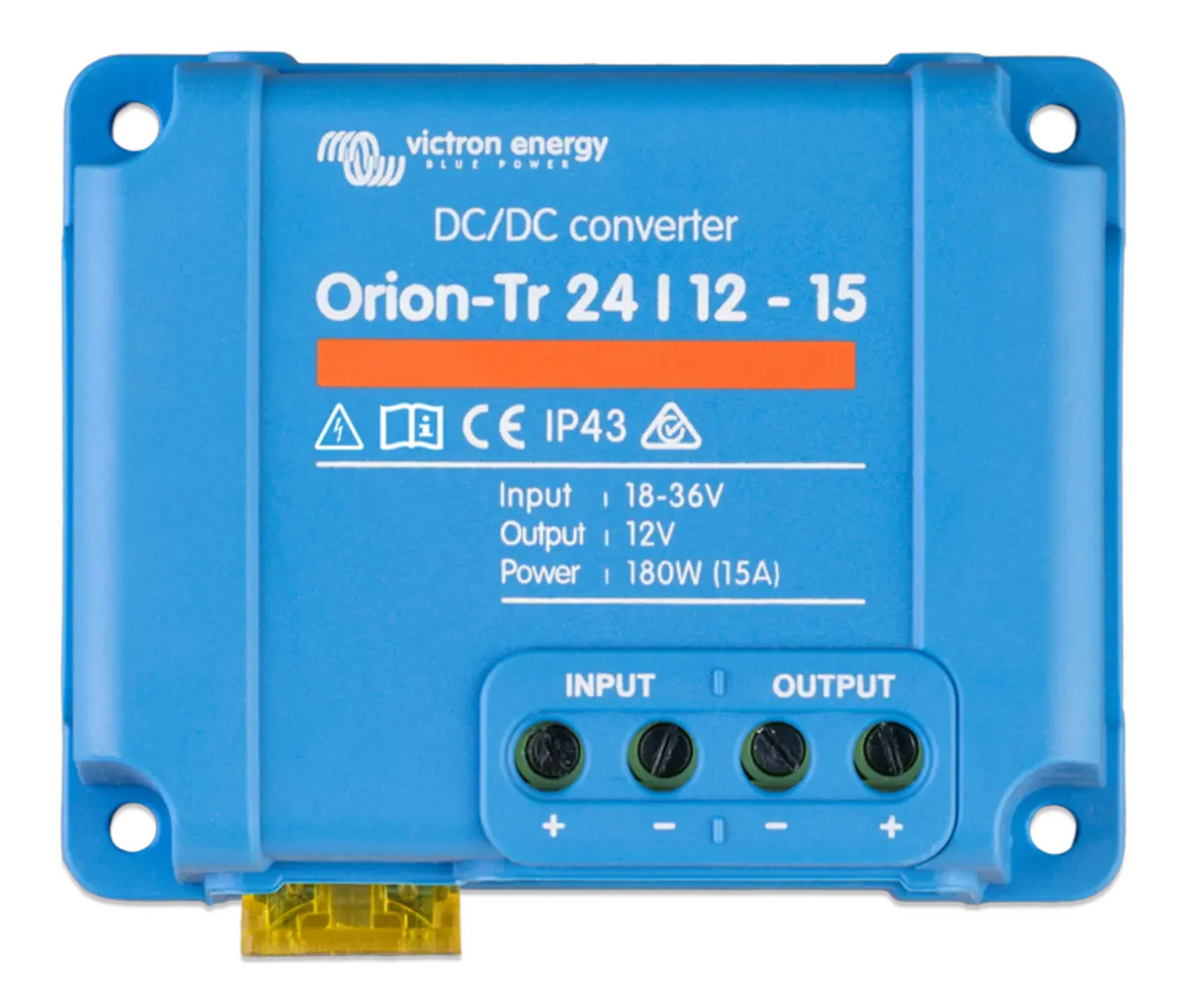

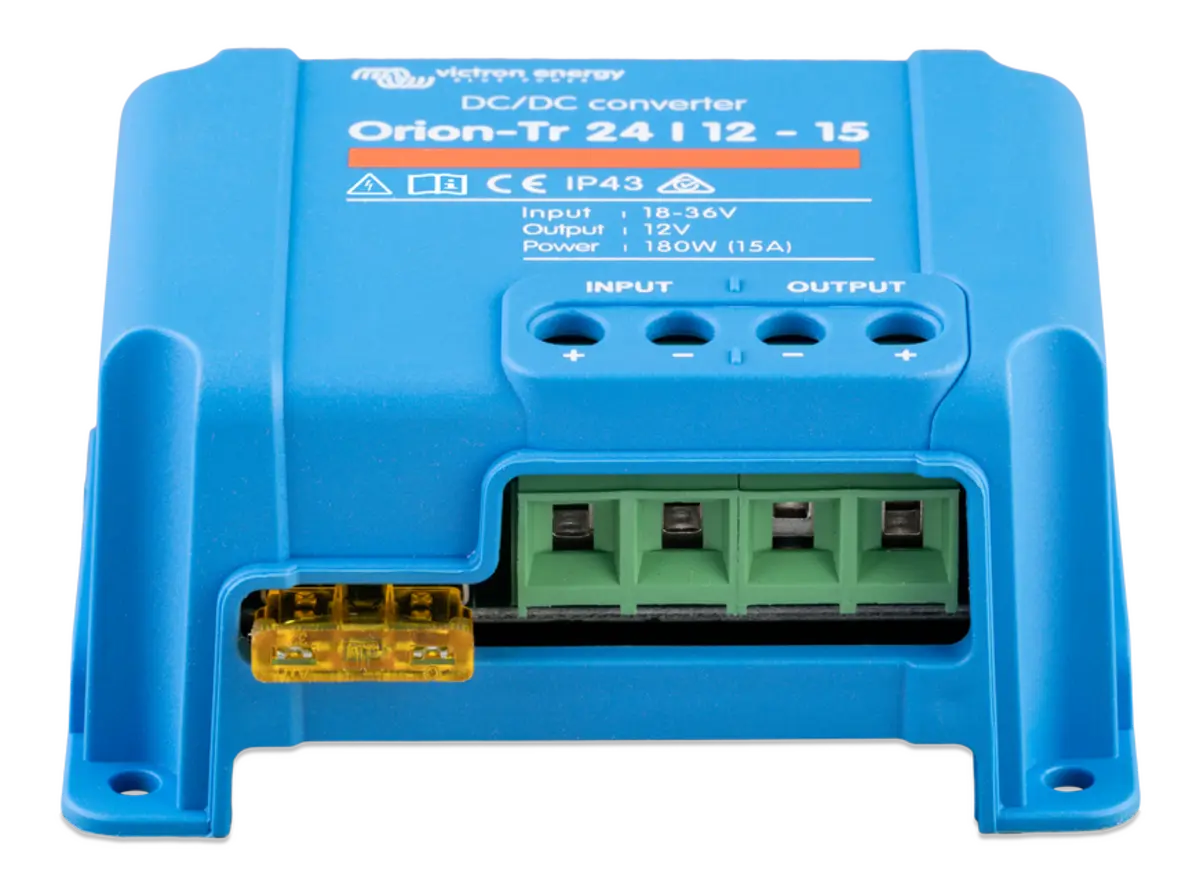

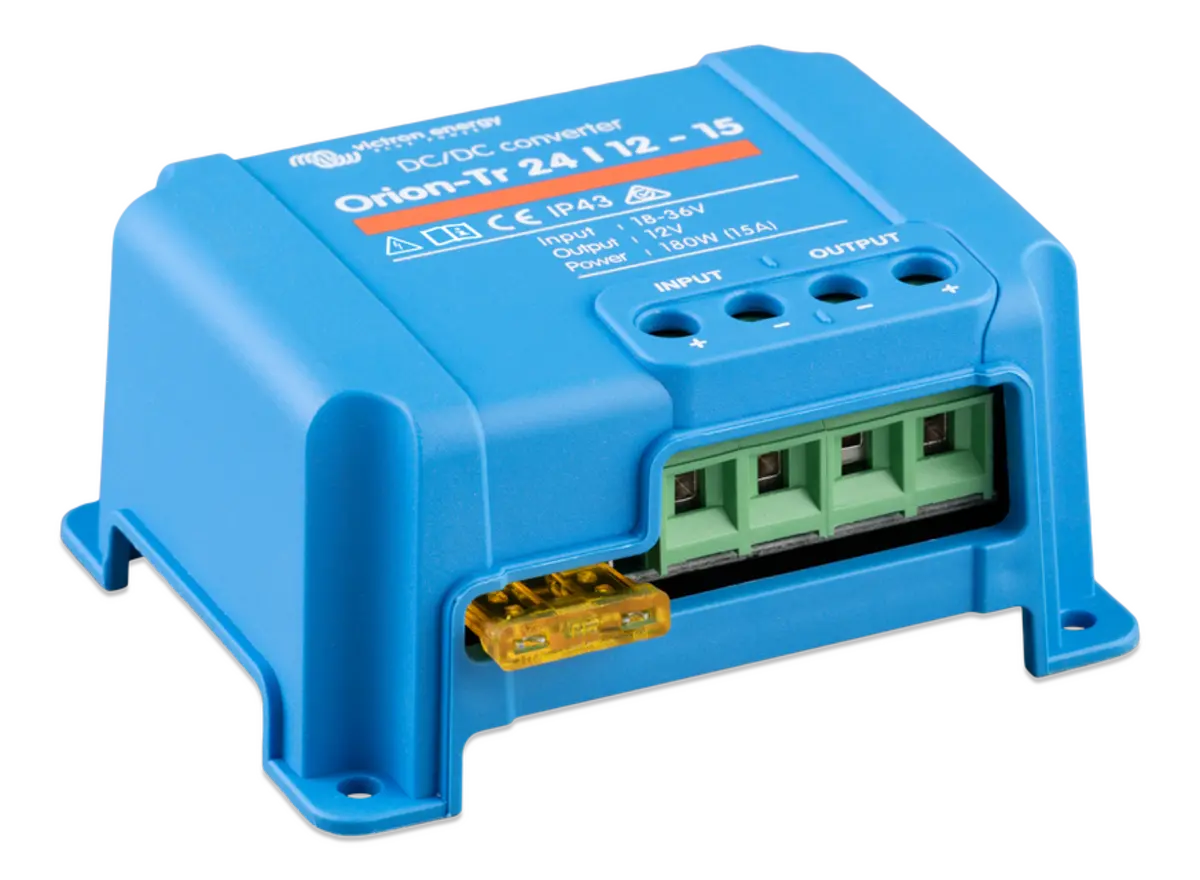

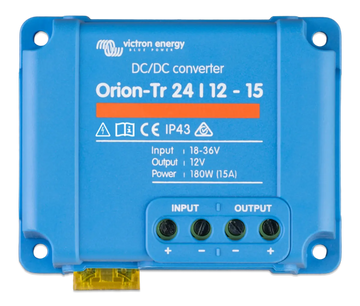

Victron Orion-Tr 24V to 12V - 180W 15A Non Isolated DC/DC Converter (SKU Part Number ORI241215200R)

Explore the Features of the Victron Orion-Tr DC/DC Converter

Features

• High efficiency - Using synchronous rectification, full load efficiency exceeds 95%
• IP43 protection - When installed with the screw terminals oriented downwards
• Screw terminals - No special tools needed for installation


Specifications

• Type: Non-Isolated
• Input Voltage Range: 18-35 V
• Output Voltage: 12.5 V
• Continuous Output Current: 15 A
• Maximum Output Current: 20 A
• Galvanic Isolation: No
• Off Load Current: <35 mA
• Operating Temperature (Derate 3% Per °C Above 40 °C): -20 to 55 °C
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 6 mm² (10 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4
• Dimensions: 2.9 in x 3.7 in x 1.8 in
• Weight: 0.55 lb


Documents

• Specification Sheet

• Instruction/Installation Manual

Efficient Power Conversion from 24V to 12V

The Victron Orion-Tr DC/DC Converter is expertly designed to deliver reliable 180W power output with a 15A current rating. This device efficiently converts 24V input voltage down to 12V output, making it ideal for automotive, marine, and off-grid applications. Its non-isolated topology supports seamless integration into existing electrical systems, providing consistent voltage regulation and protection against electrical noise. The converter’s compact design also facilitates easy installation, ensuring you get efficient power conversion without sacrificing space or system stability.

Durable Build and Safety Features

This Victron Orion-Tr DC/DC Converter features a rugged construction that guarantees long-lasting performance under demanding conditions. Equipped with built-in protections such as over-temperature, over-voltage, and short-circuit safeguards, it ensures the safety of connected devices and the converter itself. Additionally, the non-isolated design offers minimal electrical isolation which is well suited for certain battery configurations, providing a cost-effective and reliable power solution. Its quality engineering supports continuous operation in harsh environments, making it a trustworthy component in your power management setup.

Versatile Applications for Reliable Power Management

The Victron Orion-Tr DC/DC Converter’s versatility makes it a perfect choice for a wide range of applications. It is commonly used in vehicles, boats, and solar energy systems where efficient 24V to 12V voltage conversion is required. Thanks to its compact size and lightweight design, it integrates easily into tight spaces or mobile setups. Whether upgrading your power system or replacing an older converter, the Victron Orion-Tr ensures stable, efficient, and safe power delivery to your critical DC loads, enhancing overall system reliability.
