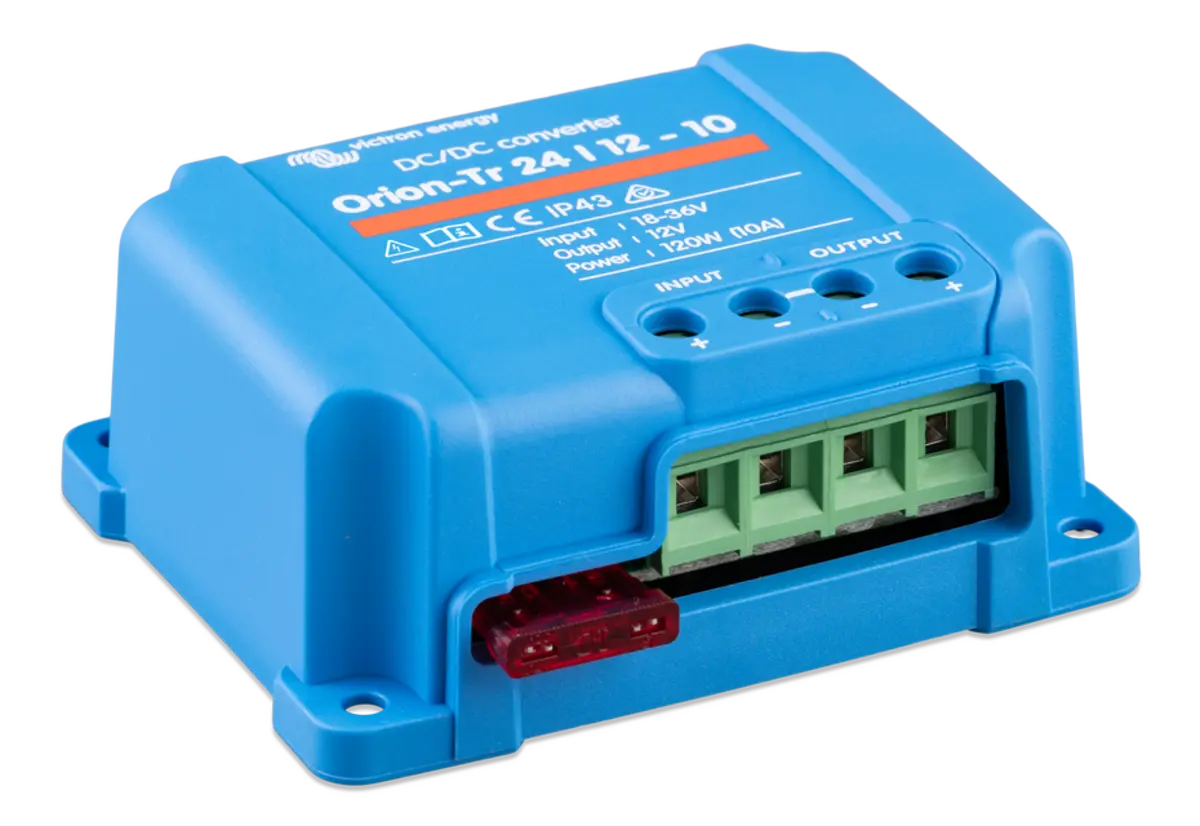

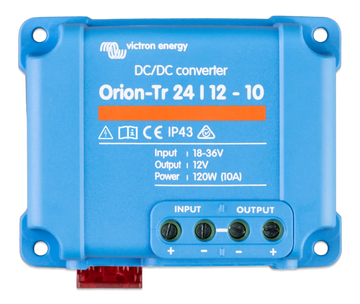

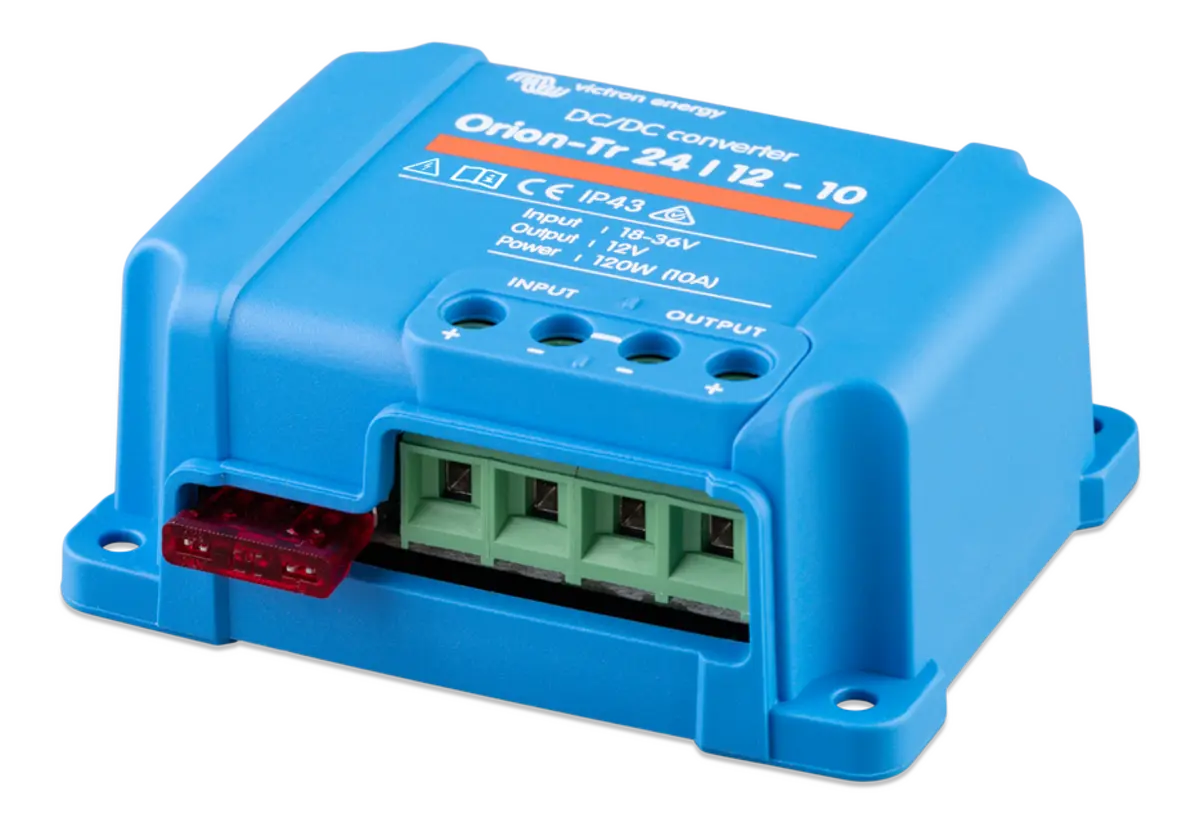

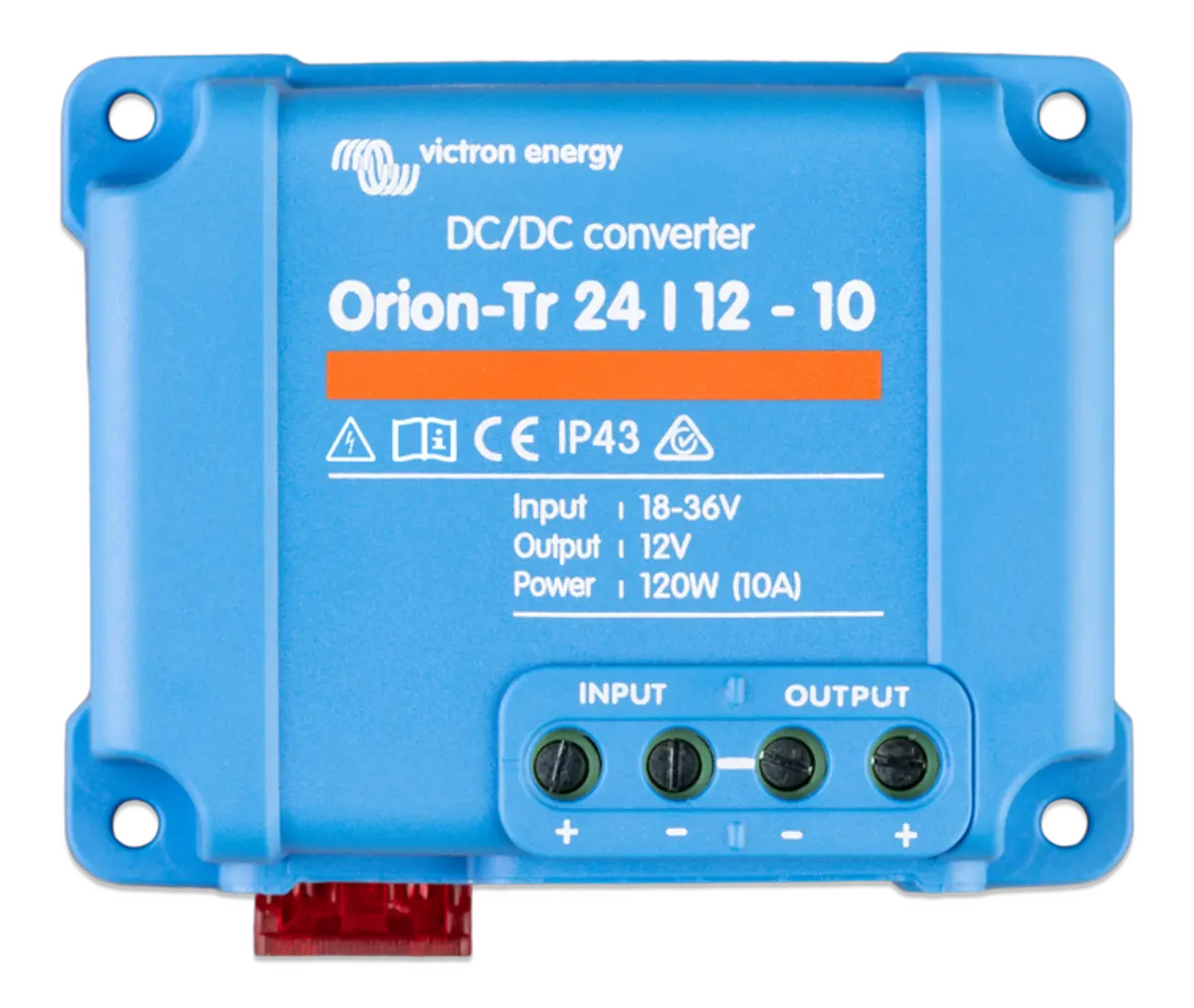

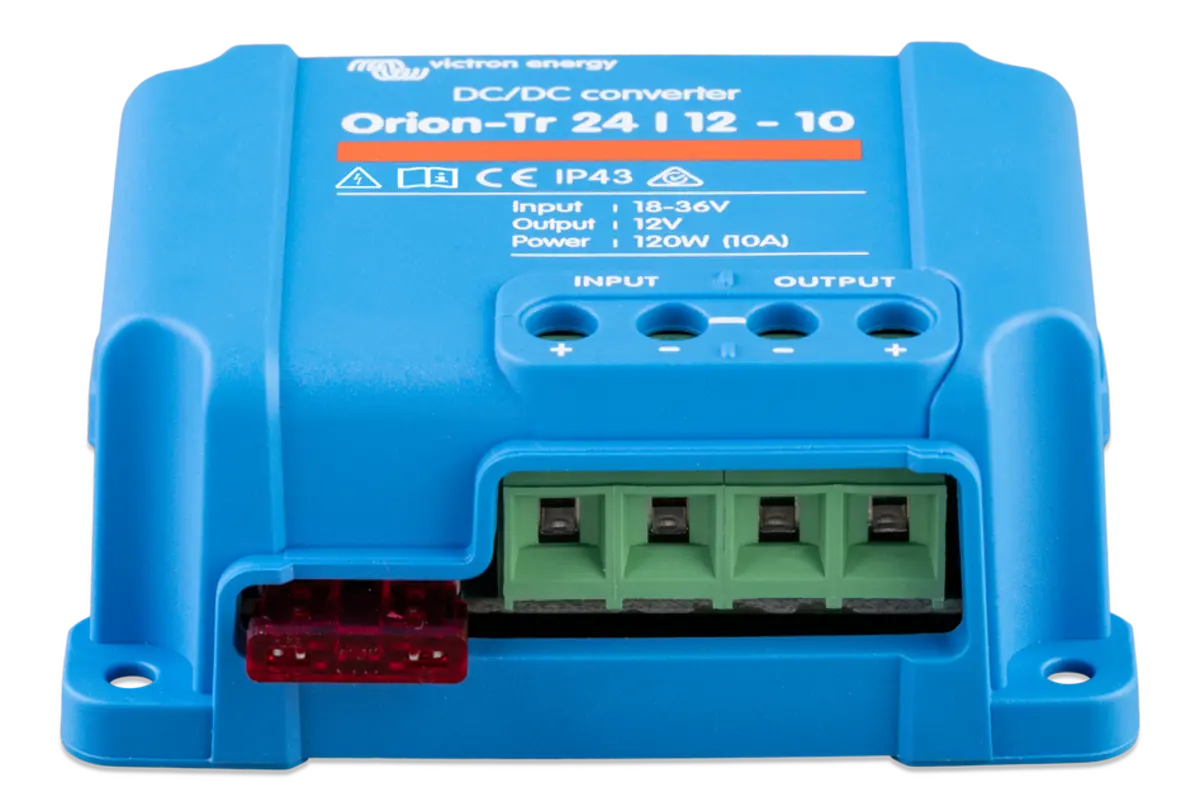

Victron Orion-Tr 24V to 12V - 120W 10A Non Isolated DC/DC Converter (SKU Part Number ORI241210200R)

Features

• High efficiency - Using synchronous rectification, full load efficiency exceeds 95%
• IP43 protection - When installed with the screw terminals oriented downwards
• Screw terminals - No special tools needed for installation


Specifications

• Type: Non-Isolated
• Input Voltage Range: 18-35 V
• Output Voltage: 12.5 V
• Continuous Output Current: 10 A
• Maximum Output Current: 12 A
• Galvanic Isolation: No
• Off Load Current: <45 mA

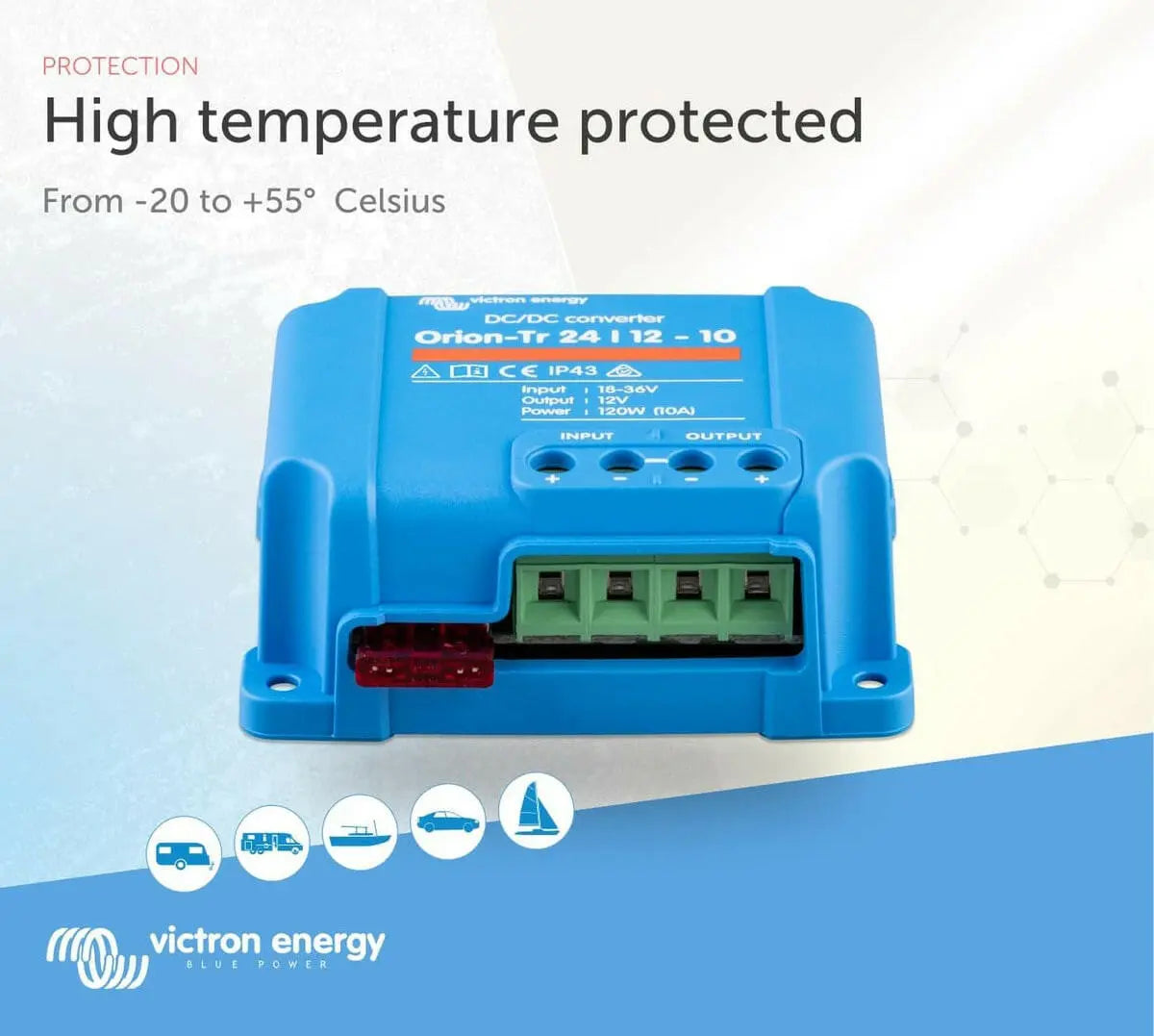

• Operating Temperature (Derate 3% Per °C Above 40 °C): -20 to 55 °C
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 6 mm² (10 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4
• Dimensions: 2.9 in x 3.7 in x 1.5 in
• Weight: 0.44 lb


Documents

• Specification Sheet
• Technical Drawing
• Instruction/Installation Manual
