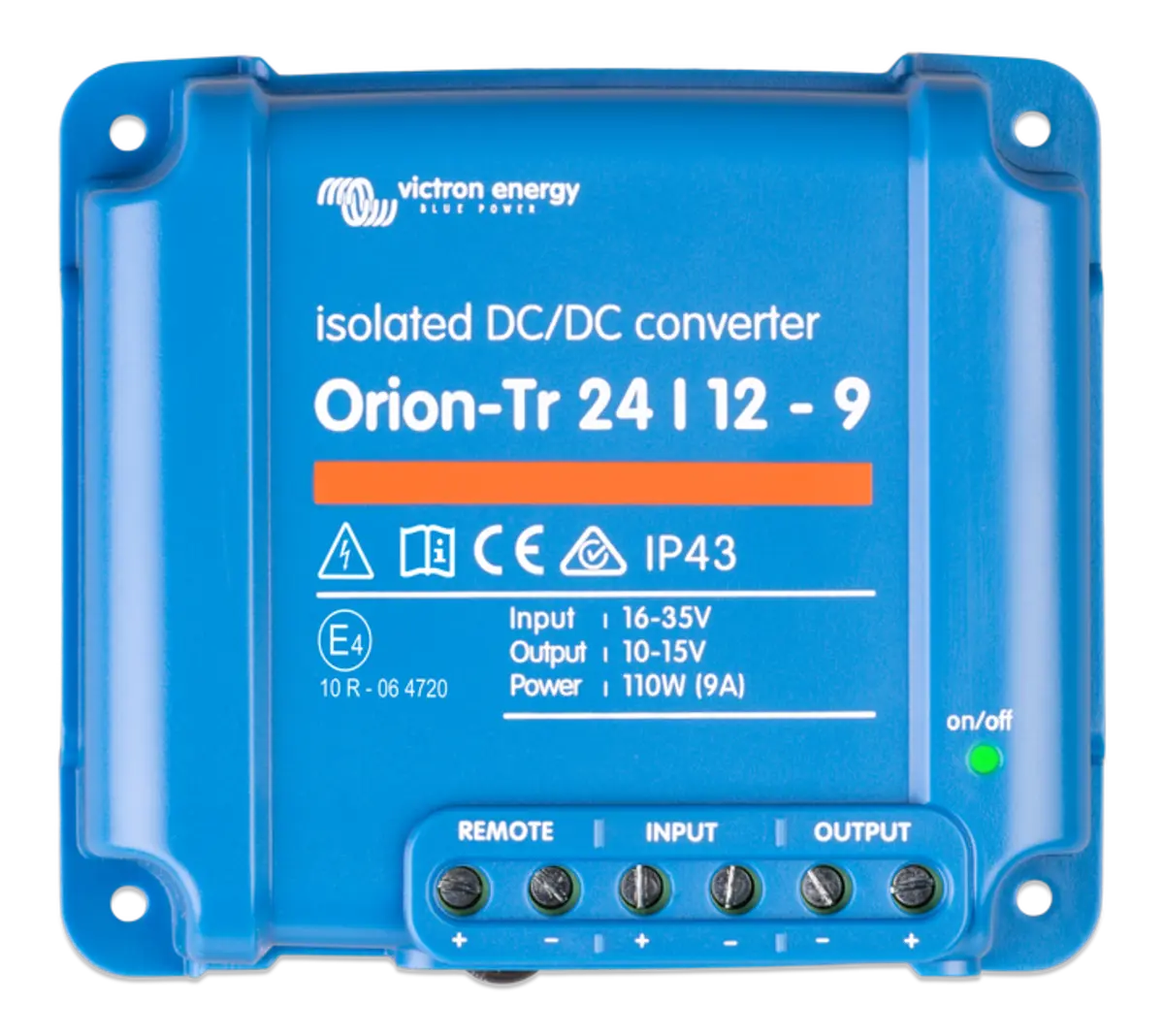

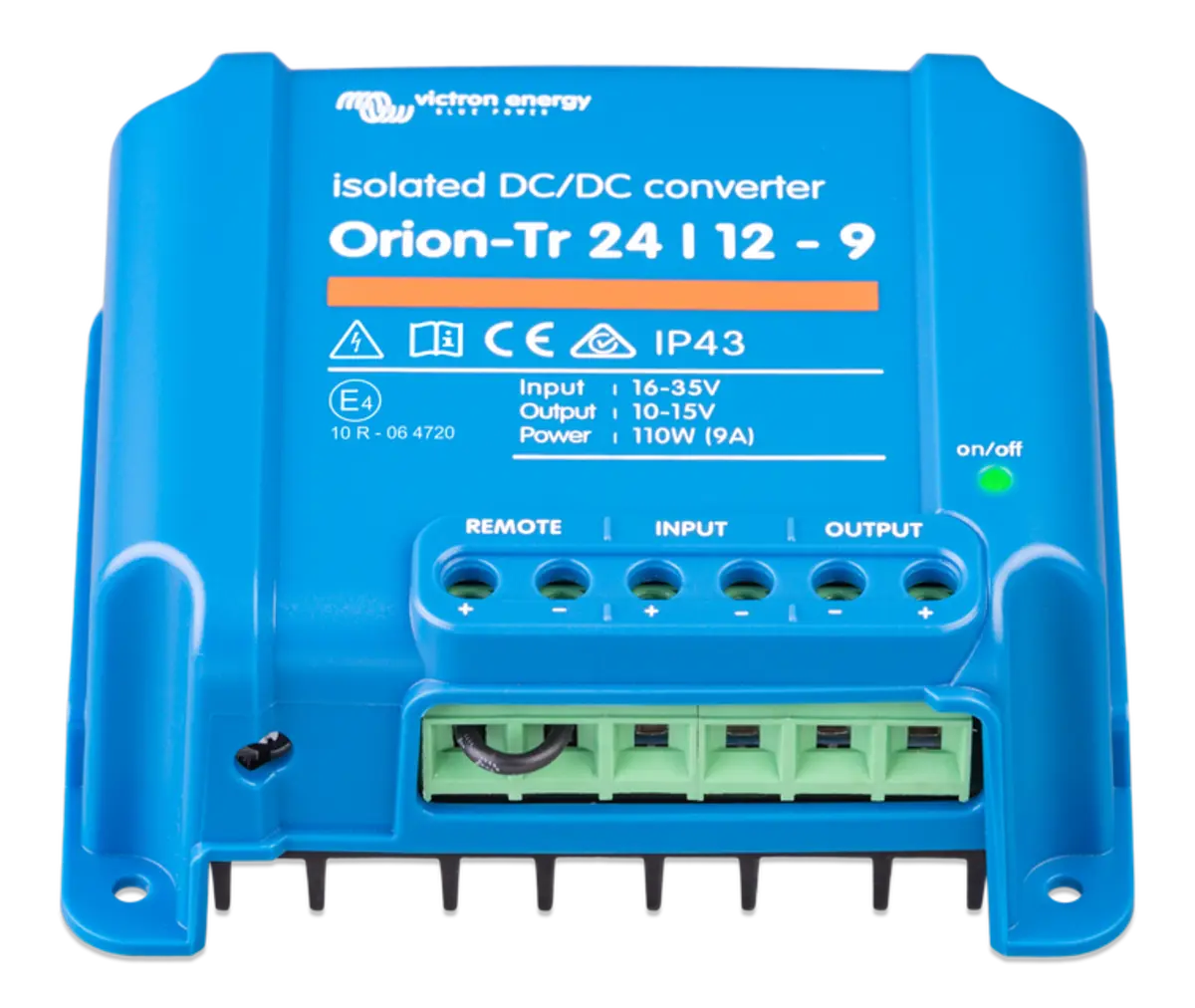

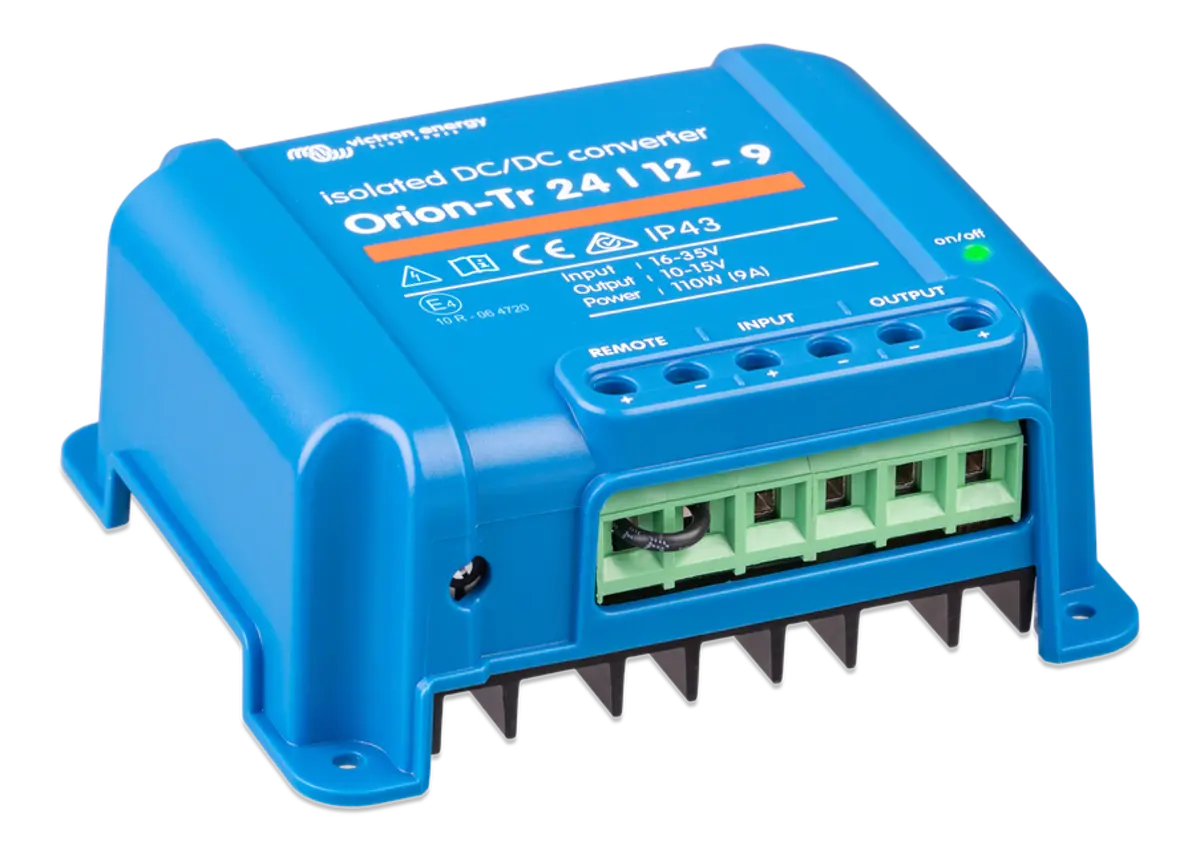

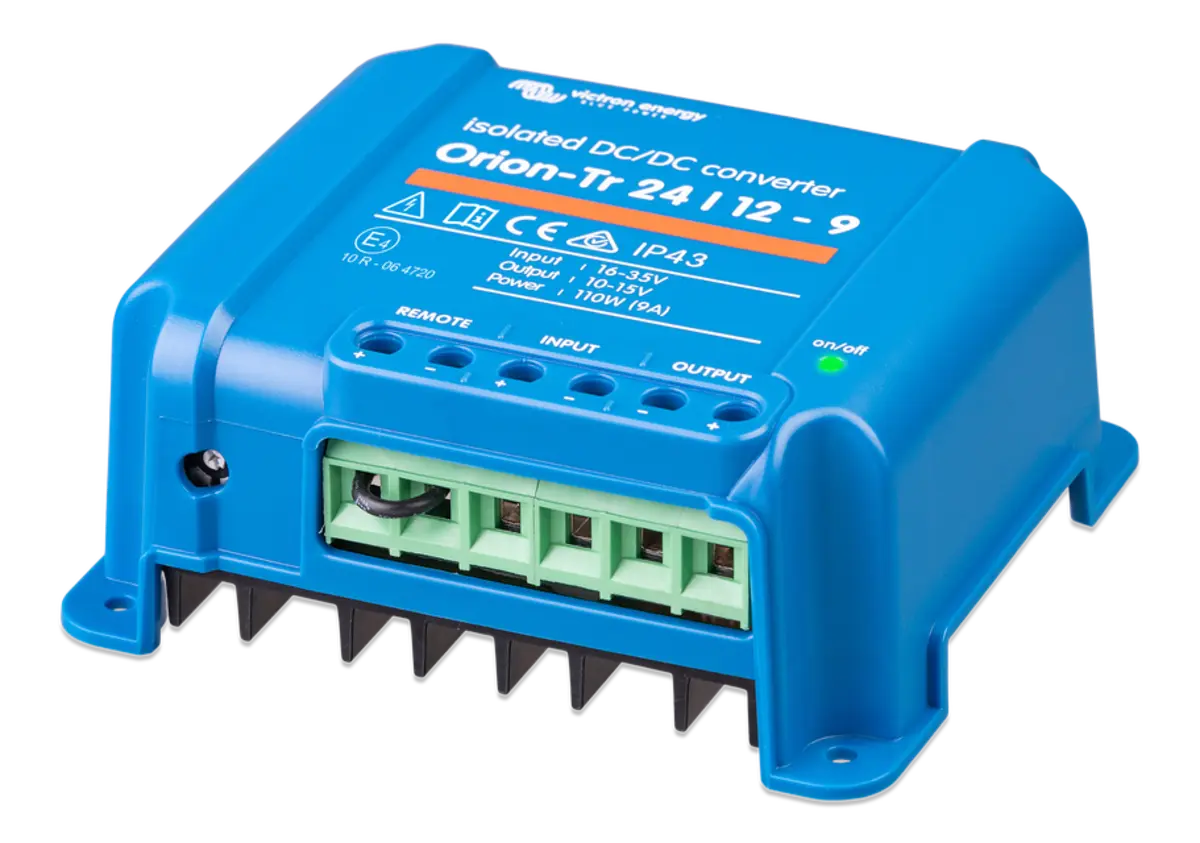

Victron Orion-Tr 24V to 12V 110W 9A Isolated DC/DC Converter (SKU Part Number ORI241210110R)

Explore the Features of the Victron Orion-Tr DC/DC Converter

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 16-35 V
• Under Voltage Shutdown: 14 V
• Under Voltage Restart: 15 V
• Output Voltage Adjust Range: 10-15 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 25°C: 9 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 12.5 A
• Short-Circuit Output Current: 39 A
• Continuous Output Power at 25°C: 110 W
• Continuous Output Power at 40°C: 85 W
• Efficiency: 85%
• No Load Input Current (2): <40 mA
• Current Consumption: <200 μA When Disabled Via its Remote Port
• Galvanic Isolation: 200 VDC Between Input, Output & Case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% Non-Condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 6 mm² (10 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 4 in x 4.5 in x 1.9 in
• Weight: 1 lb


Documents

• Specification Sheet

• Instruction/Installation Manual

Efficient Power Conversion with Victron Orion-Tr DC/DC Converter

The Victron Orion-Tr DC/DC converter provides a dependable power solution by converting 24V input voltage down to 12V output with a continuous power rating of 110W and a current output of 9A. Designed to ensure isolated DC/DC conversion, this device effectively eliminates ground loop interference, improving system stability and safety. Its high efficiency minimizes energy loss, making it an ideal choice for automotive, marine, and industrial applications where reliable voltage stepping and electrical isolation are essential. The compact design also allows flexible installation in tight spaces.

Robust and Safe Design for Critical Applications

Built with robust components, the Victron Orion-Tr DC/DC converter features full galvanic isolation between input and output for enhanced safety and noise reduction in sensitive electronic systems. It includes multiple protective features such as short circuit, overload, and thermal protection, ensuring longevity and consistent performance under demanding operating conditions. This durability makes it well-suited for harsh environments, providing secure voltage regulation to critical equipment without compromising performance or reliability.

Versatile Usage and Easy Integration

The Victron Orion-Tr DC/DC converter offers versatility for a wide range of uses, including use in RVs, boats, solar power systems, and off-grid setups. Its standardized connectors and DIN rail compatibility simplify integration into existing installations. Additionally, its compact size and lightweight build support flexible mounting options, ensuring seamless integration. This converter efficiently supports 12V devices from 24V battery banks, helping users optimize their power systems with a reliable and secure voltage conversion solution.
