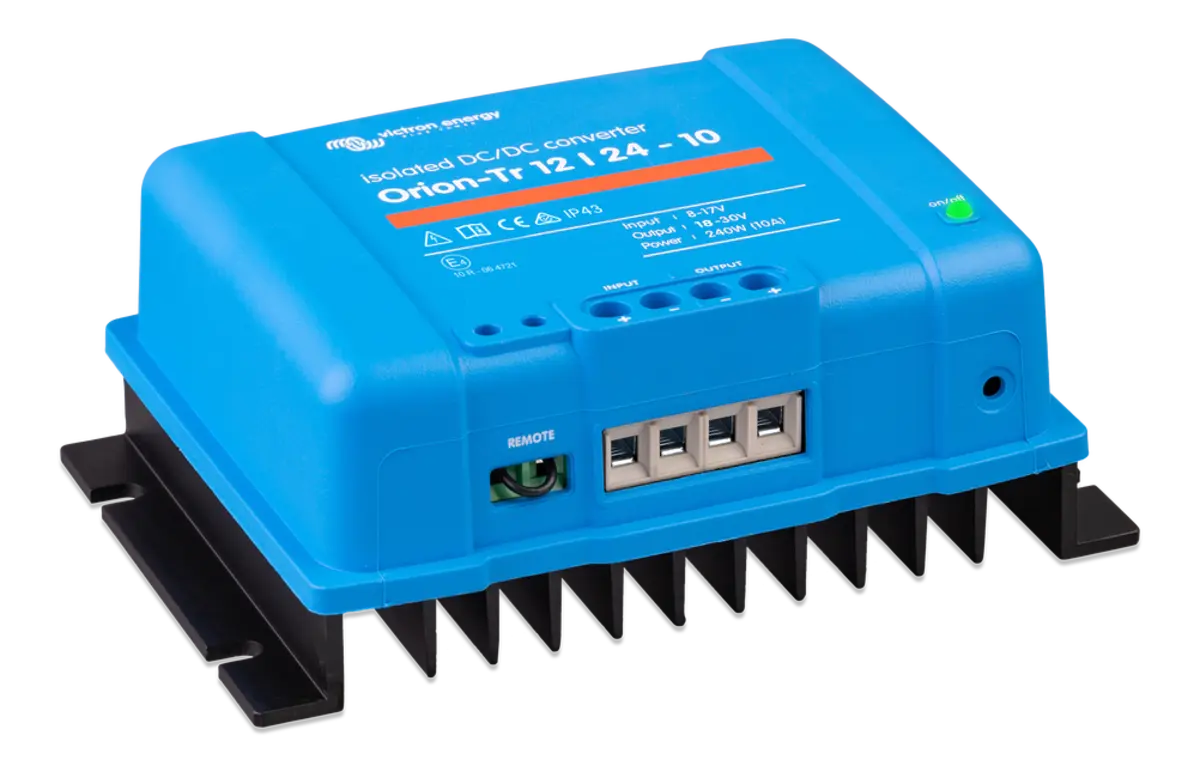

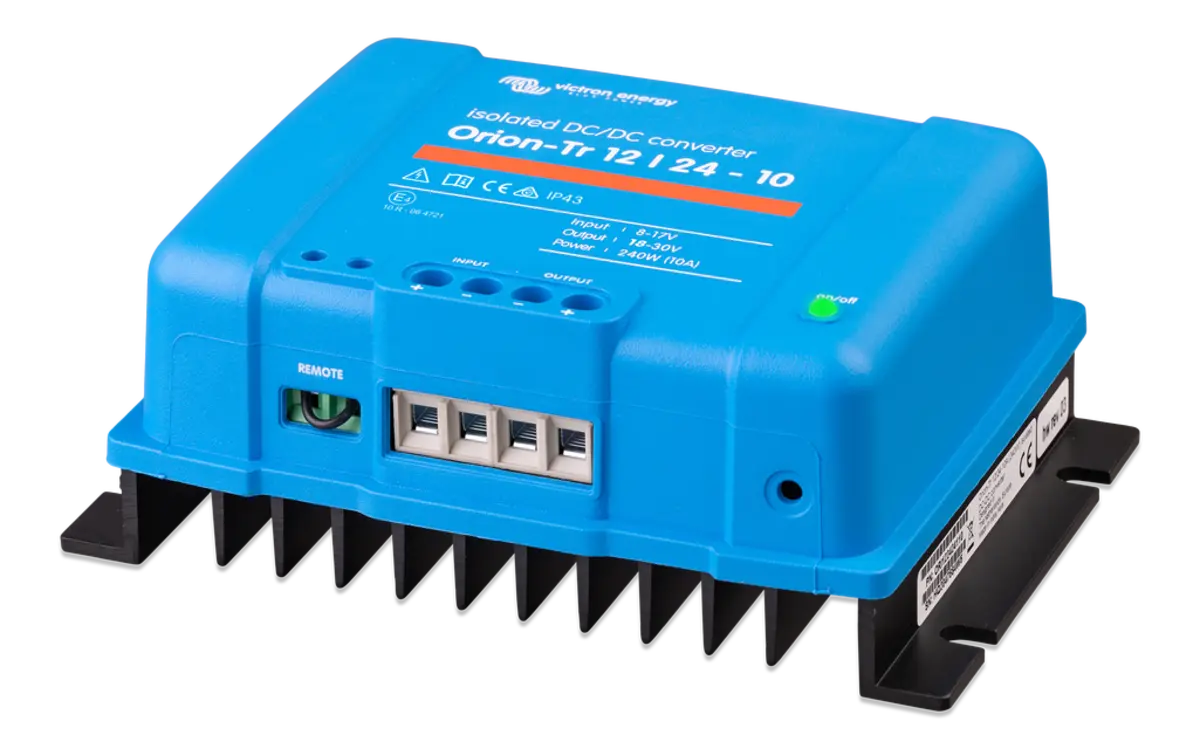

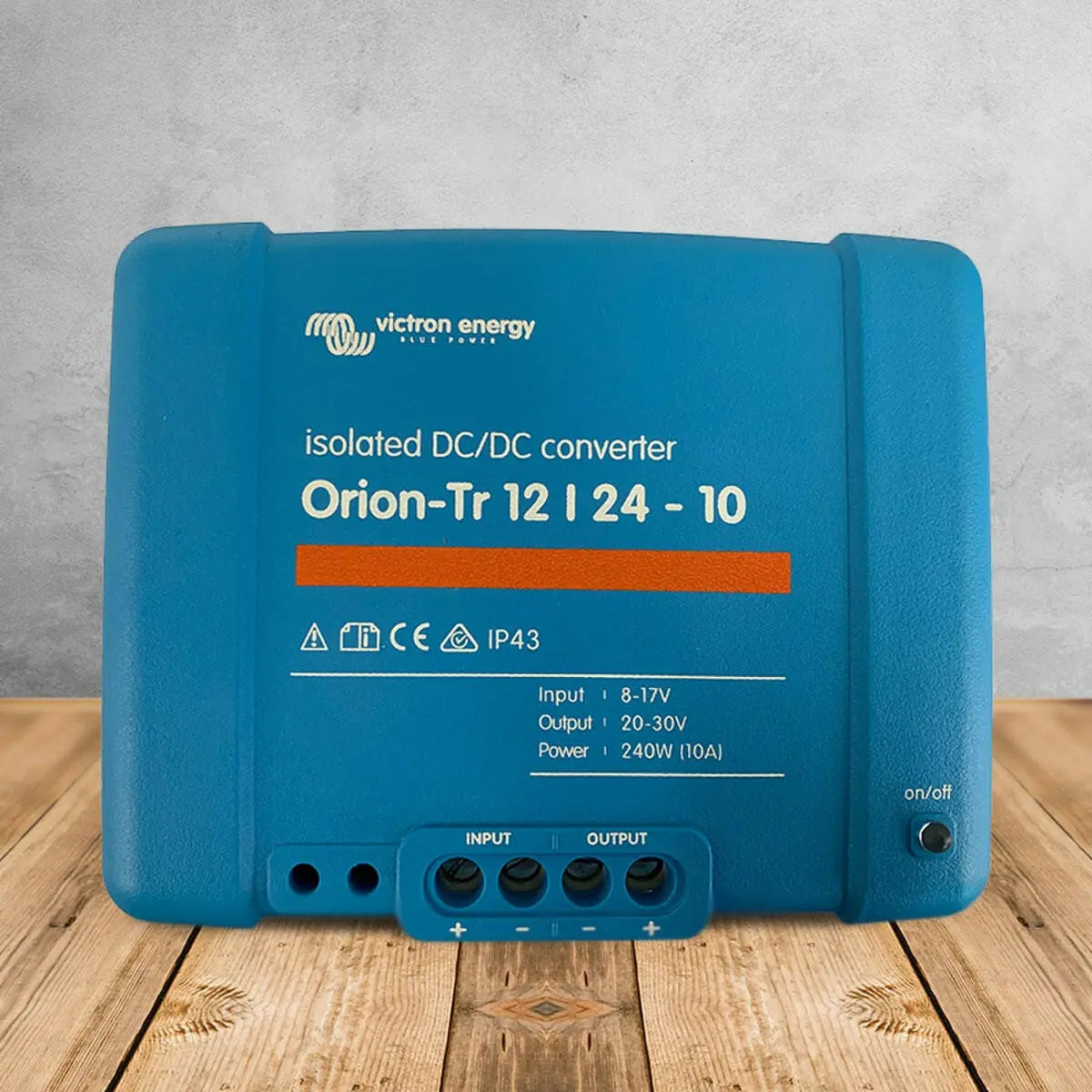

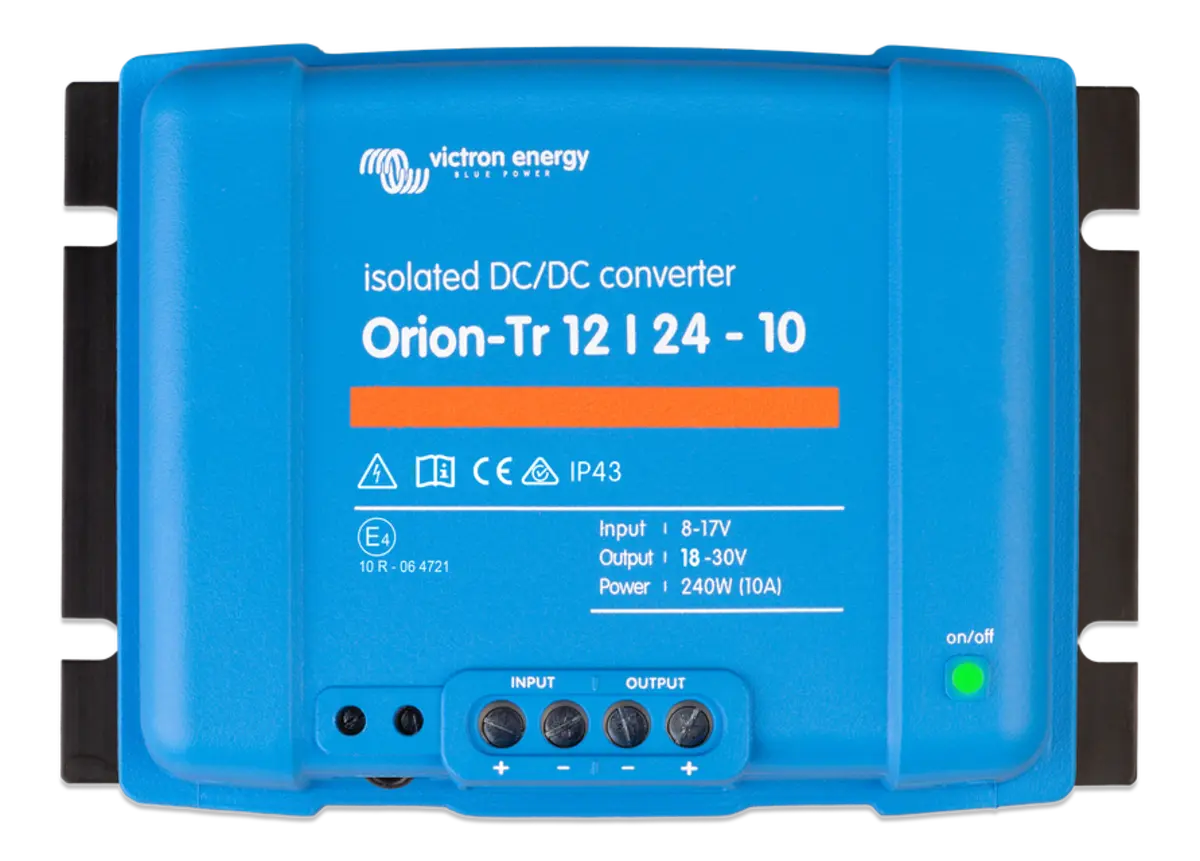

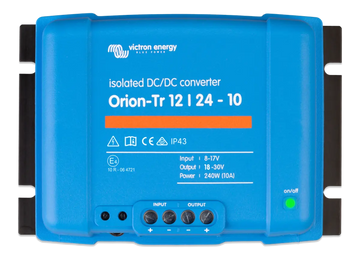

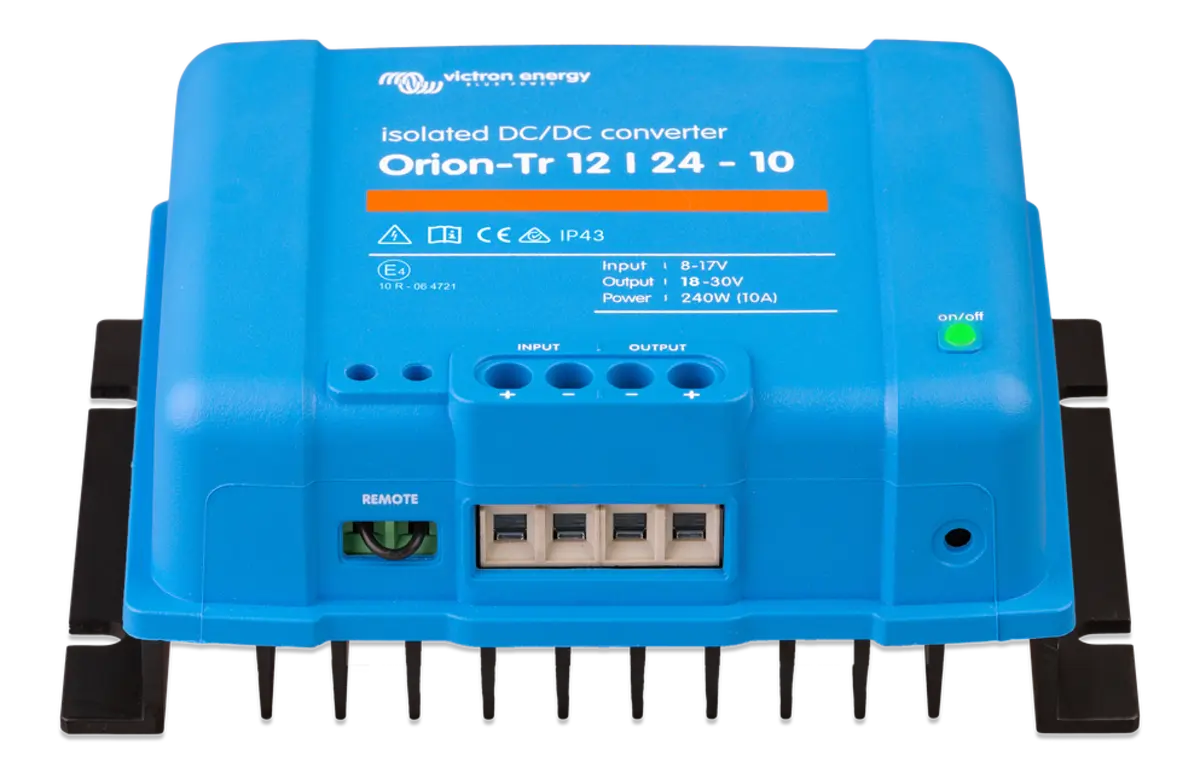

Victron Orion-Tr 12V to 24V - 240W 10A Isolated DC/DC Converter (SKU Part Number ORI122424110)

Victron Orion-Tr DC/DC Converter for Efficient 12V to 24V Power Conversion

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only


Specifications

• Type: Isolated
• Input Voltage Range: 8-17 V
• Under Voltage Shutdown: 7 V
• Under Voltage Restart: 7.5 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 40°C: 10 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 15 A
• Short-Circuit Output Current: 25 A
• Continuous Output Power at 25°C: 280 W
• Continuous Output Power at 40°C: 240 W
• Efficiency: 88%
• No Load Input Current (2): <100 mA
• Current Consumption: <200 µA When Disabled Via its Remote Port
• Galvanic Isolation: 200 VDC Between Input, Output & Case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% Non-Condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 16 mm² (6 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 5.1 in x 7.3 in x 2.8 in
• Weight: 3 lb


Documents

• Specification Sheet
• Instruction/Installation Manual

Advanced Power Conversion and Isolation

The Victron Orion-Tr DC/DC converter offers seamless 12V to 24V step-up capability at 240W and 10A output, ideal for varying power requirements. Its isolated design ensures electrical separation between input and output, enhancing safety and reducing noise interference. This advanced isolation is essential in sensitive electronics where stable, ripple-free power is crucial. Thanks to its robust build and reliable components, the Victron Orion-Tr DC/DC converter reliably manages voltage conversion in automotive, marine, or industrial settings, ensuring efficient, uninterrupted performance.

Compact and Durable Design for Tough Environments

This DC/DC converter is engineered with compactness and durability in mind, making it a perfect fit for tight spaces and harsh operating conditions. The Victron Orion-Tr's rugged housing resists vibrations, moisture, and temperature fluctuations, which ensures long-term dependability. Its lightweight, yet sturdy construction enables easy installation while maintaining exceptional protection against electrical and environmental stresses. Professionals trust the Victron Orion-Tr DC/DC converter for a reliable power solution in mobile and stationary applications alike.

User-Friendly Installation and Versatile Application

The Victron Orion-Tr DC/DC converter is designed for straightforward installation, saving time for technicians and end-users. Clear terminal markings and accessible connections simplify integration into existing systems. Compatible with a wide range of batteries and electrical setups, this converter is versatile enough for automotive, marine, and off-grid power solutions. Whether upgrading a vehicle’s electrical system or powering specialized equipment, the Victron Orion-Tr DC/DC converter ensures efficient voltage transformation, enabling users to enjoy stable and reliable power anywhere.
