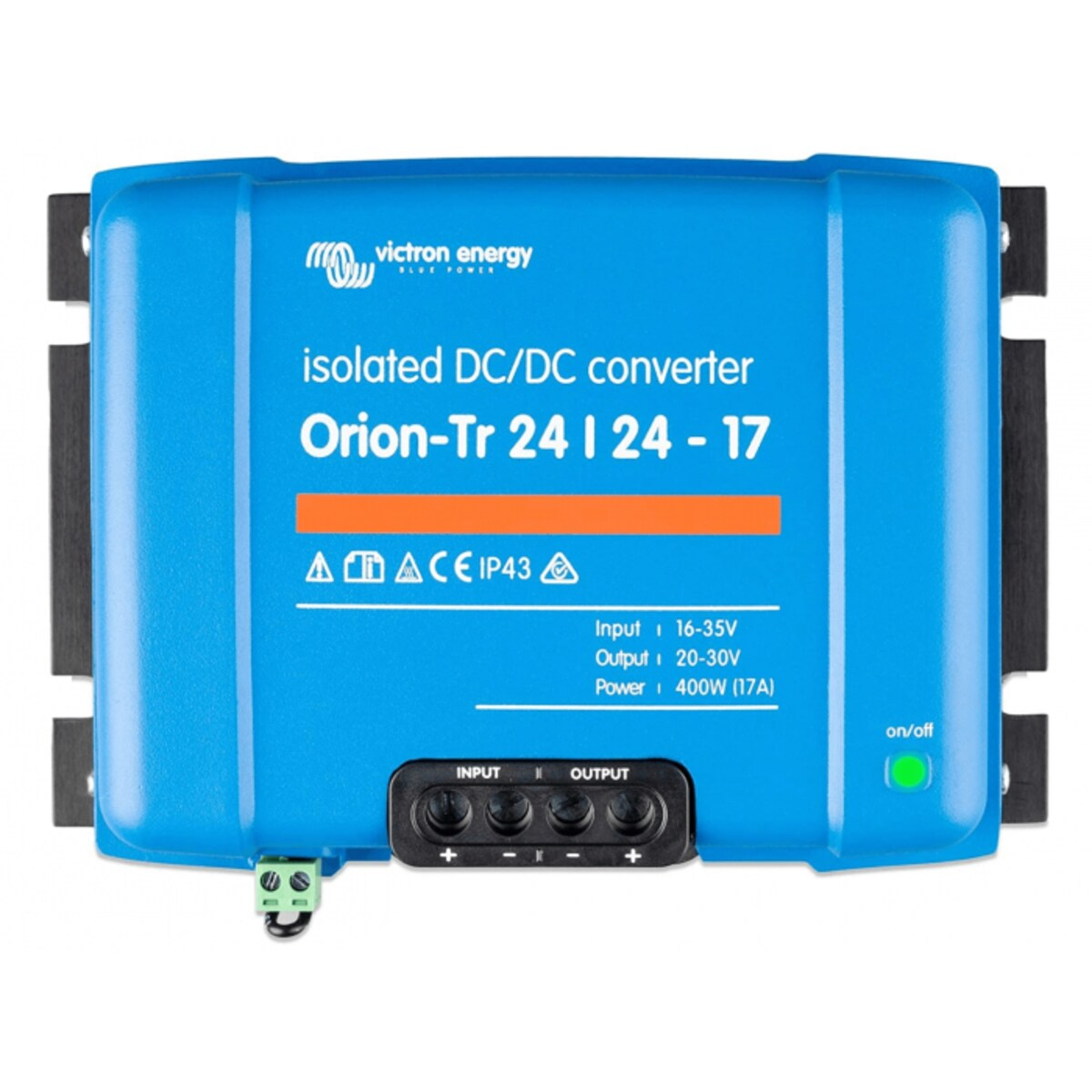

Victron Orion 24V to 24V - 360W 17A Isolated DC/DC Converter (SKU Part Number ORI242441110)

Discover the Power of the Victron Orion DC/DC Converter

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual). All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

Features

• IP43 protection
• When installed with the screw terminals oriented downwards
• Screw terminals
• No special tools needed for installation
• Input fuse - On 12V and 24V input models only

Specifications

• Type: Isolated
• Input Voltage Range: 20-35 V
• Under Voltage Shutdown: 14 V
• Under Voltage Restart: 15 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 40°C: 17 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 25 A
• Short-Circuit Output Current: 40 A
• Continuous Output Power at 25°C: 480 W
• Continuous Output Power at 40°C: 400 W
• Efficiency: 89%
• No Load Input Current: <80 mA
• Current Consumption: <200 uA When Disabled Via its Remote Port
• Galvanic Isolation: 200 VDC Between Input, Output & Case
• Operating Temperature: -20 to 55°C
• Humidity: Maximum 95% Non-Condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 16 mm² (6 AWG)
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 5.1 in x 7.3 in x 2.8 in
• Weight: 4 lb

Documents

• Specification Sheet

• Instruction/Installation Manual

Advanced Isolation and Reliable Performance

The Victron Orion DC/DC Converter 24V to 24V offers superior electrical isolation, ensuring safe and stable voltage conversion for sensitive equipment. With a rated output of 360W and a continuous current of 17A, this converter is engineered to provide consistent power delivery without interruption. The isolated design protects connected devices from noise and electrical interference, making it an ideal solution for automotive, marine, and industrial power systems that demand reliability and durability.

Efficient Power Conversion and Compact Design

This Victron Orion DC/DC Converter boasts high efficiency, minimizing energy loss during the voltage conversion process. Its compact unit size allows easy integration into tight spaces, making it convenient for installations where space is limited. The converter maintains stable voltage output, protecting batteries and electronic components. Thanks to its robust construction, it withstands harsh environments and vibrations, ensuring a long service life even in challenging conditions.

Wide Application and User-Friendly Features

Designed for versatility, the Victron Orion DC/DC Converter 24V to 24V suits a variety of applications including renewable energy systems, electric vehicles, and backup power setups. It features onboard protections like overcurrent, thermal shutdown, and short-circuit prevention to safeguard both the device and connected equipment. Easy to install and maintain, it supports seamless integration with existing systems, making it a practical choice for professionals and enthusiasts seeking dependable DC power conversion.
