Victron Lynx Smart BMS – Battery Management System for Victron Lithium Batteries

Comprehensive Overview of the Victron Lynx Smart BMS

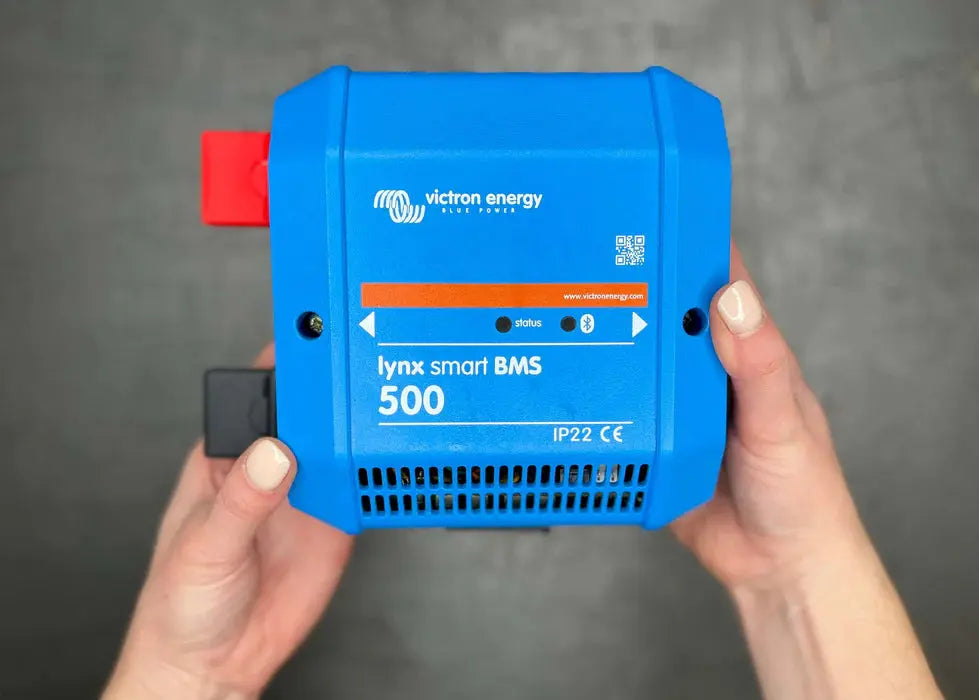

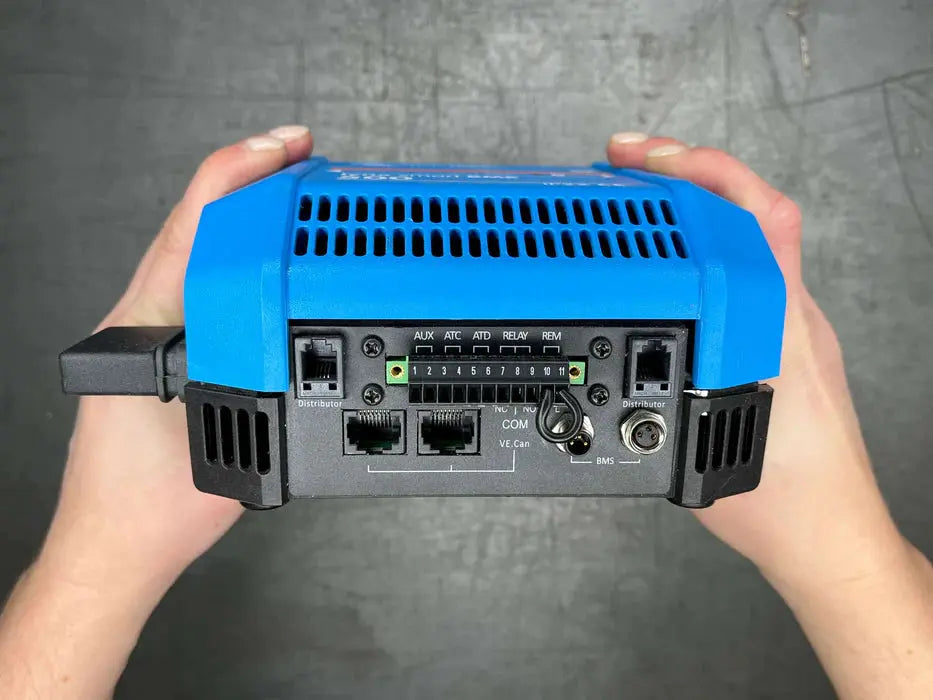

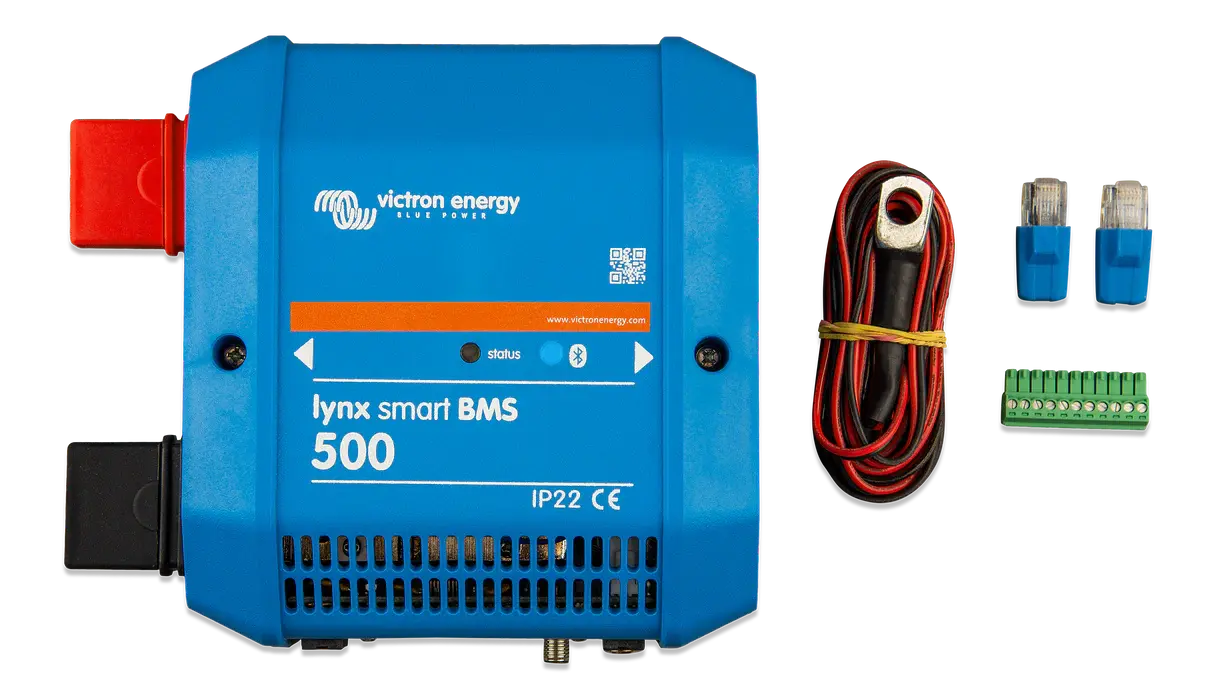

The Victron Lynx Smart BMS is a dedicated Battery Management System designed exclusively for Victron Lithium Smart Batteries (12.8V and 25.6V nominal). It combines a built-in contactor, battery monitor, and BMS functionality in a single modular Lynx-compatible unit. Available in 500A (M8) and 1000A (M10) versions.

Key Features

• Built-in 500A or 1000A contactor – fallback safety mechanism and remote-controllable main system switch
• Integrated battery monitor – displays state of charge, voltage, current, and temperature
• Supports up to 20 batteries (500A model) or 50 batteries (1000A model)
• Communicates with Cerbo GX and other GX devices via VE.Can
• Alternator interface (current limiter) built-in
• Modular Lynx system compatible – connects with Lynx Distributor and Lynx Power In
• Automatic cell balancing management
• Protects against over-charge, over-discharge, over-temperature, and short circuit

Technical Specifications (500A Model)

Warranty

Victron Energy provides a 5-year limited warranty on this product.

Documentation

• Manual (PDF)
• Product Page

What is the Victron Lynx Smart BMS?

The Victron Lynx Smart BMS is a cutting-edge battery management system specifically designed for Victron lithium batteries. It provides intelligent monitoring and control features, ensuring optimal battery performance and longevity. This system continuously monitors cell voltages, temperature, and current to protect the battery from damage caused by overcharging, deep discharging, or overheating. Its smart design integrates seamlessly with Victron energy products, offering reliable and efficient battery management that enhances safety and maximizes energy use.

Key Features and Benefits

The Victron Lynx Smart BMS equips users with essential features such as precise cell balancing, robust fault detection, and comprehensive communication capabilities. This ensures that every cell within the lithium battery pack is maintained at an optimal level. Its ability to provide real-time data via Bluetooth or a CAN bus interface allows for easy monitoring and diagnostics. Moreover, the BMS’s modular design enables flexible installation and scalability, making it ideal for a wide variety of energy storage applications, from recreational vehicles to renewable energy systems.

Why Choose Victron Lynx Smart BMS?

Choosing the Victron Lynx Smart BMS means investing in advanced battery protection and management technology that guarantees the longevity and safety of your Victron lithium batteries. Its intuitive integration with other Victron components simplifies system management while enhancing overall performance. With its reliable safeguards against common battery problems and automated balancing features, it delivers peace of mind for both professional installers and end-users. The Victron Lynx Smart BMS stands out as a high-performance, intelligent solution for anyone seeking to optimize their lithium battery systems efficiently and safely.
