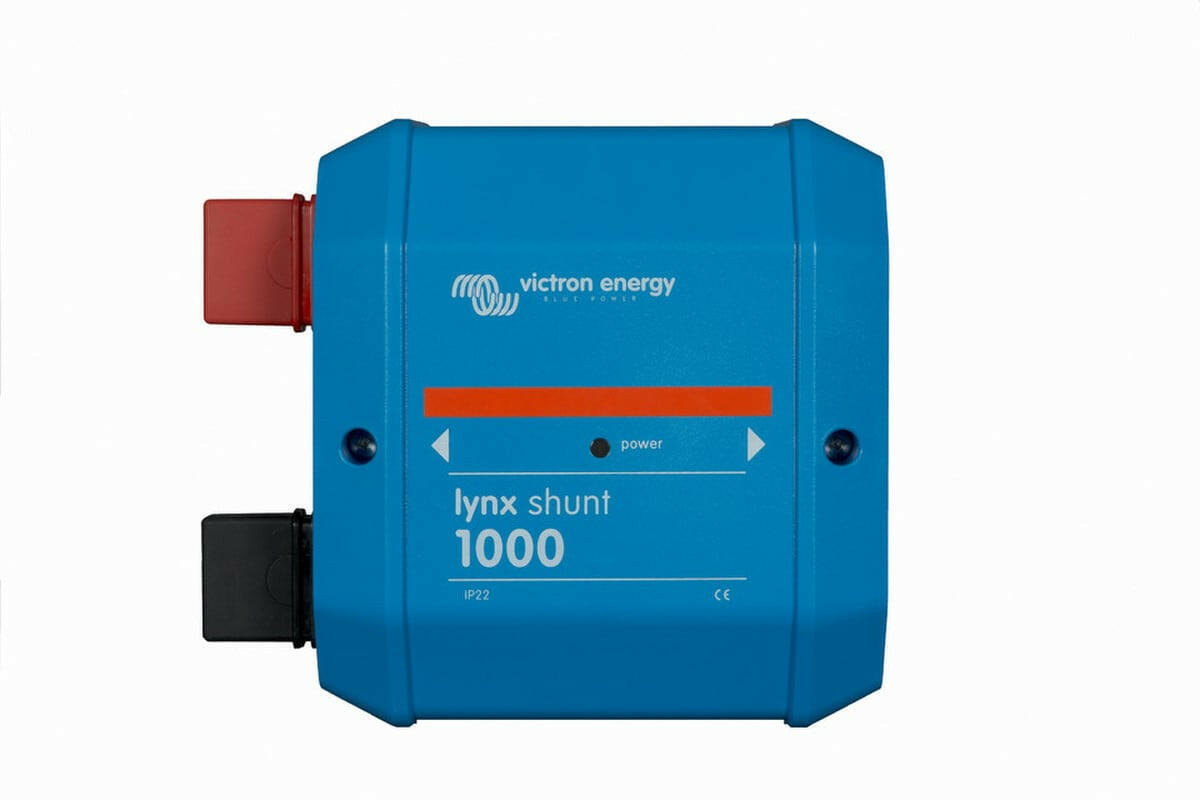

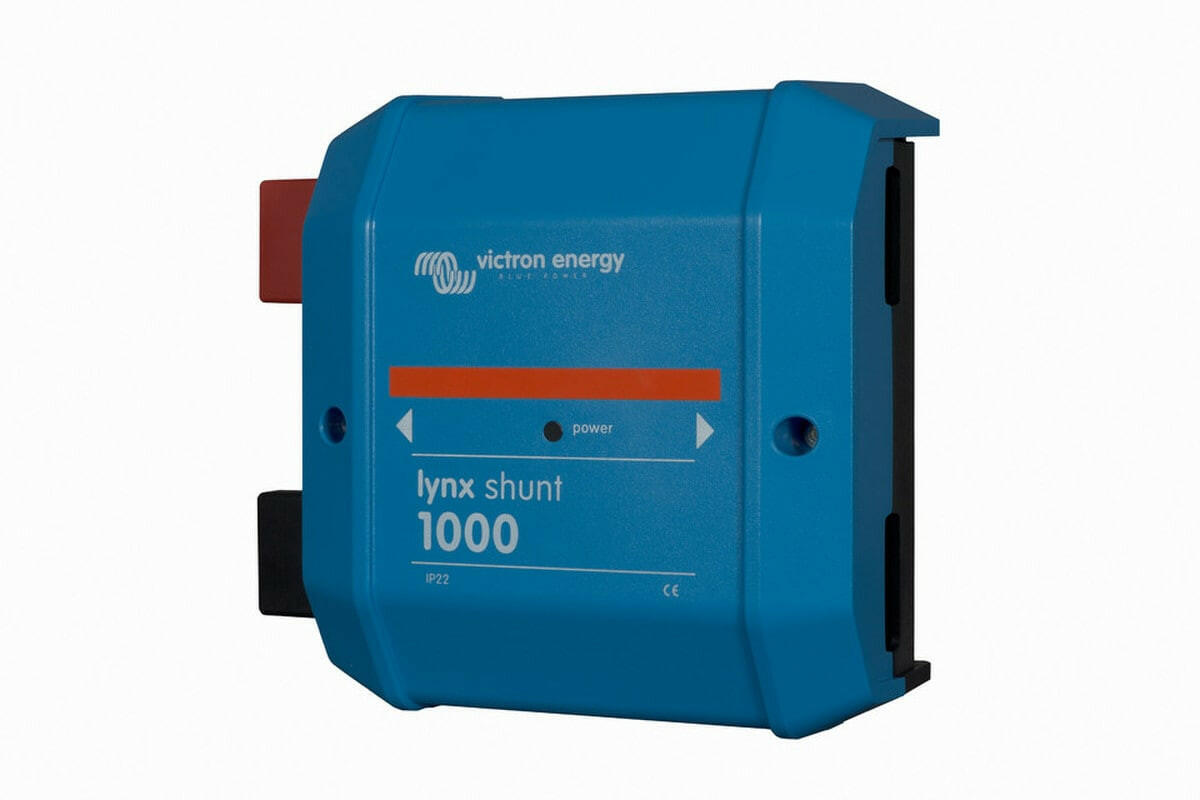

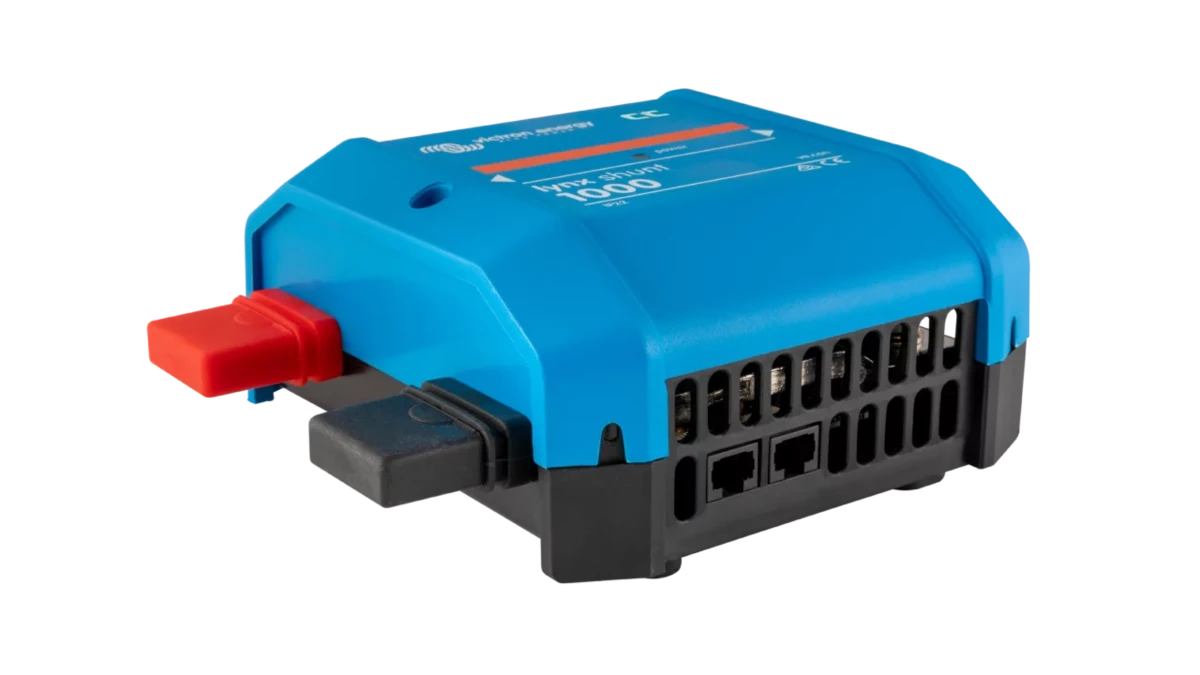

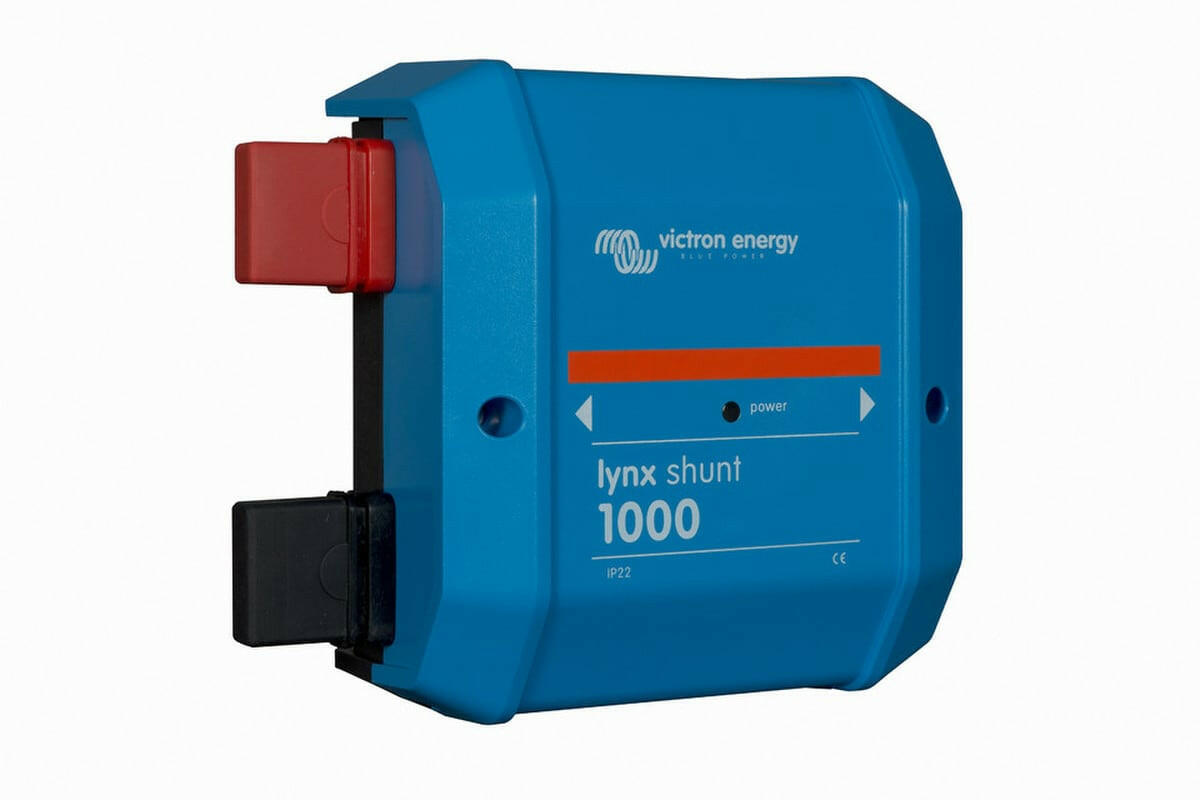

Victron Lynx Shunt VE.Can (M8) (SKU Part Number LYN040102100)

Comprehensive Overview of the Victron Lynx Shunt

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

Features

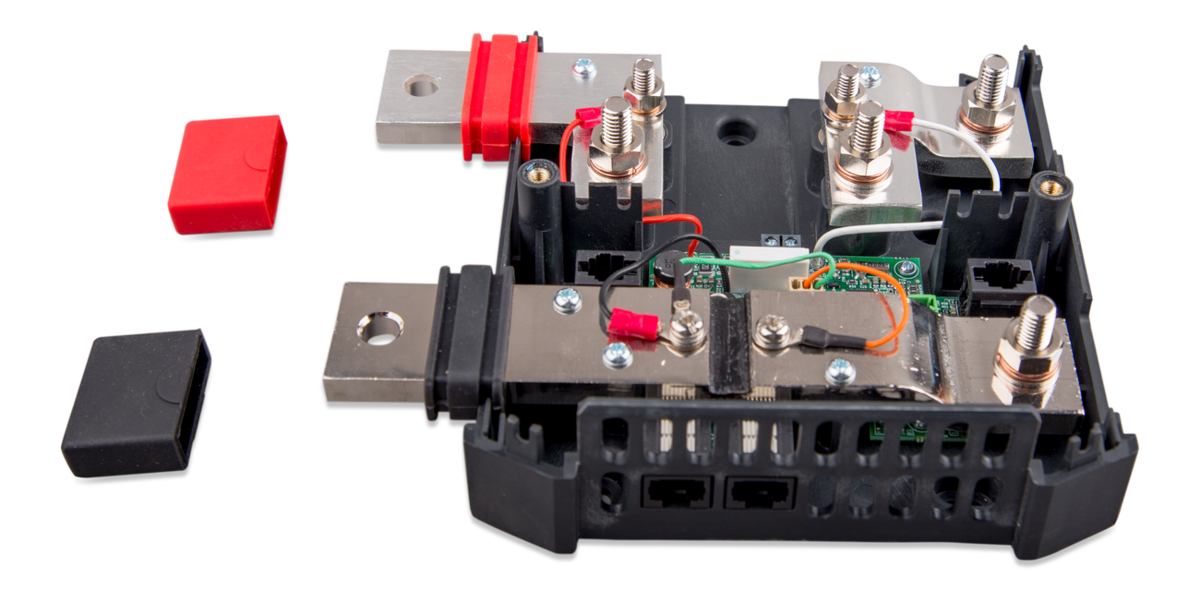

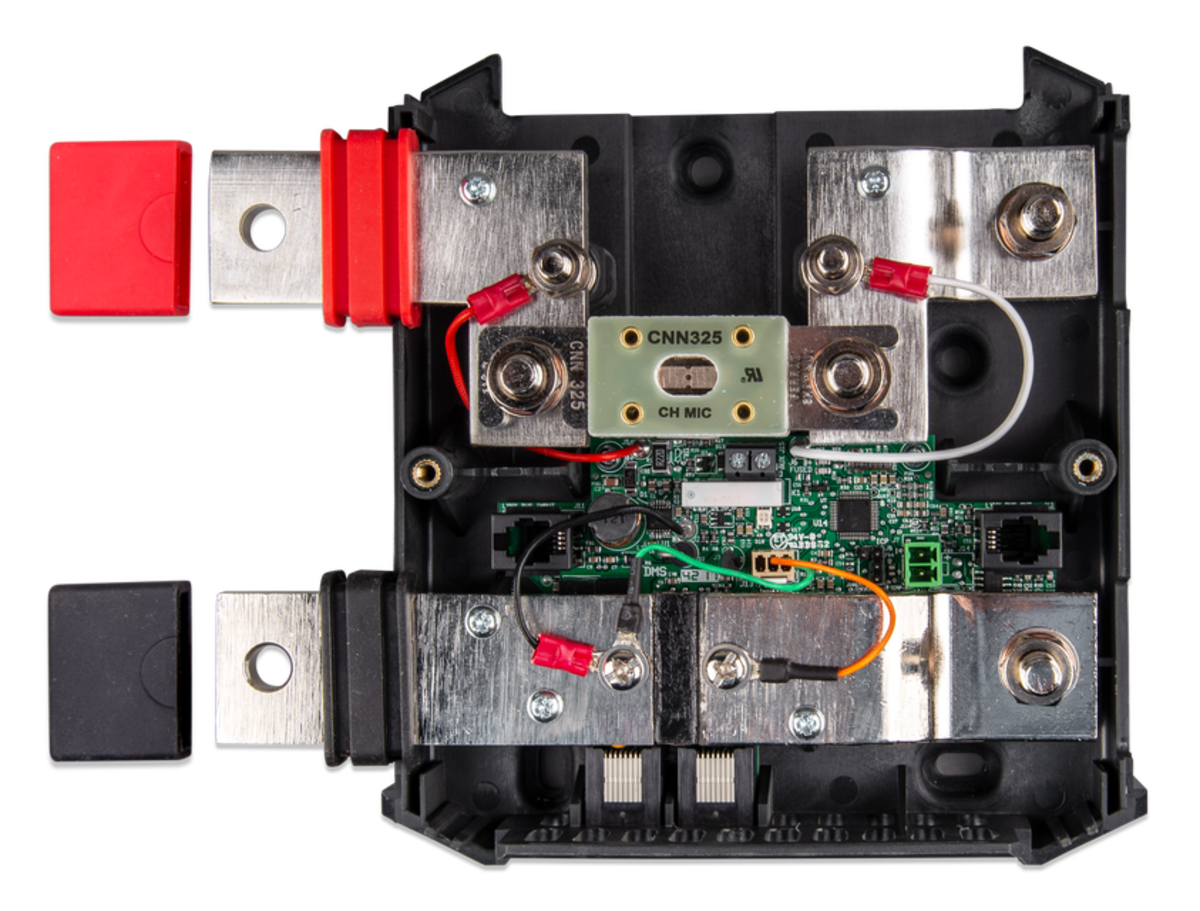

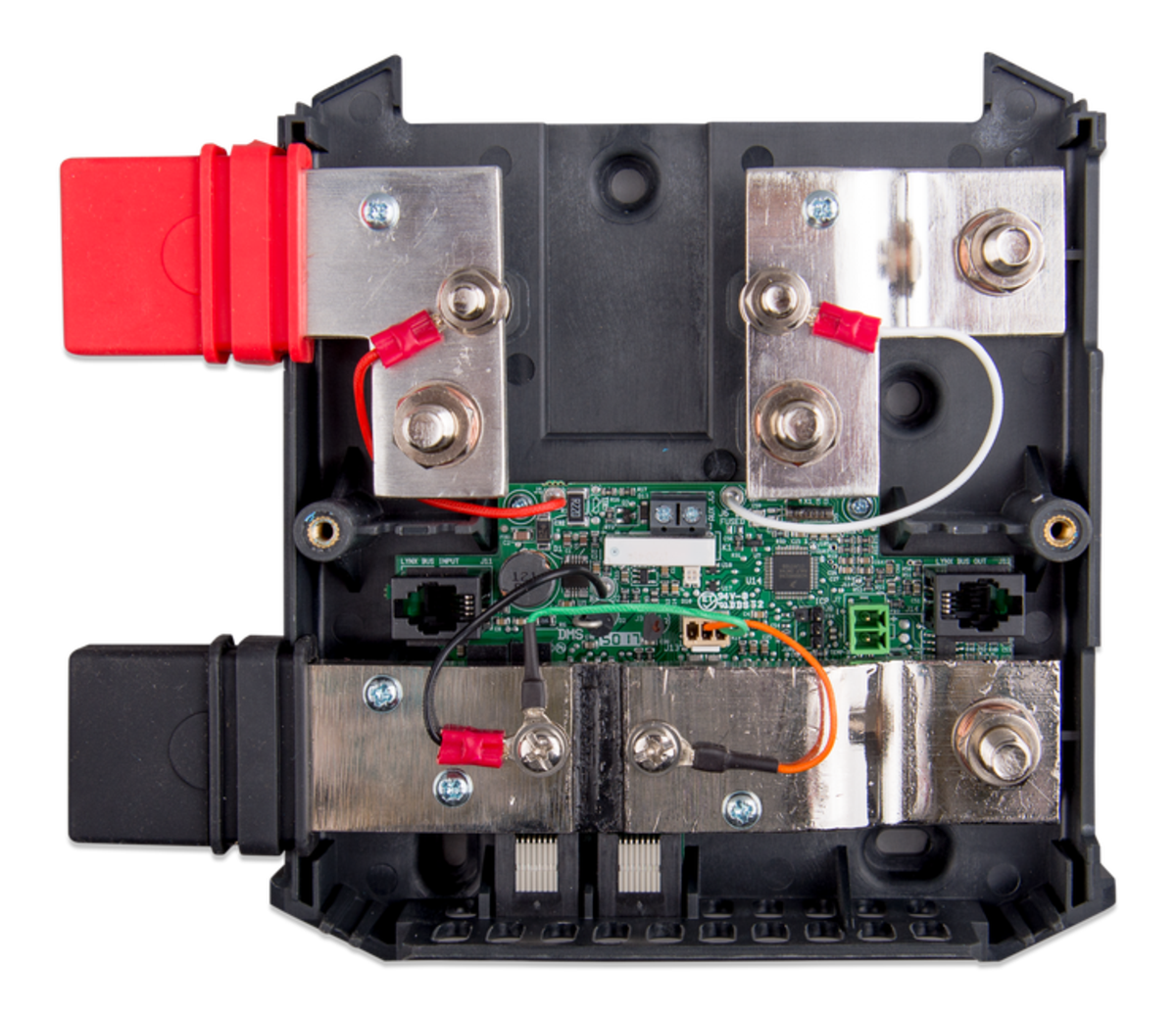

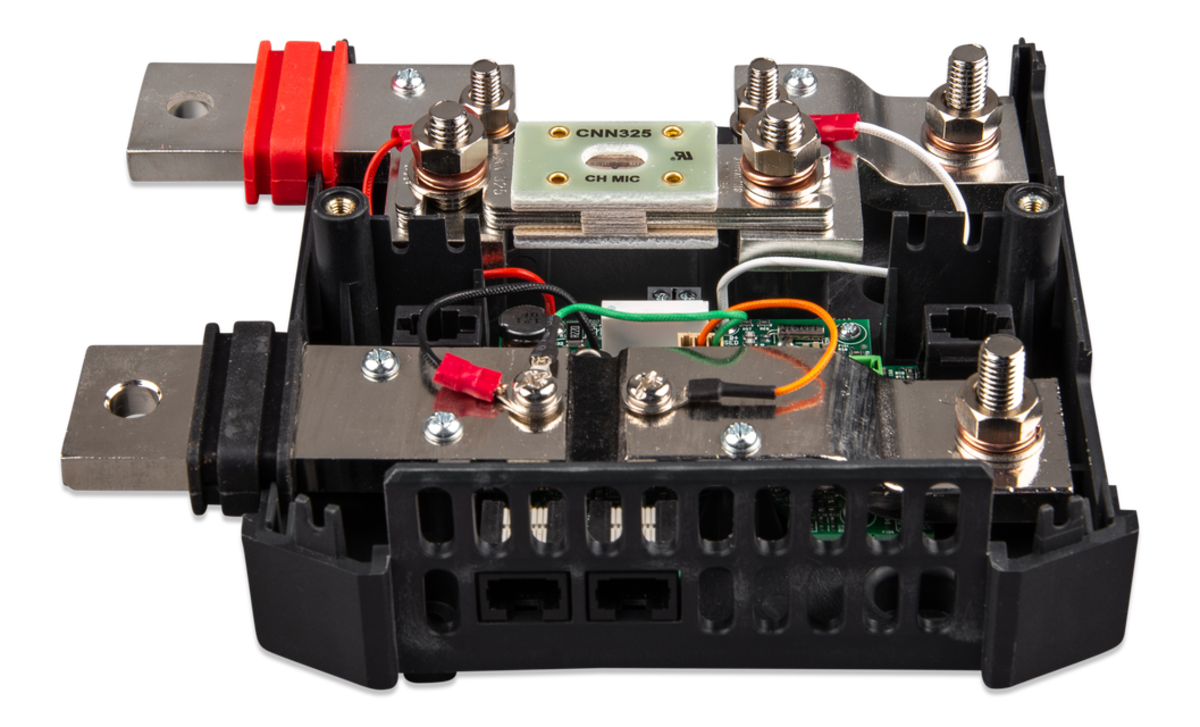

• Busbar integrated battery monitoring - The Lynx Shunt VE.Can contains a positive and negative busbar, a battery monitor and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with an GX device. The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, these are used when connecting to a GX device. The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately
• The Lynx Distribution System - The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management
• The Lynx Distribution System consist of the following parts: Lynx Power In - A positive and negative busbar with 4 connections for batteries or DC equipment. Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring. Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device. Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal

Specifications

• Dimensions:
  • Enclosure: 190 mm Height x 180 mm Width x 80 mm Depth
  • Busbar: 8 x 30 mm
• Material:
  • Enclosure: ABS
  • Busbar: Tinned Copper
• Supported Voltage Range: 9-70 VDC
• Reverse Polarity Protection: No
• Current Rating: 1000 ADC Continuous
• Power Consumption:
  • 60 mA at 12 V
  • 33 mA at 24 V
  • 20 mA at 48 V
• Potential Free Alarm Contact: 3 A, 30 VDC, 250 VAC
• Busbar Connection: M8
• Fuse Rating: M8
• Communication:
  • VE.Can: RJ45 & RJ45 Terminator
  • Power Supply Connection To Lynx Distributor: RJ10 (RJ10 Cable Included)
• Temperature Sensor: Screw Terminal
• Relays: Screw Terminal
• Operating Temperature: -40 to 60°C
• Storage Temperature: -40 to 60°C
• Humidity: Maximum 95% Condensing
• Enclosure Rating: IP22
• Warranty: 5 Years Limited
• Weight: 1.4 kg

Documents

• Specification Sheet

• Warranty Information

What is the Victron Lynx Shunt?

The Victron Lynx Shunt is a highly specialized device designed to deliver accurate battery current measurement and detailed monitoring for energy systems. Featuring an integrated VE.Can connection and M8 terminals, this shunt streamlines the process of measuring battery charge and discharge currents. Its precise construction caters to users needing reliable data for battery management in marine, automotive, or off-grid solar applications. With easy integration into the Victron ecosystem, the Lynx Shunt ensures consistent performance and risk-free installation, making it essential for informed power system supervision.

Key Features and Benefits

The Victron Lynx Shunt combines robust hardware and advanced communication features, including a VE.Can interface allowing seamless data transfer to compatible Victron devices, such as battery monitors and inverters. The M8 bolt connection enhances durability and stable electrical contact. Additionally, it supports high current rating and low resistance to minimize power loss while maximizing data accuracy. Its modular design allows flexibility in system setup, ensuring battery health and operational safety. This shunt is built for both professional technicians and hobbyists who seek dependable energy tracking solutions.

Applications and Integration

Ideal for various energy storage systems, the Victron Lynx Shunt is commonly employed in solar power installations, marine vessels, RVs, and industrial setups. It integrates flawlessly with Victron’s Lynx Distribution Busbar system, providing a centralized monitoring hub. The VE.Can connectivity facilitates networked communication, enabling real-time data visualization on compatible Victron monitoring platforms. This device thus supports enhanced energy management decision-making, helping users extend battery life and optimize system efficiency. Its straightforward installation and wide compatibility make it a staple component in cutting-edge battery management solutions.
