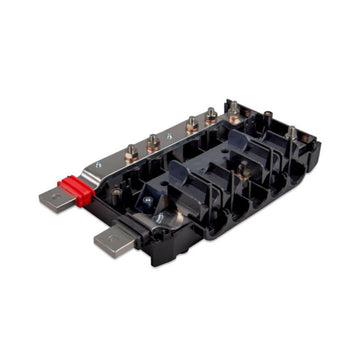

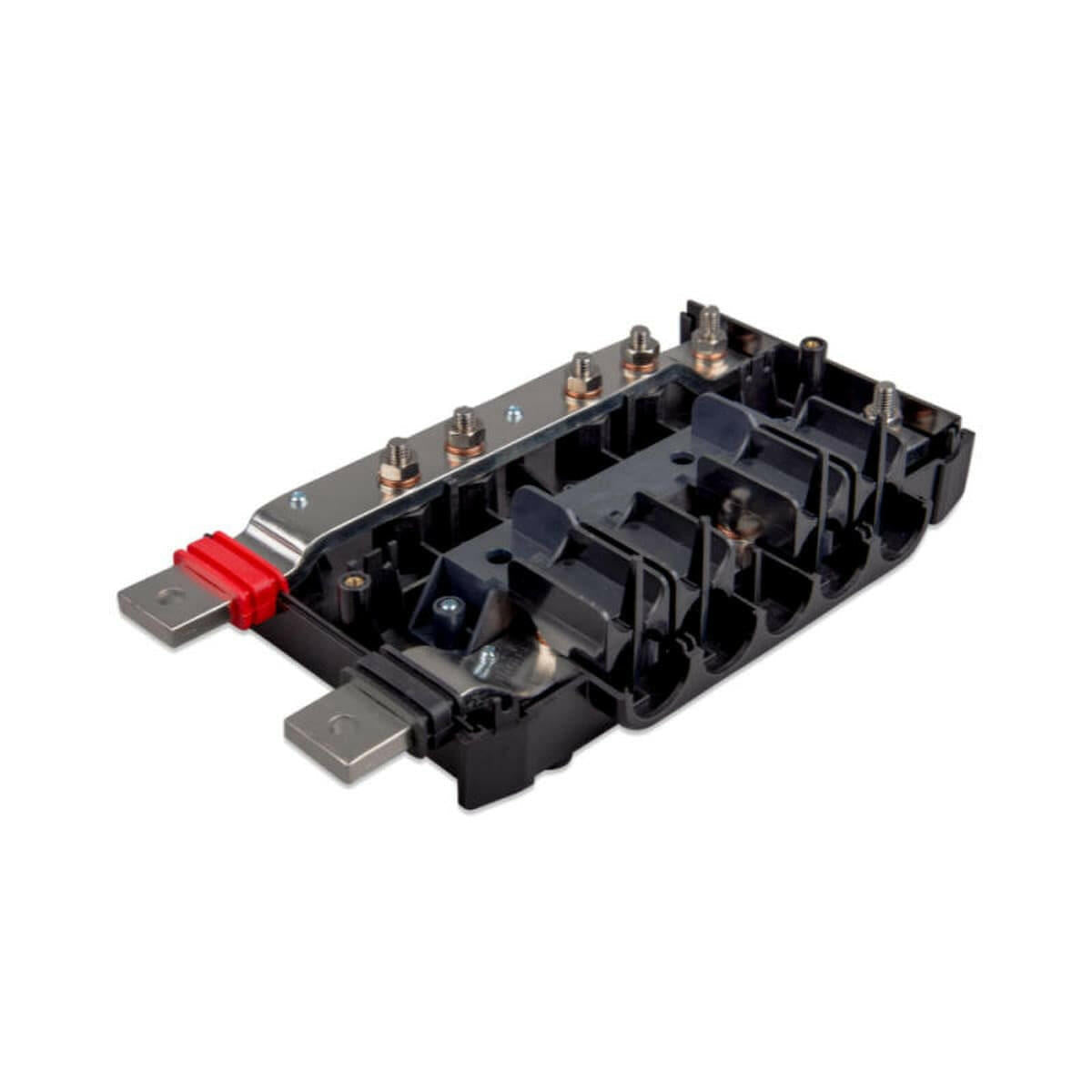

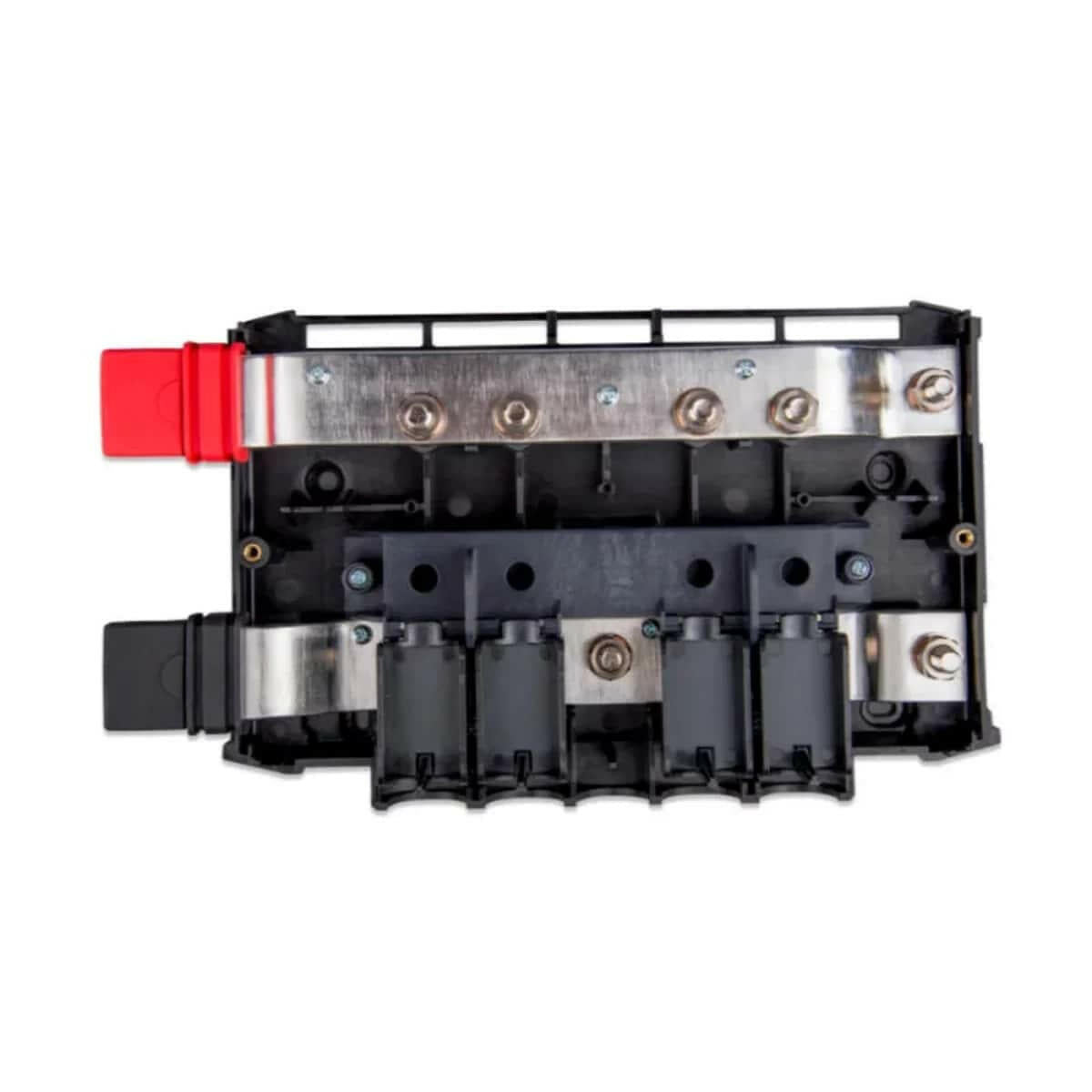

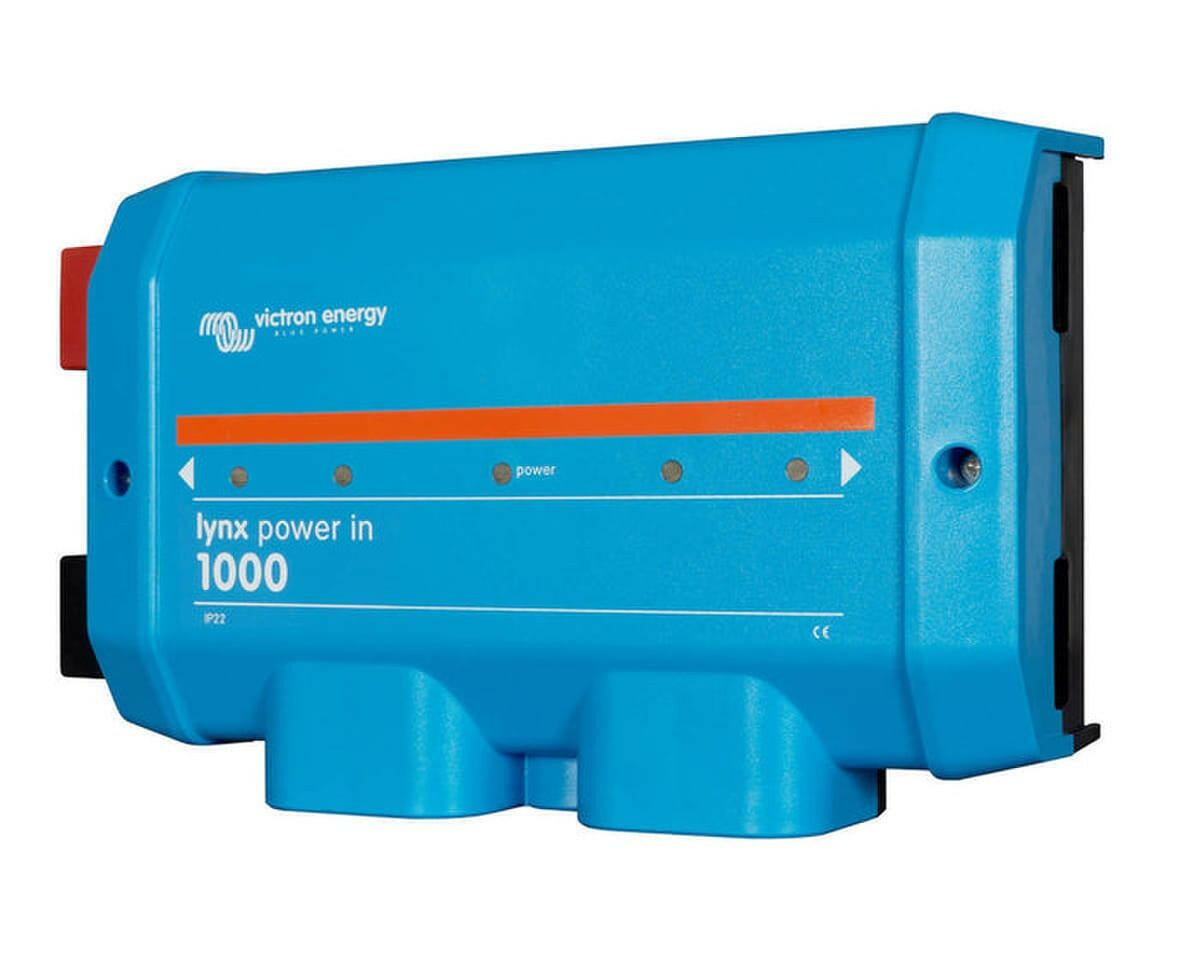

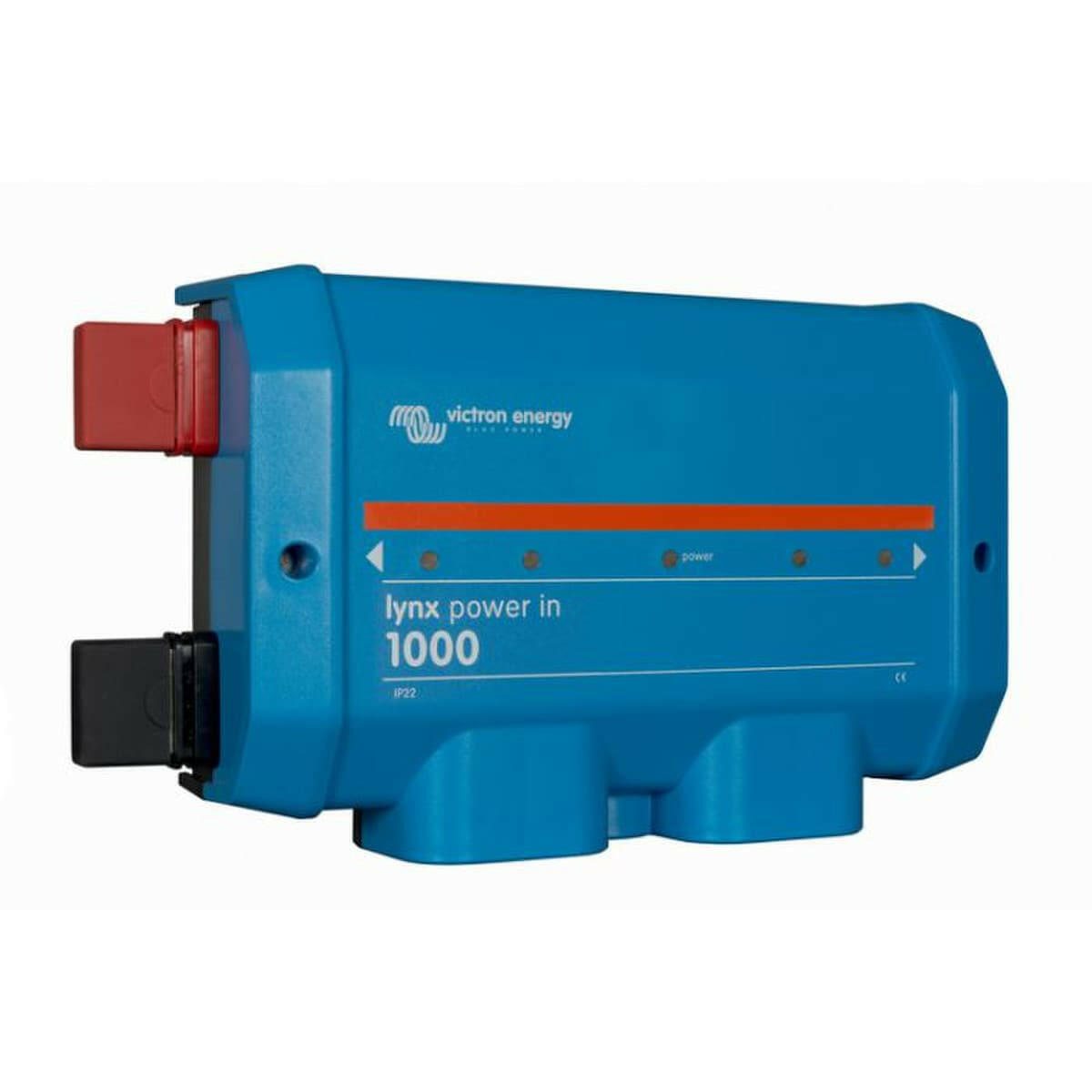

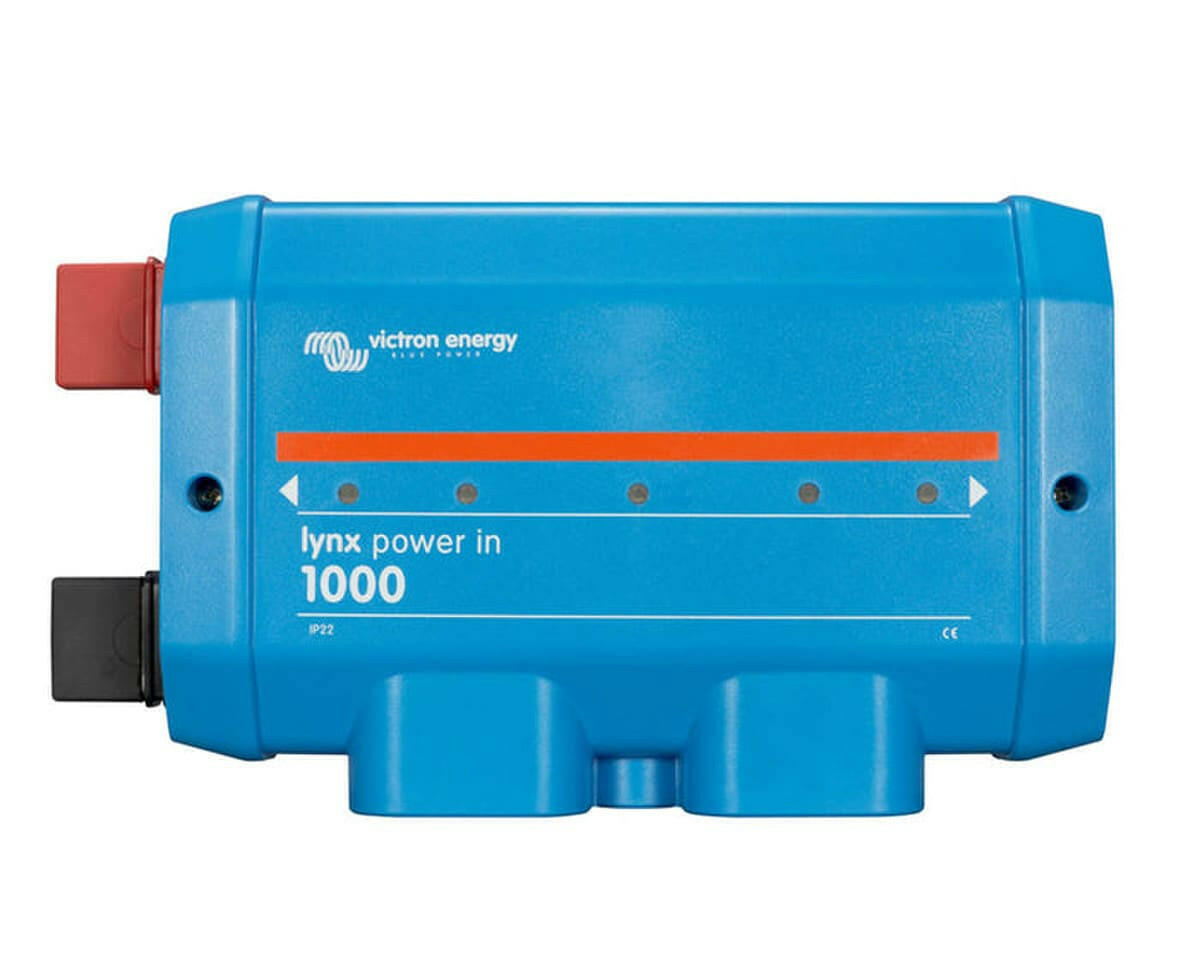

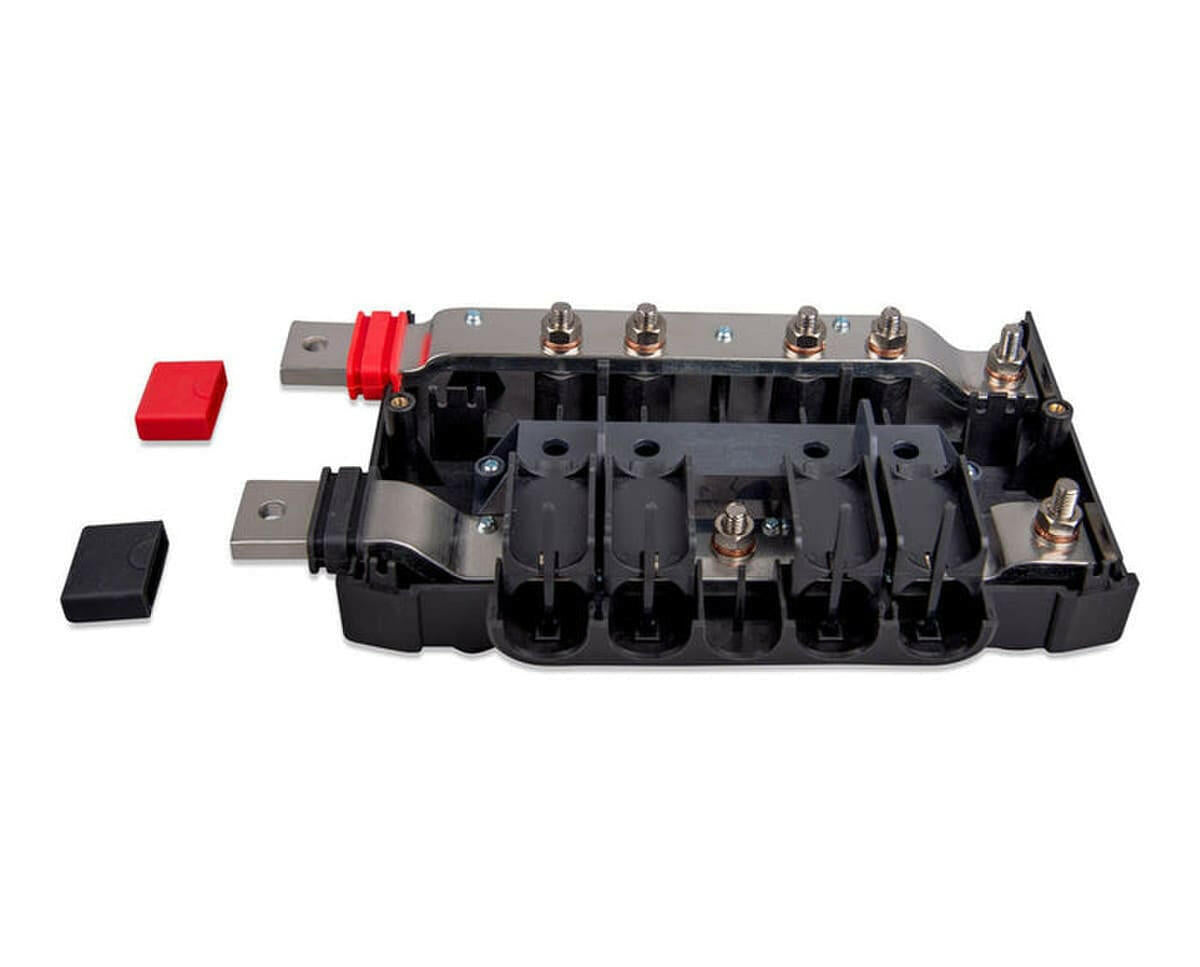

Victron Lynx Power In (M8) (SKU Part Number LYN020102000)

Explore the Features of Victron Lynx Power In

A modular DC bus bar, used to connect batteries to the Lynx DC distribution system. The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. It is part of the Lynx Distribution system and is available in two versions, with M8 or M10 busbar. Note that M10 refers to the busbar connection joints where the modules are connected to each other. The fuse and cable connections are always M8.

Specifications

• Dimensions:

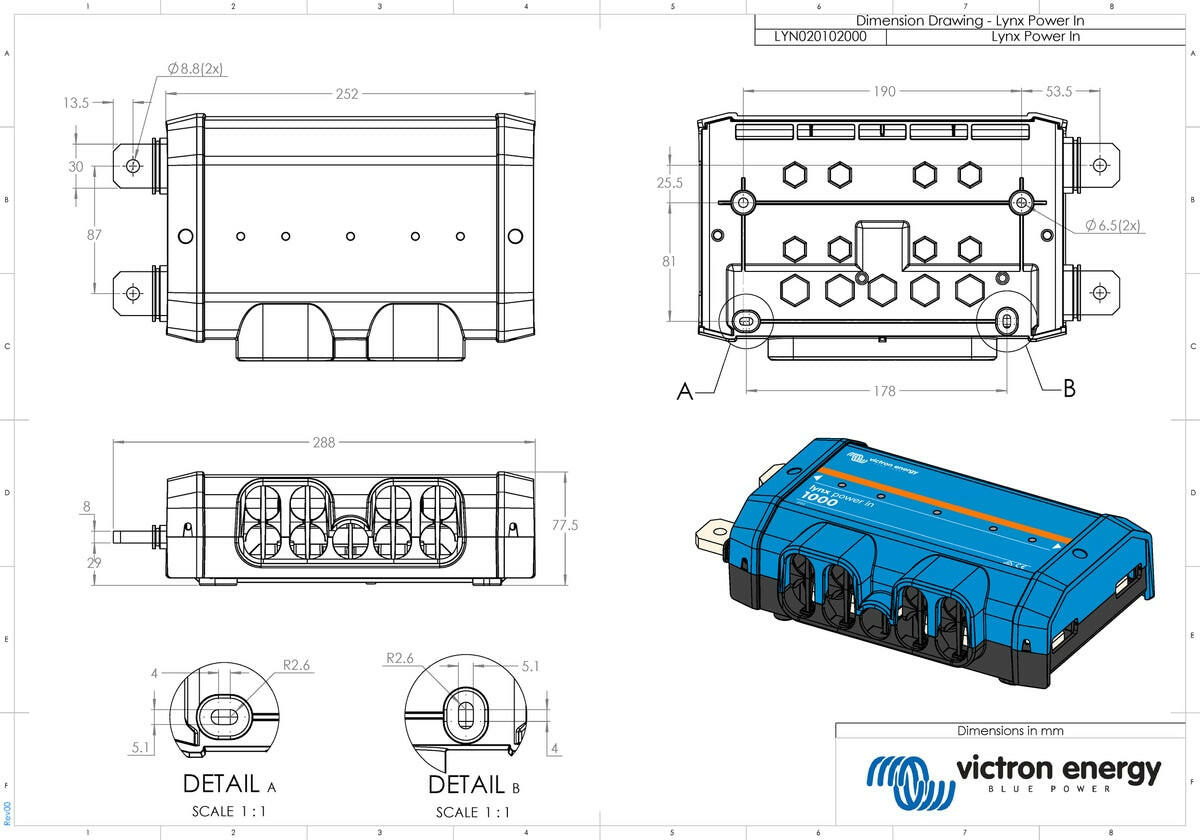

  • Enclosure: 290 mm (Height) × 170 mm (Width) × 80 mm (Depth)
  • Busbar: 8 × 30 mm
• Material:
  • Enclosure: ABS
  • Busbar: Tinned Copper
• Supported Voltage Range: 9-60 VDC
• Supported System Voltages: 12-24 V or 48 V
• Current Rating: 1000 ADC Continuous
• Busbar Connection: M8
• Operating Temperature: -40 to 60°C
• Storage Temperature: -40 to 60°C
• Humidity: Maximum 95% Condensing
• Enclosure Rating: IP22
• Warranty: 5 Years Limited
• Weight: 2.1 kg


Documents

• Warranty Information

Overview of Victron Lynx Power In

The Victron Lynx Power In

is a high-quality power distribution unit designed to streamline and secure your electrical setup. Developed by Victron Energy, this product offers a sturdy M8 connection ideal for handling high-current inputs efficiently. Perfect for marine, automotive, and off-grid applications, the Victron Lynx Power In allows seamless integration with Lynx panels to optimize power management. Its robust construction ensures durability and reliable performance in demanding environments.

Key Features and Specifications

The Victron Lynx Power In provides multiple safety and performance features. It boasts a flexible M8 bolt connection to support powerful current flows without risk, built-in circuit protection to prevent overloads, and easy installation capability. The device is designed with modularity in mind, making it compatible with other Lynx components. This unit ensures optimal electrical distribution while minimizing potential hazards, contributing to enhanced system uptime and a safer energy environment.

Benefits of Using Victron Lynx Power In

Integrating the Victron Lynx Power In into your electrical system enhances efficiency and reliability. Its precision engineering allows for reduced voltage drops and improved power flow, which extends battery life and protects connected appliances. Additionally, its compact design saves space and simplifies wiring complexity. With great adaptability across different types of installations, this product not only boosts safety but also lowers maintenance demands, making it an essential choice for professionals looking to optimize their power distribution networks.
