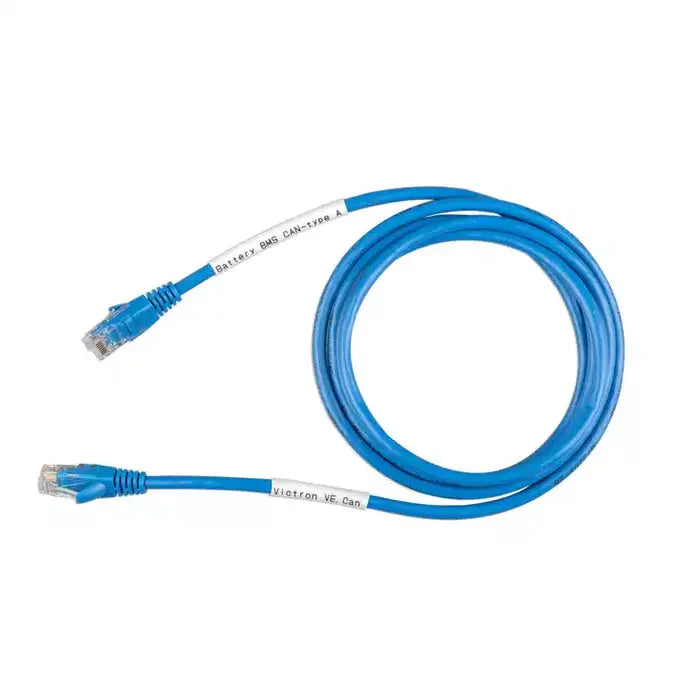

Victron Energy VE.Can to CAN-bus BMS Type A Cable 5M

Victron Energy VE.Can to CAN-bus BMS Type A Cable 5M

Use this cable to connect a CAN-bus enabled battery (not from Victron) to a Victron system. The Type A cable features the correct pin remapping (pins 4/5 to 7/8) to enable seamless communication between third-party lithium batteries and Victron GX devices such as the Cerbo GX or Ekrano GX.

This is not a standard ethernet cable. The Type A pinout handles the translation between the battery's CAN bus pin positions and Victron's VE.Can or BMS-Can port, so the GX device can read battery voltage, current limits, state of charge (SOC), and temperature directly from the BMS.

Key Features

• Pre-made CAN bus communication cable with correct pin remapping
• Connects third-party lithium batteries to Victron GX devices
• Enables real-time battery monitoring: voltage, current, SOC, and temperature
• Works with DVCC (Distributed Voltage and Current Control) for automated charge control
• 5 meters (approx. 16.4 ft) in length for flexible installation
• RJ45 to RJ45 connector with Type A pin remapping

Specifications

• Part Number (MPN): ASS030710150
• SKU: DD-C-VICTRON-5M
• Cable Type: VE.Can to CAN-bus BMS Type A
• Connection: RJ45 to RJ45 with Type A pin remapping
• Length: 5 meters (16.4 ft)
• Weight: 0.23 kg
• Plugs into: VE.Can or BMS-Can port on GX device
• GTIN: 08719076071617

Compatible Batteries

Works with batteries using the Pylontech CAN protocol (or compatible variants) with CAN signals on RJ45 pins 4/5, including:

• EG4 LL-S 48V
• EG4 LL 24V & 12V
• EG4 Wallmount 48V
• Pytes V5 48V
• SOK 48V SK48v100
• BYD Batteries
• Other batteries using Pylontech CAN protocol

Compatible GX Devices

• Victron Cerbo GX / Cerbo GX MK2
• Victron Ekrano GX
• Any Victron GX device with VE.Can or BMS-Can port

Type A vs. Type B

Victron makes two BMS-CAN cables. Type A remaps pins 4/5 to 7/8. Type B remaps a different pin configuration. Which cable you need depends on where your battery manufacturer placed the CAN signals on its RJ45 connector. Check your battery's documentation to confirm Type A or Type B.

Warranty

Victron Energy provides a 5-year standard warranty on this product. For warranty claims, contact your original Victron dealer or visit victronenergy.com/support/warranty-and-repairs.

Documentation

• VE.Can to CAN-bus BMS Cable Manual
• Declaration of Conformity
