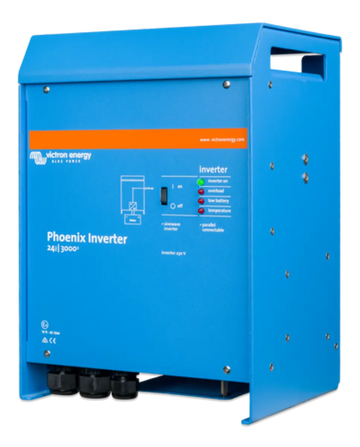

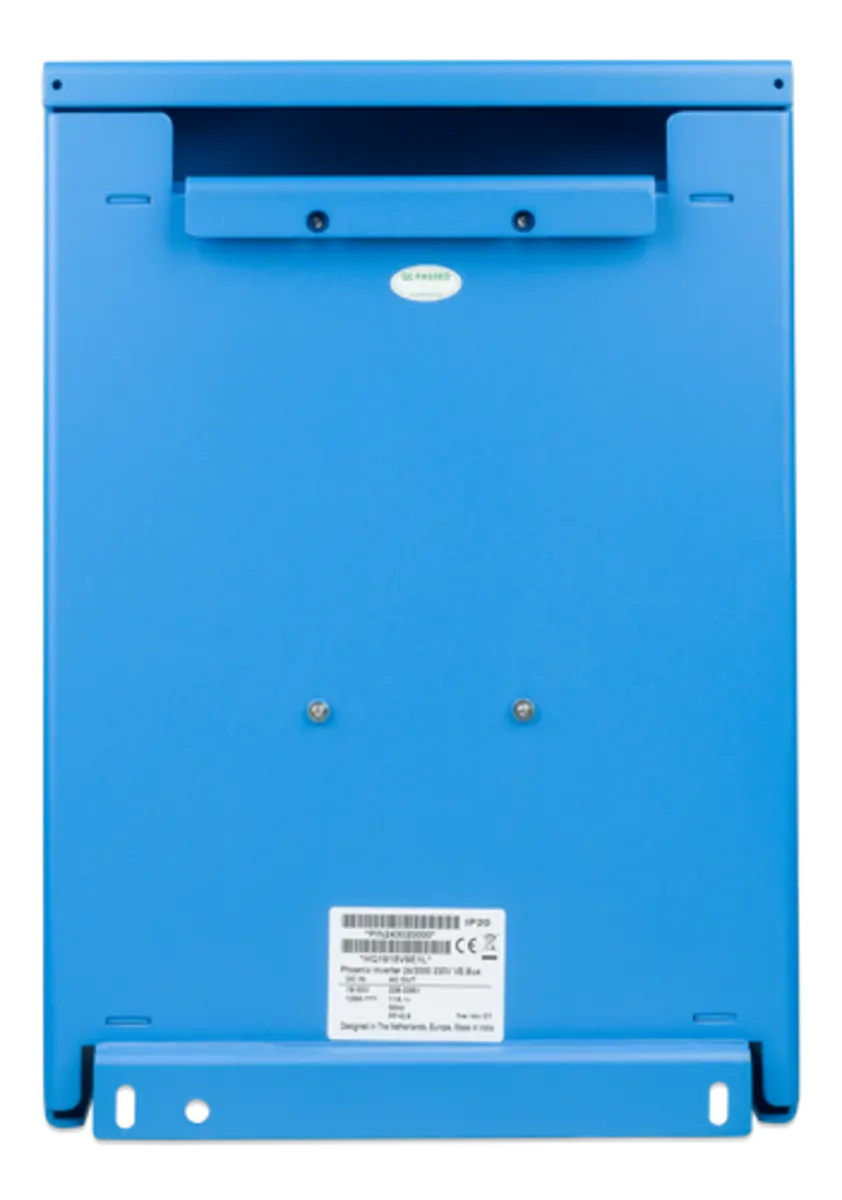

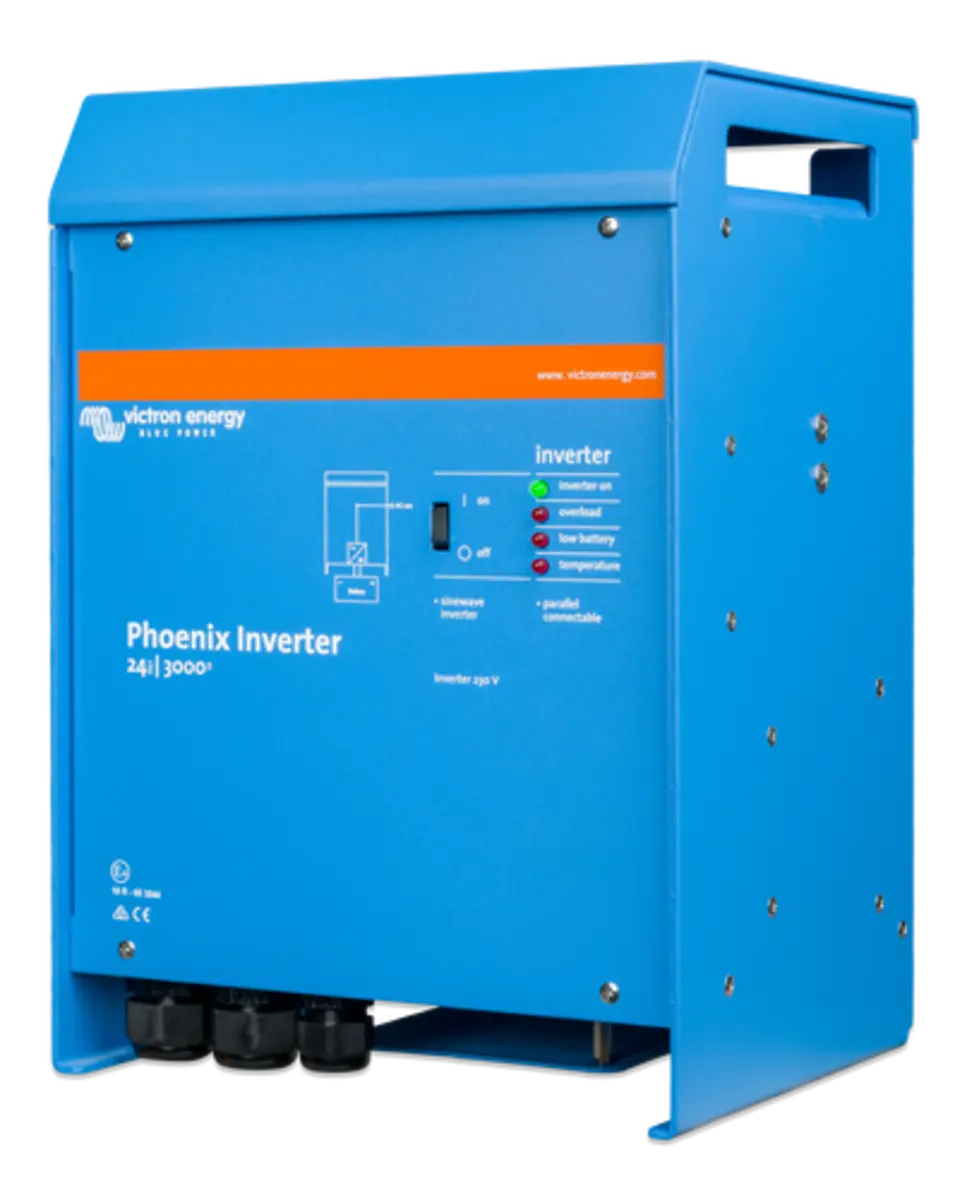

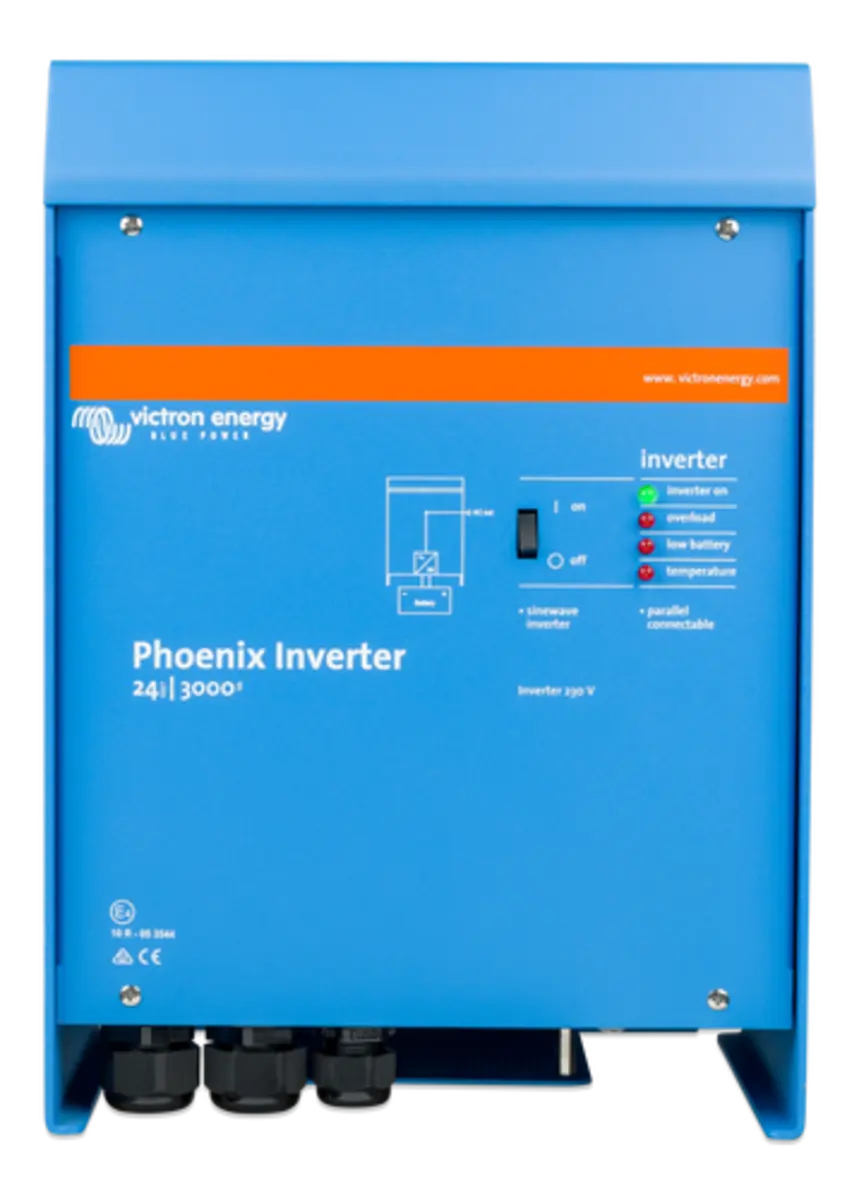

Victron Energy Phoenix 24/3000 120V Inverter

Comprehensive Overview of the Victron Energy Phoenix Inverter

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

Features

• SinusMax - Superior engineering - Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load
• Extra start-up power - A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances
• Virtually unlimited power thanks to parallel 3-phase and split phase operation capability - Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/3000 units, for example, will provide 15 kW/18 kVA output power. Operation in 3-phase or split phase configuration is also possible
• To transfer the load to another AC source: the automatic transfer switch - If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds)
• Communications interface - These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3- USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software, which can be downloaded free of charge from our website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control
• New applications of high power inverters - The possibilities of paralleled high power inverters are truly amazing. For ideas, examples and battery capacity calculations please refer to our book 'Energy Unlimited'
• VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
• Phoenix Inverter Control - This panel can also be used on a MultiPlus inverter/charger when an automatic transfer switch but no charger function is desired. The brightness of the LEDs is automatically reduced during night time
• BMV Battery Monitor - The BMV Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms, like Peukert's formula, to exactly determine the state of charge of the battery. The BMV selectively displays battery voltage, current, consumed Ah or time to go. The monitor also stores a host of data regarding performance and use of the battery
• Computer controlled operation and monitoring several interfaces are available: Color Control GX Provides monitor and control. Locally, and also remotely on the VRM Portal, MK3-USB VE.Bus to USB interface connects to a USB port (see 'A guide to VEConfigure'), VE.Bus to NMEA 2000 interface Connects the device to a NMEA2000 marine electronics network


Specifications

• Width: 258 mm
• Height: 362 mm
• Depth: 218 mm
• Material: Aluminum
• Color: Blue (RAL 5012)
• Continuous Power at 25°C: 3000 VA
• Continuous Power at 25/40°C: 2400/2200 W
• Continuous Power at 65°C: 1700 W
• Peak Power: 6000 W
• DC Input Voltage: 19-33 V
• Output AC Voltage: 120 VAC ±3%
• Output AC Frequency: 60 Hz ±0.1%
• Leisure/Battery Voltage Rating: 24 VDC
• Maximum Efficiency: 93%
• Zero-Load Power: 20 W
• Zero-Load Power in AES Mode: 15 W
• Zero-Load Power in Search Mode: 8 W
• Protection: A-G

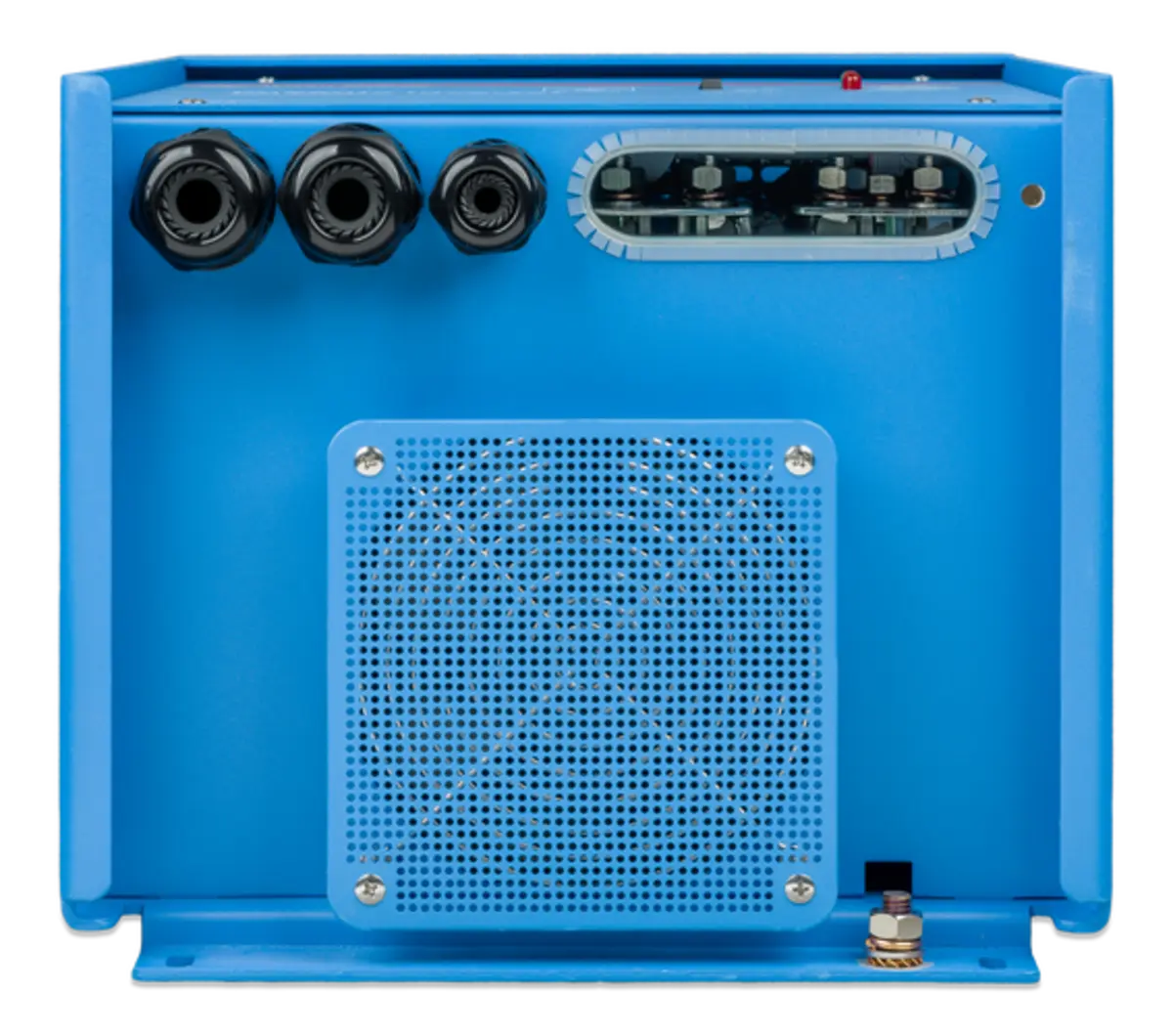

• Battery Connection: 2+2 M8 Bolts
• Operating Temperature: -40 to 65°C (Fan Assisted Cooling)
• Humidity (Non-Condensing): Max 95%
• Remote On/Off: Yes
• Parallel 3-Phase and Split-Phase Operation: Yes
• Programmable Relay: Yes
• 120 VAC Connection: Screw Terminals
• Standards: EN 60335-1, EN 55014-1/EN 55014-2, TUV, ETL Listed, PV Cycle, MCS, IEC, UL
• Warranty: 5 Years Limited
• Weight: 38 lb


Documents

• Specification Sheet
• Instruction/Installation Manual

• Warranty Information

Powerful and Efficient Performance

The Victron Energy Phoenix inverter delivers reliable and powerful performance tailored for off-grid and backup power needs. Designed with a 24V input and 3000VA output capacity, this inverter ensures a steady 120V AC output, ideal for running household appliances, tools, and other sensitive electronics. Its pure sine wave output guarantees compatibility and smooth operation even for devices sensitive to power fluctuations. With high efficiency and robust design, the Victron Energy Phoenix inverter supports energy conversion with minimal losses, maximizing battery life and overall system uptime. This makes it a perfect choice for RVs, boats, and remote applications.

Advanced Safety and Protection Features

Safety is a paramount feature of the Victron Energy Phoenix inverter. It incorporates multiple protection mechanisms such as over-temperature shutdown, overload protection, and short-circuit prevention to ensure long-term durability. These safety features protect both the inverter and connected devices from potential damage caused by electrical faults. Additionally, the unit’s intelligent design includes automatic power derating in harsh conditions, allowing continued operation without risking damage. This makes the inverter highly dependable, offering peace of mind when powering critical devices in off-grid locations or during power outages.

Flexible Integration and User-Friendly Operation

This Victron Energy Phoenix inverter offers flexible installation options to suit various setups. Its compact and rugged build enables easy mounting in confined spaces, while allowing seamless integration with solar charge controllers and battery management systems. The inverter also supports remote monitoring and system control through Victron’s dedicated software, enhancing user convenience and management efficiency. Its straightforward interface and clear LED indicators make operation simple even for those new to power inverter technology. All these features combine to make it a versatile and practical solution for reliable power conversion in diverse environments.
