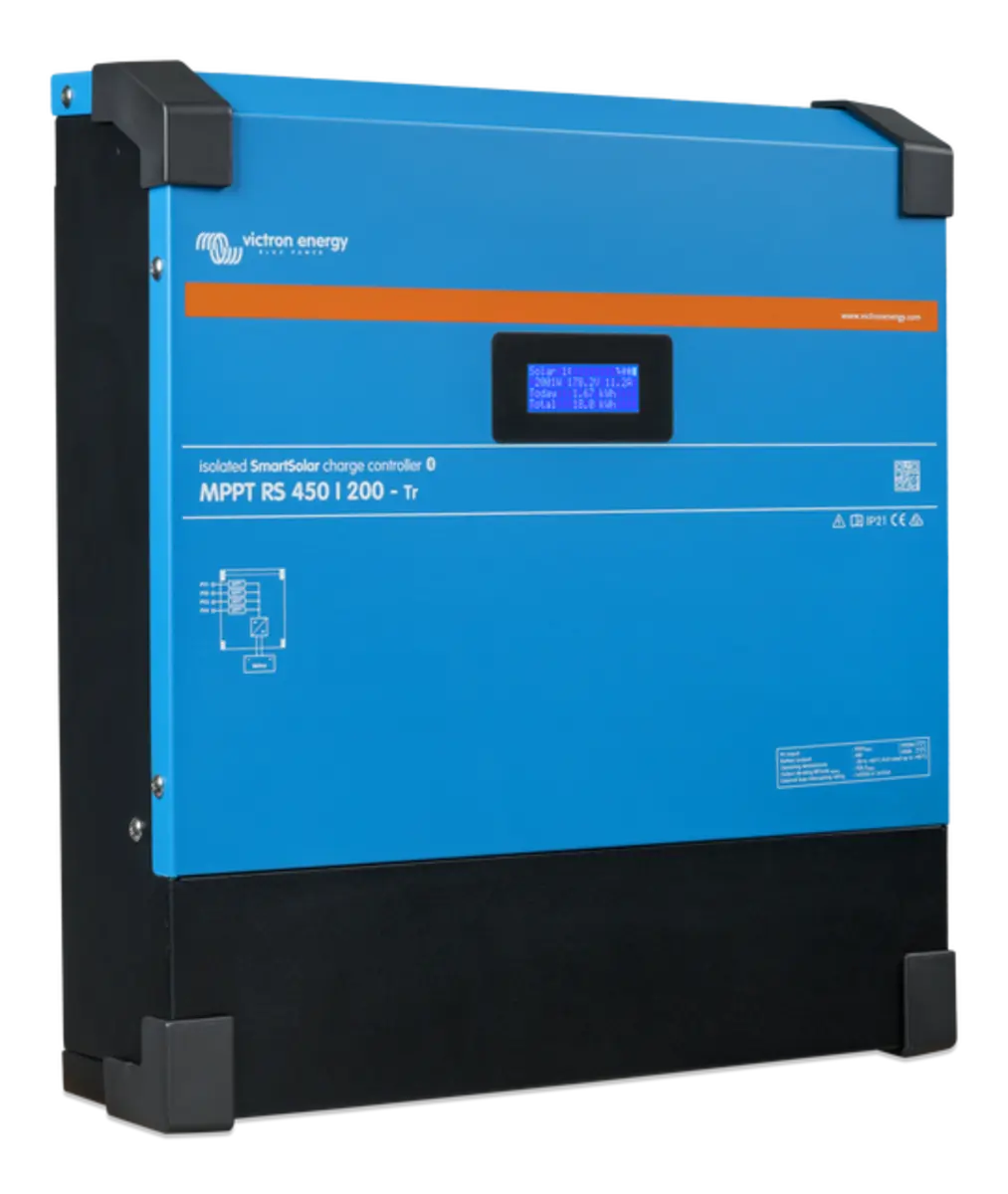

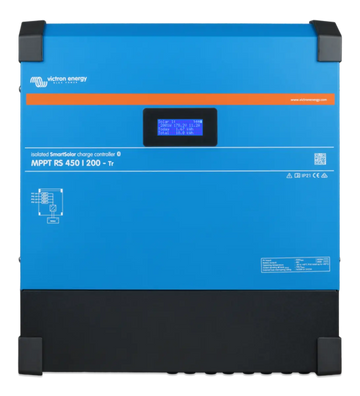

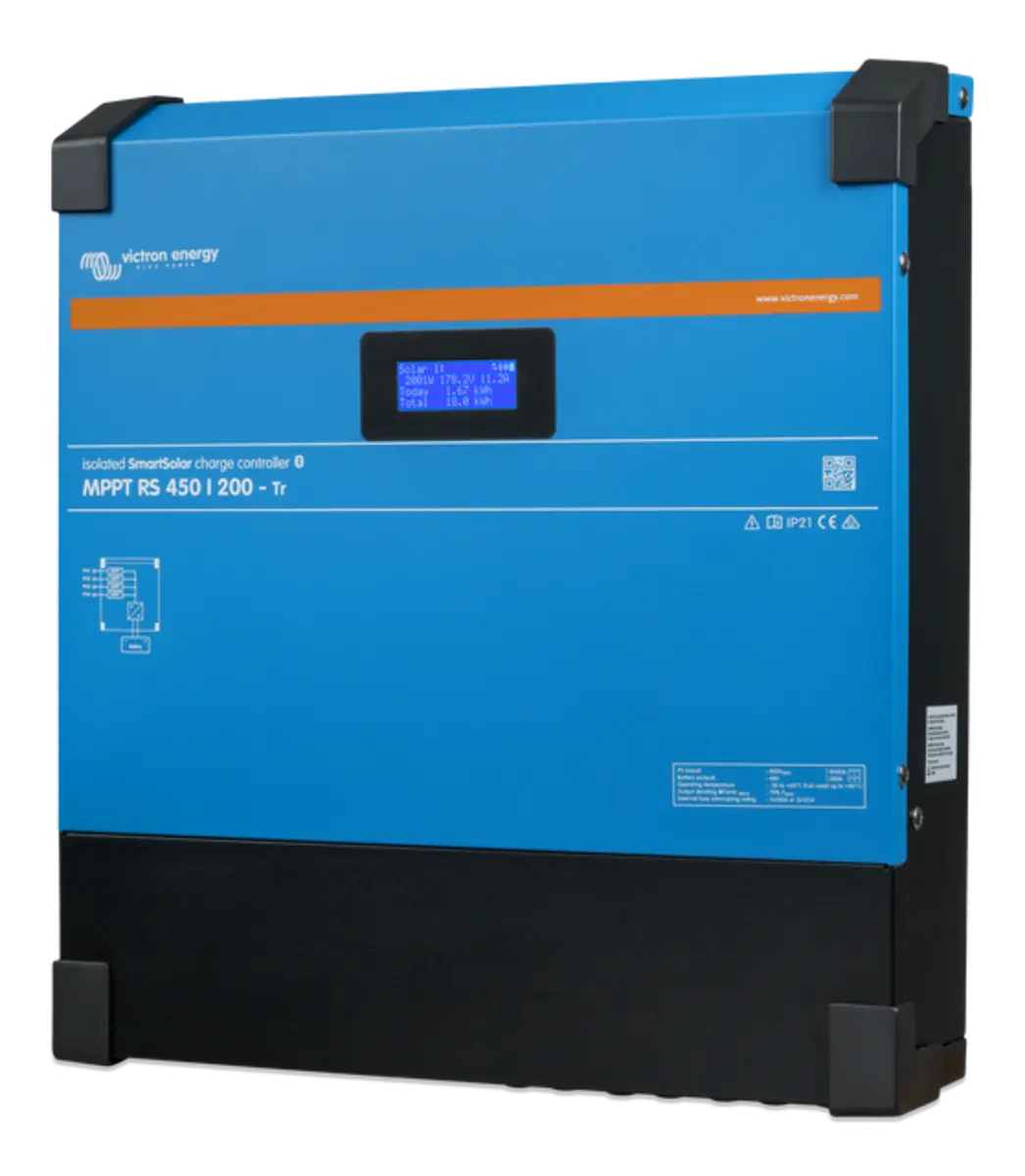

Victron Energy SmartSolar RS 450/200-Tr MPPT Solar Charge Controller

Victron Energy SmartSolar RS 450/200-Tr MPPT Solar Charge Controller

The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems. features include a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernize the presentation in line with the latest suite of Victron products.

Features

• MPPT: Ultra fast maximum power point tracking, the MPPT VE - The SmartSolar RS solar charge controller connects to a PV array of between 80 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A
• The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more
• Setup and monitor with VictronConnect - The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect App
• This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends
• Daisy chain additional units -The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable be
• When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device
• Remote monitoring and control - If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers
• If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free, For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

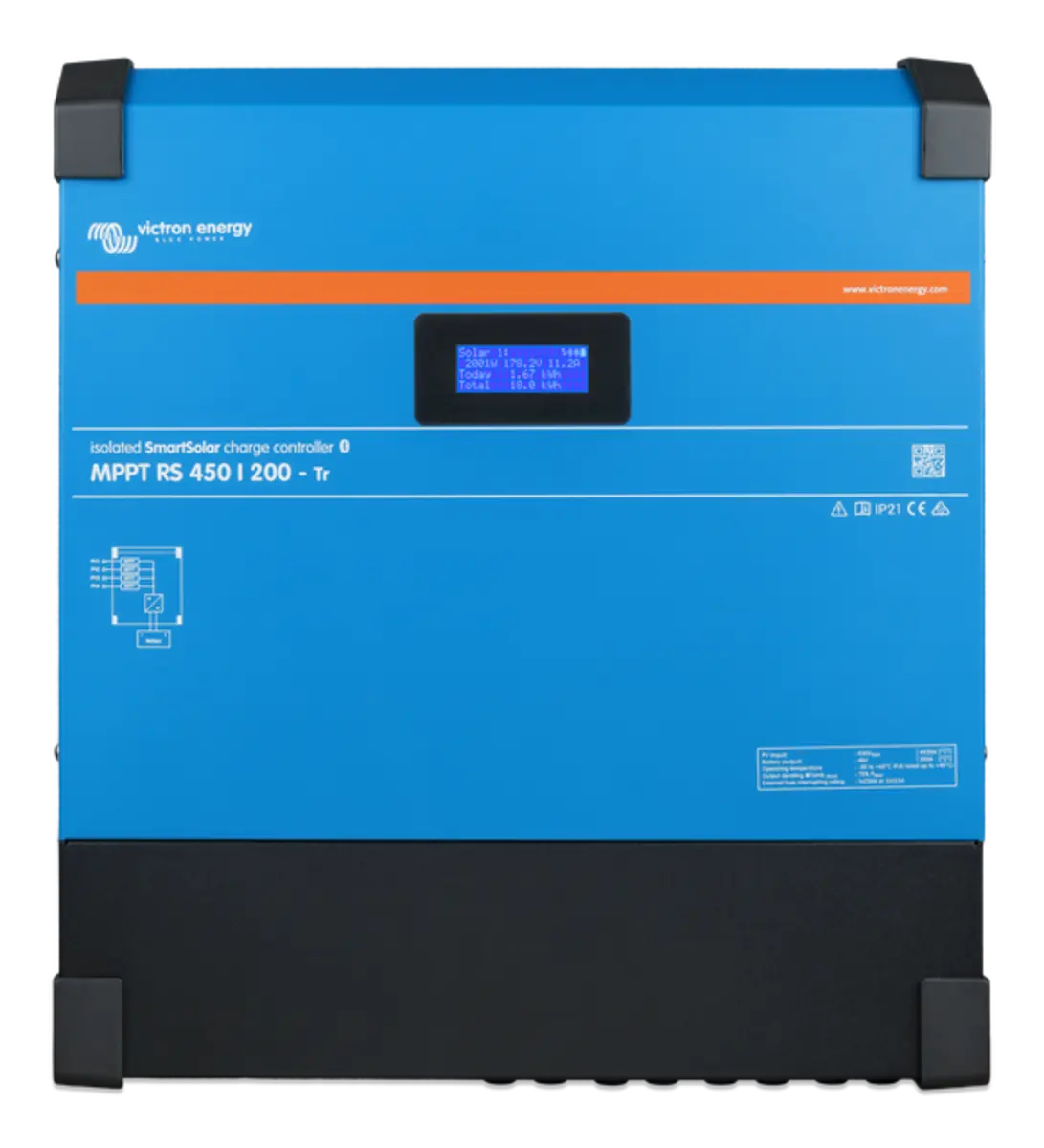

• SmartSolar control display - The SmartSolar RS charge controller is equipped with a display on the front panel, The display reads battery volts, charge current and voltages from both array's individually including instantaneous and total figures and unit status including any possible error codes
• I/O connections - The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals


Specifications

• Type: MPPT
• Series/Model: RS 450/200-Tr
• Battery Voltage: 48 V
• Battery Temperature Sensor: Included
• Enclosure Rating: IP21
• Maximum PV Open Circuit Voltage:
  • 250 V (Absolute Maximum Coldest Conditions)
  • 245 V (Start-Up and Operating Maximum)
• Operating Temperature: -40 to 60°C (Fan Assisted Cooling)
• Self-Consumption:
  • <35 mA at 12 V
  • <20 mA at 48 V
• Humidity: 95% (Non-Condensing)
• Material: Steel
• Maximum PV Short Circuit Current: 70 A
• Nominal PV Power:
  • 24 V: 2900 W
  • 36 V: 4350 W
  • 48 V: 5800 W
• Charge Current Rating: 200 A
• Protection:
  • PV Reverse Polarity
  • Output Short Circuit
  • Over Temperature
• Absorption Charge: 57.6 V (Adjustable)
• Peak Efficiency: 98%
• Self-Consumption - Load Off: 15 mA
• Charging Algorithm: Multi-Stage Adaptive (Adjustable)
• Data Communication:
  • VE.Direct Port
  • VE.Can Port
  • Bluetooth (6)
• Color: Blue (RAL 5012)
• Remote On/Off: Yes
• Programmable Relay: Yes
• Maximum Charge Power: 11.5 kW at 57.6 V
• Programmable Voltage Range: 36-60 V
• Maximum DC PV Voltage: 450 V
• Start-Up Voltage: 120 V
• MPPT Operating Voltage Range: 65-450 V
• Number of Trackers: 4
• Maximum PV Operational Input Current: 18 A per Tracker
• Maximum DC Output Charging Power:
  • 4000 W per Tracker
  • 11,520 W Total
• Maximum PV Array Size per Tracker: 7200 Wp (450 V x 20 A)
• PV Isolation Fail Level: 100 kohm
• Synchronized Parallel Operation: Yes, up to 25 units with VE.Can

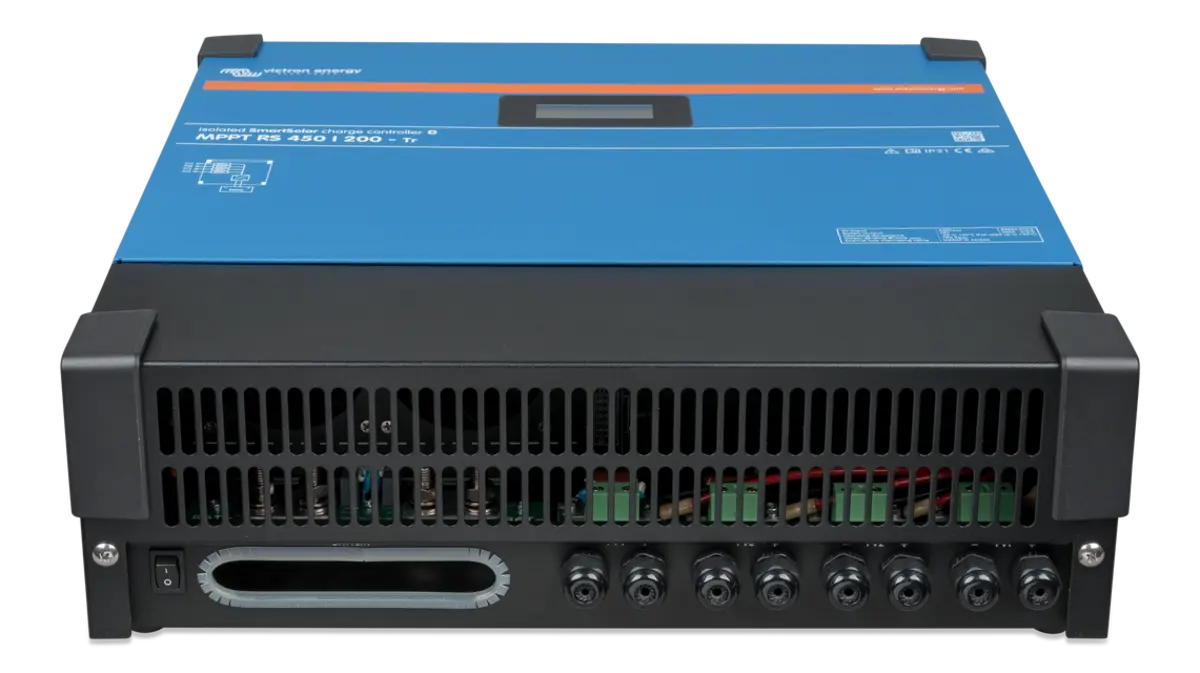

• Power Terminals PV Input (-Tr Version): 4 mm²
• Battery Connection: M8 Bolt
• Bluetooth:
  • Frequency: 2402-2480 MHz
  • Power: 4 dBm
• General Purpose Analogue/Digital in Port: Yes, 2x
• Dimensions:
  • Height: 487 mm
  • Width: 434 mm
  • Depth: 146 mm
• Standards: EN-IEC 62109-1, EN-IEC 62109-2
• Weight: 13.7 kg


Documents

• Specification Sheet
• Owners/User Manual


Superior MPPT Technology

The Victron Energy SmartSolar RS 450/200-Tr utilizes advanced Maximum Power Point Tracking (MPPT) technology to optimize solar energy absorption. This means it can adjust its parameters to maximize the solar input, even in less-than-ideal conditions. However, this technology is not just about efficiency; it also prolongs the lifespan of your solar panels and batteries. Using this controller, you can harness more energy from the sun because it dynamically adapts to changes in sunlight and temperature.

Versatile and User-Friendly Design

This solar charge controller is designed with both versatility and ease-of-use in mind. With Bluetooth connectivity, monitoring and controlling your charging system become seamless through a smartphone app. So, whether you're managing solar power for a boat, RV, or off-grid home, this device is suitable for various applications. The intuitive interface allows users to easily access vital information about their battery status and solar energy production, making it accessible for both beginners and experienced users.

Enhanced Safety and Reliability

Safety is paramount when it comes to solar energy systems, and the Victron Energy SmartSolar RS 450/200-Tr does not disappoint. It features multiple built-in protections against overcharging, short circuits, and overheating. As a result, this charge controller ensures that your batteries remain in optimal condition. Because of its robust construction and reliability, you can rely on this product for long-term performance and peace of mind, knowing that your power systems are safe and efficient.
